BL-C34S/4G-A1J-LC3.2: DescriptionSingle Color LED Array, Green, Diffused, T-1, 2.92mm, ROHS COMPLIANT PACKAGE-8; CategoryLED optoelectronic/LED photoelectric; File Size122KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BL-C34S/4G-A1J-LC3.2 Overview

Single Color LED Array, Green, Diffused, T-1, 2.92mm, ROHS COMPLIANT PACKAGE-8

BL-C34S/4G-A1J-LC3.2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	unknown
color	GREEN
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	50.0 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	20.3 mm
method of packing	BULK
peak wavelength	568 nm
shape	ROUND
size	2.92 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	35 deg

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BL-C34S/4G-A1J-LC3.2

●

Features:

1. Chip material: GaP/GaP

2. Emitted color : Green

3. Lens Appearance : Green Diffused

●Package

dimensions

4.5(.177)

4.1(.161)

10.70(.421)

4. Designed for ease in circuit board assembly.

5. Black case enhance contrast ratio.

6. Solid state light source.

7. Reliable and rugged.

8. This product don’t contained restriction

substance, compliance ROHS standard.

5.08(.200)

2.54(.100)

0.5(.020)

SQ.TYP.

3.2 0.5

(.126 .02)

Cathode

5.08(.200)

2.92(.115)

5.08(.200)

20.30(.799)

90

2.54(.100)

4.44(.175)

6.24(.246)

8.14(.320)

5

●

Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

Notes:

2.54(.100) NOM.

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

●

Absolute Maximum Ratings(Ta=25℃)

Parameter

Power Dissipation

Forward Current

Peak Forward Current*

1

Reverse

Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

Symbol

Pd

I

F

I

FP

V

R

Topr

Tstg

Tsol

Rating

80

30

150

5

-40

℃

~80

℃

-40

℃

~85

℃

260

℃

(for 5 seconds)

Unit

mW

mA

V

*

1

Condition for I

FP

is pulse of 1/10 duty and 0.1msec width.

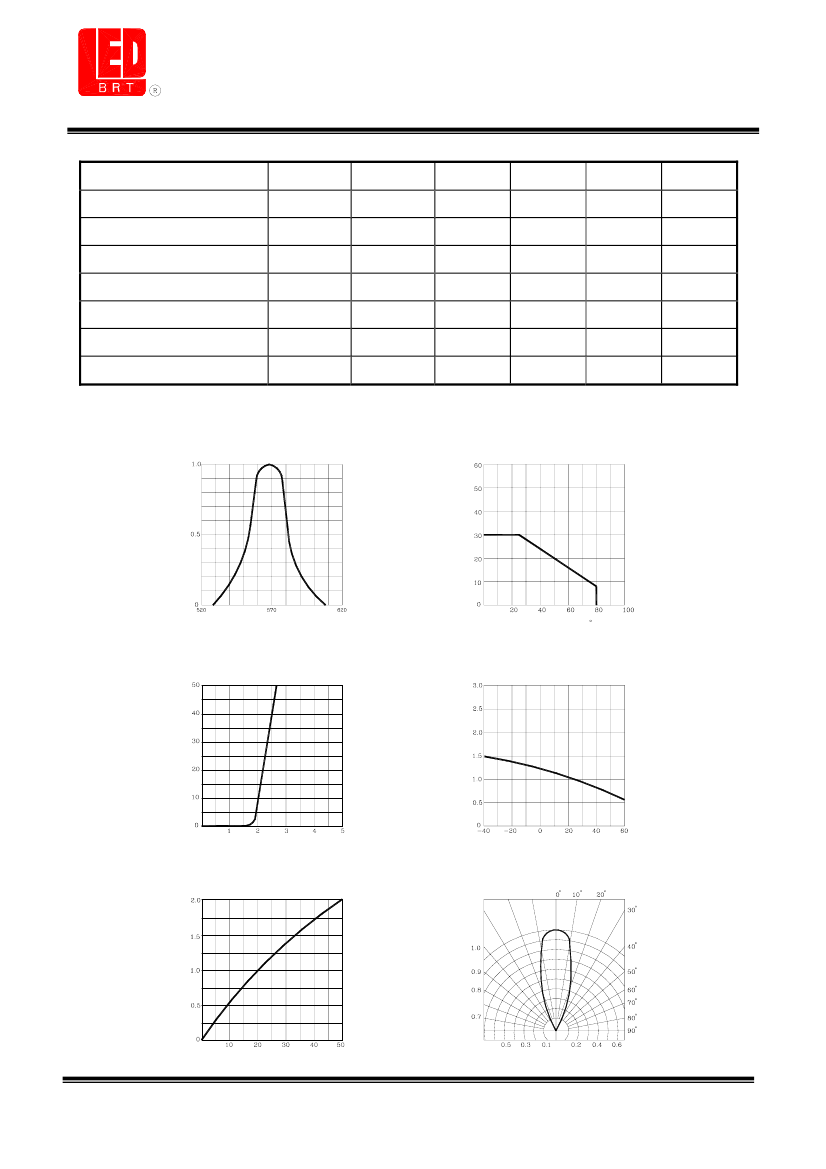

Ver.1.0 Page: 1 of 2
