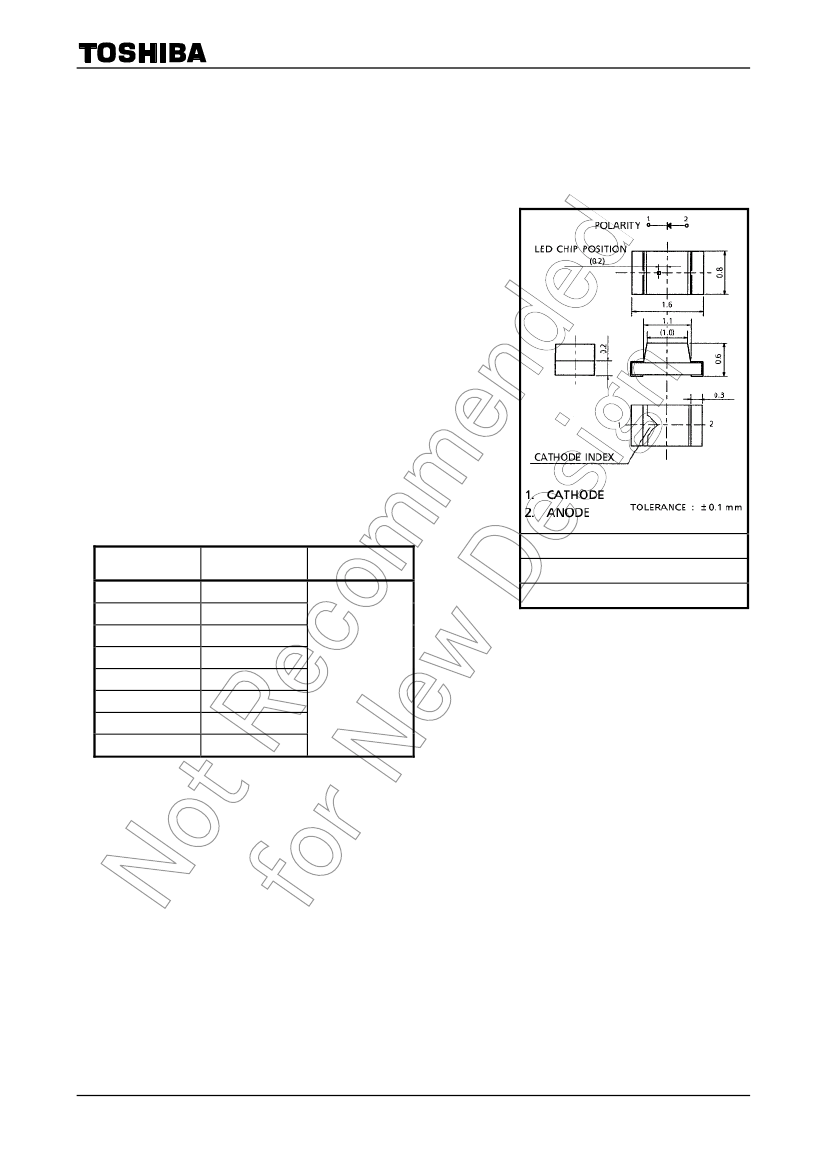

TL(RE,SE,OE,YE,PYE,GE,FGE,PGE)1008A(T04)
TOSHIBA LED Lamps
TLRE1008A(T04), TLSE1008A(T04),
TLOE1008A(T04), TLYE1008A(T04), TLPYE1008A(T04),
TLGE1008A(T04), TLFGE1008A(T04), TLPGE1008A(T04)
Panel Circuit Indicators
•
•
•
•
Surface-mount devices
1.6 (L) mm × 0.8 (W) mm × 0.6 (H) mm
InGaAℓP LEDs
Replacing standard-intensity LEDs with high-intensity ones
helps increase the brightness or reduce the power consumption
of end products.
Colors: red, orange, yellow, pure yellow, green, pure green
Applications:
Backlighting for battery-powered equipment
Pilot lamps for mobile handsets
Low-power electronic equipment, etc.
•
Standard embossed tape packing: T04 (4000/reel)
4-mm tape reel
Unit: mm
•
•
Color and Material
JEDEC
Part Number
TLRE1008A
TLSE1008A
TLOE1008A
TLYE1008A
TLPYE1008A
TLGE1008A
TLFGE1008A
TLPGE1008A
Color
Red
Red
Orange
Yellow
Pure Yellow
Green
Green
Pure Green
InGaAℓP
Material
―
―
4-1C1
JEITA
TOSHIBA
Weight: 0.0013 g (typ.)
1
2008-08-04
TL(RE,SE,OE,YE,PYE,GE,FGE,PGE)1008A(T04)

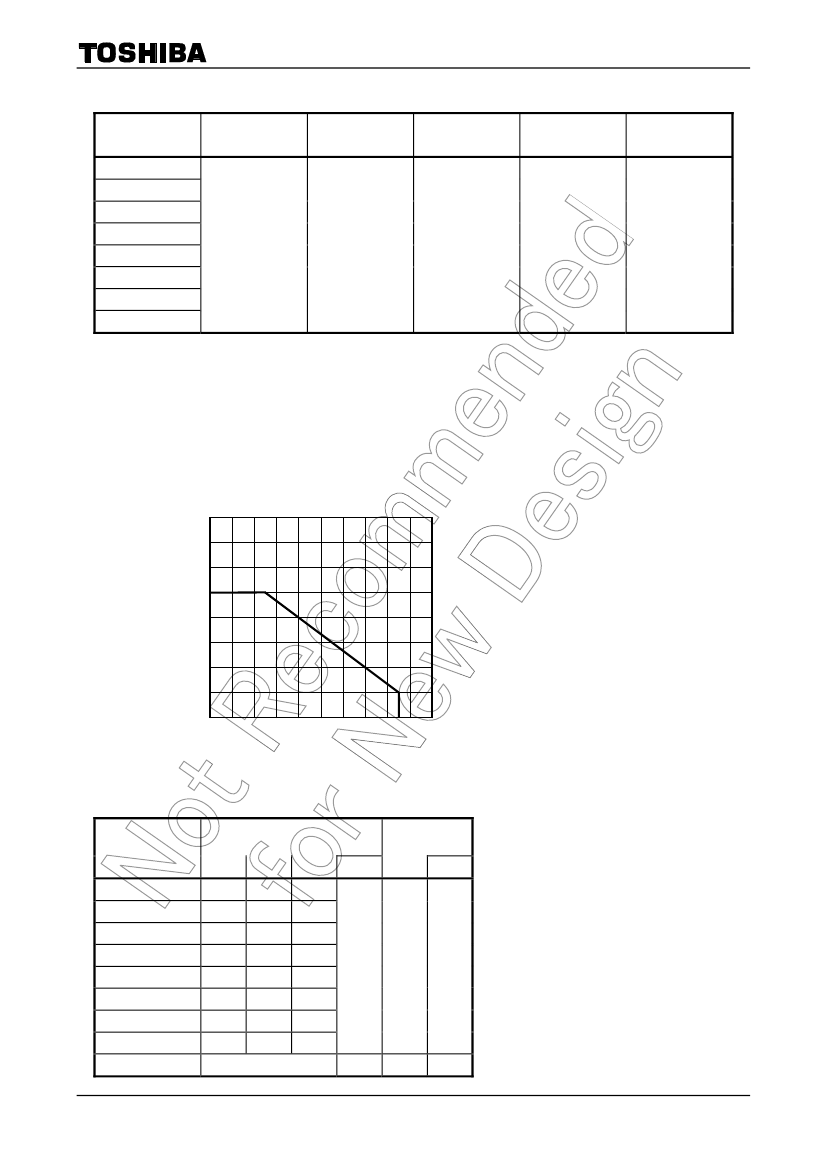

Absolute Maximum Ratings
(Ta
=
25°C)
Part Number
TLRE1008A
TLSE1008A
TLOE1008A
TLYE1008A
TLPYE1008A
TLGE1008A
TLFGE1008A
TLPGE1008A
25
4
60
−40
to 85
−40
to 100
Forward Current
I
F
(mA)
Please see Note 1
Reverse Voltage
V
R
(V)
Power Dissipation
P
D
(mW)
Operation
Temperature
T
opr
(°C)
Storage
Temperature
T
stg
(°C)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: Forward current derating
I
F
– Ta
40
I
F
Allowable forward current
(mA)
30
20
10
0
0
20
40
60
80
100
Ambient temperature
Ta
(°C)
Electrical Characteristics
(Ta
=
25°C)
Part Number
Min
TLRE1008A
TLSE1008A
TLOE1008A
TLYE1008A
TLPYE1008A
TLGE1008A
TLFGE1008A
TLPGE1008A
Unit
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
Forward Voltage V
F
Typ.
1.9
1.9
2.0
2.0
2.0
2.0
2.0
2.1
V
Min
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
mA
μA
V
20
50
4
I
F
Reverse Current
I
R
Max
V
R
2
2008-08-04
TL(RE,SE,OE,YE,PYE,GE,FGE,PGE)1008A(T04)
Optical Characteristics–1
(Ta
=
25°C)
Part Number
TLRE1008A
TLSE1008A
TLOE1008A
TLYE1008A
TLPYE1008A
TLGE1008A
TLFGE1008A
TLPGE1008A
Unit
Luminous Intensity I
V
Min
27.2
47.6
47.6
27.2
27.2
27.2
15.3
4.76
mcd
Typ.
70
135
150
105
100
70
40
18
mcd
Max
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
mcd
I
F
20
20
20
20
20
20
20
20
mA
Available I
V
rank
Please see Note 2
L/M/N/P
M/N/P/Q
M/N/P/Q
L/M/N/P
L/M/N/P
L/M/N/P
K/L/M/N
H/J/K/L
⎯
Note 2: The specification on the above table is used for Iv classification of LEDs in Toshiba facility.
Each reel includes the same rank LEDs. Let the delivery ratio of each rank be unquestioned.
Luminous Intensity I
V
Min
H
J
K
L
M
N
P
Q
Unit
4.76
8.5
15.3
27.2
47.6
85
153
272
mcd
Max
12.9
23
41.4
73.6
129
230
414
736
mcd
Rank
Optical Characteristics–2
(Ta
=
25°C)
Emission Spectrum
Part Number
Peak Emission
Wavelength
λ
p
Min
Typ.
Max
Δλ
Typ.
18
15
15
13
13
11
11
11
nm
Dominant Wavelength
λ
d
Min
624
607
599
581
574
565
559
⎯
Typ.
630
613
605
587
580
571
565
558
nm
Max
638
621
613
595
586
576
571
564
mA
20
I
F
TLRE1008A
TLSE1008A
TLOE1008A
TLYE1008A
TLPYE1008A
TLGE1008A
TLFGE1008A
TLPGE1008A
Unit
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
644
623
612
590
583
574
568
562
nm
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
The cautions
•
•
This visible LED lamp also emits some IR light.
If a photodetector is located near the LED lamp, please ensure that it will not be affected by the IR light.
This product is designed as a general display light source usage, and it has applied the measurement standard
that matched with the sensitivity of human's eyes. Therefore, it is not intended for usage of functional
application (ex. Light source for sensor, optical communication and etc) except general display light source.
3
2008-08-04

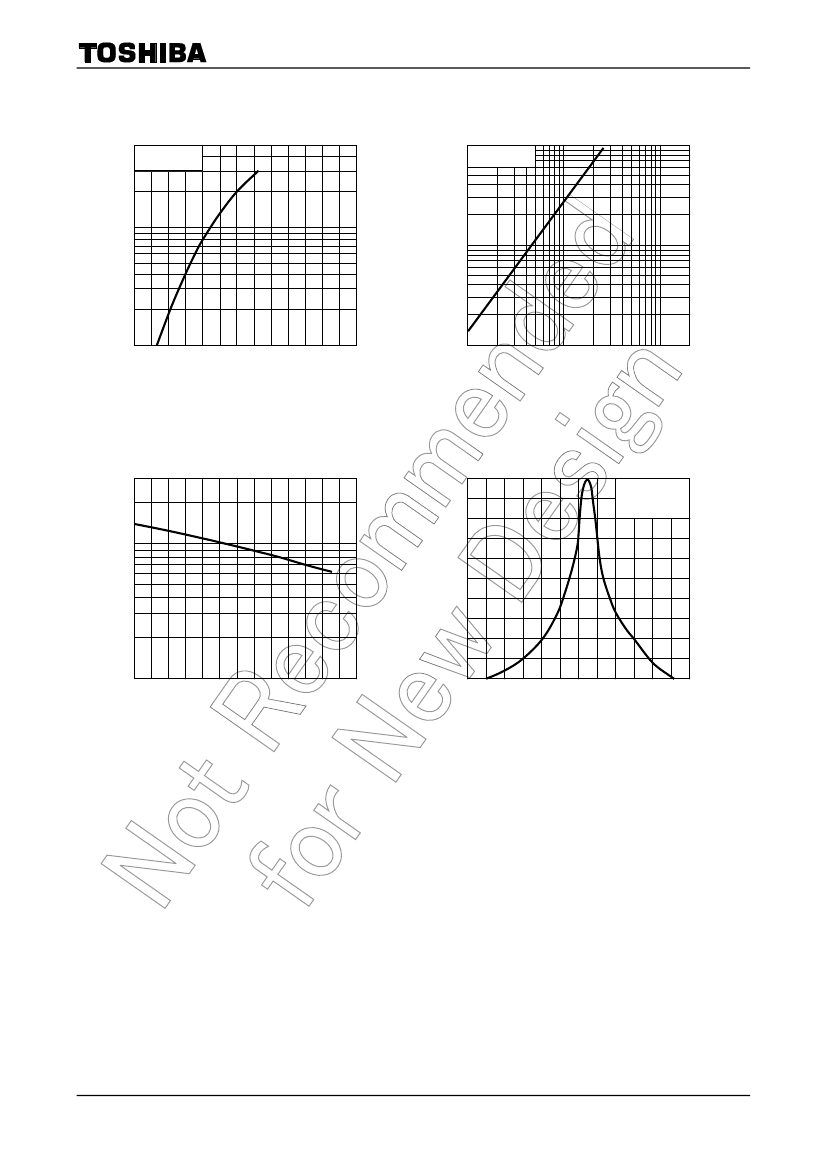

TL(RE,SE,OE,YE,PYE,GE,FGE,PGE)1008A(T04)

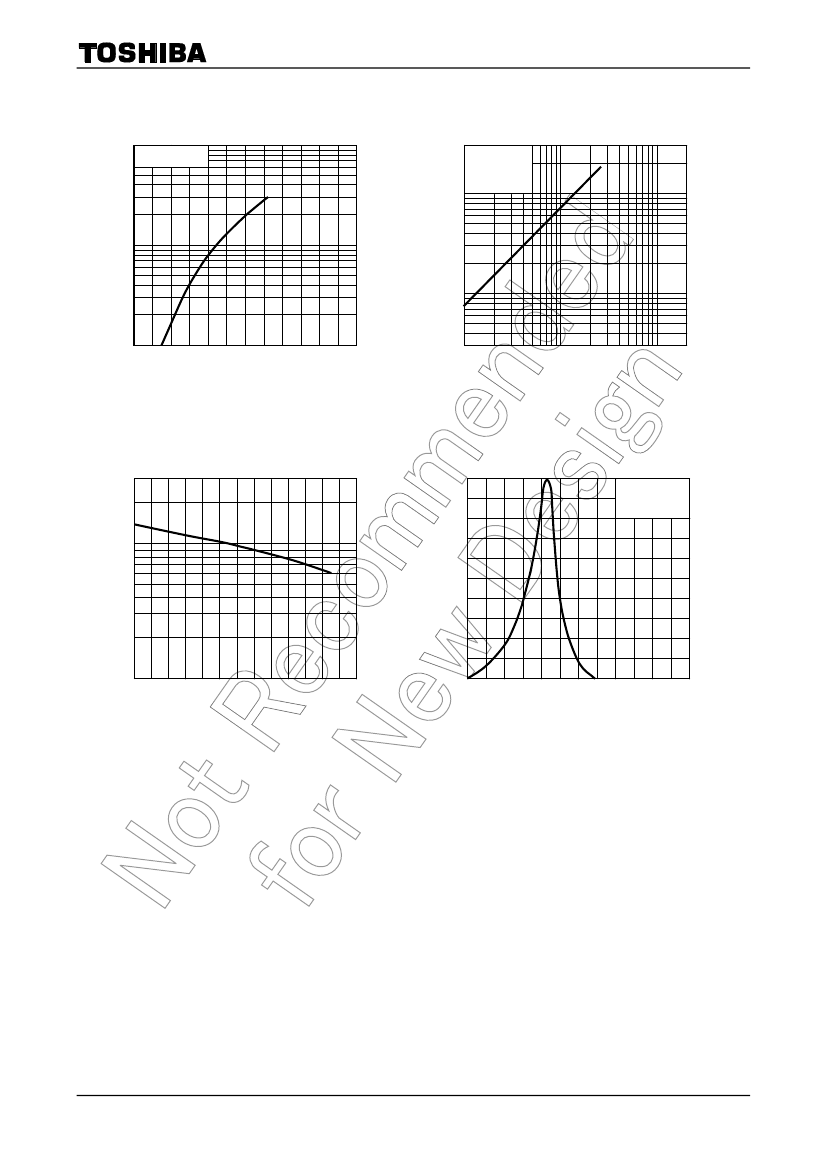

TLRE1008A
I
F
– V
F
50
Ta
=
25°C
30
(typ.)
I
V
– I
F
100
Ta
=
25°C
(typ.)
I
V
(mcd)
Luminous intensity
1.7
1.8
1.9
2.0
2.1
2.2
(mA)
50
30
I
F
10
Forward current
10
5
3
5
3
1
1.6
1
1
3
5
10
30
50
100
Forward voltage
V
F
(V)
Forward current
I
F
(mA)
I
V
– Tc
3
(typ.)
Wavelength characteristic
1.0
(typ.)
I
V
IF
=
20 mA
Ta
=
25°C
Relative luminous intensity
−20
0
100
0.8
Relative luminous intensity
1
0.6
0.5
0.3
0.4
0.2
0.1
20
40
60
80
0
580
600
620
640
660
680
700
Case temperature
Tc
(°C)
Wavelength
λ
(nm)
4
2008-08-04
TL(RE,SE,OE,YE,PYE,GE,FGE,PGE)1008A(T04)
TLSE1008A
I
F
– V
F
100
Ta
=
25°C
50
30
(typ.)
I
V
– I
F
300
Ta
=
25°C
100
50
(typ.)
I
F
Luminous intensity
Forward current
I
V
(mcd)
(mA)
10
5
3
30
10
5
3
1
3
5
10
30
50
100
1
1.6
1.7
1.8
1.9
2.0
2.1
2.2
Forward voltage
V
F
(V)
Forward current
I
F
(mA)
I
V
– Tc
3
1.0
Wavelength characteristic
IF
=
20 mA
Ta
=
25°C
I
V
Relative luminous intensity
−20
0
20
40
100
0.8
Relative luminous intensity
1
0.6
0.5
0.3
0.4
0.2
0.1
60
80
0
580
600
620
640
660
680
700
Case temperature
Tc
(°C)
Wavelength
λ
(nm)
5
2008-08-04
