IMA2314-13D0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> IMA2314-13D0

IMA2314-13D0: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size416KB，2 Pages; ManufacturerInternational Manufacturing Services Inc

Download Datasheet Parametric View All

IMA2314-13D0 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max,

IMA2314-13D0 Parametric

Parameter Name	Attribute value
Maker	International Manufacturing Services Inc
Reach Compliance Code	compliant
Nominal attenuation	13 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

ims

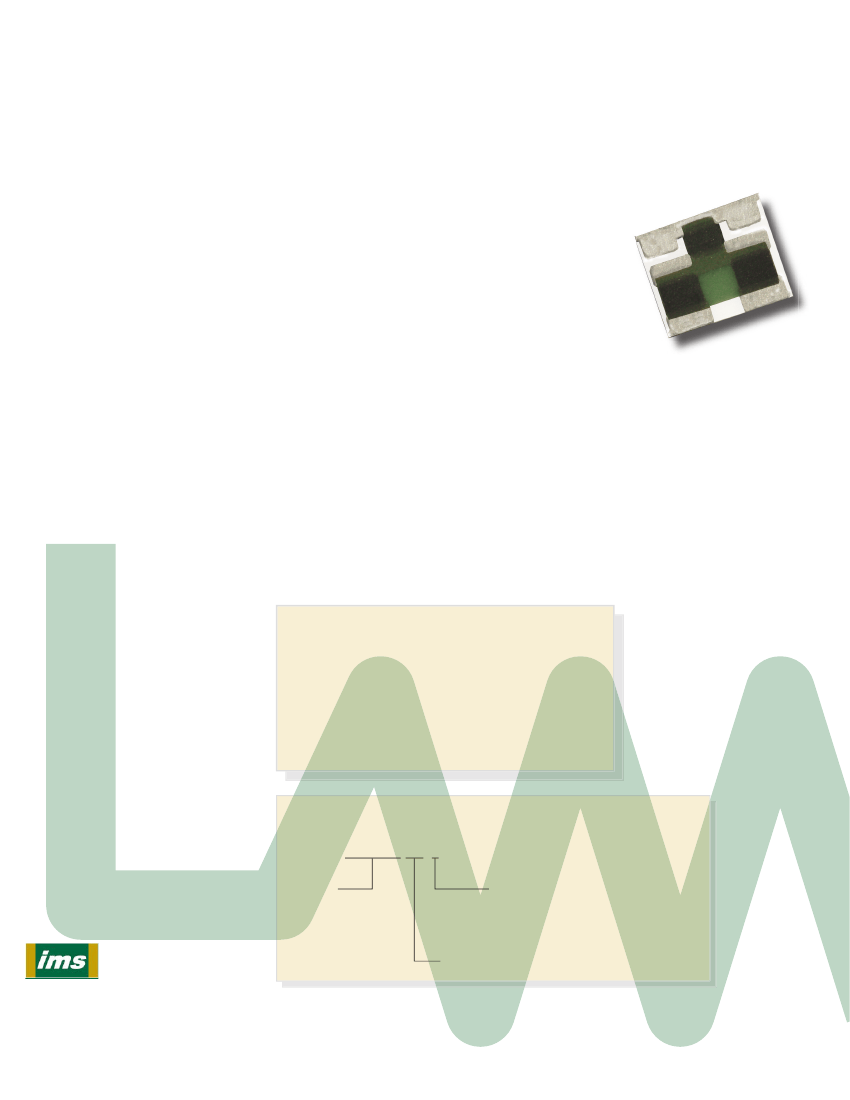

IMA Series Surface Mount

Thick Film Attenuator

Custom

IMA Series Custom family surface mount thick film attenuators are

compact, high performance devices especially suited to RF and

microwave applications. Performance is based on the attenuator

operating in a matched continuous 50 ohm system, with proper

device mounting and workmanship.

IMA Custom Family Specifications

VSWR (Max):

1.25:1 up to 4 GHz

1.35:1 @ 4 to 8 GHz

1.50:1 @ 8 to 12 GHz

.0001 dB/ dB/ deg. C *

2W (metalized baseplate maintained

below 100° C)

-55 deg. C to 150 deg. C

DC - 12.4 GHz

0.122” X 0.145” X 0.028” Max

Thick Film on 96% Alumina (Al

)

DC Attenuation Stability:

Power Rating:

Operating Temperature:

Frequency Range:

Standard Case Size:

Architecture:

For other substrate thicknesses, sizes and power levels, consult the factory.

40dB

Attenuation Accuracy (DC)

Increment

(dB)

1 - 3.5

4 - 19

20 - 30

31 - 40

Accuracy

+/- 0.2dB

+/- 0.3dB

+/- 0.5dB

+/- 1.0dB

0.2dB

Accuracy

At the circuit level,

with proper application

of RF principles, these

attenuators, and their

variations, are capable of

operating up to 20 GHz

with a managable VSWR.

* Based on TCR and resistor

tolerance at DC

Input Power

Ordering Information

IMA2314-03D5 (Sample P/N)

IMAXXXX-XXDX

Part #

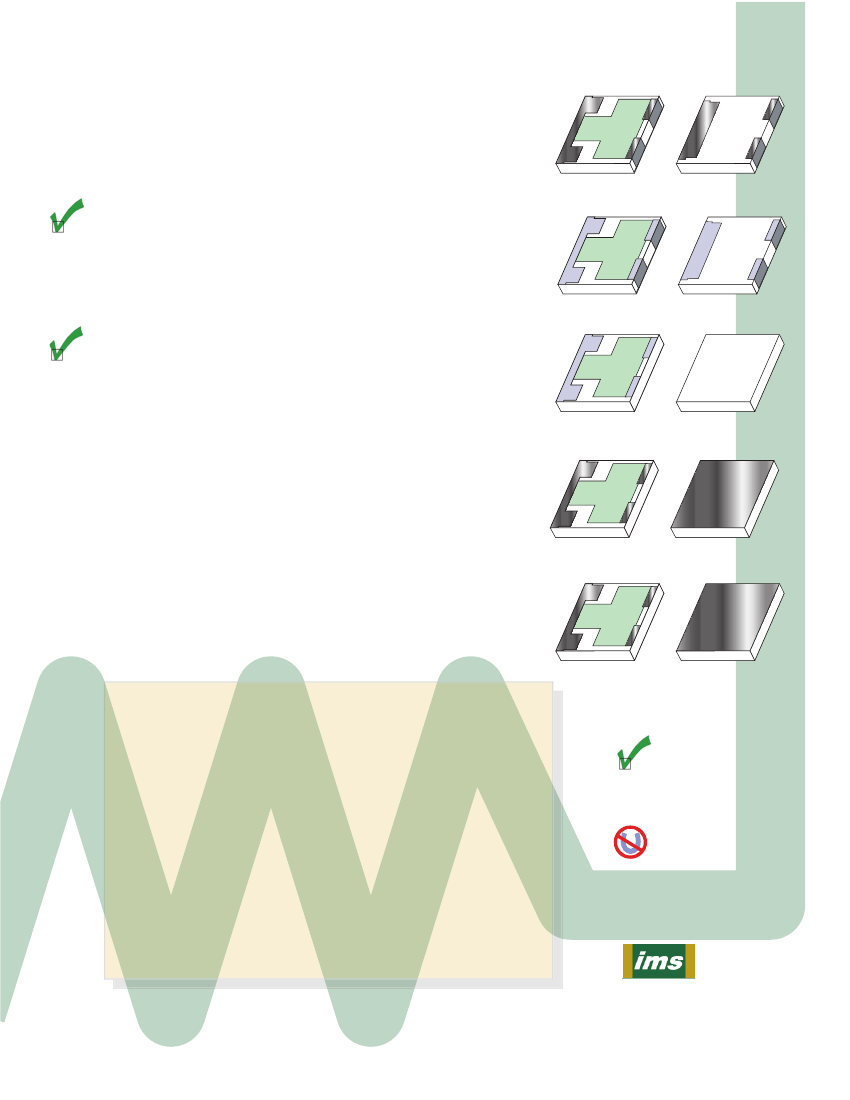

(See Reverse)

International

Manufacturing

Services, Inc.

dB Increment

(0 denotes whole value)

(5 denotes whole value + .5dB

available to 9.5dB)

dB Whole Value (00-40)

Tel (401) 683-9700

Fax (401) 683-5571

e-mail: ims@ims-resistors.com

http://www.ims-resistors.com

impossible made simple

Ver 1 05/2007 Specifications Subject to Change Without Notice
