BL-HZD36G-L8-TRB
●
Features:
1. Emitted Color : White
2. Mono-color type.
3. 1.6x0.8x0.4mm(0603) standard package.
4. Suitable for all SMT assembly methods.
5. Compatible with infrared and vapor phase
reflow solder process.
6. Compatible with automatic placement
equipment.
●
Package Dimensions:
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
120
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36G-L8-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Chromaticity
Coordinates
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
x
y
Δλ
2θ
1/2
Condition
I
F
=5mA
I
F
=5mA
V
R
=5V
I
F
=5mA
I
F
=5mA
I
F
=5mA
I
F
=5mA
Min.
-
42
-
-
-
-
-
Typ.
2.8
80
-
0.33
0.33
30
120
Max.
3.2
-
1
-
-
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

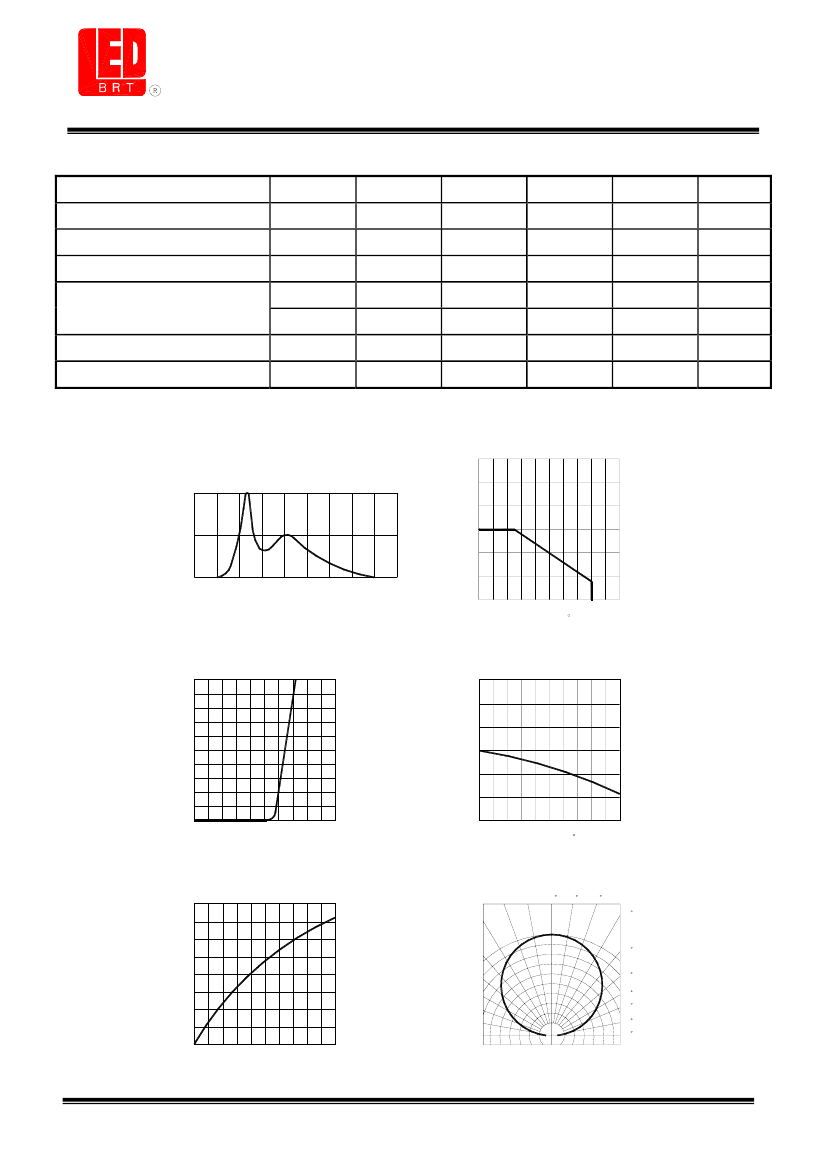

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
60
Fig.2 Forward current derating curve
vs. ambient temperature
50
1.0
Relative radiant intensity
Forward current (mA)
400
450
500
550
600
650
700
750
800
40
0.5
30
20
0
350
10
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
2.5
Relative Luminous intensity
(Normalized @20mA)
1
2
3
4
5
Forward current (mA)
2.0
30
1.5
20
1.0
10
0.5
0
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
Fig.5 Relative luminous intensity
vs. forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
Relative radiant intensity
1.5
40
1.0
0.9
0.8
50
60
70
0.7
80
90
1.0
0.5
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36G-L8-TRB
●
Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
0.9 ± 0.05
ANODE
START
END
0.5 ± 0.05
13.0± 0.5
1.75± 0.05
13.0± 0.5
71.0± 1
5.3± 0.05
3.5± 0.05
CATHODE
1.75± 0.1
8.0± 0.3
TRAILER
4.0± 0.1
4.0± 0.1
1.5!O0.1
2.0!O0.05
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)
10 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
Ver.1.0 Page 3 of 8
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36G-L8-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 5 m A )
BIN CODE
Min. (mcd)
N
P
Q
R
37.0
55.0
82.0
120.0
Max. (mcd)
72.0
11 0 . 0
160.0
240.0
V
F
B i n L i m i ts ( A t 5 m A )
BIN CODE
E
F
G
H
Min.(v)
2.35
2.55
2.75
2.95
Max.(v)
2.65
2.85
3.05
3.25
Ver.1.0 Page 4 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36G-L8-TRB
C o l o r B i n L i m i ts ( A t 5 m A )

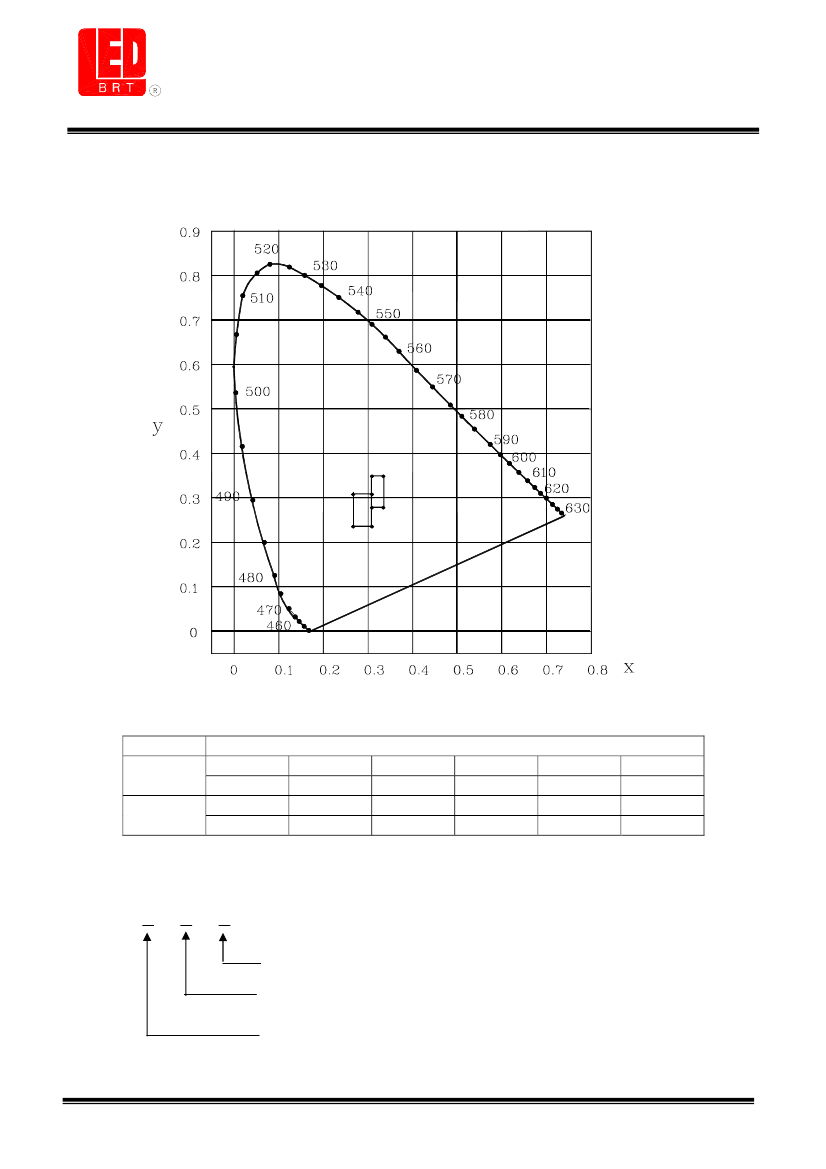

C.I.E CHROMATICITY DIAGRAM
6
5
BIN
5
6
x
y
x
y
0.305
0.240
0.330
0.280
Chromaticity Coordinates
0.265
0.265
0.240
0.310
0.305
0.305
0.280
0.350
0.305
0.310
0.330
0.350
0.305
0.240
0.330
0.280
●
B IN：
x
x
x
V
F
BIN CODE
Color BIN CODE
Intensity BIN CODE
Ver.1.0 Page 5 of 8
