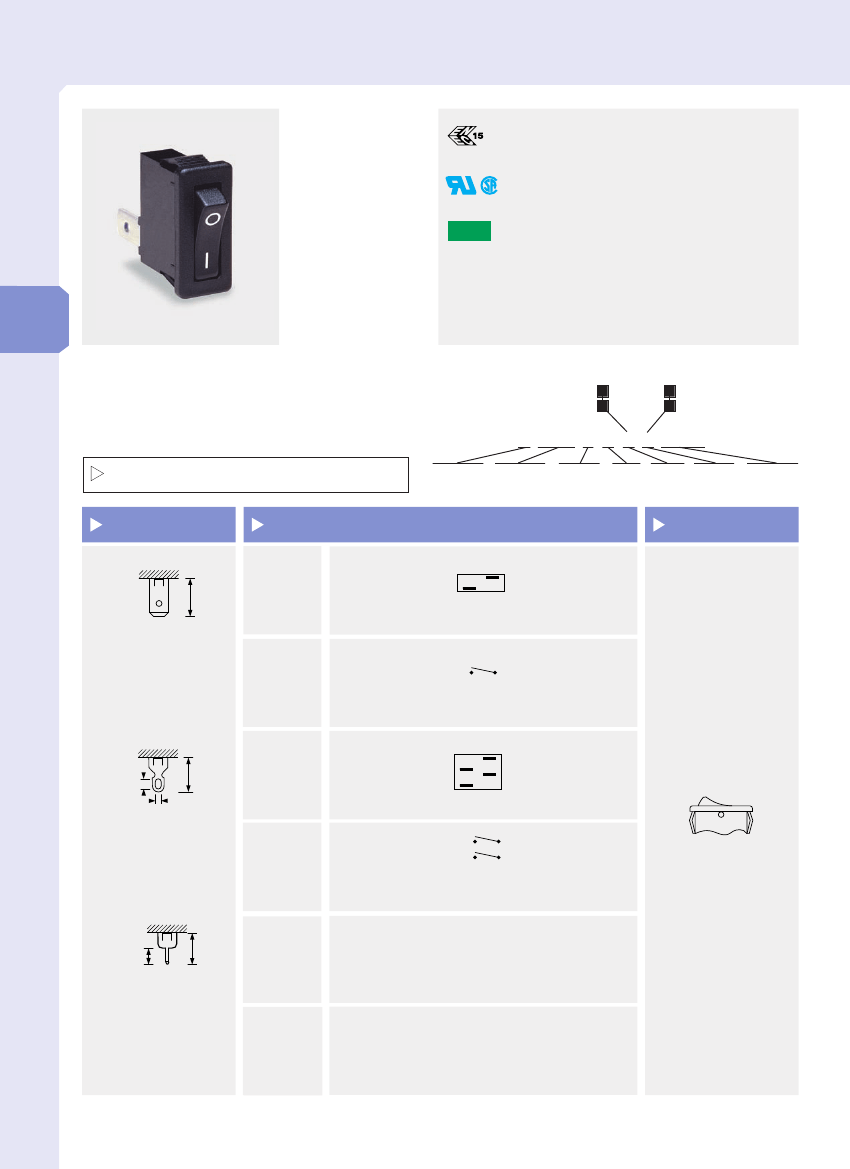

8800 Thinline Rocker Switches
10A 250Vac
Ultra thin rocker switch
Ratings up to 15A,
250Vac
Single and twin gang
Panel cut out:
Single 19.3 x 6.8
Twin 19.3 x 13.4
10(6)A 250Vac T100
6(2)A 250Vac T100 5E4 (50,000 Operations)
Inrush 50A to EN60065:1998
UL CSA 15A 250Vac (Twin unit is 10A 250Vac)
UL CSA 125Vac 1/2hp
UL 100˚C, file E45221, CSA file LR10990
RoHS
RoHS compliant
3mm contact gap.
Technical data on pages 4 & 5.
rocker
switches
B
BLACK
W
WHITE
B
BLACK
W
WHITE
H 8800 V A B B 133W
ORDER FORMAT
TERMINAL
H
1a
9.7
TERMINAL
CODE
FUNCTION
FUNCTION
CODE
ROCKER
CODE
BODY BODY
CODE COLOR
ROCKER
COLOR
ROCKER
LEGEND &
OPTIONS
V
Curved
1
Switches are ON when pressed over terminal 1
4.8 x 0.8
8800
ON - OFF
Single pole
T
4
8.8
2.6
1.5
3
1
2
Switches are ON when pressed over terminals 1 or 3
3.5 x 0.8
Solder
8800/8800
ON - OFF
Twin (Single pole)
X
4.0
7.5
0.8Sq
Solder *
*Available for single switch only, not twin
8
10
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com

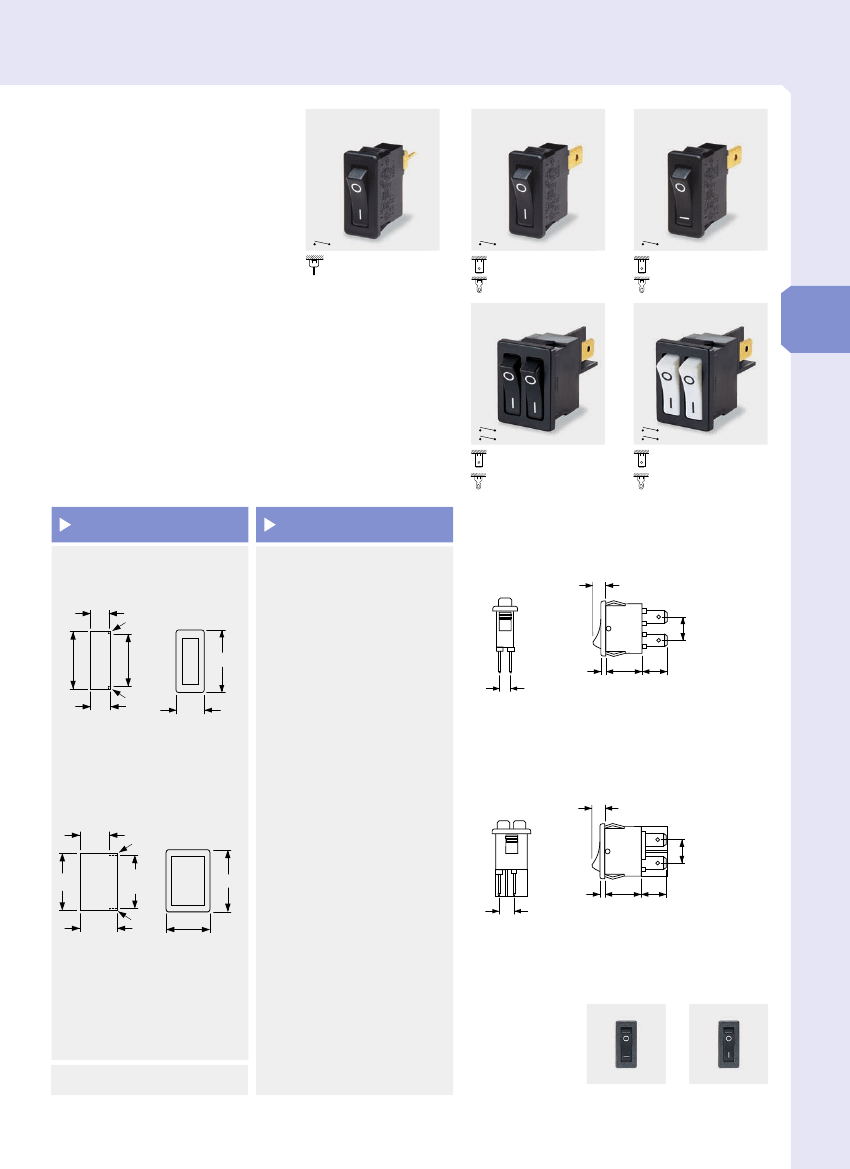

X8800VA ---
H8800VA
T8800VA
H8800VA
T8800VA
rocker
switches
H8800 8800VA
T8800 8800VA
H8800 8800VA
T8800 8800VA
BODY
A Single pole
Panel cut-out
Bezel
OPTIONS
Finish
Matt finish only
Dimensions
(mm)
8800VA
(H terminals shown)
5.0
6.2
6.3
X
6.8
6.9
Color
Call factory for custom colors.
A full range is available for large orders
*
17.4
17.5
21.0
9.0
Legend printing
Select from the examples or call the
factory for custom legends
4.2
2.0
14.5 9.7
*
9.5
*Optional profile for orientation
A Single pole - Twin
Panel cut-out
Bezel
8800 8800VA
(H terminals shown)
5.0
9.9
10.0
X
13.4/
13.5
*
17.4
17.5
21.0
2.0
6.3
14.5 9.7
9.0
*
15.5
Examples of our range of legend printing
( ) is legend color B-Black, W-White, R-Red
*Optional profile for orientation
Panel thickness
Dim X
0.75-1.24
19.1/19.2
1.25-1.99
19.3/19.4
2.00-3.00
19.7/19.8
Cut-outs must be punched in the direction of insertion
132(W)
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
133(W)
9
11

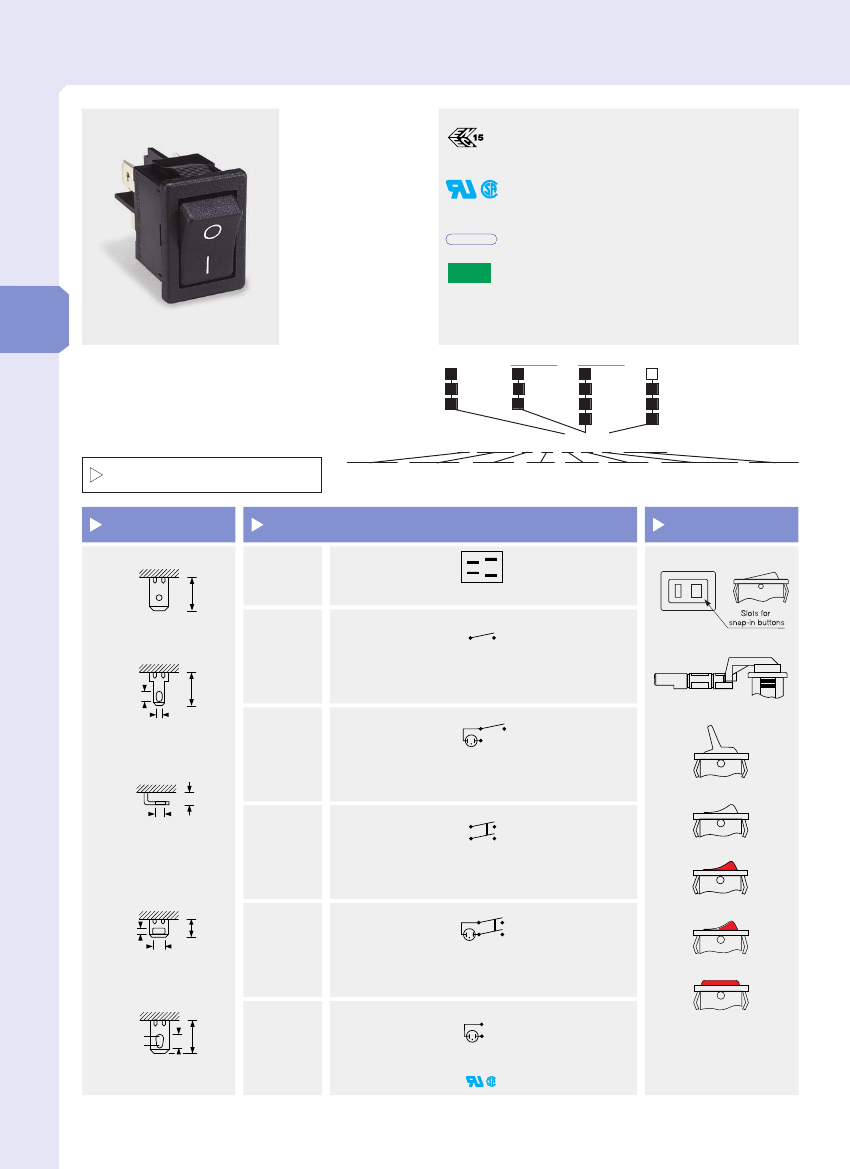

8500 Rocker Switches - Miniature
Miniature rocker switch
Ratings up to 15A,
250Vac
High inrush tolerance
Single & double pole in
same body size
Illuminated & non-
illuminated
10A 250Vac Single & Double Pole
10(6)A 250Vac T125
(non lit types)
6(4)A 250Vac T125 5E4 (50,000 Operations)
(non lit types)
10(6)A 250Vac T100
(lit types)
UL CSA 15A Non Ind 250Vac, 14A Ind 250Vac, 10A 277Vac
UL CSA 250Vac 1/2hp, 125Vac 1/4hp
UL 105˚C,
(non lit)
file E45221, CSA file LR10990
In house test
Inrush 85A to EN61058-1 & 10A 24Vdc
RoHS compliant
3mm contact gap.
Technical data on pages 4 & 5 (switches), 6 (indicators).
Matching indicators
Industry standard panel
cut-out
rocker
switches
Rotary and push button
actuator options
Panel cut out: 19.3 x 12.9
NON-LIT
B
BLACK
R
RED
W
WHITE
B
BLACK
R
RED
W
WHITE
A
C
G
R
LIT
AMBER
CLEAR
GREEN
RED
‘X’ ROCKER COLOR R,G,W,B
2
125V NEON
3
250V NEON
7
12V INCANDESCENT
RoHS
H 8553 V B B R 2 551W
ORDER FORMAT
TERMINAL
H
8.5
TERMINAL
CODE
FUNCTION
CODE
FUNCTION
ROCKER
CODE
BODY BODY
CODE COLOR
ROCKER
COLOR
LAMP VOLTAGE
OR “ON LIGHT”
ROCKER
LEGEND &
OPTIONS
Approvals &
ratings vary
with function
1a
3b
2a
4b
H
Slotted for custom caps
ON OFF Switches are ON when pressed over terminal 1
4.8 x 0.8
K
R
Semi-rotary (not lit)
8500
8.5
2.6
1.5
ON - OFF
Single pole
(Uses terminals 1a & 2a)
D
Paddle lever (not lit)
8503
2.8 x 0.8
L
3.2
2.6
ON (lit) - OFF
Single pole
V
Curved (not lit)
2.8 x 0.8
Right angle version of K terminal
available on 8500 only
8550
ON - OFF
Double pole
V
Curved (lit)
R
X
Two colour (not lit)
1.5
3.1
4.5
8553
4.8 x 0.8
ON (lit) - OFF
Double pole
A
Softline lens
T
R1.0
R0.8
3.5 8.5
P
Push button operation
8580
Available with
H terminals only
Indicator
(8500 only)
See drawing opposite
Solder
10
12
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com

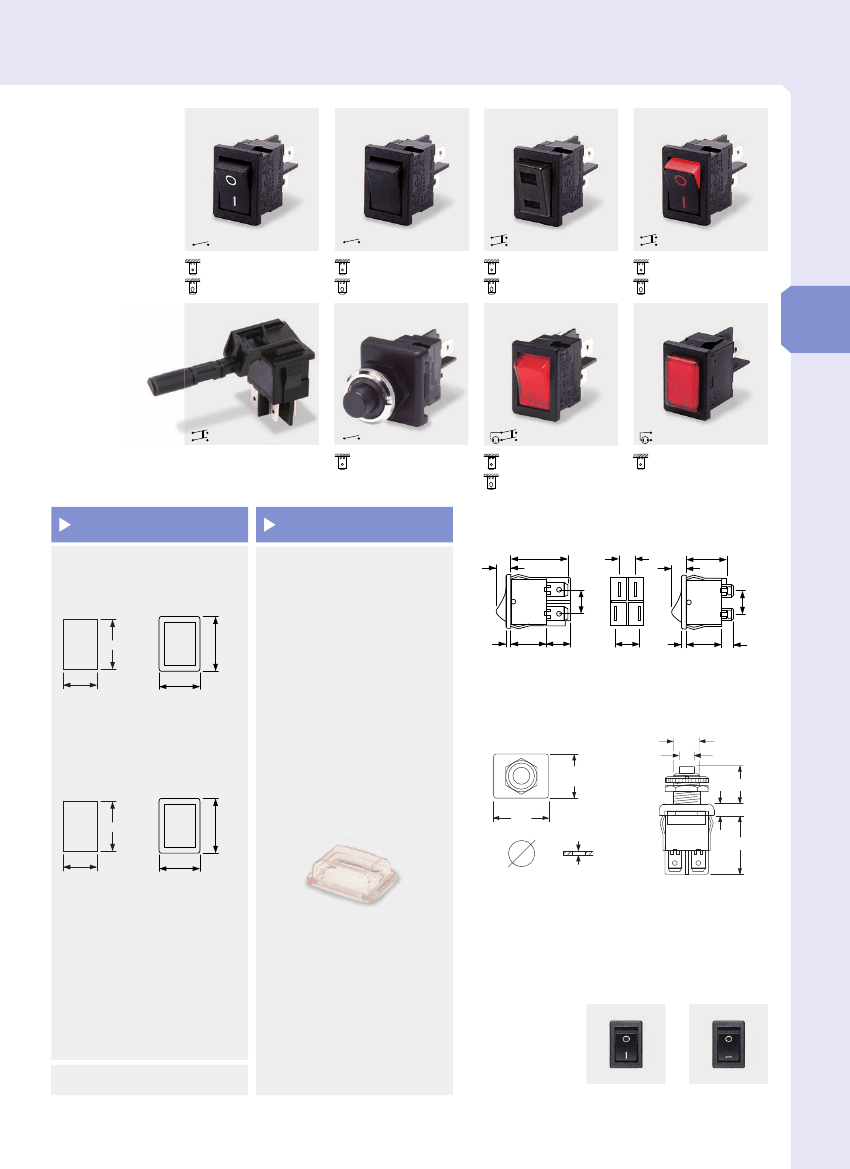

H8500VB ---
T8500VB ---
H8550VB ---
T8550VB ---
H8550HB ---
T8550HB ---
H8550XB ---
T8550XB ---
rocker
switches
H8550RB Semi-rotary
A splash proofing option
H8500PO ---
Pushbutton option
H8553VB ---
T8553VB ---
H8580AB ---
BODY
B
Standard body with terminal barrier
Panel cut-out
Bezel
OPTIONS
Finish
Matt finish only
DIMENSIONS
(mm)
22.5
5.1
9.0
6.0
16.0
5.1
9.0
Color
Call factory for custom colors
A full range is available for large orders
X
21.0
Legend printing
Select from the examples or call the
factory for custom legends
2.0 14.0
9.0
9.5
2.0 14.0
4.5
12.9
“B” body with barrier for
H, T and K terminals
15.0
Lamp voltage
Call factory for details of other
available voltages
“BC” body w/o barrier primarily
for L or R terminals
(can be used for all terminals)
BC
Body without terminal barrier
Panel cut-out
Bezel
Protective cover L167
(designed to IP65)
Snaps on to bodies with V or X style
rockers and A lens but reduces panel
thickness by 0.8mm
21.0
20.5
max
23.2
max
12.0
8.0
1
18.0
5.0
23.3
X
12.9
15.0
12.7
9.5
Dimensions for snap-in fixing
‘PO’ Actuator and body - push button function (8500 only)
Panel
thickness
0.75-1.25
1.25-2.00
2.00-3.00
Dim X
19.1/19.2
19.3/19.4
19.7/19.8
Examples of our range of legend printing
( ) is legend color B-Black, W-White, R-Red
Cut-outs must be punched in the direction of insertion
551(W)
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
080(W)
11
13

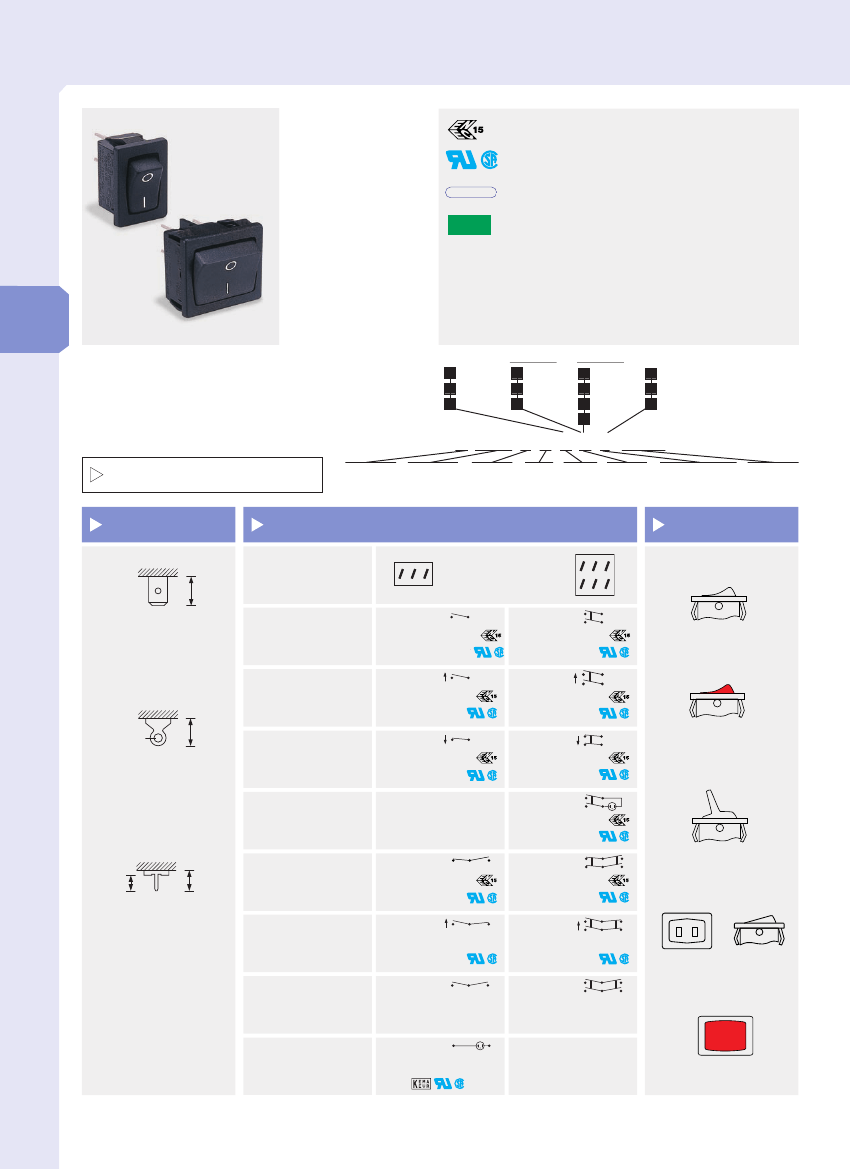

8600 Rocker Switches - Miniature
Miniature rocker switch
Ratings up to 16A,
250Vac
Single & double pole
Single throw or double
throw
Momentary Options
187 TAB, solder and PCB
terminals
Illuminated and non-
illuminated
rocker
switches
Matching indicators
Panel cut out
single: 19.3 x 12.9
double: 19.3 x 21.9
10A 250Vac Single & Double Pole
10(4)A 250Vac T90
(unless noted below)
UL CSA See ratings below
UL 65˚C, file E45221, CSA file LR10990
In house test
Inrush 50A to EN61058-1 & 10A 24Vdc
RoHS compliant
RoHS
3mm contact gap except where marked µ.
Technical data on pages 4 & 5 (switches), 6 (indicators).
NON-LIT
B
BLACK
R
RED
W
WHITE
B
BLACK
R
RED
W
WHITE
A
C
G
R
LIT
AMBER
CLEAR
GREEN
RED
2
125V NEON
3
250V NEON
7
12V INCANDESCENT
H 8653 V B B R 2 551W
ORDER FORMAT
TERMINAL
H
7.4
TERMINAL
CODE
FUNCTION
CODE
FUNCTION
ROCKER
CODE
BODY BODY
CODE COLOR
ROCKER
COLOR
LAMP VOLTAGE
(if required)
ROCKER
V
Curved
LEGEND &
OPTIONS
Approvals &
ratings vary
with function
1 2 3
ON OFF Switches
are ON when pressed
over terminal 3
1 2 3
4 5 6
4.8 x 0.8
ON - OFF
8600
10(4)A
16A 250V, 10A 277V
1
/
2
HP 277V,
1
/
4
HP 125V
8650
10(4)A
10A 277V
1
/
2
HP 277V,
1
/
4
HP 125V
V
Curved (lit)
8601
T
O2.2
/
6.4
8651
6(1)A
6A 277V
ON - OFF
(momentary ON)
6(1)A
16A 250V, 6A 277V
8602
ON - OFF
(momentary OFF)
10A
16A 250V, 10A 277V
8652
10(4)A
6A 277V
3.5 x 0.8
Solder
D
Paddle lever
(Single pole non-lit only)
N/A
ON - OFF
Lit
8653
10(4)A
6A 277V
X
3.7
5.3
8610
ON - ON
6(1)A
10A 277V
1
/
2
HP 277V,
1
/
4
HP 125V
8660
6(1)A
10A 277V, 1/2HP 277V
1
H
Slotted for actuator
(8600 and 8610 only)
/
2
HP 277V,
1
/
4
HP 125V
PCB
0.8 Sq
8611
ON - ON
(momentary 1 side)
6A 277V
8661
6A 277V
8620 µ
ON - OFF - ON
See page 16
8670 µ
See page 16
Flat
Indicator only (Single pole)
F
12
Double Pole switches with “X”
terminals are supplied without
terminal barriers
8630
Indicator
14
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
