FH12-22(10)SA-1SH datasheet, PDF

Datasheet> All Categories > The connector> The connector> FH12-22(10)SA-1SH

FH12-22(10)SA-1SH: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

FH12-22(10)SA-1SH Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator

FH12-22(10)SA-1SH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BOTTOM CONTACT
body width	0.079 inch
subject depth	0.22 inch
body length	0.594 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	150VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	BROWN
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.039 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

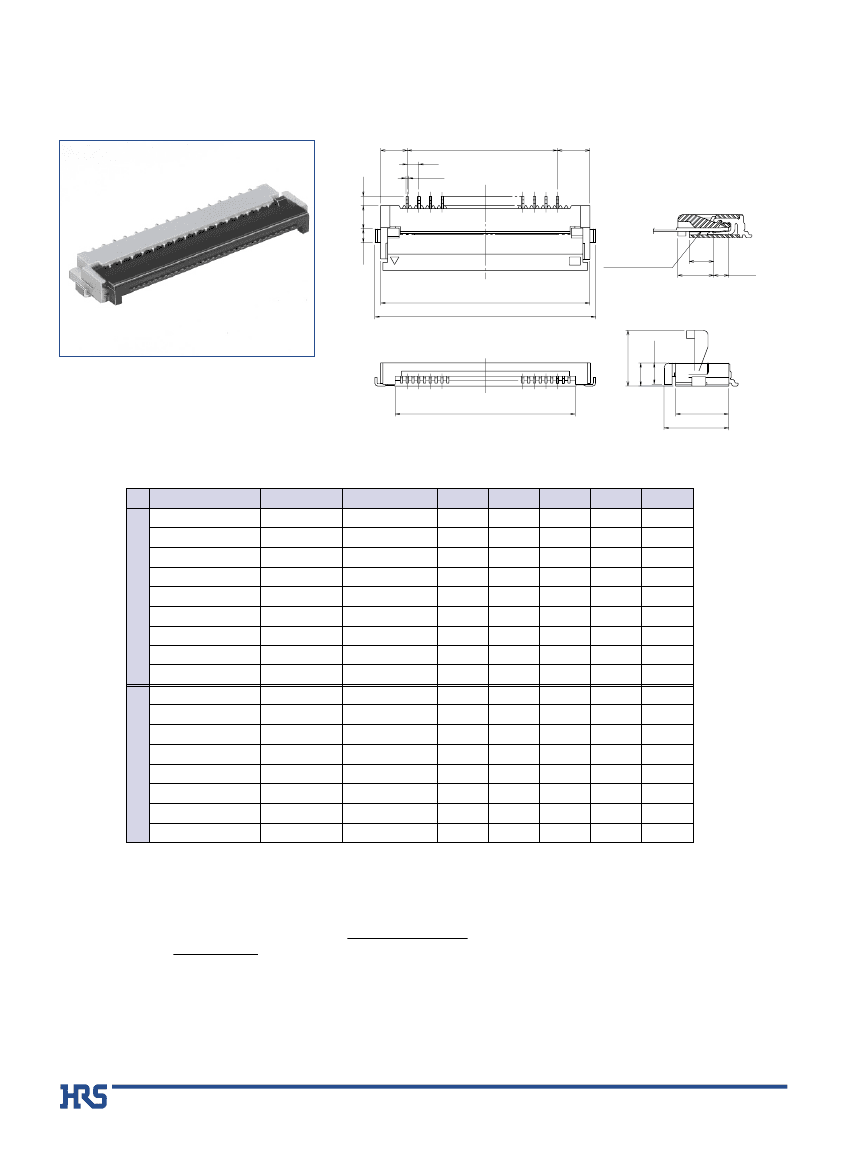

Preview

Download Datasheet

View All

s1mm

Pitch Type Bottom Contact Type

2.3

1.0

(0.2)

0.8

Mated Cross-sectional Diagram

1.2

FPC/FFC Contact Surface

(2.1)

(3.1)

(1.3)

(4.8)

1.85

4.6

5.6

Unit:mm

Part Number

FH12-05S-1SH

FH12-06S-1SH

Standard type

CL No.

586-0591-6

586-0607-4

586-0535-5

586-0579-0

586-0540-5

586-0668-9

586-0536-8

586-0547-4

586-0592-9

586-0537-0

586-0538-3

586-0539-6

586-0541-8

586-0542-0

586-0543-3

586-0546-1

586-0548-7

Number of Contacts

08.6

09.6

10.6

11.6

12.6

14.6

19.6

25.6

29.6

08.1

10.1

12.1

14.1

15.1

18.1

23.1

28.1

09.6

10.6

11.6

12.6

13.6

15.6

20.6

26.6

30.6

09.1

11.1

13.1

15.1

16.1

19.1

24.1

29.1

06.07

07.07

08.07

09.07

10.07

12.07

17.07

23.07

27.07

05.57

07.57

09.57

11.57

12.57

15.57

20.57

25.57

2.3

2.8

FH12-07S-1SH

FH12-08S-1SH

FH12-09S-1SH

FH12-11S-1SH

FH12-16S-1SH

FH12-22S-1SH

FH12-26S-1SH

FH12-10(4)SA-1SH

FH12-14(6)SA-1SH

Eccentric type

FH12-18(8)SA-1SH

FH12-22(10)SA-1SH

FH12-24(11)SA-1SH

FH12-30(14)SA-1SH

FH12-40(19)SA-1SH

FH12-50(24)SA-1SH

Note 1: Embossed tape reel packaging (2,000 pieces/reel).

Order by number of reels.

Note 2: The 1mm version of FH12 is constructed by loading every other contact into the 0.5mm housing.

When a housing designed for an odd number of 0.5mm pitch contacts is used; the spacing from the

edge to the first contact on either side is the same as the distance between each contact, 1.0mm.

Hirose considers this design to be a

standard-type 1.0mm

connector.

Note 2:

eccentric-type

connector using a housing designed for an even number of 0.5mm pitch contacts

and consequently one side has 1.5mm distance from the edge to the first contact. (See FPC/FFC

dimensional drawing on page 19) The part number for the eccentric type describes the size of the

0.5mm housing used and lists the number of 1.0mm pitch contacts in parentheses () as shown in the

above table.

FH12-22(10)SA-1SH Related Products

	FH12-22(10)SA-1SH	FH12-50(24)SA-1SH	FH12-05S-1SH	FH12-06S-1SH	FH12-07S-1SH	FH12-08S-1SH	FH12-09S-1SH	FH12-18(8)SA-1SH	FH12-24(11)SA-1SH	FH12-40(19)SA-1SH
Description	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator	Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator
Maker	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT	BOTTOM CONTACT
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	24	5	6	7	8	9	8	11	19
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	-	EAR99	-	-	-	EAR99	EAR99	EAR99
