Part Number

Search

OM186STM

Description
Adjustable Low Dropout Positive Voltage Regulator
CategoryPower/power management    The power supply circuit
File Size269KB,5 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

OM186STM Overview

Adjustable Low Dropout Positive Voltage Regulator

OM186STM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
package instruction, SIP3,.1ISO-TB
Reach Compliance Codeunknow
AdjustabilityADJUSTABLE
Nominal dropback voltage 11.3 V
Maximum grid regulation rate (%/V)0.015
Maximum load regulation (%)1%
Output times1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current 11.5 A
Maximum output voltage 125 V
Minimum output voltage 11.5 V
Package body materialMETAL
Encapsulate equivalent codeSIP3,.1ISO-TB
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
surface mountNO
technologyBIPOLAR
Terminal locationSINGLE
PD-97308
Adjustable Low Dropout
Positive Voltage Regulator
Product Summary
Part Number
OM186ST
OM186ST
V
ADJ
,
1.5A
Output Voltage
Adjustable
Output Current
1.5A
Package
TO-257AA
TO-257AA
Description
These three terminal positive adjustable voltage
regulators are designed to provide 1.5A with higher
efficiency than conventional voltage regulators. The
devices are designed to operate to 1.5V input to
output differential and the dropout voltage is
specified as a function of load current. Devices are
pin compatible with older three terminal regulators
and are supplied in the easy-to-use hermetic metal
TO-257 package. These devices are ideally suited
for Military applications where small size, hermeticity
and high reliability are required.

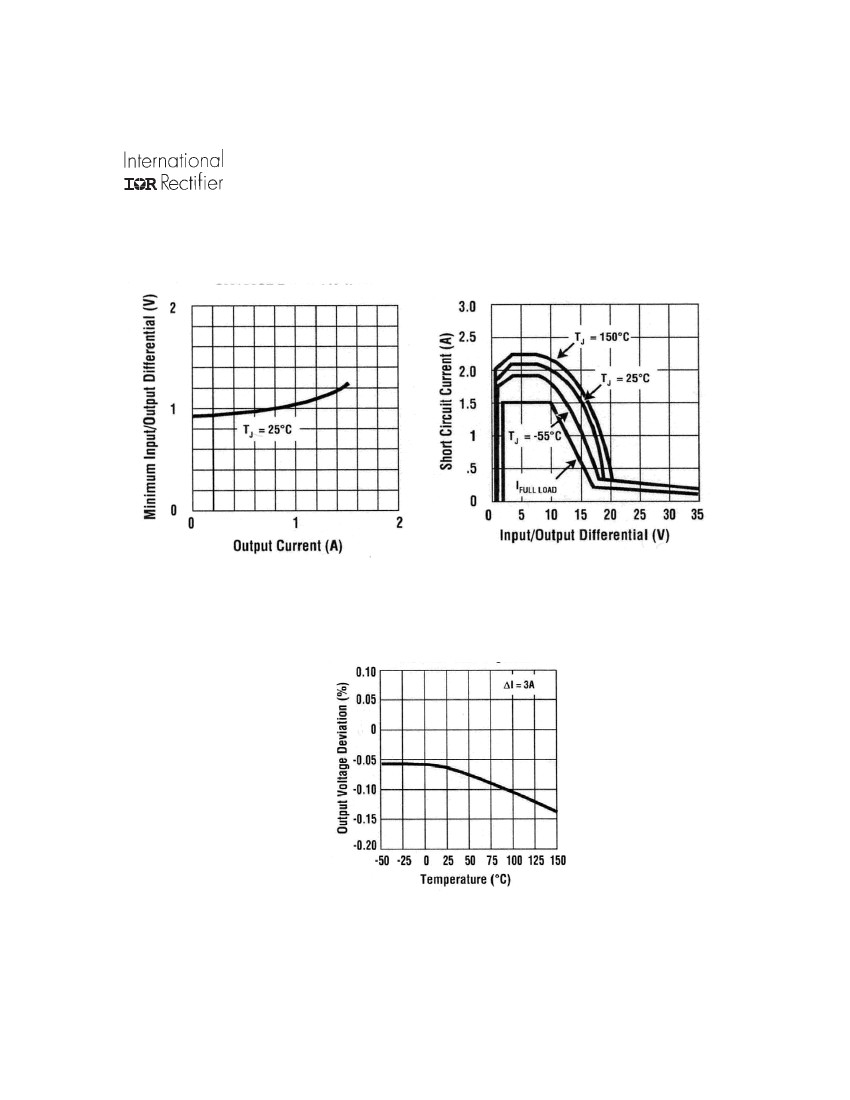

Features
n
Operates Down to 1.5V Dropout @ Max Current
n
0.015% Line Regulation
n
0.01% Load Regulation
n
1% Reference Voltage
n

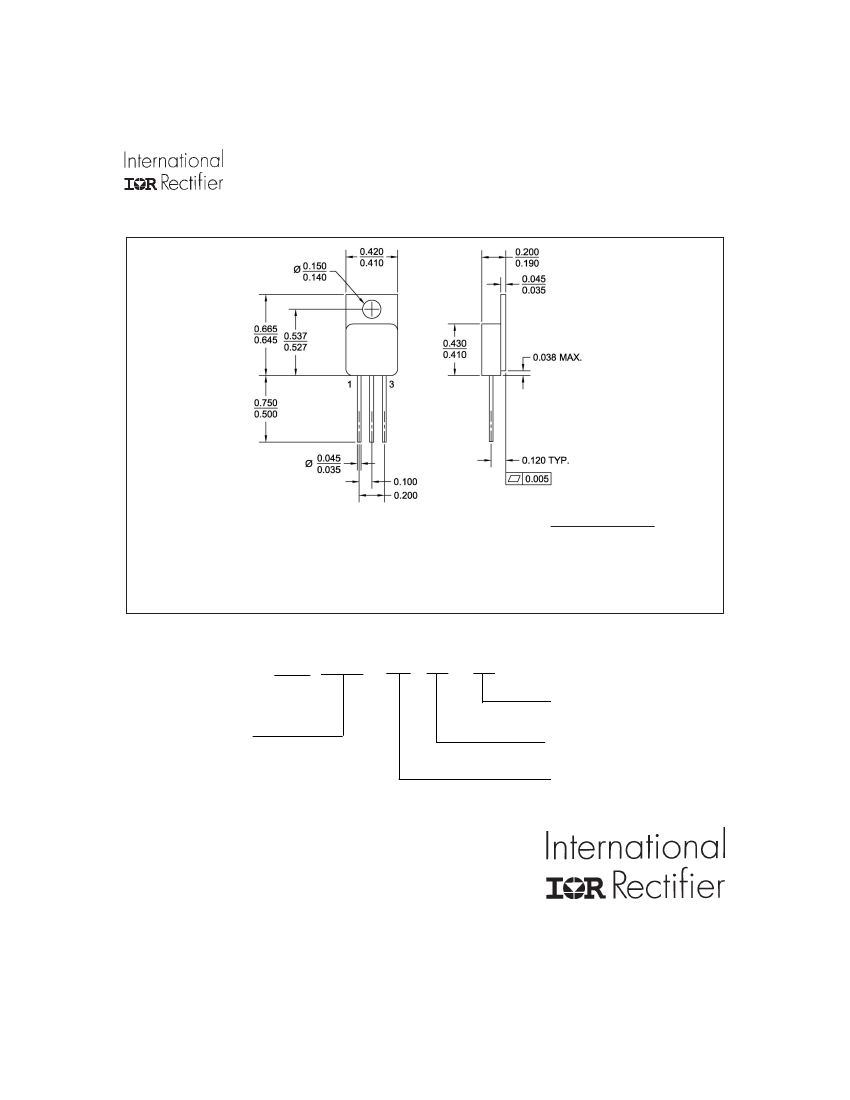

Hermetic TO-257AA (Isolated Tab) Package
n
Electrically Equivalent to LM1086
n
This part is also available in
D2 Package as OM186SR
Absolute Maximum Ratings @ T
C
= 25°C
Parameter
Output Current
Input Voltage
Thermal Resistance, Junction to Case
Operating Junction Temperature Range
Storage Temperature Range
Symbol
I
O
V
IN
R
θJC
T
J
T
STG
Value
1.5
30
4.2
-55 to +150
-65 to +150
Units
A
V
°C/W
°C
www.irf.com
1
02/07/08
