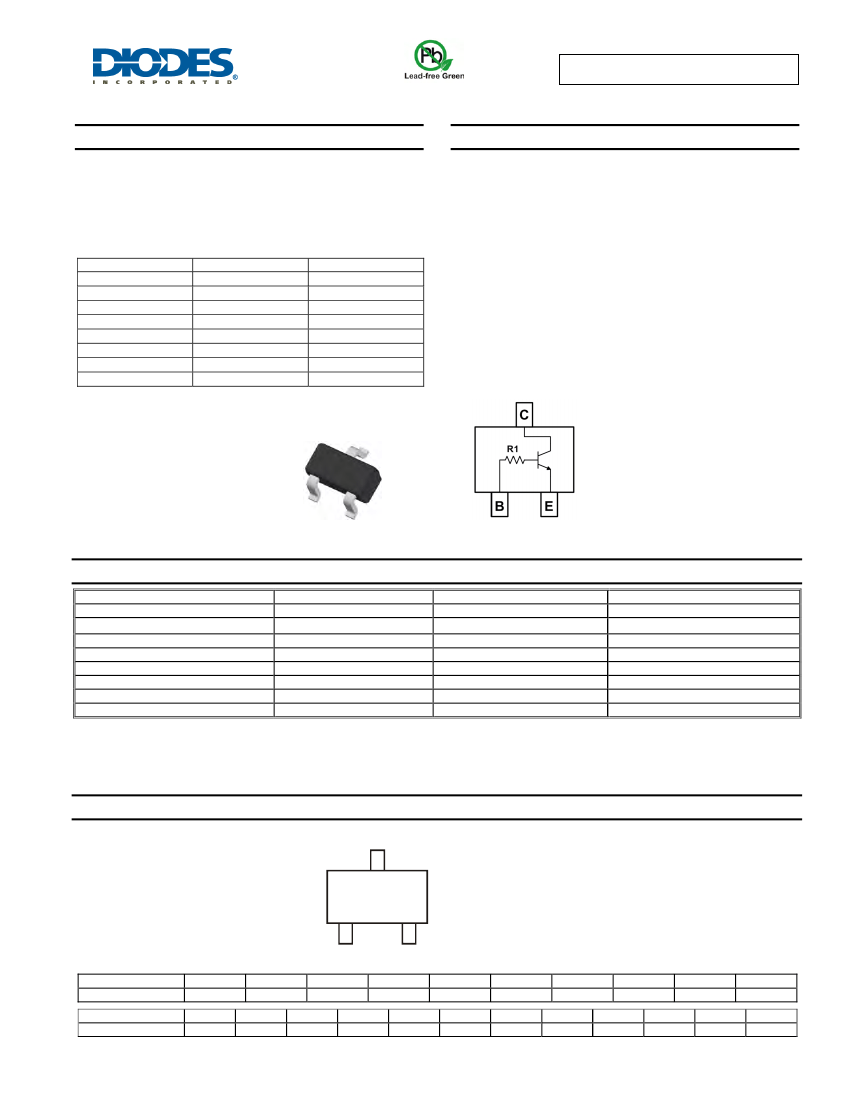

DDTC (R1-ONLY SERIES) E
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Types Available (DDTA)
Built-In Biasing Resistor, R1 only
“Lead Free”, RoHS Compliant (Note 1)
Halogen and Antimony Free "Green" Device (Note 2 & 3)
Qualified to AEC-Q101 Standards for High Reliability
Part Number
DDTC113TE
DDTC123TE
DDTC143TE
DDTC114TE
DDTC124TE
DDTC144TE
DDTC115TE
DDTC125TE
R1 (NOM)
1KΩ
2.2KΩ
4.7KΩ
10KΩ
22KΩ
47KΩ
100KΩ
200KΩ
Marking
N01
N03
N07
N12
N16
N19
N23
N25
SOT523
Mechanical Data
•
•
•
•
•
Case: SOT523
Case Material: Molded Plastic, “Green” Molding Compound
(Notes 2 & 3). UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Weight: 0.002 grams (approximate)
Top View
Device Schematic – Top View
Ordering Information
(Note 4)
Part Number
DDTC113TE-7-F
DDTC123TE-7-F
DDTC143TE-7-F
DDTC114TE-7-F
DDTC124TE-7-F
DDTC144TE-7-F
DDTC115TE-7-F
DDTC125TE-7-F
Notes:
Reel size (inches)
7
7
7
7
7
7
7
7
Tape width (mm)
8
8
8
8
8
8
8
8
Quantity per reel
3000
3000
3000
3000
3000
3000
3000
3000
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Nxx
YM
Nxx = Product Type Marking Code
(See Table in Features)
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2010
X
Jan
1
2011
Y
Feb
2
Mar
3
2012
Z
Apr
4
2013
A
May
5
2014
B
Jun
6
2015
C
Jul
7
2016
D
Aug
8
Sep
9
2017
E
Oct
O
2018
F
Nov
N
2019
G
Dec
D
DDTC (R1-ONLY SERIES) E
Document number: DS30315 Rev. 8 - 2
1 of 5
www.diodes.com
December 2011
© Diodes Incorporated
DDTC (R1-ONLY SERIES) E
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Collector Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Symbol
V
CBO
V
CEO
V
EBO
I
C(MAX)
Value
50
50
5
100
Unit
V
V
V
mA
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J,
T
STG
Value
150
833
-55 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
Min
50
50
5
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
Max
⎯
⎯
⎯
0.5
0.5
Unit
V
V
V
μA
μA
Test Condition
I
C
= 50mA
I
C
= 1mA
I
E
= 50μA
V
CB
= 50V
V
EB
= 4V
DDTC113TE
I
C
/I
B
= 10mA/1mA
I
C
/I
B
= 5mA/0.5mA DDTC123TE
I
C
/I
B
= 2.5mA/.25mA DDTC143TE
DDTC114TE
I
C
/I
B
= 1mA/.1mA
I
C
/I
B
= 5mA/0.5mA DDTC124TE
I
C
/I
B
= 2.5mA/.25mA DDTC144TE
I
C
/I
B
= 1mA/0.1mA DDTC115TE
I
C
/I
B
= .5mA/.05mA DDTC125TE
I
C
= 1mA, V
CE
= 5V
⎯
V
CE
= 10V, I
E
= -5mA, f = 100MHz
Collector-Emitter Saturation Voltage
V
CE(sat)
⎯
⎯
0.3
V
DC Current Transfer Ratio
Input Resistor (R
1
) Tolerance
Gain-Bandwidth Product*
* Transistor – For Reference Only
Notes:
h
FE
ΔR
1
f
T
100
-30
⎯
250
⎯
250
600
+30
⎯
⎯
%
MHz
5. Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com.
DDTC (R1-ONLY SERIES) E
Document number: DS30315 Rev. 8 - 2
2 of 5
www.diodes.com
December 2011
© Diodes Incorporated
DDTC (R1-ONLY SERIES) E

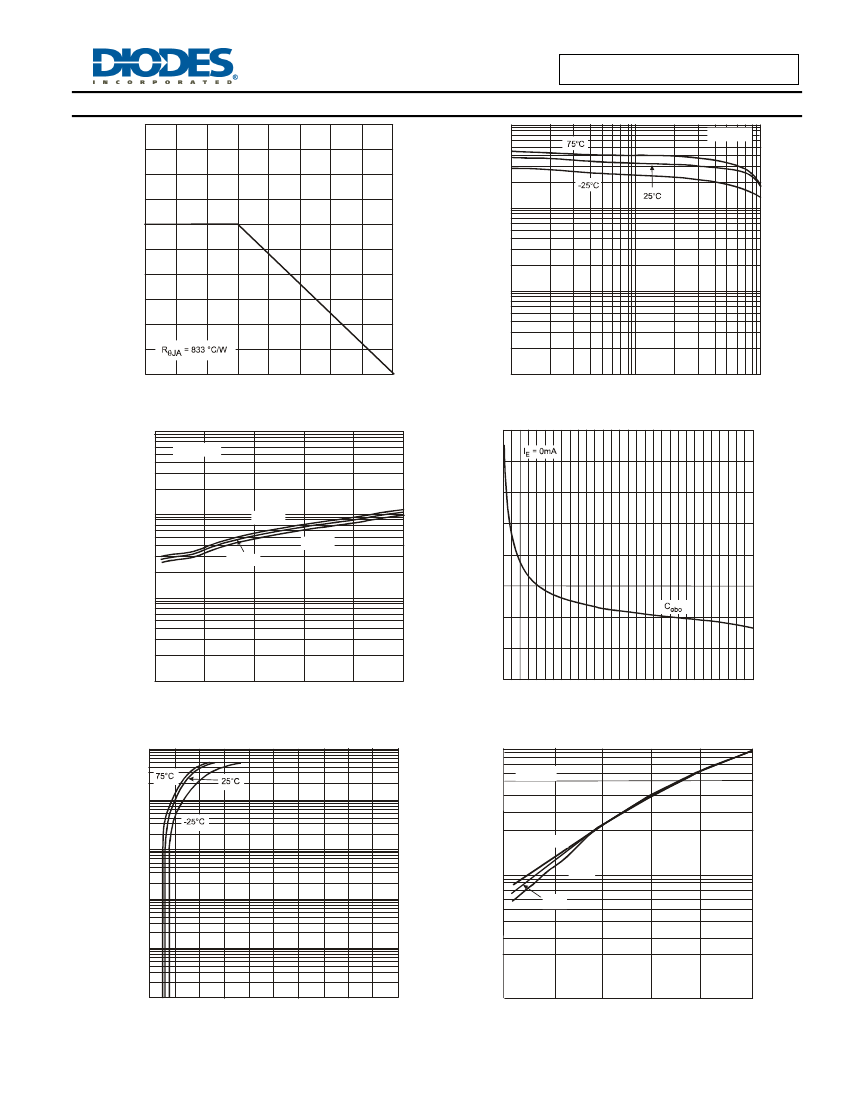

Typical Curves – DDTC114TE
250
1,000
h
FE
, DC CURRENT GAIN (NORMALIZED)
V
CE
= 10
P
D
, POWER DISSIPATION (mW)
200
100
150
100
10
50
0
-50
1
1
10
100
I
C
, COLLECTOR CURRENT (mA)
Fig. 2 Typical DC Current Gain vs. Collector Current
0
50
100
150
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Dissipation vs. Ambient Temperature
4
I
C
/I
B
= 10
1
V
CE(SAT)
, MAXIMUM COLLECTOR
SATURATION VOLTAGE (V)
3
0.1
75
°
C
-25
°
C
25
°
C
CAPACITANCE (pF)
2
0.01
1
0.001
0
40
10
20
30
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 3 Typical Collector Emitter Saturation Voltage
vs. Collector Current
0
0
20
25
10
15
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Capacitance Characteristics
5
30
100
I
C
, COLLECTOR CURRENT (mA)
10
V
O
= 0.2
10
V
in
, INPUT VOLTAGE (V)
-25°C
75
°
C
1
1
25°C
0.1
0.01
0.001
0
6
7
9
5
3
4
8
V
in
, INPUT VOLTAGE (V)
Fig. 5 Collector Current vs. Input Voltage
1
2
10
1
0
10
20
30
40
I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Input Voltage vs. Collector Current
50
DDTC (R1-ONLY SERIES) E
Document number: DS30315 Rev. 8 - 2
3 of 5
www.diodes.com
December 2011
© Diodes Incorporated
DDTC (R1-ONLY SERIES) E
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2011, Diodes Incorporated
www.diodes.com
DDTC (R1-ONLY SERIES) E
Document number: DS30315 Rev. 8 - 2
5 of 5
www.diodes.com
December 2011
© Diodes Incorporated
