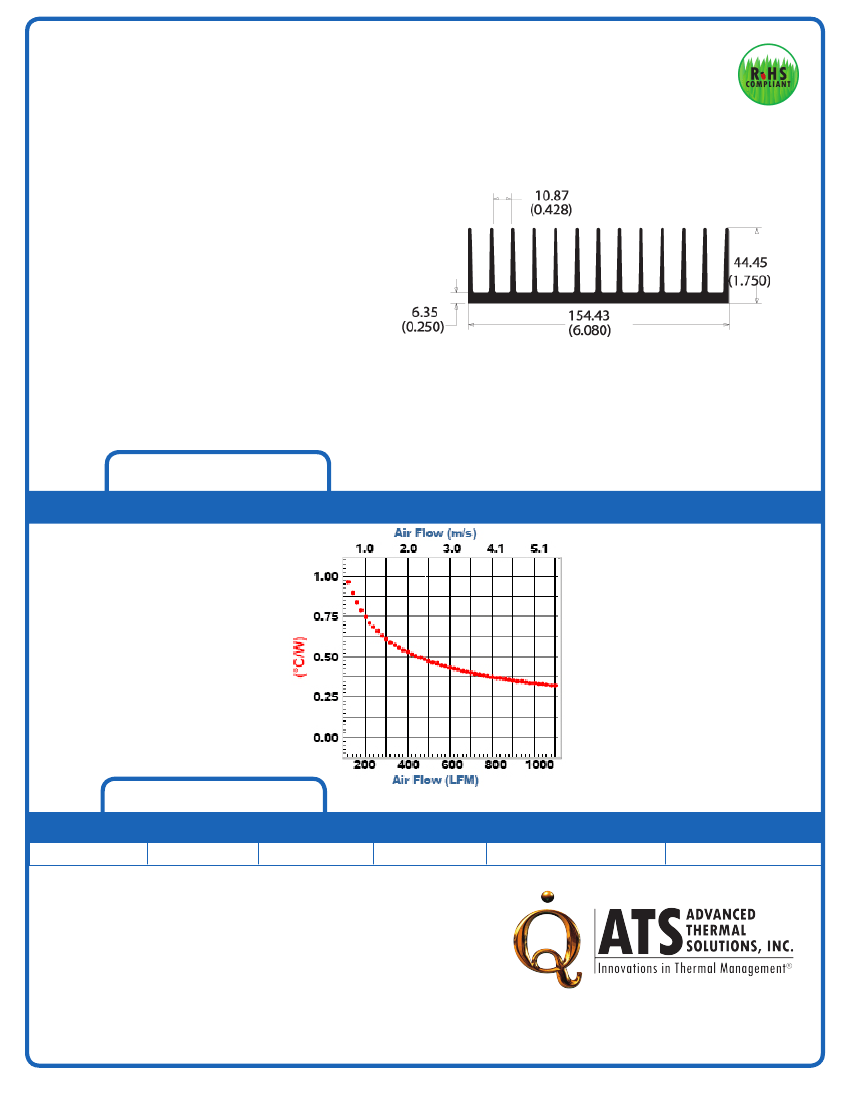

ATS Extrusion Profiles
ATS PART # ATS-EXL11-300-R0
Features & Benefits
»
Aluminum extrusions are the most cost-
effective solution for the majority of
electronic cooling applications
This extrusion profile has 13 fins
Extrusion type is straight fin, AL-6063
Surface area (in
2
/in) is 50.30
*Image above is for illustration purposes only.
»
»
»
Thermal Performance
HEAT SINK THERMAL RESISTANCE
Product Details
LENGTH
DIMENSION A
WIDTH
DIMENSION B
HEIGHT
FIN
BASE
INTERFACE MATERIAL
DIMENSION C
SPACING
DIMENSION D
THICKNESS
FINISH
FINISH
304.8 mm
NoTES:
154.43 mm
44.45 mm
10.87 mm
6.35 mm
NONE
1)
2)
3)
4)
Thermal curve based on 76 mm length.
Thermal performance data are provided for reference only. Actual
performance may vary by application.
ATS reserves the right to update or change its products without notice to
improve the design or performance.
Contact ATS to learn about custom options available.
For more information, to find a distributor or to place an order, visit www.Qats.com or
call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).
