HCPL-0370, HCPL-3700, HCPL-3760
Isolated Voltage/Current Detectors
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The HCPL-0370/3700 and HCPL-3760 are voltage/cur-
rent threshold detection optocouplers. The HCPL-3760 is
a low-current version of the HCPL-0370/3700. To obtain
lower current operation, the HCPL-3760 uses a high-effi-
ciency AlGaAs LED which provides higher light output at
lower drive currents. The devices utilize threshold sens-
ing input buffer ICs which permit control of threshold
levels over a wide range of input voltages with a single
external resistor.
The input buffer incorporates several features: hysteresis
for extra noise immunity and switching immunity, a di-
ode bridge for easy use with ac input signals, and inter-
nal clamping diodes to protect the buffer and LED from
a wide range of over-voltage and over-current transients.
Because threshold sensing is done prior to driving the
LED, variations in optical coupling from the LED to the
detector will have no effect on the threshold levels.
Features
•
Standard (HCPL-0370/3700) and low input current
(HCPL-3760) versions
•
AC or DC input
•
Programmable sense voltage
•
Hysteresis
•
Logic compatible output
•
Thresholds guaranteed over temperature
•
Thresholds independent of LED optical parameters
•
Recognized under UL 1577 and CSA approved for
dielectric withstand proof test voltage of 3750 Vac, 1
minute
Applications
•
Limit switch sensing
•
Low voltage detector
•
AC mains and DC link voltage detection
•
Relay contact monitor
Functional Diagram
AC 1
8
V
CC
•
Relay coil voltage monitor
•
Current sensing
•
Microprocessor interfacing
DC+ 2
7
NC
DC- 3
6
V
O
AC 4
5
GND
TRUTH TABLE
(POSITIVE LOGIC)
INPUT OUTPUT
H
L
L
H
HCPL-3700 Functional Diagram
CAUTION: It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
The HCPL-0370/3700’s input buffer IC has a nominal turn on threshold of 2.5 mA (I
TH
+) and 3.7 volts (V
TH
+).
The buffer IC for the HCPL-3760 was redesigned to permit a lower input current. The nominal turn on threshold for the
HCPL-3760 is 1.2 mA (I
TH
+) and 3.7 volts (V
TH
+).
The high gain output stage features an open collector output providing both TTL compatible saturation voltages and
CMOS compatible breakdown voltages.
By combining several unique functions in a single package, the user is provided with an ideal component for indus-
trial control computer input boards and other applications where a predetermined input threshold level is desirable.
Ordering Information
HCPL-0370/HCPL-3700/HCPL-3760 is UL Recognized with 3750 Vrms for 1 minute per UL1577 unless otherwise
specified.
Option
Part
number
HCPL-
0370
RoHS
Compliant
-000E
-500E
-060E
-560E
Non-RoHS
Compliant
No option
-500
NA
NA
No option
#300
#500
-020
-320
-520
NA
NA
NA
No option
#300
#500
NA
NA
NA
Package
SO-8
Surface
Mount
X
X
X
X
Gull
Wing
Tape
& Reel
X
UL 5000
Vrms/1
Minute
IEC/EN/DIN
EN 60747-5-5 Quantity
100 per tube
1500 per reel
X
100 per tube
1500 per reel
50 per tube
50 per tube
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
HCPL-
3700
-000E
-300E
-500E
-020E
-320E
-520E
-060E
-360E
-560E
300 mil
DIP-8
X
X
X
X
X
X
1000 per reel
50 per tube
50 per tube
1000 per reel
X
X
X
50 per tube
50 per tube
1000 per reel
50 per tube
50 per tube
1000 per reel
X
50 per tube
50 per tube
1000 per reel
X
X
HCPL-
3760
-000E
-300E
-500E
-060E
-360E
-560E
300 mil
DIP-8
X
X
X
X
Note:
NA = Not available.
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1: HCPL-3760-500E to order product of Gull Wing Surface Mount package in Tape and Reel packaging with
and RoHS compliant.
Example 2: HCPL-3700 to order product of 300 mil DIP package in Tube packaging and non RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since July 15, 2001 and
RoHS compliant will use ‘–XXXE.’
2
Schematic
Package Outline Drawings
Standard DIP Package (HCPL-3700/3760)
9.40 (0.370)
9.90 (0.390)
8
7
A XXXX
YYWW RU
PIN ONE
1.19 (0.047) MAX.
1
2
3
4
UL
RECOGNITION
6
5
TYPE NUMBER
DATE CODE
6.10 (0.240)
6.60 (0.260)
7.36 (0.290)
7.88 (0.310)
0.20 (0.008)
0.33 (0.013)
5° TYP.
1.78 (0.070) MAX.
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
1
2
AC
DC+
DC-
AC
V
CC
8
NC 7
V
O
6
GND 5
0.51 (0.020) MIN.
2.92 (0.115) MIN.
3
4
0.76 (0.030)
1.40 (0.056)
0.65 (0.025) MAX.
2.28 (0.090)
2.80 (0.110)
DIMENSIONS IN MILLIMETERS AND (INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
3

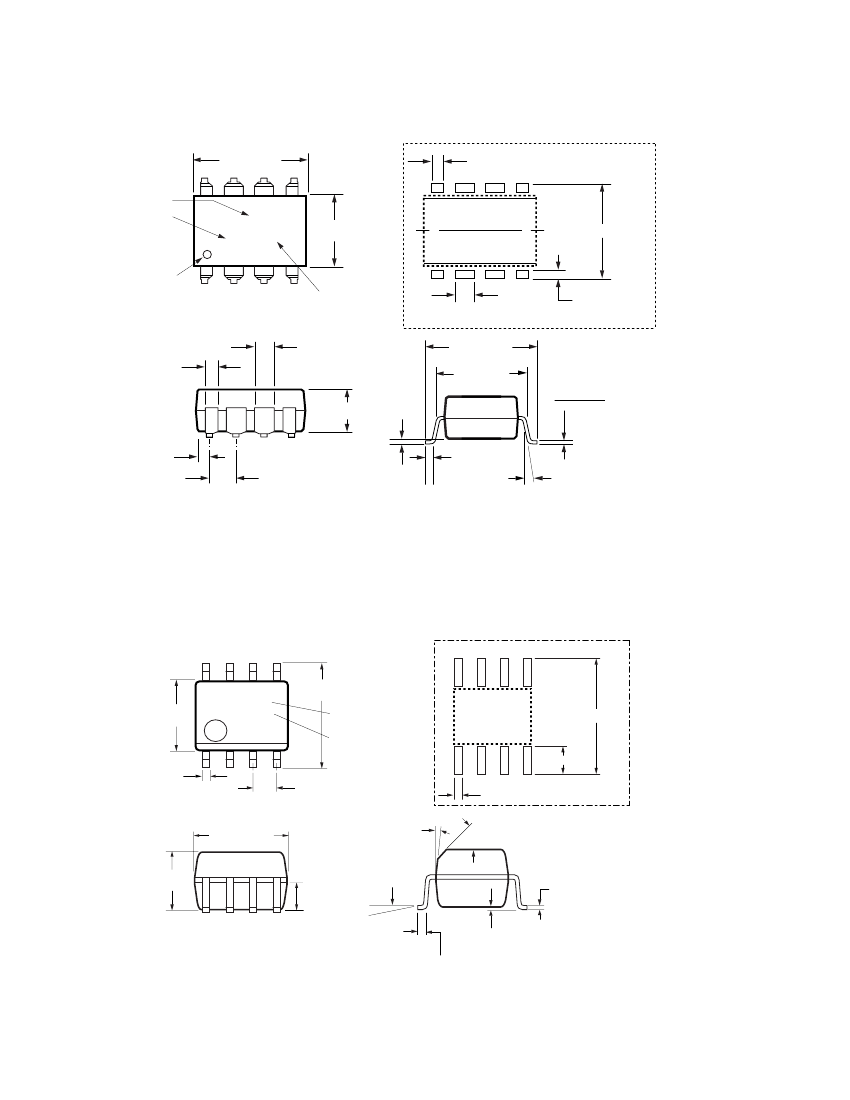

Package Outline Drawings, continued
Gull Wing Surface Mount Option 300 (HCPL-3700/3760)
LAND PATTERN RECOMMENDATION
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
DATE CODE
8
7
6
5
1.016 (0.040)
A XXXX
YYWW RU
1
2
3
4
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
MOLDED
UL
RECOGNITION
1.780
(0.070)
MAX.
1.27 (0.050)
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
2.0 (0.080)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
0.20 (0.008)
0.33 (0.013)
1.080 ± 0.320
(0.043 ± 0.013)
2.540
(0.100)
BSC
0.635 ± 0.130
(0.025 ± 0.005)
0.635 ± 0.25
(0.025 ± 0.010)
12° NOM.
DIMENSIONS IN MILLIMETERS (INCHES).
TOLERANCES (UNLESS OTHERWISE SPECIFIED): xx.xx = 0.01
xx.xxx = 0.005
LEAD COPLANARITY
MAXIMUM: 0.102 (0.004)
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
Small Outline SO-8 Package (HCPL-0370)
LAND PATTERN RECOMMENDATION
8
7
6
5
3.937 ± 0.127
(0.155 ± 0.005)
PIN ONE
1
2
XXX
YWW
5.994 ± 0.203
(0.236 ± 0.008)
TYPE NUMBER
(LAST 3 DIGITS)
DATE CODE
7.49 (0.295)
3
4
1.9 (0.075)
1.270 BSC
(0.050)
0.406 ± 0.076
(0.016 ± 0.003)
0.64 (0.025)
0.432
(0.017)
*
5.080 ± 0.127
(0.200 ± 0.005)
3.175 ± 0.127
(0.125 ± 0.005)
7°
45° X
1.524
(0.060)
0 ~ 7°
0.228 ± 0.025
(0.009 ± 0.001)
0.203 ± 0.102
(0.008 ± 0.004)
*
TOTAL PACKAGE LENGTH (INCLUSIVE OF MOLD FLASH)
5.207 ± 0.254 (0.205 ± 0.010)
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES) MAX.
0.305 MIN.
(0.012)
NOTE: FLOATING LEAD PROTRUSION IS 0.15 mm (6 mils) MAX.
4
Solder Reflow Thermal Profile
300
PREHEATING RATE 3¡C + 1¡C/Ð0.5¡C/SEC.
REFLOW HEATING RATE 2.5¡C ± 0.5¡C/SEC.
PEAK
TEMP.
245¡C
PEAK
TEMP.
240¡C
TEMPERATURE (¡C)
200
160¡C
150¡C
140¡C
PEAK
TEMP.
230¡C
2.5¡C ± 0.5¡C/SEC.
30
SEC.
3¡C + 1¡C/Ð0.5¡C
30
SEC.
SOLDERING
TIME
200¡C
100
PREHEATING TIME
150¡C, 90 + 30 SEC.
50 SEC.
TIGHT
TYPICAL
LOOSE
ROOM
TEMPERATURE
0
0
50
100
150
200
250
TIME (SECONDS)
Note: Non-halide flux should be used.
Recommended Pb-Free IR Profile
t
p
T
p
T
L
TEMPERATURE
T
smax
T
smin
t
s
PREHEAT
60 to 180 SEC.
25
t
L
60 to 150 SEC.
260 +0/-5 °C
217 °C
RAMP-UP
3 °C/SEC. MAX.
150 - 200 °C
RAMP-DOWN
6 °C/SEC. MAX.
TIME WITHIN 5 °C of ACTUAL
PEAK TEMPERATURE
15 SEC.
t 25 °C to PEAK
TIME
NOTES:
THE TIME FROM 25 °C to PEAK TEMPERATURE = 8 MINUTES MAX.
T
smax
= 200 °C, T
smin
= 150 °C
Note: Non-halide flux should be used.
Regulatory Information
The HCPL-0370/3700/3760 has been approved by the following organizations:
IEC/EN/DIN EN 60747-5-5 (with option 060)
Maximum Working Insulation Voltage V
IORM
= 567 Vpeak
for HCPL-0370, and 630 Vpeak for HCPL3700/3760.
Highest Allowable Overvoltage V
IOTM
= 6000 Vpeak for
HCPL-0370/3700/3760.
UL
Recognized under UL 1577, component recognition
program, File E55361 (HCPL-0370 pending).
CSA
Approved under CSA Component Acceptance Notice
#5, File CA 88324.
5
