Part Number

Search

DBML9W4P543MN

Description
D Subminiature Connector, 5 Contact(s), Male, Solder Terminal
CategoryThe connector    The connector
File Size829KB,9 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

DBML9W4P543MN Overview

D Subminiature Connector, 5 Contact(s), Male, Solder Terminal

DBML9W4P543MN Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
JESD-609 codee4
MIL complianceNO
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM
Shell materialSTEEL
Housing size3/B
Termination typeSOLDER
Total number of contacts5
UL Flammability Code94V-0

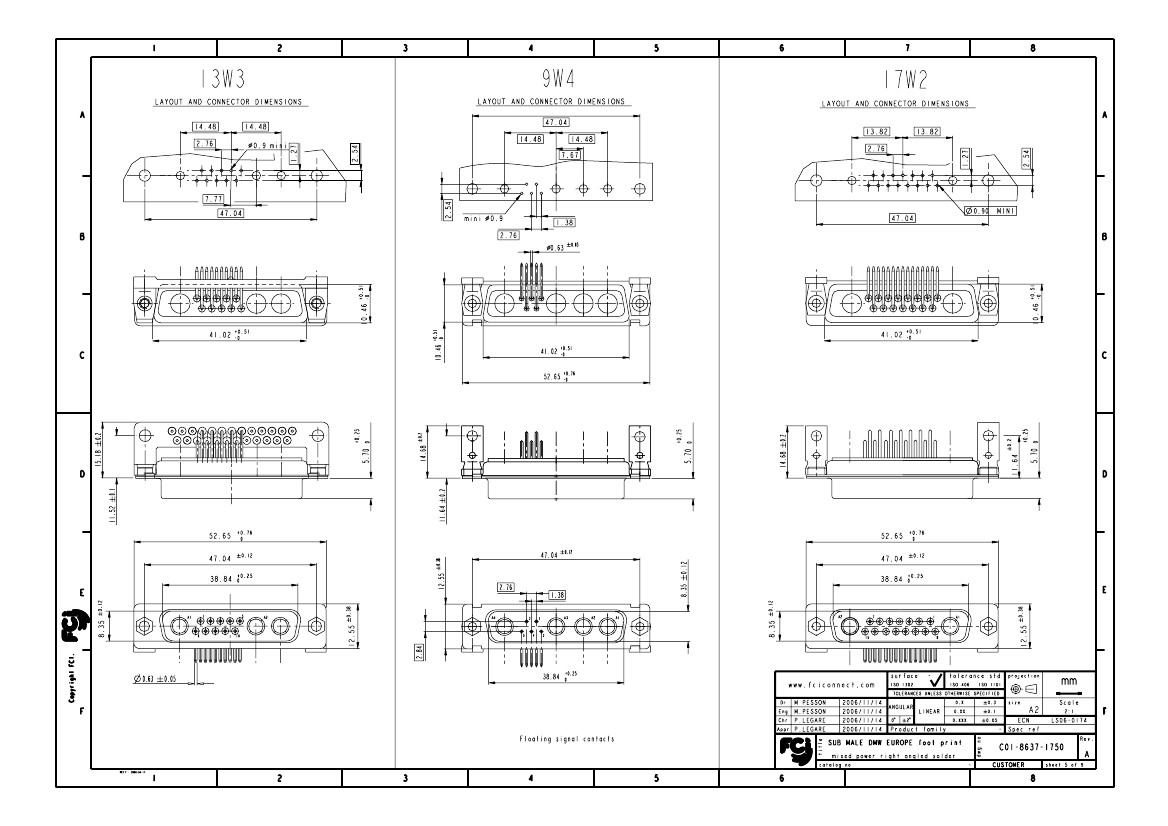

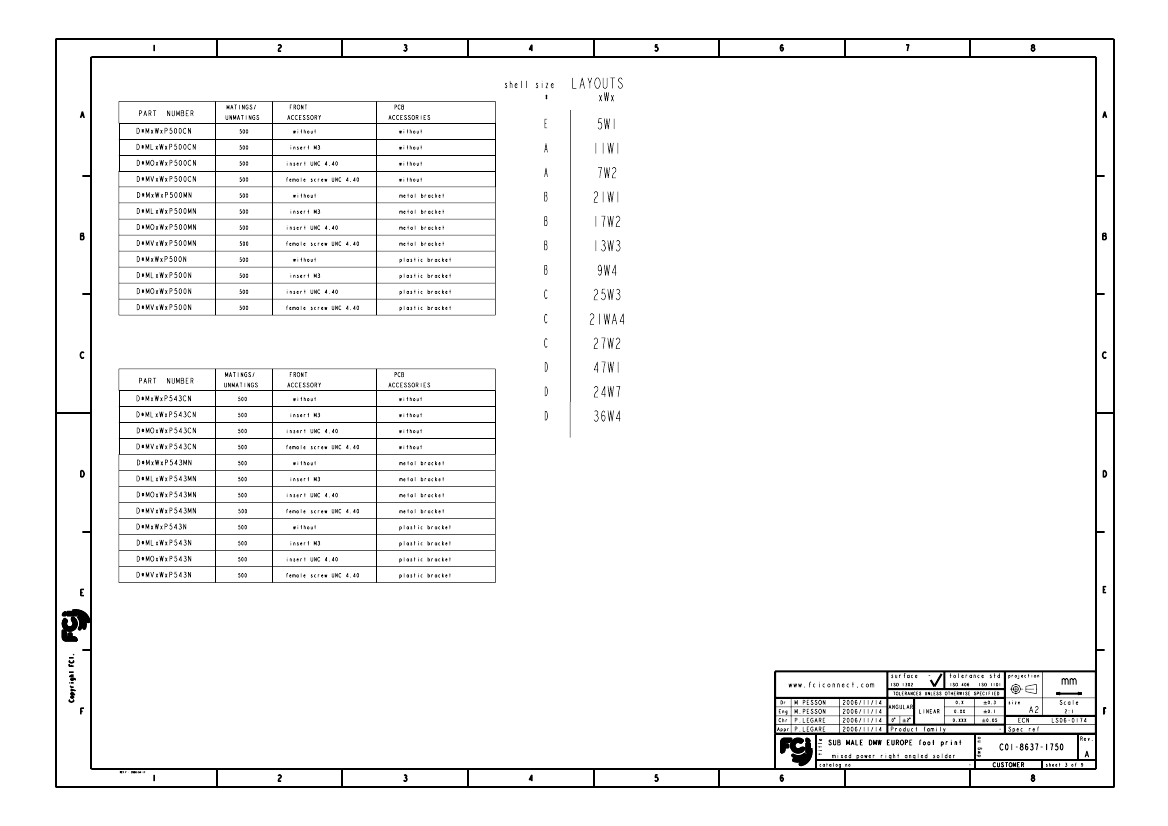

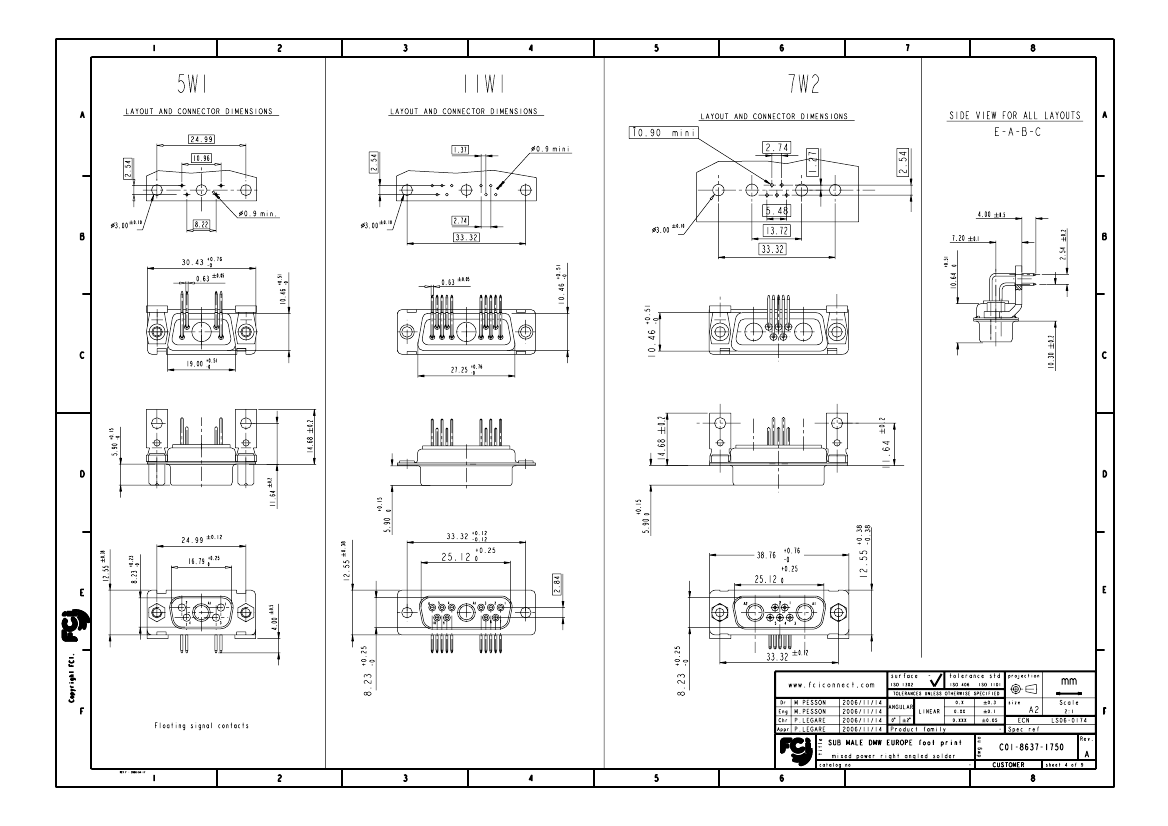

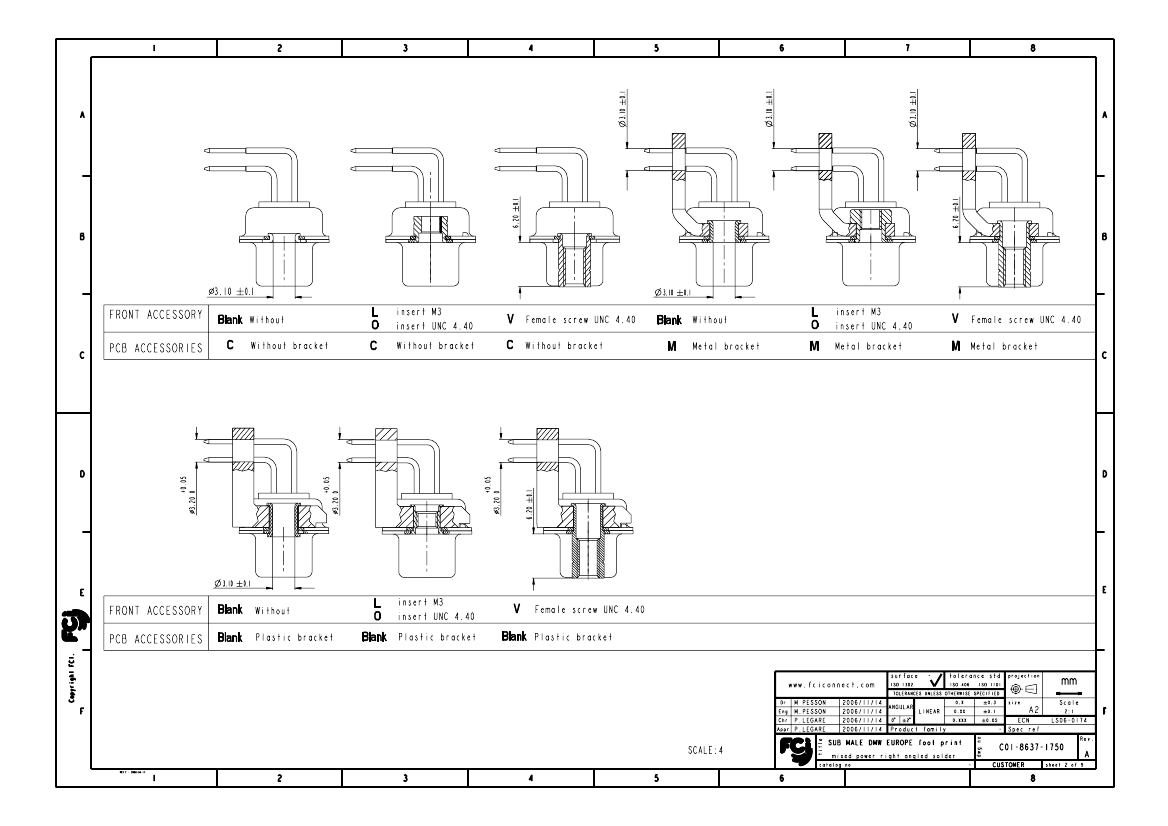

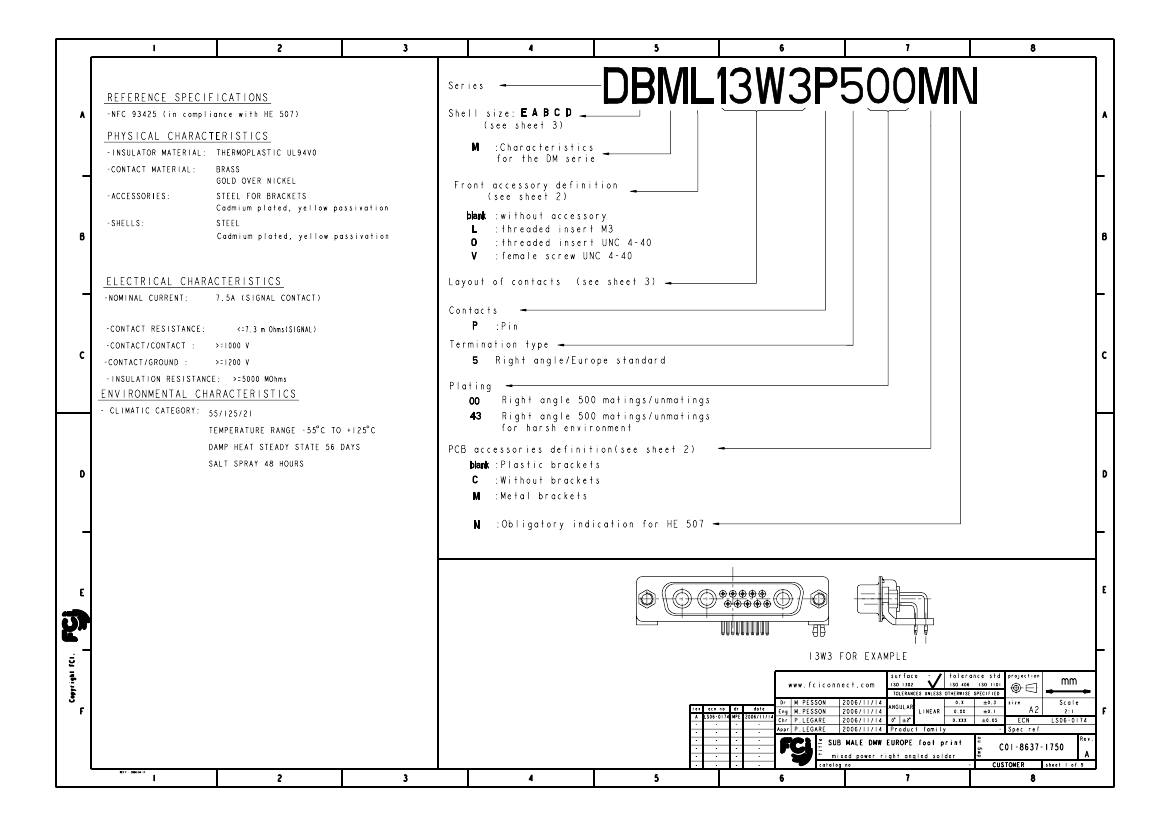

PDM:
PDS: Rev :A
Rev:A
STATUS:Released
Printed: Jun 18,
Jun 19, 2015
Printed:
2015
STATUS:
Released
.
