HMTMS-118-54-L-D-390: DescriptionBoard Stacking Connector, 36 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size546KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HMTMS-118-54-L-D-390 Overview

Board Stacking Connector, 36 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

HMTMS-118-54-L-D-390 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HMTMS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

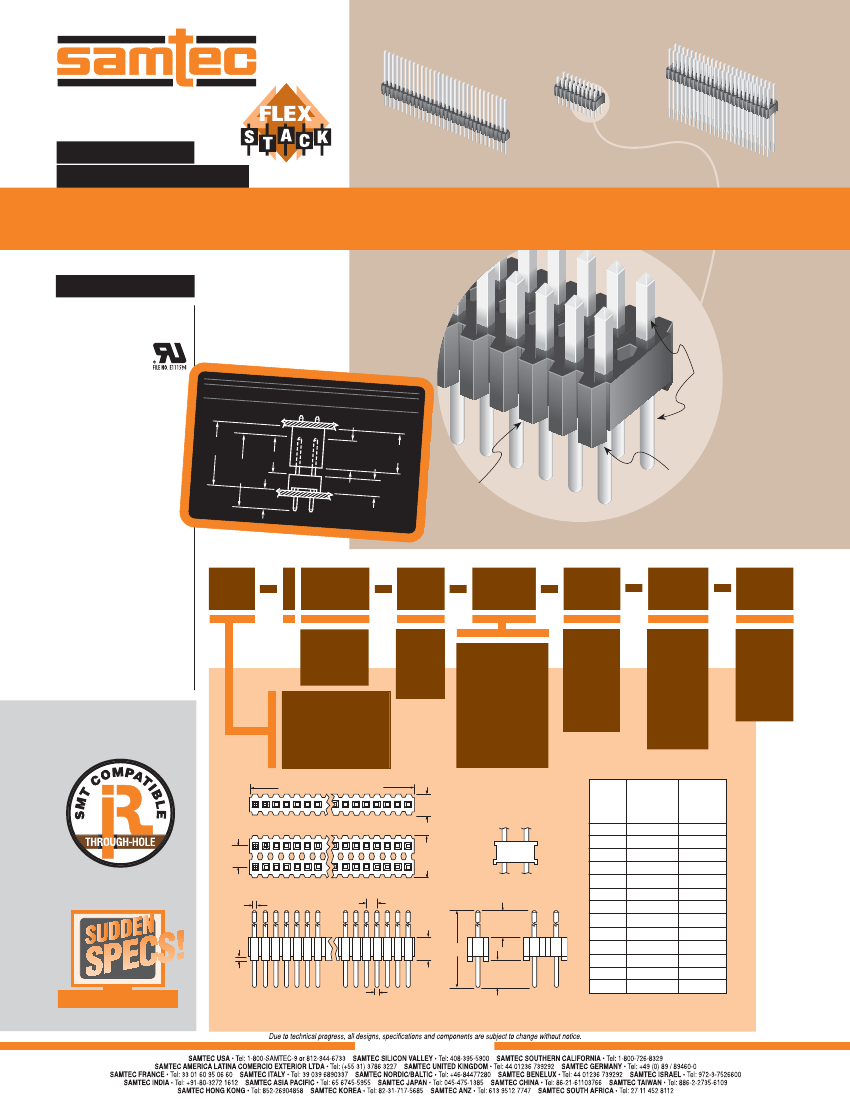

F-210-1

MTMS–125–60–G–D–230

MTMS–110–02–G–D–100

(1,27mm) .050"

MTMS, HMTMS SERIES

MTMS–130–57–G–S–390

MODIFIED MICRO HEADER

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MTMS

or www.samtec.com?HMTMS

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ” (1,27µm) Ni

Current Rating:

Operating Temp Range:

-55°C to + 105°C with Tin

-55°C to + 125°C with Gold

RoHS Compliant:

Yes

Mates with:

SMS, SLM, RSM

Board Stacking

BO AR D

SP AC E

OV ER AL L

PI N

(O AL )

PO ST

M AX

IN SE RT IO N

DE PT H

SO CK ET

PR OF ILE

BO DY

PR OF ILE

Position anywhere

in the body with

(3,05mm) .120"

minimum tail

Ideal for board

stacking

applications

Single row

and double row

TA IL

TYPE

STRIP

Note:

Other Gold plating

options available.

Contact Samtec.

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

POST

HEIGHT

OPTION

Note:

This Series is

non-standard, non-returnable.

thru

MTMS

= Modiﬁed Standard

–L

= 10µ" (0,25µm)

Gold on post,

Matte Tin on tail

–S

= Single

Row

–“XXX”

= “B”

Dimension

(Specify

Post Height

in inches

(0,13mm)

.005"

increments)

–“XXX”

= Polarized

Position

(Specify

position of

omitted pin)

–D

= Double

Row

Processing:

Lead-Free Solderable:

Yes

–G

= 10µ" (0,25µm)

Gold on post,

Gold ﬂash on tail

HMTMS

= Modiﬁed High Temp

(1,27) .050 x No. of Positions

(2,48)

.098

100

LEAD

STYLE

–01

–02

–25*

–51

–52

–53

–54

–55

–56

–57

–58

–59

–60

OAL

(Maximum

when C =

.120 (3,05) )

(11,43) .450 (5,84) .230

(8,13) .320

(8,38) .330

(2,54) .100

(3,18) .125

(10,41) .410 (4,83) .190

(10,80) .425 (5,21) .205

(12,83) .505 (7,24) .285

(14,10) .555 (8,51) .335

(15,49) .610 (9,91) .390

(15,88) .625 (10,29) .405

(16,51) .650 (10,92) .430

(17,91) .705 (12,32) .485

(19,18) .755 (13,59) .535

(20,96) .825 (15,37) .605

(2,54)

.100

(4,98)

.196

HMTMS –D

BODY DESIGN

(0,00) .000

MIN

(2,54)

.100

(0,46) .018 SQ

(1,27) .050 TYP

OAL

(3,05)

.120

MIN

(0,51)

.020

www.samtec.com

(0,51) .020 DIA

Tail DIA is .020" (0,51mm) for min .120" (3,05mm).

Balance of tail is .018" (0,46mm) SQ.

*Style -25 tail C=.105 (2,67) min

is available.

WWW.SAMTEC.COM
