SQV322520T-330J-S datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SQV322520T-330J-S

SQV322520T-330J-S: DescriptionGeneral Purpose Inductor, 33uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP; CategoryPassive components inductor; File Size221KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

SQV322520T-330J-S Overview

General Purpose Inductor, 33uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP

SQV322520T-330J-S Parametric

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	3.5 Ω
Nominal inductance(L)	33 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	SQV
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.115 A
self resonant frequency	12 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 1MZ
surface mount	YES
Terminal surface	TIN LEAD
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	5%

Preview

Download Datasheet

View All

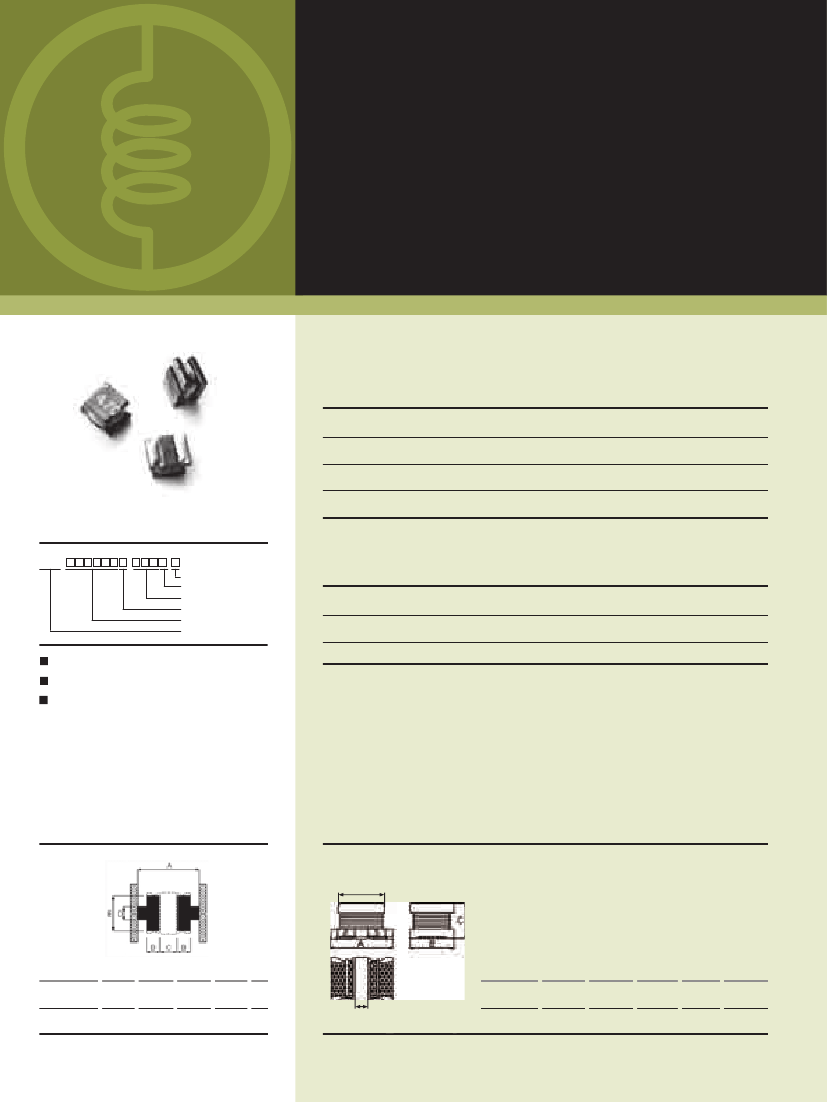

YAGEO CORPORATION

SMD INDUCTOR / BEADS

Miniature Surface Mount

Chip Inductors

SQV Series

For High Q Application

SQV Series comes in 2 sizes and provides wide inductance range , high Q value at high frequencies and low

DC resistance

applICaTIOns

Personal, Cordless Phone

High Freq. Communication Products

GPS ( Global Position System )

Personal Computers

pROduCT IdenTIFICaTIOn

SQV

Intemal No.

Tolerance

Inductance

Packaging Style

Dimensions

Product Symbol

Note : SQV Series is not suitable for wave soldering

FeaTuRes

This miniature chip inductors wound on a special ferrite core.

High Q value at high frequencies and low DC resistance.

Wide Inductance Range

Packaging : T: Tape and Reel

Tolerance : J = ±5% ; K= ±10% ; M= ±20%

YAGEO will start to release lead-free that meet

SONY SS-00259's criteria, and Internal No. well

be changed to "N" as identification.

Ex. SQV322520T-220J-N

ReCOMMended paTTeRn

Dimensions : mm

shapes and dIMensIOns

Dimensions : mm

TYPE

SQV322520

SQV453226

5.5

7.5

1.0

1.5

1.3

1.5

1.0

1.5

2.0

3.0

TYPE

SQV322520

SQV453226

3.2 ± 0.3

4.5 ± 0.3

2.5 ± 0.2

3.2 ± 0.2

2.5 ± 0.2

3.6 ± 0.2

2.0 ± 0.2 1.3 TYP

2.6 ± 0.2 1.0 Min
