HGM060FSE0H69D000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HGM060FSE0H69D000

Preview

HGM060FSE0H69D000: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerIEH Corp.

Download Datasheet Parametric View All

HGM060FSE0H69D000 Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,

HGM060FSE0H69D000 Parametric

Parameter Name	Attribute value
Maker	IEH Corp.
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-55302, POLARIZED, PANEL MOUNTABLE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

010-070 POSITION RECEPTACLE

THRU MOUNTING

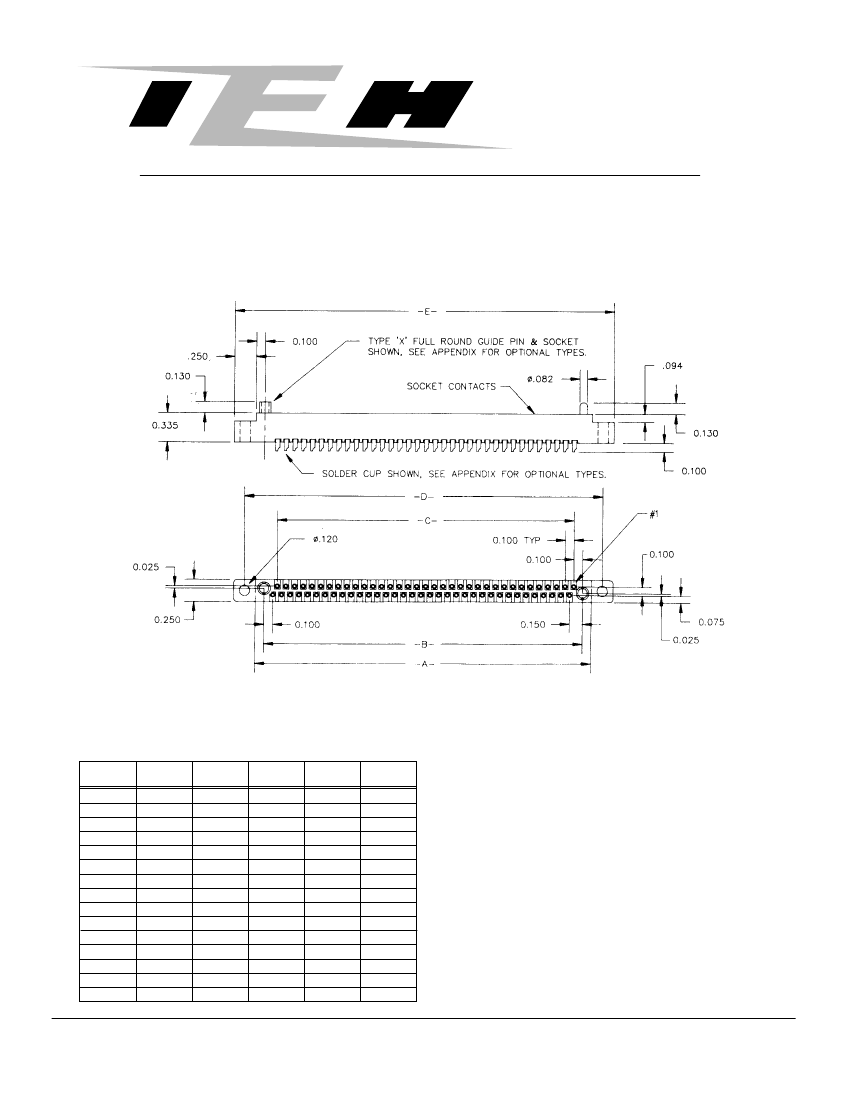

HYPERBOLOID SERIES: HGM(010-070)FD--FS------000

DIMENSIONS - 2 ROW CONNECTORS

No. of

Contacts

010

014

020

024

026

030

036

040

044

050

054

056

060

066

070

A

.850

1.050

1.350

1.550

1.650

1.850

2.150

2.350

2.550

2.850

3.050

3.150

3.350

3.650

3.850

B

.650

.850

1.150

1.350

1.450

1.650

1.950

2.150

2.350

2.650

2.850

2.950

3.150

3.450

3.650

C

.400

.600

.900

1.100

1.200

1.400

1.700

1.900

2.100

2.400

2.600

2.700

2.900

3.200

3.400

D

1.100

1.300

1.600

1.800

1.900

2.100

2.400

2.600

2.800

3.100

3.300

3.400

3.600

3.900

4.100

E

1.350

1.550

1.850

2.050

2.150

2.350

2.650

2.850

3.050

3.350

3.550

3.650

3.850

4.150

4.350

R

EFER

T

O

A

PPENDIX

F

OR

T

ERMINATIONS

,

H

ARDWARE

S

TYLES

AND

P

OLARIZING

A

RRANGEMENTS
