0733660026 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0733660026

0733660026: DescriptionRF MCX Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Locking, Plug,; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0733660026 Overview

RF MCX Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Locking, Plug,

0733660026 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	not_compliant
ECCN code	EAR99
Body/casing type	PLUG
Cable type	RG-174
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Contact style	COAX
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	1

Preview

Download Datasheet

View All

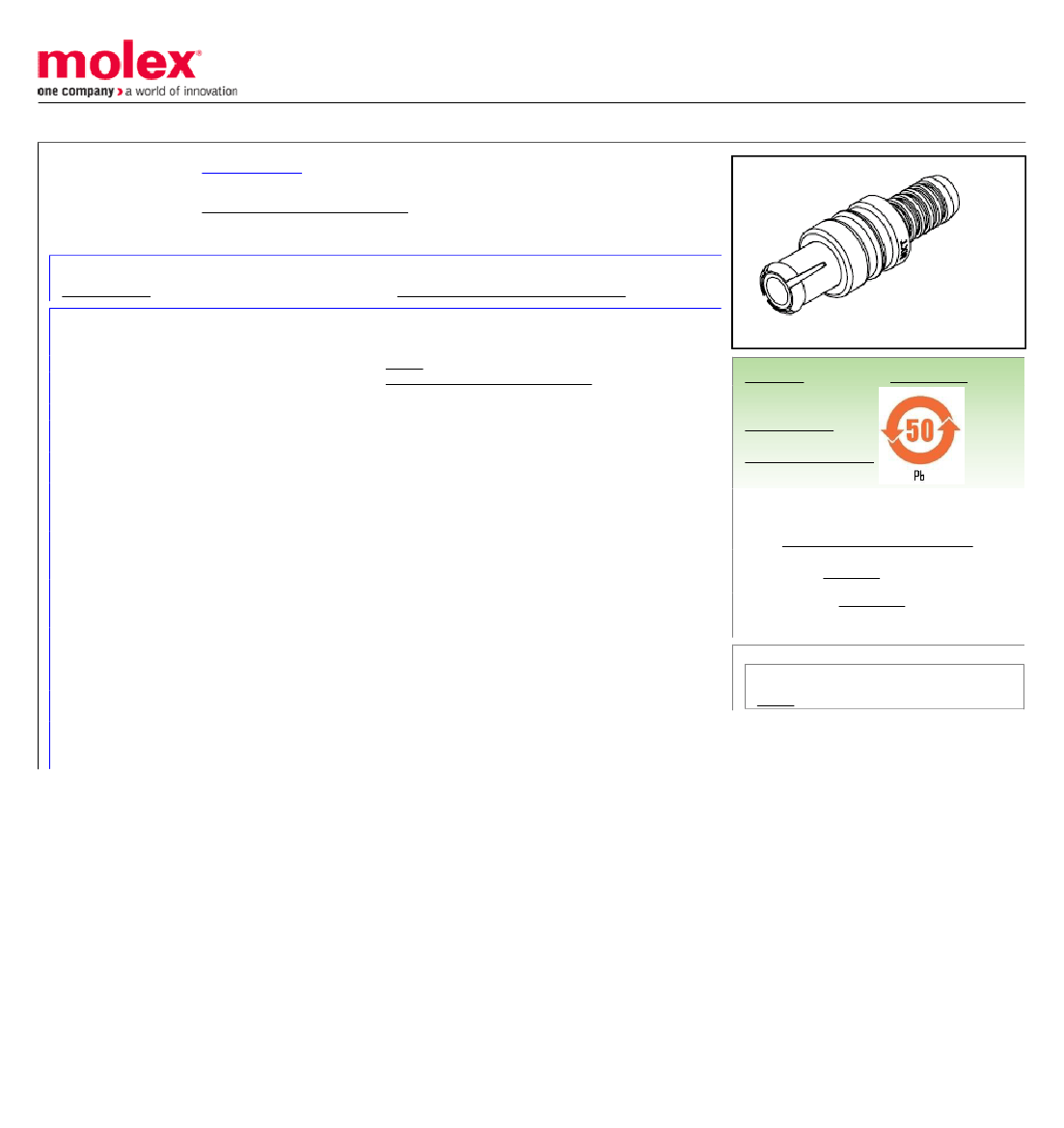

This document was generated on 12/02/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

73366-0026

Active

MCX Subminiature RF Connectors

50 Ohm MCX Plug, Crimp, RG-174, RG-188 and RG-316 Cable, Gold (Au) Plating,

One Piece Per Bag

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

RF/Coax Connectors

73366

MCX Subminiature RF Connectors

MCX

Cable

884982668799

RG-174, RG-188, RG-316

image - Reference only

EU RoHS

RoHS Compliant RF

Product

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Overview

Product Name

Style

UPC

Wire/Cable Type

Physical

Cable Attachment

Gender

Keying to Mating Part

Orientation

PCB Mounting

Packaging Type

Panel Mount

Panel Mount Method

Reverse Polar

Shield Type

Crimp

Plug

None

Straight

N/A

Bag

N/A

Single Shield

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Impedance

50#

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-73366-002

Search Parts in this Series

73366Series

This document was generated on 12/02/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
