WDD15F3C5AT70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> WDD15F3C5AT70

WDD15F3C5AT70: DescriptionD Type Connector, 15 Contact(s), Female, Solder Terminal, Plug; CategoryThe connector The connector; File Size551KB，6 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric Compare View All

WDD15F3C5AT70 Overview

D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug

WDD15F3C5AT70 Parametric

Parameter Name	Attribute value
Objectid	1177589635
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CORROSION PROTECTED
body width	0.83 inch
subject depth	0.28 inch
body length	1.55 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	ZINC
Shell material	STEEL
Terminal length	0.15 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15

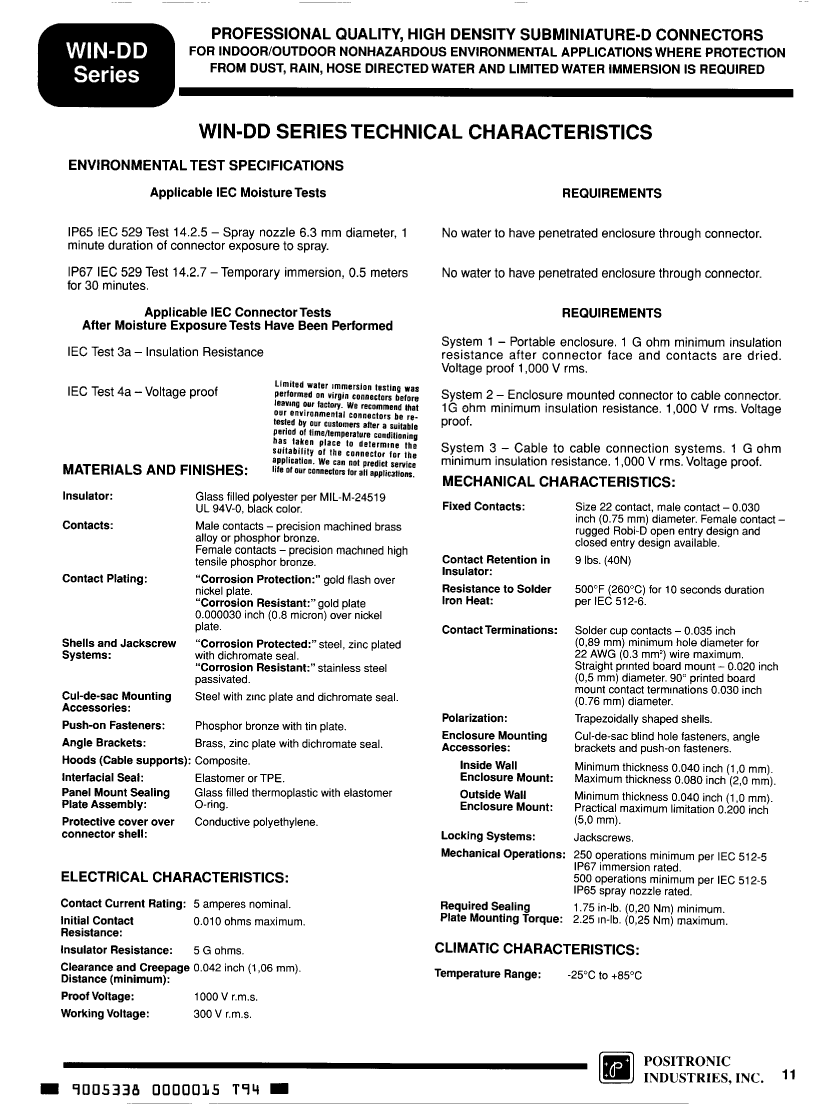

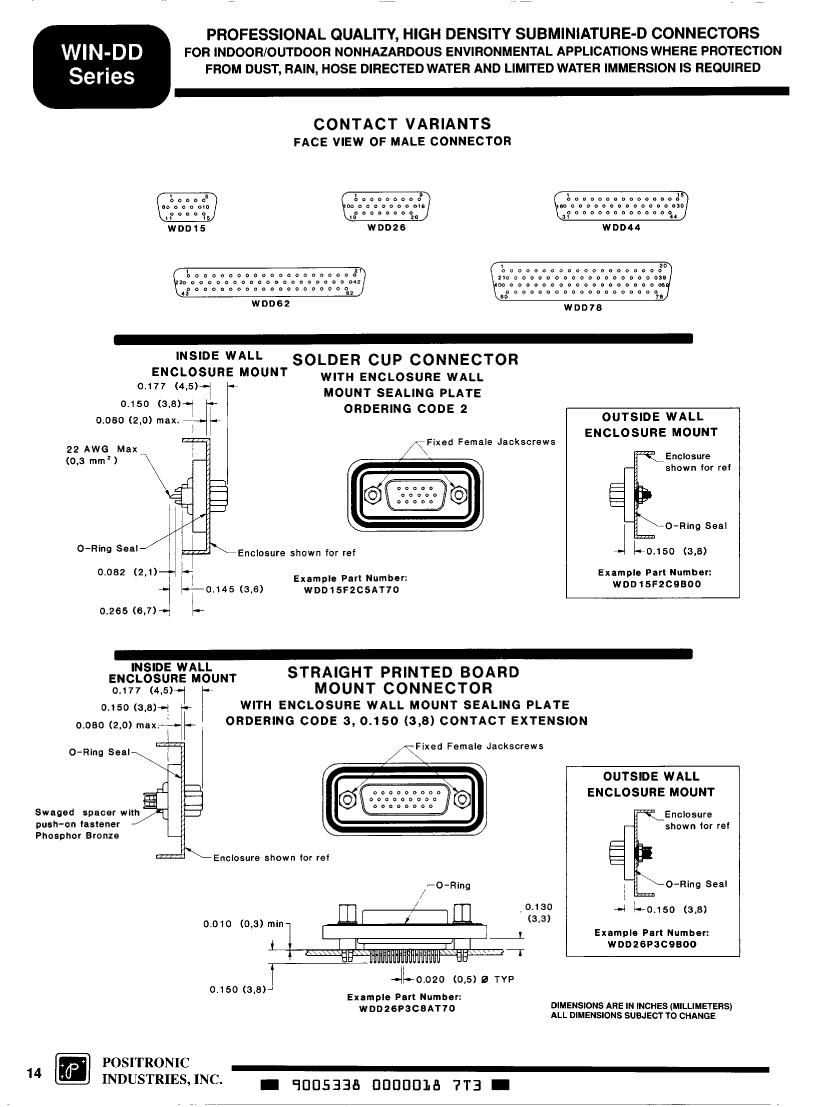

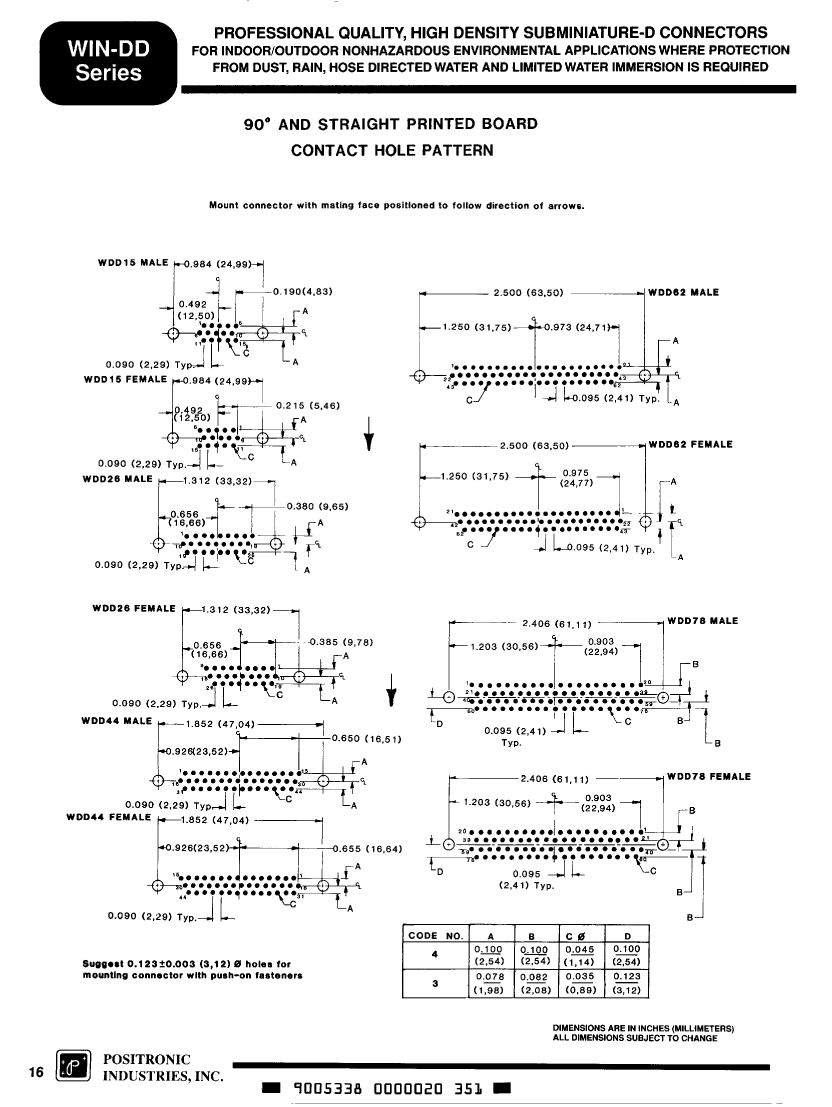

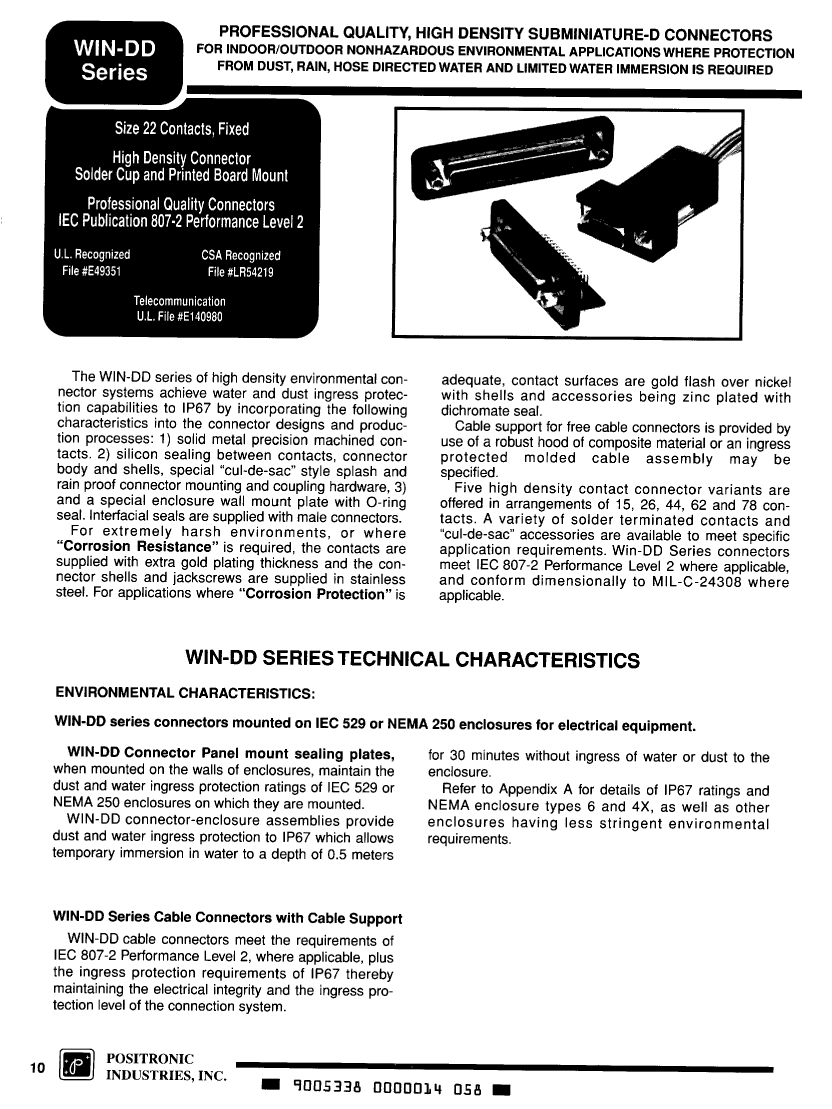

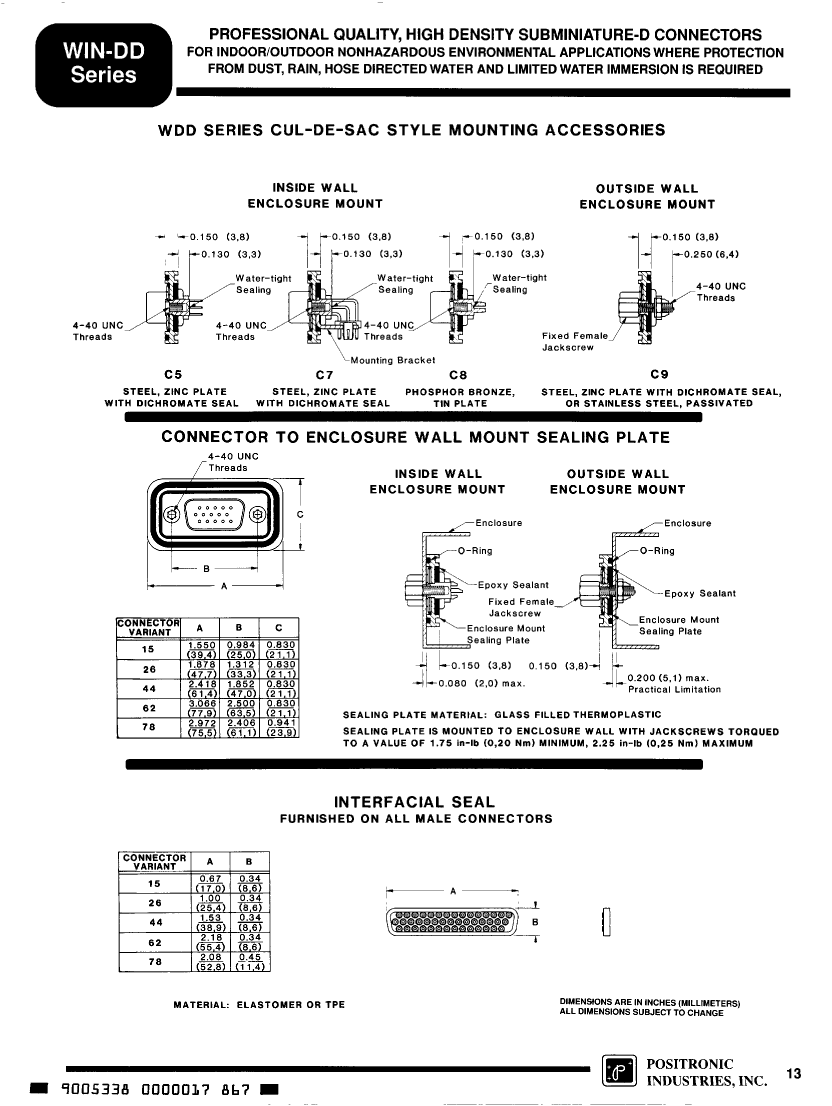

Preview

Download Datasheet

View All

WDD15F3C5AT70 Related Products

	WDD15F3C5AT70	WDD26P3C9A0S	WDD26P3C9A00	WDD26P3C9B0S	WDD26P3C8AT7S	WDD26P3C5AT70	WDD44P3C8AT70	WDD62F3C9B0S	WDD26F3C8AT70
Description	D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug	D Type Connector, 26 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 26 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 44 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 62 Contact(s), Female, Solder Terminal, Plug	D Type Connector, 26 Contact(s), Female, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	CORROSION PROTECTED	CORROSION RESISTANT	CORROSION PROTECTED	CORROSION RESISTANT	CORROSION RESISTANT	CORROSION PROTECTED	CORROSION PROTECTED	CORROSION RESISTANT	CORROSION PROTECTED
body width	0.83 inch	0.83 inch	0.83 inch	0.83 inch	0.83 inch	0.83 inch	0.83 inch	0.83 inch	0.83 inch
subject depth	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch
body length	1.55 inch	1.878 inch	1.878 inch	1.878 inch	1.878 inch	1.878 inch	2.418 inch	3.066 inch	1.878 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm
Plating thickness	FLASH inch	30u inch	FLASH inch	30u inch	30u inch	FLASH inch	FLASH inch	30u inch	FLASH inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
Shell surface	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
Terminal pitch	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.413 mm	2.286 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	26	26	26	26	26	44	62	26
Maker	-	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries	-
Manufacturer's serial number	-	WDD	WDD	WDD	WDD	WDD	WDD	WDD	-
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Base Number Matches	-	1	1	1	1	1	-	-	-
