TMP86P202P Overview

High performance, Low Cost 20 pin OTP TMP86P202P

TMP86P202P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	8
CPU series	TLCS-870/C
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T20
length	24.6 mm
Number of I/O lines	14
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5.5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	2048
ROM programmability	OTPROM
Maximum seat height	5.344 mm
speed	8 MHz
Maximum slew rate	5.5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3.3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

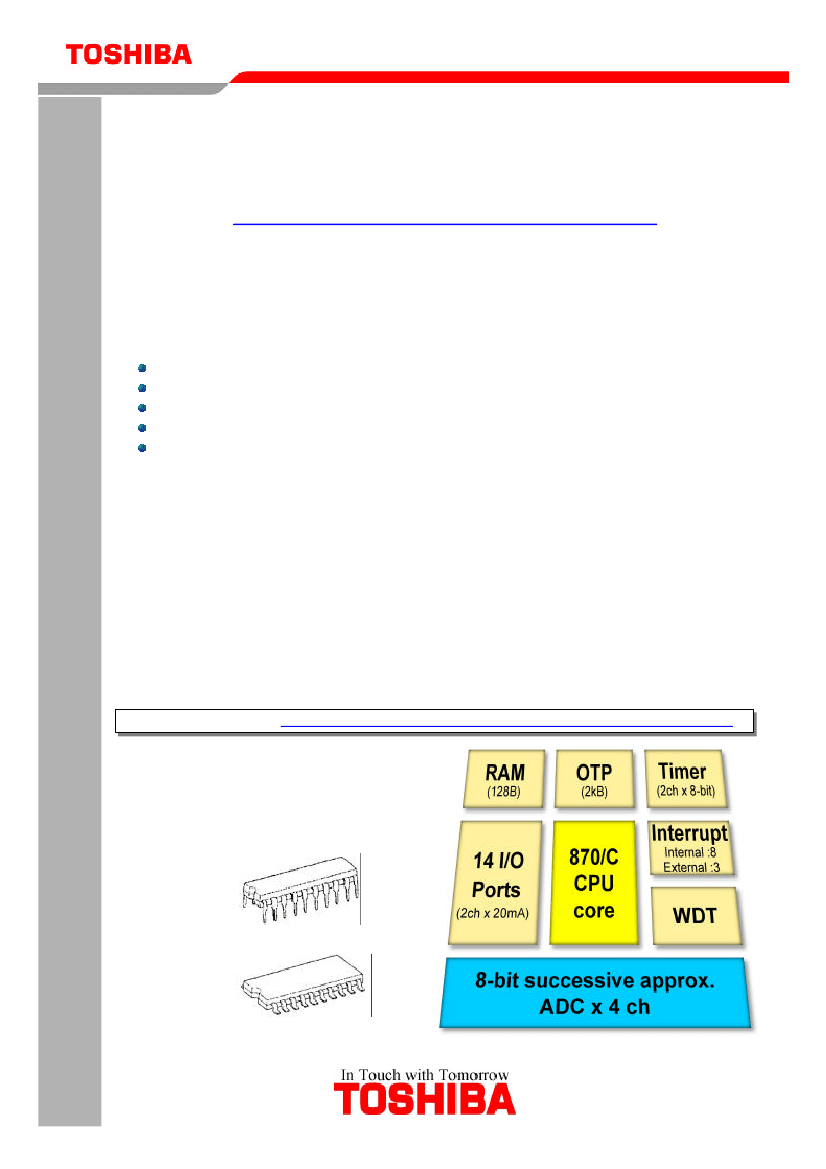

Microcontroller

NEWSFlash

High performance, Low Cost

20 pin OTP TMP86P202P

www.toshiba-components.com

The new 20 pin TMP86P202 is

available in DIP20 and soon in

SOP20* packaging and will suit

applications including:

home appliances,

office automation systems,

industrial equipment

small measurement instruments.

Slave MCU e.g. as port or serial I/I

expander

basic instructions. Supply voltage for

the new microcontroller is rated at

3.3 to 5.5V, while one STOP and two

IDLE modes serve to minimise

power consumption.

Toshiba’s TMP86P202 offers 16 I/O

pins, two of which are for high

current outputs of typically 20mA. On

board memory comprises 2k x 8 bits

of ROM and 128 x 8 bits of RAM.

The two on-board 8-bit timers

provide a PPG or PWM output,

event counter input and can be

configured for 16-bit timer operation.

Additionally a four channel 8-bit A/D

converter is available. Built in

interrupt handling allows the

designer to use eight internal and

three external interrupts.

Despite its small size, the device

integrates the CPU core along with

ROM, RAM, a timer/counter, a

watchdog timer, an 8-bit A/D

converter and an interrupt controller.

Based on the TLCS-870/C series

core, the TMP86P202 operates at

frequencies up to 8MHz and features

powerful instruction sets using 731

*currently under development

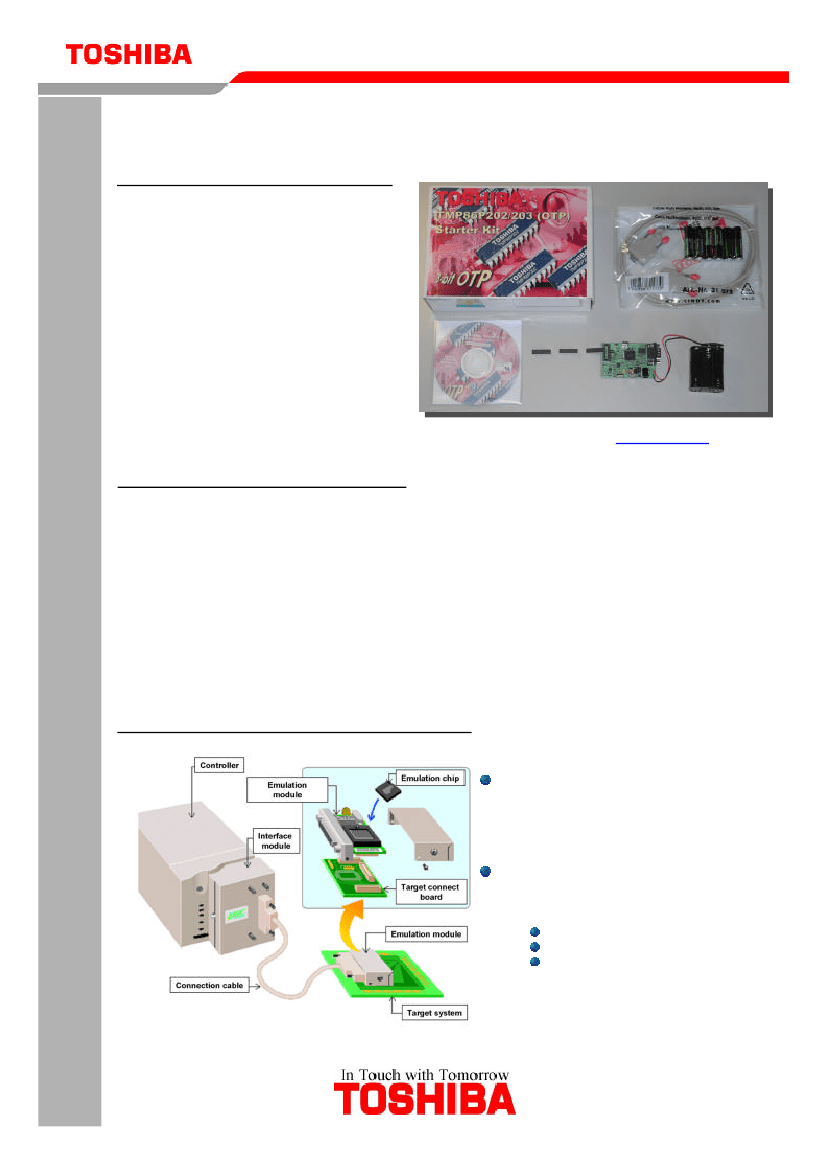

Datasheets are available here :

:

http://www.toshiba-components.com/products/semiconductors/microcontrollers/Documents.html

Datasheets are available here

http://www.toshiba-components.com/products/semiconductors/microcontrollers/Documents.html

P-DIP20-300-2.54D

TMP86P202P

P-SOP20-300-1.27

TMP86P202M

(under Development)

Copyright and Published by

Toshiba Electronics Europe GmbH.

Products or company names mentioned in this Newsflash

are Trademarks of their respective owners. 25.04.2003
