SUBMINIATURE SOLID STATE LAMP
Part Number: KM2520SRC03-RY
Super Bright Red
Features
Subminiature package.
Gull wing lead.
Long life - solid state reliability.
Low package profile.
Moisture sensitivity level : level 3.
Package : 1000pcs / reel.
RoHS compliant.
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.

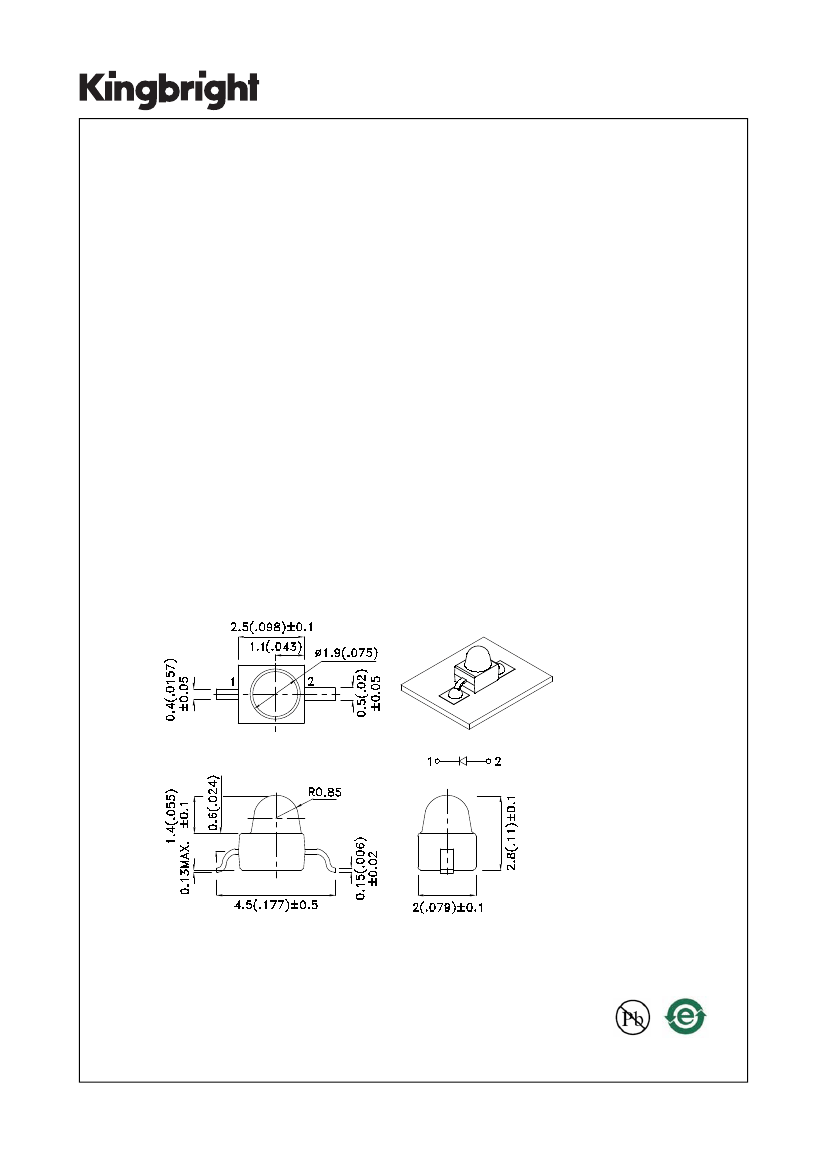

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
5. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAL1988
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Allen Liu
DATE: DEC/28/2011
DRAWN: D.M.Su
PAGE: 1 OF 5
ERP: 1202000669
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
600
KM2520SRC03-RY
Super Bright Red (GaAlAs)
Water Clear
*300
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
20
°
Typ.
800
*600
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
660
640
20
45
1.85
2.5
10
Typ.
*655
*640
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
*Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Red
75
30
155
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAL1988
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Allen Liu
DATE: DEC/28/2011
DRAWN: D.M.Su
PAGE: 2 OF 5
ERP: 1202000669

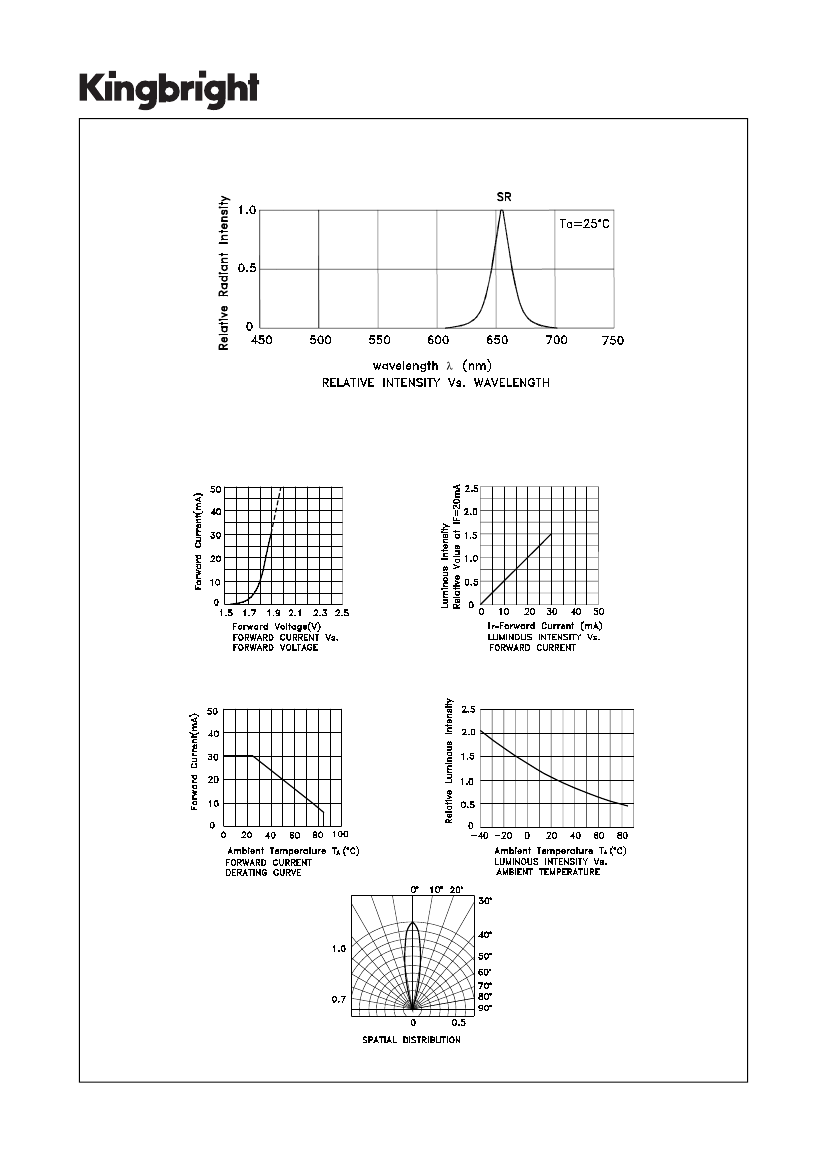

Super Bright Red
KM2520SRC03-RY
SPEC NO: DSAL1988
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Allen Liu
DATE: DEC/28/2011
DRAWN: D.M.Su
PAGE: 3 OF 5
ERP: 1202000669
KM2520SRC03-RY

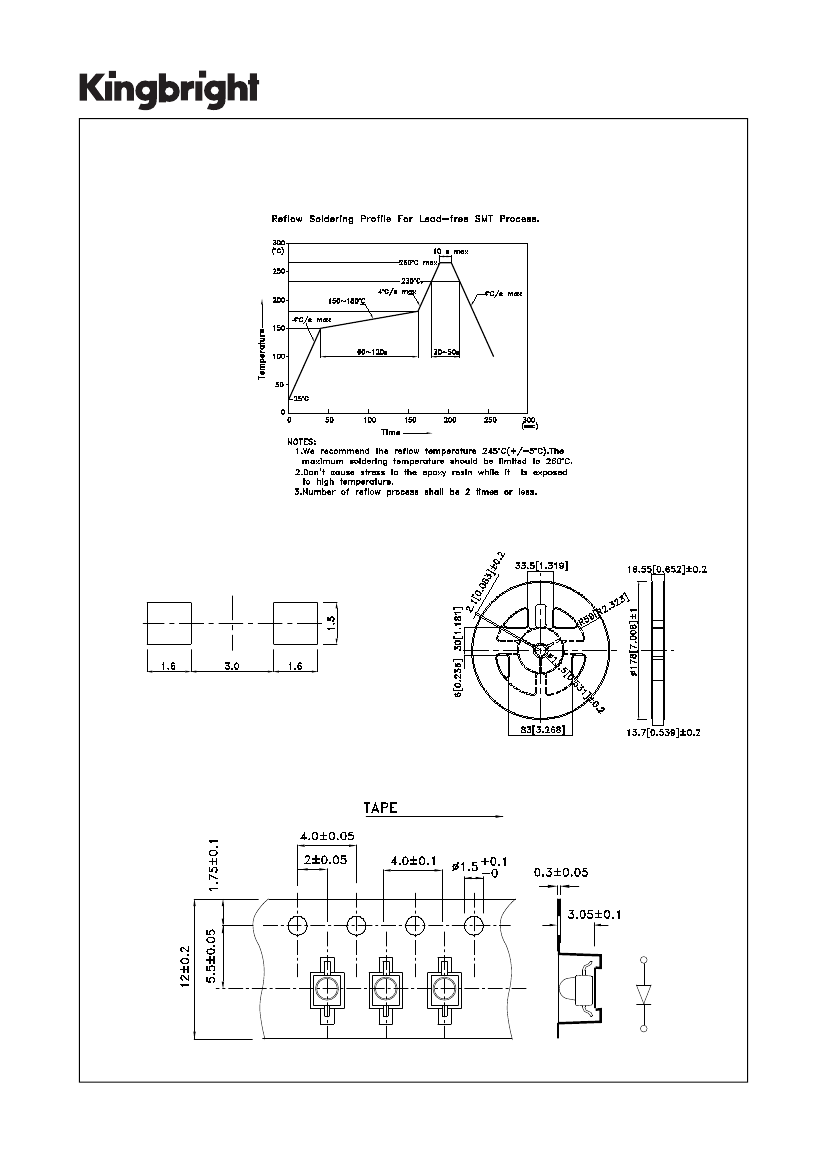

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAL1988
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Allen Liu
DATE: DEC/28/2011
DRAWN: D.M.Su
PAGE: 4 OF 5
ERP: 1202000669

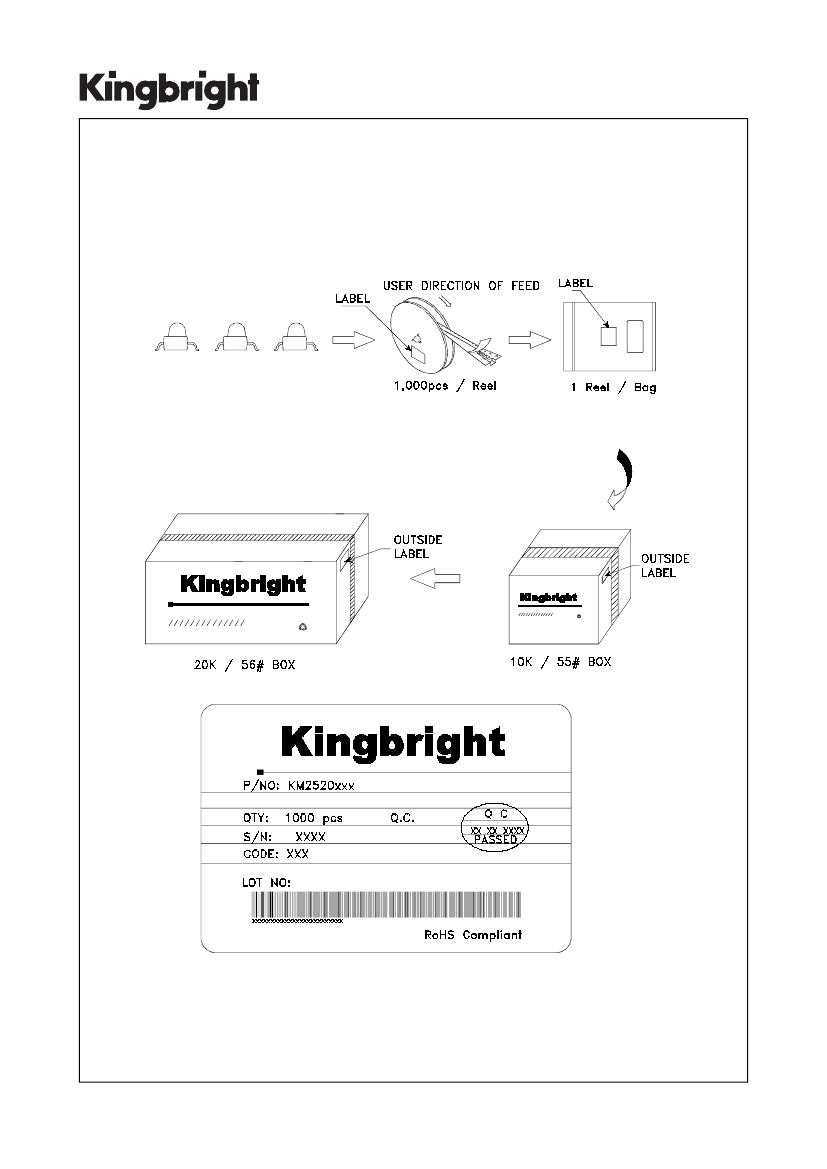

PACKING & LABEL SPECIFICATIONS
KM2520SRC03-RY
SPEC NO: DSAL1988
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Allen Liu
DATE: DEC/28/2011
DRAWN: D.M.Su
PAGE: 5 OF 5
ERP: 1202000669
