ML-940-002-8814A

Description
Telecom and Datacom Connector, Receptacle
CategoryThe connector    The connector
File Size71KB,2 Pages
ManufacturerMitsumi Electric Co., Ltd.
Download Datasheet Parametric View All

ML-940-002-8814A Overview

Telecom and Datacom Connector, Receptacle

ML-940-002-8814A Parametric

Parameter NameAttribute value
MakerMitsumi Electric Co., Ltd.
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberML-940
OptionsGENERAL PURPOSE
MITSUMI
USB Series "Mini-AB" Connectors
CAM-E43ASF · E43ADF · E43SDF
Connectors
FEATURES
1. Ultra-small size realized for 5 pins.
Volume as compared to conventional Mitsumi
product : 1/5
Coupling projection area ratio : 1/4
2. It is the most suitable for connection with PC
peripheral equipment with slim PCs, PDAs,
mobile phones and so on.
3. Utilizes a sequential function that slides power
supply and signal contact connection timing.
4. Couple/decouple reliability ensured for 5,000
times.
5. Weight : 0.6g
6. Supports USB 2.0 (on-the-Go).
(DIP with Shield)
CAM-E43SDF
(DIP type)
(SMT type)
CAM-E43ASF
CAM-E43ADF
HOW TO ORDER
1. CAM-E43ASF
2. CAM-E43ADF
3. CAM-E43SDF
E43ASF-005-7013A
1
2
3
1 Series No. (E43ASF)
2 No. of contacts (005 : 5pins)
3 Running No. assigned by us
E43ADF-005-9024A
1
2
3
1 Series No. (E43ADF)
2 No. of contacts (005 : 5pins)
3 Running No. assigned by us
E43SDF-005-8555A
1
2
3
1 Series No. (E43SDF)
2 No. of contacts (005 : 5pins)
3 Running No. assigned by us

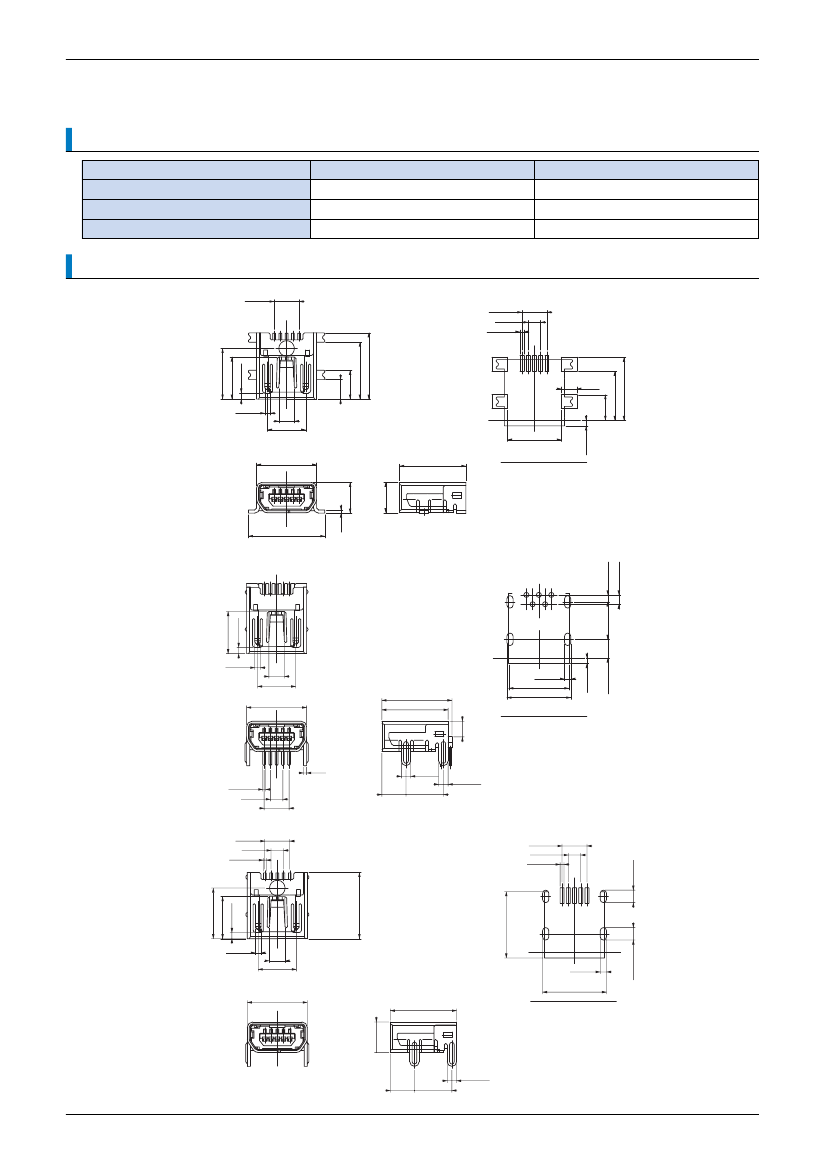

SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
5,000 times
35N (3.57kgf) max.
Beginning 7N (0.71kgf) min.
After 5,000 times 3N (0.31kgf) min.
AC 5V (rms)
1.0A
AC 100V (rms) 1minute
100MΩ min. (AC500V)
50mΩ max.
