SAW Components
Data Sheet B4166
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
B4166
1842,50 MHz
Ceramic package
DCC6C
Features
q
Low-loss RF filter for mobile telephone PCN system,
q
q
q
q
receive path
High selectivity
Usable passband: 75 MHz
No matching network required for operation
at 50
Ω
Ceramic Package for
Surface Mounted
Technology
(SMT)
Terminals
q
Ni, gold-plated
Dimensions in mm, approx. weight 0,037
Pin configuration
2
5
1, 3, 4, 6
Input
Output
To be grounded
Type
B4166
Ordering code
B39182-B4166-U410
Marking and Package
according to
C61157-A7-A67
Packing
according to
F61074-V8088-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Input power at
GSM850, GSM900
GSM1800, GSM1900
Tx bands
T
T
stg
V
DC
P
IN
P
IN
– 40/+ 85
– 40/+ 85
5
15
12
˚C
˚C
V
dBm
dBm
peak power of GSM signal,
duty cycle 4:8
2
April 16, 2009
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
B4166
1842,50 MHz
T
= 25 +- 2˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
typ.
1842,5
max.
—
MHz
Center frequency
Maximum insertion attenuation
1805,0 ...1880,0
Amplitude ripple
(p-p)
1805,0 ...1880,0
Input VSWR
1805,0 ...1880,0
Output VSWR
1805,0 ...1880,0
Attenuation
10,0
370,0
1300,0
1705,0
1920,0
1980,0
2530,0
2680,0
3400,0
3975,0
4200,0
4920,0
5200,0
... 370,0
...1300,0
...1705,0
...1785,0
...1980,0
...2530,0
...2680,0
...3400,0
...3975,0
...4200,0
...4920,0
...5200,0
...6000,0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
f
c
α
max
MHz
∆α
MHz
—
—
2,9
3,3
dB
—
0,9
1,3
dB
—
—
α
40,0
37,0
30,0
12,0
12,0
23,0
31,0
28,0
24,0
23,0
15,0
10,0
5,0
2,0
2,2
2,2
2,4
43,5
38,5
36,0
14,0
25,0
28,0
35,0
34,0
30,0
27,0
19,0
17,0
11,0
—
—
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
3
April 16, 2009
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
B4166
1842,50 MHz
T
= -40 to +85˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
typ.
1842,5
max.
—
MHz
Center frequency
Maximum insertion attenuation
1805,0 ...1880,0
Amplitude ripple
(p-p)
1805,0 ...1880,0
Input VSWR
1805,0 ...1880,0
Output VSWR
1805,0 ...1880,0
Attenuation
10,0
370,0
1300,0
1705,0
1920,0
1980,0
2530,0
2680,0
3400,0
3975,0
4200,0
4920,0
5200,0
... 370,0
...1300,0
...1705,0
...1785,0
...1980,0
...2530,0
...2680,0
...3400,0
...3975,0
...4200,0
...4920,0
...5200,0
...6000,0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
f
c
α
max
MHz
∆α
MHz
—
—
3,2
4,5
dB
—
1,2
2,5
dB
—
—
α
40,0
37,0
30,0
9,0
10,0
23,0
31,0
28,0
24,0
23,0
15,0
10,0
5,0
2,1
2,3
2,5
2,7
43,5
38,5
36,0
13,0
25,0
28,0
35,0
34,0
30,0
27,0
19,0
17,0
11,0
—
—
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
4
April 16, 2009
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet

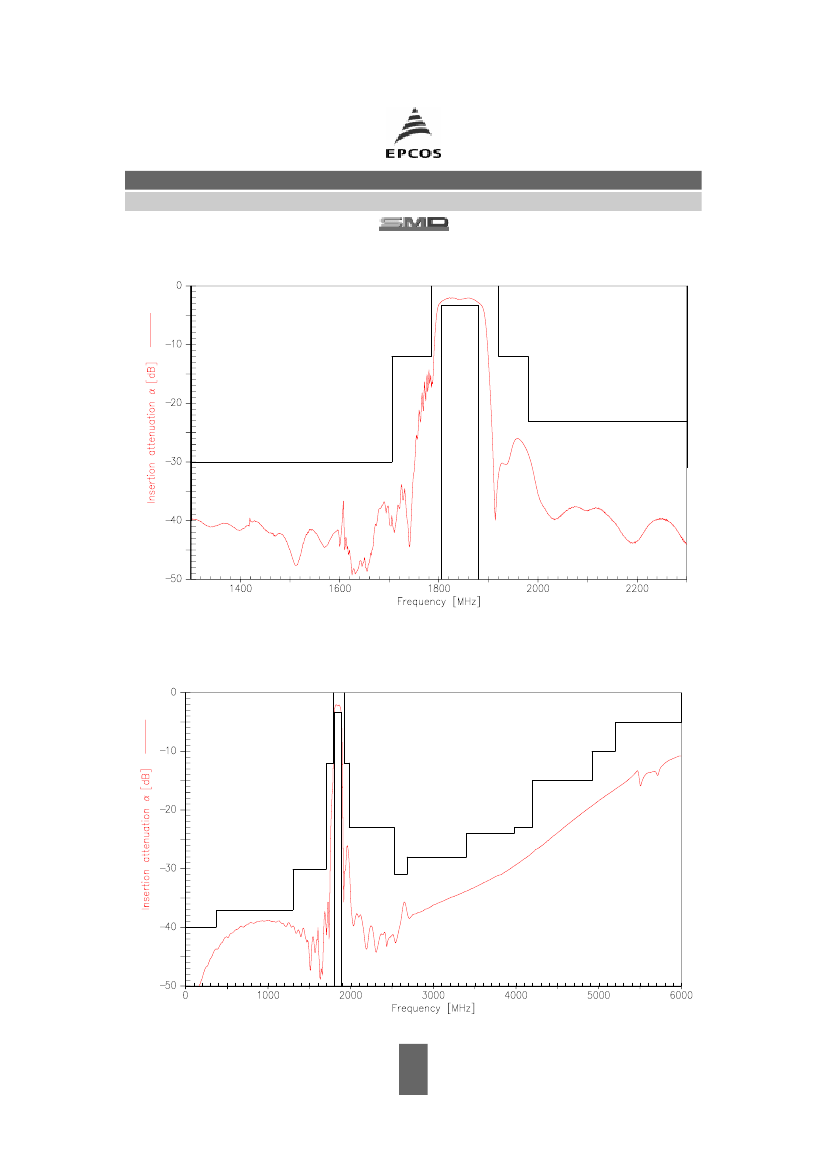

Transfer function (spec for 25˚C)
B4166
1842,50 MHz
Transfer function (wideband)
5
April 16, 2009
