DEMV9S300 datasheet, PDF - EEWORLD Datasheet

DEMV9S300: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size294KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

DEMV9S300 Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CADMIUM
Shell material	STEEL
Terminal length	0.201 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

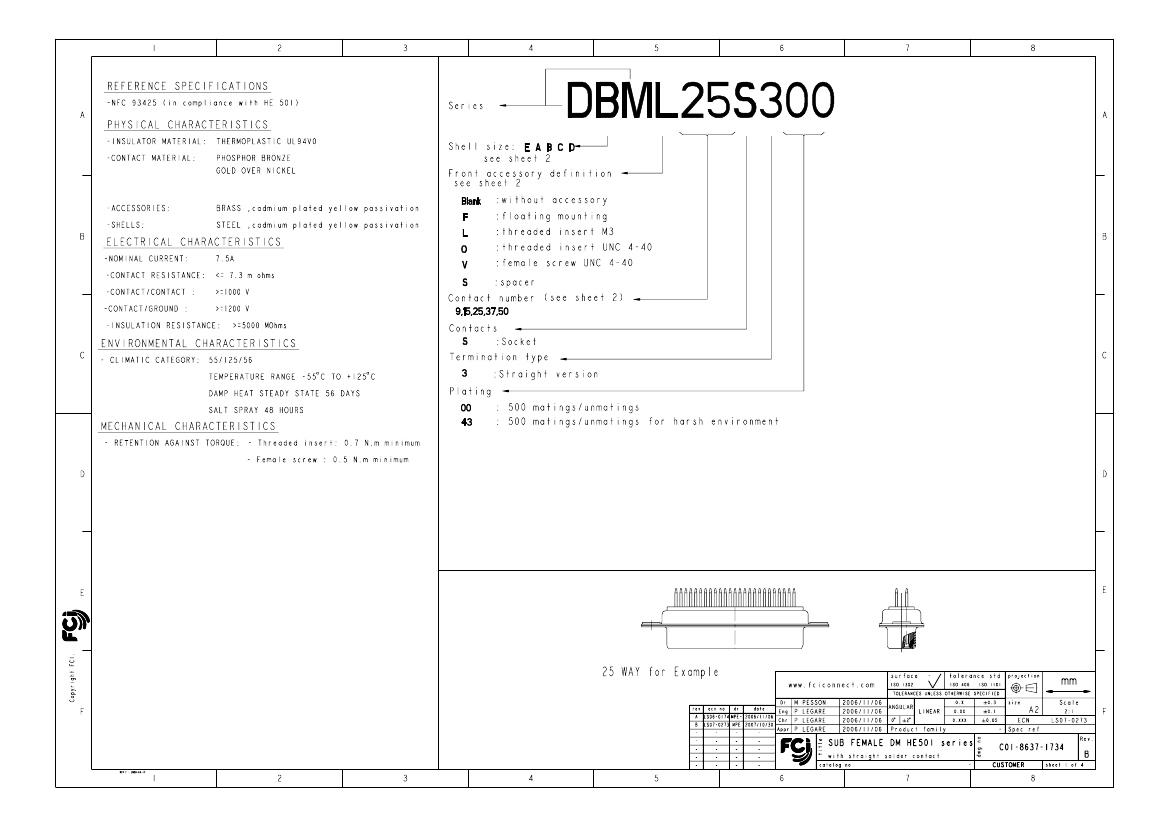

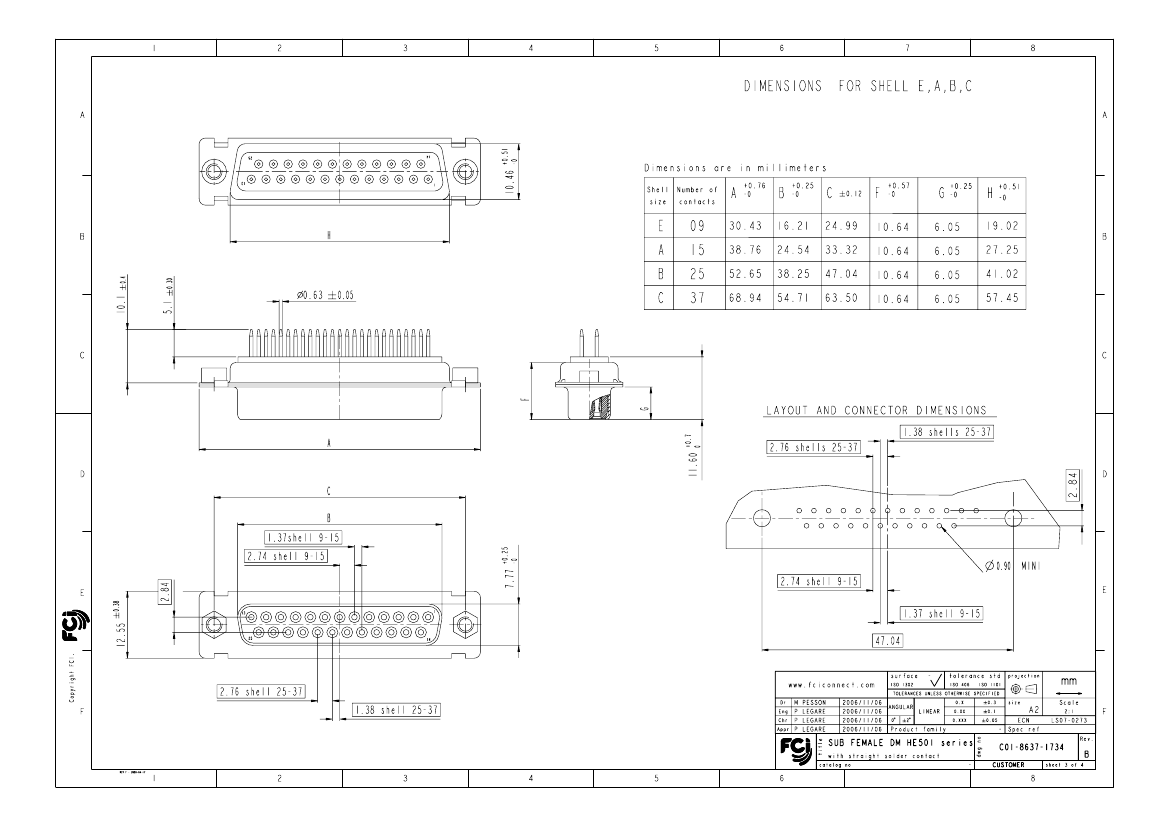

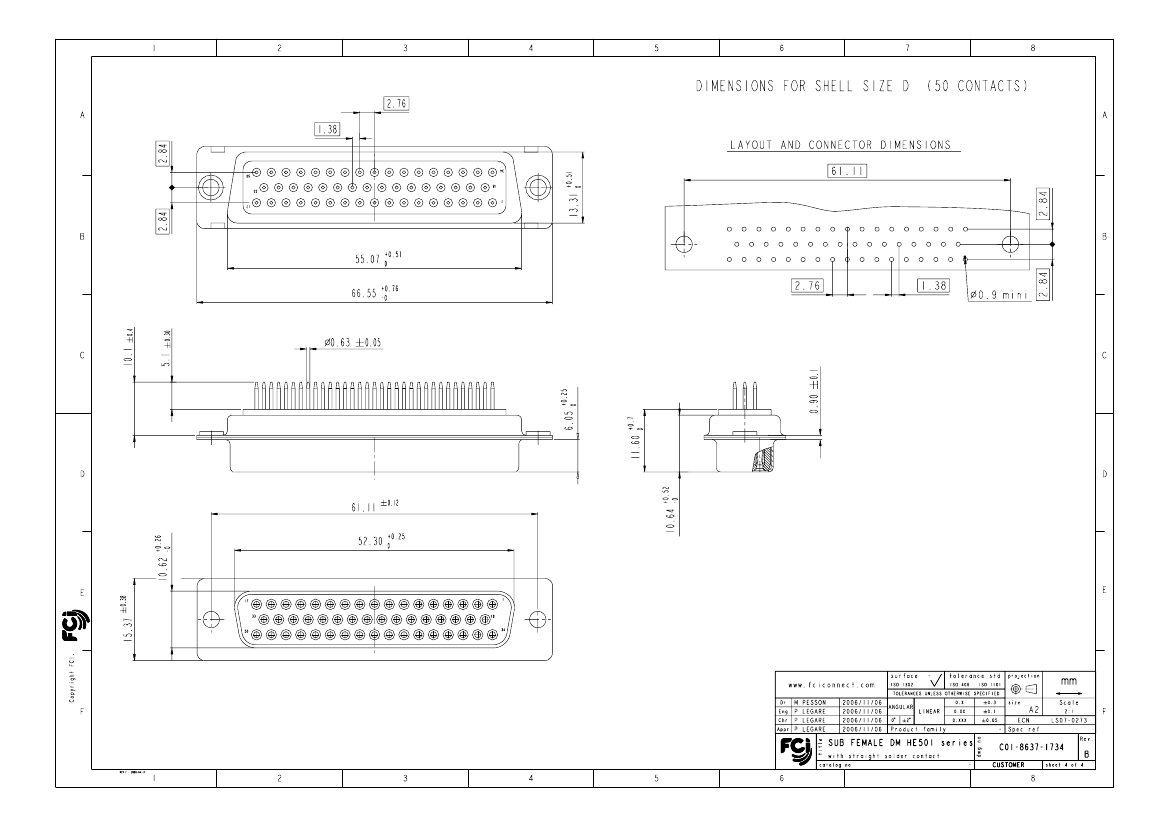

PDM:

PDS: Rev :B

Rev:B

STATUS:Released

Printed: Jun 17,

Jun 18, 2015

Printed:

2015

STATUS:

Released

.
