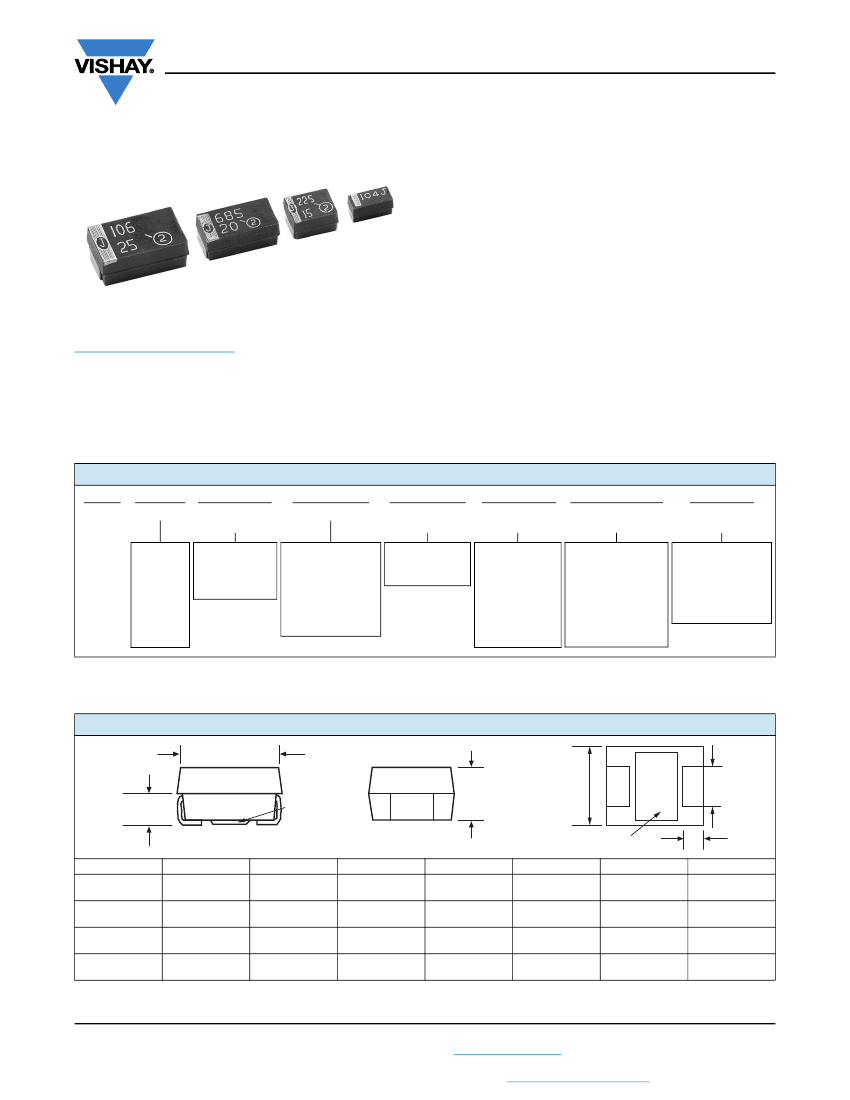

CWR11
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT®
Molded Case, Military MIL-PRF-55365/8 Qualified
FEATURES
•
•
•
•
•
Weibull failure rate codes B, C, D and T
Surge current options A, B and C
Termination: H = Solder plated, K = Solder fused
Molded case available in four case codes
Compatible with “High Volume” automatic pick and place
equipment
PERFORMANCE/ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.10 μF to 100 μF
Capacitance Tolerance:
± 5 %, ± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
APPLICATIONS
• Military/aerospace
• General purpose
• High reliability
ORDERING INFORMATION
CWR11
TYPE
D
VOLTAGE
H
TERMINATION
FINISH
H = Solder
plated
K = Solder
fused
155
CAPACITANCE
K
CAPACITANCE
TOLERANCE
J=±5%
K = ± 10 %
M = ± 20 %
B
FAILURE RATE
%/1000 h
M = 1.0
P = 0.1
R = 0.01
S = 0.001
B = 0.1
C = 0.01
D = 0.001
T = 0.01
(1)
A
SURGE CURRENT
(OPTIONAL)
A = 3 cycles
at + 25 °C
B = 3 cycles
at - 55 °C/+ 85 °C
C = 3 cycles
at - 55 °C/+ 85 °C
(before Weibull
grading)
/HR
PACKAGING
OPTION
Blank = Full reel
/PR = 100 pcs reel
/HR = half reel
/PT = Bulk,
plastic tray
/FA = Waffle pack
C=4V
D=6V
F = 10 V
H = 15 V
J = 20 V
K = 25 V
M = 35 V
N = 50 V
This is expressed
in picofarads.
The first two digits
are the significant
figures. The third
is the number of
zeros to follow.
Note
(1)
T level capacitors are recommended for “Space applications”. Shipped in tape and reel/or waffle packaging only.
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
MIN.
Glue Pad
T
W
Glue Pad
P
CASE CODE
A
B
C
D
EIA SIZE
3216-18
3528-21
6032-28
7343-31
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
MIN.
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option).
Revision: 26-Jun-13
Document Number: 40011
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR11
www.vishay.com
Vishay Sprague
10 V
15 V
20 V
25 V
35 V
A
A
A
A
B
B
B
C
C
C
D
D
50 V
A
B
B
B
C
C
C
D
D
D
D
RATINGS AND CASE CODES
μF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
4V
6V
A
A
B
B
B
C
D
D
A
A
A
B
B
B
C
C
D
D
A
A
A
B
B
B
C
D
D
A
A
A
B
B
B
C
D
D
A
A
A
B
B
B
C
C
D
D
A
A
B
B
B
C
C
C
D
D
D
MARKING
Capacitance
Polarity (+)
Band
Capacitance Code, pF
J
"JAN" Brand
105
35
2
Vishay Sprague Logo
Polarity (+)
Band
105J
Voltage
B, C and D Case Sizes
"JAN" Brand
A Case Size
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
MAX. DC LEAKAGE (μA) AT
PART NUMBER
+ 25 °C
+ 85 °C
MAX. DF 120 Hz (%) AT
+ 85 °C
+ 125 °C
9
9
9
9
9
9
9
12
9
6
9
- 55 °C
+ 125 °C + 25 °C
MAX. ESR
AT + 25 °C
100 kHz ()
8.0
8.0
5.5
4.0
3.5
2.2
1.1
0.9
8.0
8.0
8.0
2.2
4.7
6.8
10
15
33
68
100
1.5
2.2
3.3
A
A
B
B
B
C
D
D
A
A
A
4 V
DC
AT + 85 °C; 2.7 V
DC
AT + 125 °C
CWR11C(5)225(1)(2)(3)(4)
0.5
5.0
6.0
CWR11C(5)475(1)(2)(3)(4)
0.5
5.0
6.0
CWR11C(5)685(1)(2)(3)(4)
0.5
5.0
6.0
CWR11C(5)106(1)(2)(3)(4)
0.5
5.0
6.0
CWR11C(5)156(1)(2)(3)(4)
0.6
6.0
7.2
CWR11C(5)336(1)(2)(3)(4)
1.3
13.0
15.6
CWR11C(5)686(1)(2)(3)(4)
2.7
27.0
32.4
CWR11C(5)107(1)(2)(3)(4)
4.0
40.0
48.0
6 V
DC
AT + 85 °C; 4 V
DC
AT + 125 °C
CWR11D(5)155(1)(2)(3)(4)
0.5
5.0
6.0
CWR11D(5)225(1)(2)(3)(4)
0.5
5.0
6.0
CWR11D(5)335(1)(2)(3)(4)
0.5
5.0
6.0
6
6
6
6
6
6
6
8
6
6
6
9
9
9
9
9
9
9
12
9
9
9
Note
• Part number definitions:
(1) Capacitance tolerance: J, K, M
(2) Failure rate: B, C, D, M, P, R, S, T
Exponential failure rate levels M, P, R, and S are inactive for new design per MIL-PRF-55365
Capacitors qualified to Weibull failure rate levels are substitutable for exponential failure rate levels
(3) Surge current (optional): A, B, C
(4) Packaging: Blank, /HR, /PR, /PT
(5) Termination: K - solder plated, H - solder fused
Revision: 26-Jun-13
Document Number: 40011
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR11
www.vishay.com
Vishay Sprague
MAX. DC LEAKAGE (μA) AT
MAX. DF 120 Hz (%) AT
+ 85 °C
+ 125 °C
9
6
9
6
9
6
9
6
6
9
9
9
9
6
9
9
6
6
9
9
8
9
8
8
9
6
6
6
9
8
9
8
9
8
9
6
6
6
6
8
9
8
9
9
8
9
- 55 °C
MAX. ESR
AT + 25 °C
100 kHz ()
5.5
4.5
3.5
3.0
2.2
1.1
0.9
10.0
8.0
8.0
5.5
4.5
3.5
2.5
1.1
0.9
12.0
10.0
8.0
5.5
5.0
4.0
2.5
1.1
0.9
14.0
12.0
10.0
6.0
5.0
4.0
3.0
2.4
1.1
0.9
15.0
14.0
7.5
6.5
6.5
3.5
3.5
2.5
1.4
1.2
1.0
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
PART NUMBER
+ 25 °C
+ 85 °C
+ 125 °C + 25 °C
4.7
6.8
10
15
22
47
68
1.0
1.5
2.2
3.3
4.7
6.8
15
33
47
0.68
1.0
1.5
2.2
3.3
4.7
10
22
33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
15
22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
B
B
B
C
C
D
D
A
A
A
B
B
B
C
D
D
A
A
A
B
B
B
C
D
D
A
A
A
B
B
B
C
C
D
D
A
A
B
B
B
C
C
C
D
D
D
6 V
DC
AT + 85 °C; 4 V
DC
AT + 125 °C
CWR11D(5)475(1)(2)(3)(4)
0.5
5.0
6.0
CWR11D(5)685(1)(2)(3)(4)
0.5
5.0
6.0
CWR11D(5)106(1)(2)(3)(4)
0.6
6.0
7.2
CWR11D(5)156(1)(2)(3)(4)
0.9
9.0
10.8
CWR11D(5)226(1)(2)(3)(4)
1.4
14.0
16.8
CWR11D(5)476(1)(2)(3)(4)
2.8
28.0
33.6
CWR11D(5)686(1)(2)(3)(4)
4.3
43.0
51.6
10 V
DC
AT + 85 °C; 7 V
DC
AT + 125 °C
CWR11F(5)105(1)(2)(3)(4)
0.5
5.0
6.0
CWR11F(5)155(1)(2)(3)(4)
0.5
5.0
6.0
CWR11F(5)225(1)(2)(3)(4)
0.5
5.0
6.0
CWR11F(5)335(1)(2)(3)(4)
0.5
5.0
6.0
CWR11F(5)475(1)(2)(3)(4)
0.5
5.0
6.0
CWR11F(5)685(1)(2)(3)(4)
0.7
7.0
8.4
CWR11F(5)156(1)(2)(3)(4)
1.5
15.0
18.0
CWR11F(5)336(1)(2)(3)(4)
3.3
33.0
39.6
CWR11F(5)476(1)(2)(3)(4)
4.7
47.0
56.4
15 V
DC
AT + 85 °C; 10 V
DC
AT + 125 °C
CWR11H(5)684(1)(2)(3)(4)
0.5
5.0
6.0
CWR11H(5)105(1)(2)(3)(4)
0.5
5.0
6.0
CWR11H(5)155(1)(2)(3)(4)
0.5
5.0
6.0
CWR11H(5)225(1)(2)(3)(4)
0.5
5.0
6.0
CWR11H(5)335(1)(2)(3)(4)
0.5
5.0
6.0
CWR11H(5)475(1)(2)(3)(4)
0.7
7.0
8.4
CWR11H(5)106(1)(2)(3)(4)
1.6
16.0
19.2
CWR11H(5)226(1)(2)(3)(4)
3.3
33.0
39.6
CWR11H(5)336(1)(2)(3)(4)
5.3
53.0
63.6
20 V
DC
AT + 85 °C; 13 V
DC
AT + 125 °C
CWR11J(5)474(1)(2)(3)(4)
0.5
5.0
6.0
CWR11J(5)684(1)(2)(3)(4)
0.5
5.0
6.0
CWR11J(5)105(1)(2)(3)(4)
0.5
5.0
6.0
CWR11J(5)155(1)(2)(3)(4)
0.5
5.0
6.0
CWR11J(5)225(1)(2)(3)(4)
0.5
5.0
6.0
CWR11J(5)335(1)(2)(3)(4)
0.7
7.0
8.4
CWR11J(5)475(1)(2)(3)(4)
1.0
10.0
12.0
CWR11J(5)685(1)(2)(3)(4)
1.4
14.0
16.8
CWR11J(5)156(1)(2)(3)(4)
3.0
30.0
36.0
CWR11J(5)226(1)(2)(3)(4)
4.4
44.0
52.8
25 V
DC
AT + 85 °C; 17 V
DC
AT + 125 °C
CWR11K(5)334(1)(2)(3)(4)
0.5
5.0
6.0
CWR11K(5)474(1)(2)(3)(4)
0.5
5.0
6.0
CWR11K(5)684(1)(2)(3)(4)
0.5
5.0
6.0
CWR11K(5)105(1)(2)(3)(4)
0.5
5.0
6.0
CWR11K(5)155(1)(2)(3)(4)
0.5
5.0
6.0
CWR11K(5)225(1)(2)(3)(4)
0.6
6.0
7.2
CWR11K(5)335(1)(2)(3)(4)
0.9
9.0
10.8
CWR11K(5)475(1)(2)(3)(4)
1.2
12.0
14.4
CWR11K(5)685(1)(2)(3)(4)
1.7
17.0
20.4
CWR11K(5)106(1)(2)(3)(4)
2.5
25.0
30.0
CWR11K(5)156(1)(2)(3)(4)
3.8
38.0
45.6
6
6
6
6
6
6
6
4
6
6
6
6
6
6
6
6
4
4
6
6
6
6
6
6
6
4
4
4
6
6
6
6
6
6
6
4
4
4
4
6
6
6
6
6
6
6
9
9
9
9
9
9
9
6
9
9
9
9
9
9
9
9
6
6
9
9
9
9
9
9
9
6
6
6
9
9
9
9
9
9
9
6
6
6
6
9
9
9
9
9
9
9
Note
• Part number definitions:
(1) Capacitance tolerance: J, K, M
(2) Failure rate: B, C, D, M, P, R, S, T
Exponential failure rate levels M, P, R, and S are inactive for new design per MIL-PRF-55365
Capacitors qualified to Weibull failure rate levels are substitutable for exponential failure rate levels
(3) Surge current (optional): A, B, C
(4) Packaging: Blank, /HR, /PR, /PT
(5) Termination: K - solder plated, H - solder fused
Revision: 26-Jun-13
Document Number: 40011
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR11
www.vishay.com
Vishay Sprague
MAX. DC LEAKAGE (μA) AT
MAX. DF 120 Hz (%) AT
+ 85 °C
+ 125 °C
6
6
6
6
6
6
6
8
8
8
8
9
8
6
6
6
6
6
6
8
8
9
9
- 55 °C
MAX. ESR
AT + 25 °C
100 kHz ()
24.0
21.0
18.0
15.0
10.0
8.0
6.5
4.5
3.5
2.5
1.5
1.3
22.0
17.0
14.0
12.0
8.0
7.0
6.0
4.0
2.5
2.0
1.5
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
PART NUMBER
+ 25 °C
+ 85 °C
+ 125 °C + 25 °C
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
A
A
A
A
B
B
B
C
C
C
D
D
A
B
B
B
C
C
C
D
D
D
D
35 V
DC
AT + 85 °C; 23 V
DC
AT + 125 °C
CWR11M(5)104(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)154(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)224(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)334(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)474(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)684(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)105(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)155(1)(2)(3)(4)
0.5
5.0
6.0
CWR11M(5)225(1)(2)(3)(4)
0.8
8.0
9.6
CWR11M(5)335(1)(2)(3)(4)
1.2
12.0
14.4
CWR11M(5)475(1)(2)(3)(4)
1.7
17.0
20.4
CWR11M(5)685(1)(2)(3)(4)
2.4
24.0
28.8
50 V
DC
AT + 85 °C; 33 V
DC
AT + 125 °C
CWR11N(5)104(1)(2)(3)(4)
0.5
5.0
12.0
CWR11N(5)154(1)(2)(3)(4)
0.5
5.0
6.0
CWR11N(5)224(1)(2)(3)(4)
0.5
5.0
6.0
CWR11N(5)334(1)(2)(3)(4)
0.5
5.0
6.0
CWR11N(5)474(1)(2)(3)(4)
0.5
5.0
6.0
CWR11N(5)684(1)(2)(3)(4)
0.5
5.0
6.0
CWR11N(5)105(1)(2)(3)(4)
0.5
5.0
6.0
CWR11N(5)155(1)(2)(3)(4)
0.8
8.0
9.6
CWR11N(5)225(1)(2)(3)(4)
1.1
11.0
13.2
CWR11N(5)335(1)(2)(3)(4)
1.7
17.0
20.4
CWR11N(5)475(1)(2)(3)(4)
2.4
24.0
28.8
4
4
4
4
4
4
4
6
6
6
6
6
6
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
9
9
9
9
9
8
6
6
6
6
6
6
9
9
9
9
Note
• Part number definitions:
(1) Capacitance tolerance: J, K, M
(2) Failure rate: B, C, D, M, P, R, S, T
Exponential failure rate levels M, P, R, and S are inactive for new design per MIL-PRF-55365
Capacitors qualified to Weibull failure rate levels are substitutable for exponential failure rate levels
(3) Surge current (optional): A, B, C
(4) Packaging: Blank, /HR, /PR, /PT
(5) Termination: K - solder plated, H - solder fused
RECOMMENDED VOLTAGE DERATING GUIDELINES
(for temperatures below + 85 °C)
STANDARD CONDITIONS. FOR EXAMPLE: OUTPUT FILTERS
Capacitor Voltage Rating
4.0
6.0
10
15
20
25
35
50
SEVERE CONDITIONS. FOR EXAMPLE: INPUT FILTERS
Capacitor Voltage Rating
4.0
6.0
10
15
20
25
35
50
Revision: 26-Jun-13
Operating Voltage
2.5
3.6
6.0
10
12
15
24
28
Operating Voltage
2.5
3.0
5.0
7.5
10
12
15
24
Document Number: 40011
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR11
www.vishay.com
Vishay Sprague

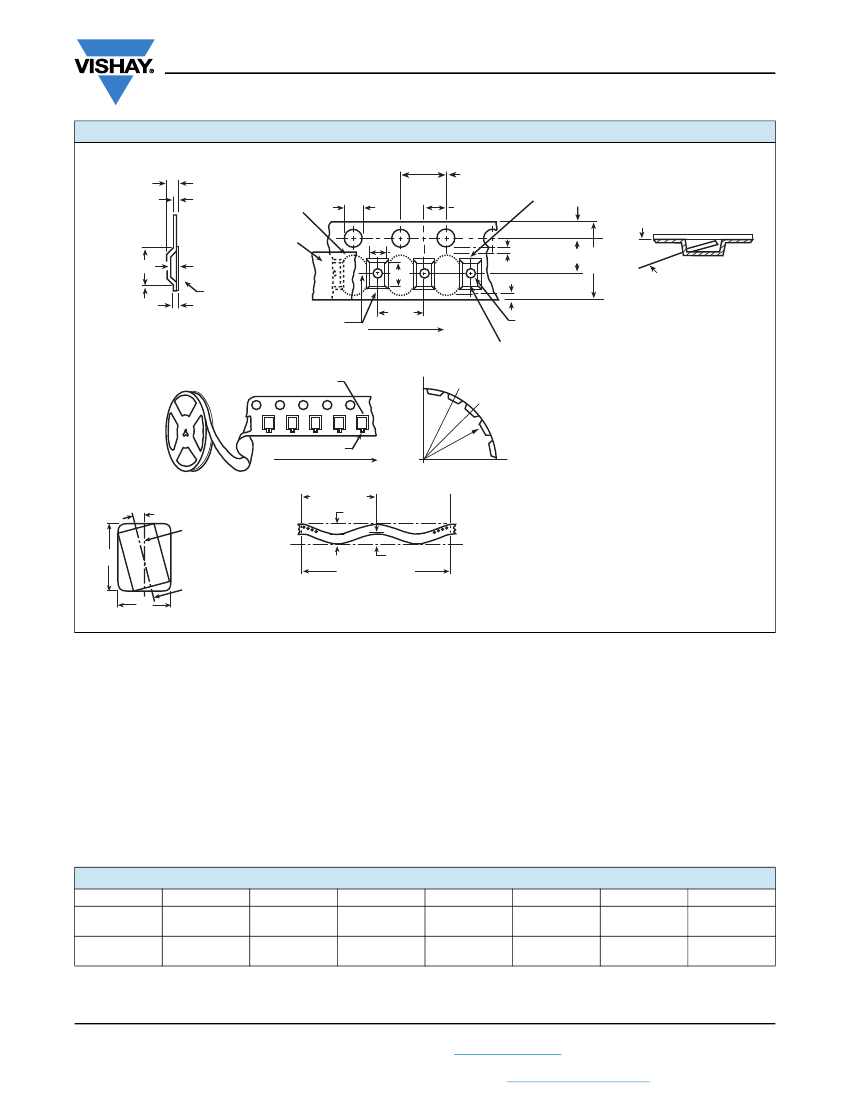

TAPE AND REEL PACKAGING
in inches [millimeters]
T
2
(max.)
0.024
[0.600]
max.
0.157 ± 0.004
[4.0 ± 0.10]
Deformation
between
embossments
Top
cover
tape
B
1
(max.)
(6)
0.059 + 0.004 - 0.0
[1.5 + 0.10 - 0.0]
10 pitches cumulative
tolerance on tape
± 0.008 [0.200]
Embossment
0.079 ± 0.002
0.069 ± 0.004
[2.0 ± 0.05]
[1.75 ± 0.10]
A
0
B
0
K
0
Top
cover
tape
0.030 [0.75]
min.
(3)
0.030 [0.75]
min.
(4)
F
W
20°
Maximum
component
rotation
(Side or front sectional view)
For tape feeder
reference only
including draft.
Concentric around B
0
0.004 [0.10]
max.
Center lines
of cavity
P
1
USER DIRECTION
OF FEED
D
1
(min.) for components
.
0.079 x 0.047 [2.0 x 1.2] and larger
(5)
Maximum
cavity size
(1)
Cathode (-)
Anode (+)
DIRECTION OF FEED
20° maximum
component rotation
Typical
component
cavity
center line
Typical
component
center line
3.937 [100.0]
0.039 [1.0]
max.
Tape
0.039 [1.0]
max.
0.9843 [250.0]
Camber
(Top view)
Allowable camber to be 0.039/3.937 [1/100]
Non-cumulative over 9.843 [250.0]
R
min.
Bending radius
(2)
R minimum:
8 mm = 0.984" (25 mm)
12 mm and 16 mm = 1.181" (30 mm)
B
0
Tape and reel specifications:
All case sizes are
available on plastic embossed tape per EIA-481.
Standard reel diameter is 7" (178 mm).
A
0
(Top view)
Notes
• Metric dimensions will govern. Dimensions in inches are rounded and for reference only.
(1)
A , B , K , are determined by the maximum dimensions to the ends of the terminals extending from the component body and/or the body
0
0
0
dimensions of the component. The clearance between the ends of the terminals or body of the component to the sides and depth of the
cavity (A
0
, B
0
, K
0
) must be within 0.002" (0.05 mm) minimum and 0.020" (0.50 mm) maximum. The clearance allowed must also prevent
rotation of the component within the cavity of not more than 20°.
(2)
Tape with components shall pass around radius “R” without damage. The minimum trailer length may require additional length to provide
“R” minimum for 12 mm embossed tape for reels with hub diameters approaching N minimum.
(3)
This dimension is the flat area from the edge of the sprocket hole to either outward deformation of the carrier tape between the embossed
cavities or to the edge of the cavity whichever is less.
(4)
This dimension is the flat area from the edge of the carrier tape opposite the sprocket holes to either the outward deformation of the carrier
tape between the embossed cavity or to the edge of the cavity whichever is less.
(5)
The embossed hole location shall be measured from the sprocket hole controlling the location of the embossement. Dimensions of
embossement location shall be applied independent of each other.
(6)
B dimension is a reference dimension tape feeder clearance only.
1
CARRIER TAPE DIMENSIONS
in inches [millimeters]
CASE CODE
A, B
C, D
TAPE SIZE
8 mm
12 mm
B
1
(max.)
0.165
[4.2]
0.323
[8.2]
D
1
(min.)
0.039
[1.0]
0.059
[1.5]
F
0.138 ± 0.002
[3.5 ± 0.05]
0.217 ± 0.002
[5.5 ± 0.05]
P
1
0.157 ± 0.004
[4.0 ± 0.1]
0.315 ± 0.004
[8.0 ± 1.0]
T
2
(max.)
0.094
[2.4]
0.177
[4.5]
W
0.315 + 0.012
[8.0 ± 0.30]
0.472 ± 0.012
[12.0 ± 0.30]
Revision: 26-Jun-13
Document Number: 40011
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCU
京公网安备 11010802033920号
EEWORLD
