82527 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> The embedded processor and controller> 82527

82527: Description2 CHANNEL(S), LOCAL AREA NETWORK CONTROLLER, PQCC44; Categorysemiconductor The embedded processor and controller; File Size1MB，23 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

82527 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82527	-	-	View	Buy Now

82527 Overview

2 CHANNEL(S), LOCAL AREA NETWORK CONTROLLER, PQCC44

82527 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	44
Maximum operating temperature	125 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5.5 V
Minimum supply/operating voltage	4.5 V
Rated supply voltage	5 V
External data bus width	16
Number of input and output buses	2
Processing package description	Plastic, LCC-44
state	DISCONTINUED
Craftsmanship	CMOS
packaging shape	SQUARE
Package Size	ChipCARRIER
surface mount	Yes
Terminal form	J BEND
Terminal spacing	1.27 mm
terminal coating	NOT SPECIFIED
Terminal location	Four
Packaging Materials	Plastic/Epoxy
Temperature level	AUTOMOTIVE
Address bus width	16
Maximum FCLK clock frequency	16 MHz
Data encoding and decoding methods	NRZ
low power mode	Yes
Microprocessor type	LAN controller

Preview

Download Datasheet

View All

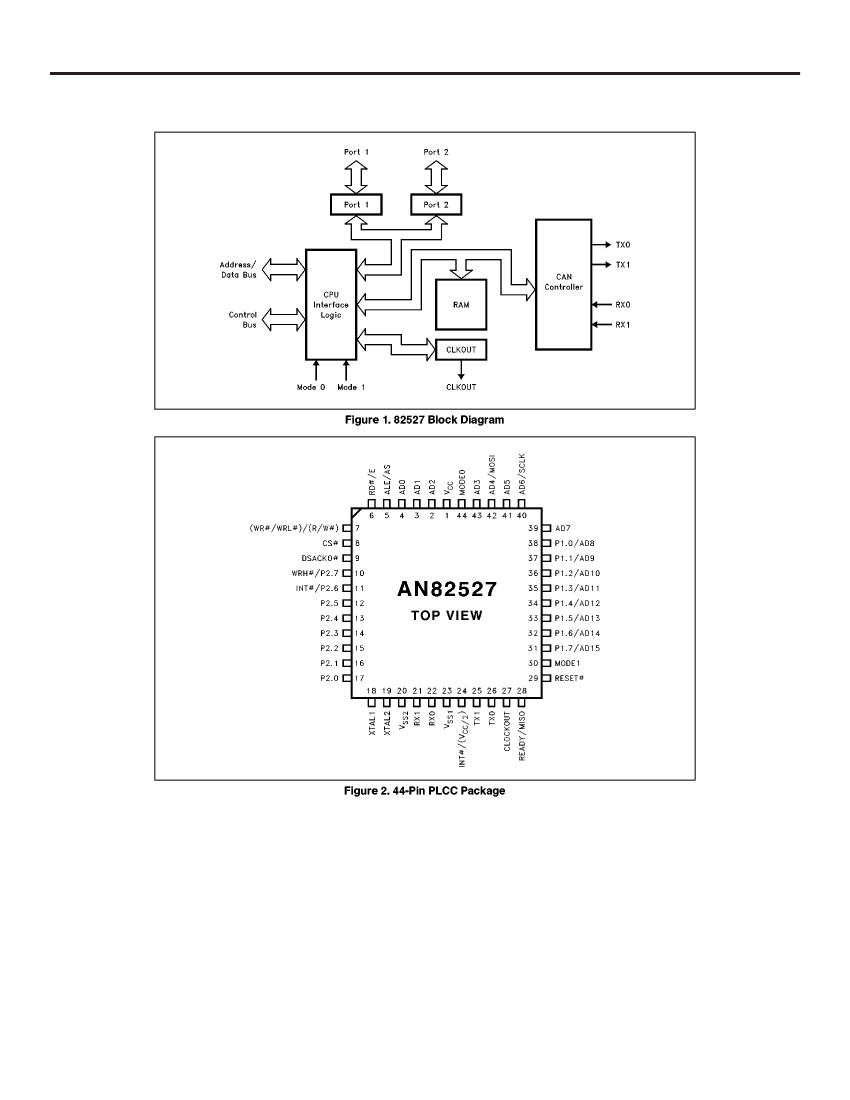

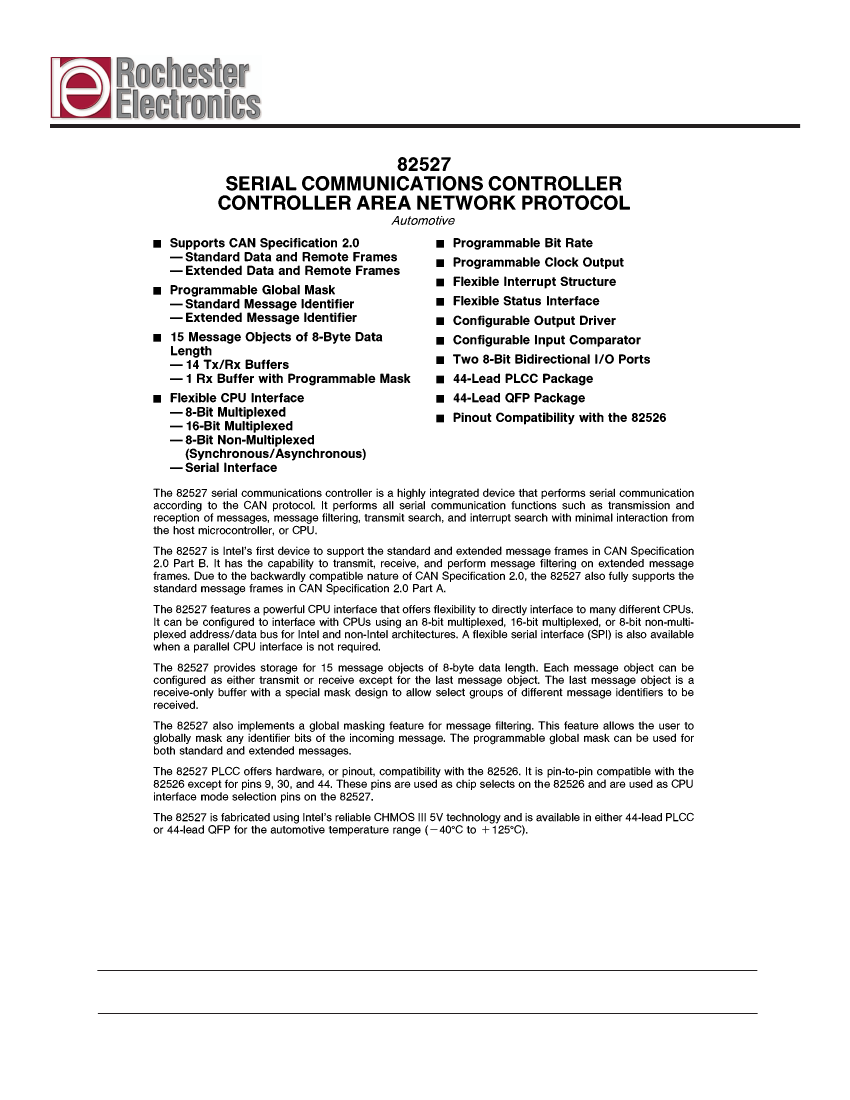

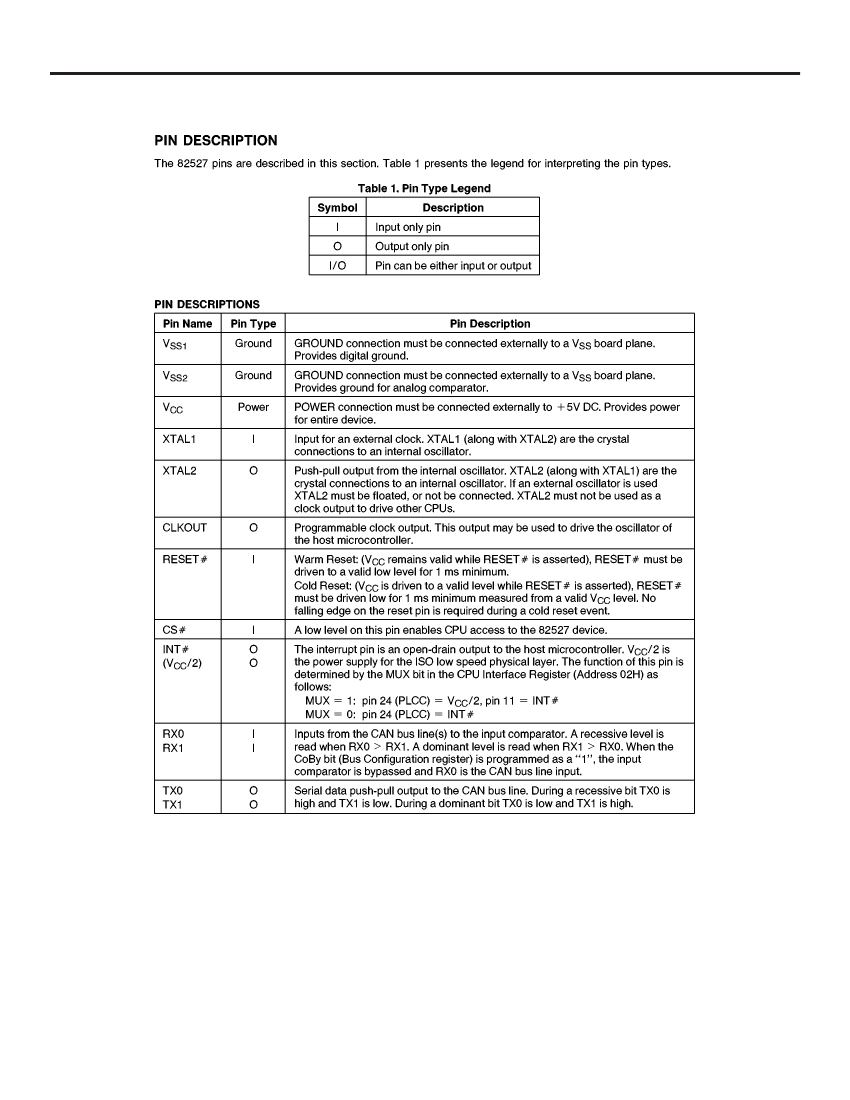

Table 5

FOR REFERENCE ONLY

82527

For complete Rochester ordering guide, please refer to page 2

Please contact factory for specific package availability and

Military/Aerospace specifications/availability.

Rochester Electronics guarantees performance of its semiconductor products to the original OEM specifications. “Typical” values are for reference purposes

only. Certain minimum or maximum ratings may be based on product characterization, design, simulation, or sample testing. Rochester Electronics reserves

the right to make changes without further notice to any specification herein.

Specification Number 82527-S (I) REV C

Page 1 of 23

82527 Related Products

	82527	AN82527	AS82527
Description	2 CHANNEL(S), LOCAL AREA NETWORK CONTROLLER, PQCC44	2 CHANNEL(S), LOCAL AREA NETWORK CONTROLLER, PQCC44	2 CHANNEL(S), LOCAL AREA NETWORK CONTROLLER, PQCC44
Number of terminals	44	44	44
Maximum operating temperature	125 Cel	125 °C	125 °C
Minimum operating temperature	-40 Cel	-40 °C	-40 °C
External data bus width	16	16	16
surface mount	Yes	YES	YES
Terminal form	J BEND	J BEND	GULL WING
Terminal location	Four	QUAD	QUAD
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Address bus width	16	16	16
low power mode	Yes	YES	YES
Maker	-	Rochester Electronics	Rochester Electronics
package instruction	-	QCCJ,	QFP,
Reach Compliance Code	-	unknow	unknow
boundary scan	-	NO	NO
maximum clock frequency	-	16 MHz	16 MHz
Data encoding/decoding methods	-	NRZ	NRZ
JESD-30 code	-	S-PQCC-J44	S-PQFP-G44
length	-	16.5862 mm	10 mm
Number of serial I/Os	-	2	2
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	QCCJ	QFP
Package shape	-	SQUARE	SQUARE
Package form	-	CHIP CARRIER	FLATPACK
Maximum seat height	-	4.57 mm	2.35 mm
Maximum supply voltage	-	5.5 V	5.5 V
Minimum supply voltage	-	4.5 V	4.5 V
Nominal supply voltage	-	5 V	5 V
technology	-	CMOS	CMOS
Terminal pitch	-	1.27 mm	0.8 mm
width	-	16.5862 mm	10 mm
uPs/uCs/peripheral integrated circuit type	-	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Base Number Matches	-	1	1
