Power line chokes
Current-compensated ring core triple chokes
440/250 V AC, 6 … 25 A, 1.3 … 6 mH
Series/Type:
B82747F
October 2008
7f
fÁRspp
Date:
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Power line chokes
Current-compensated ring core triple chokes
Rated voltage 440/250 V AC
Rated current 6 A to 25 A
Rated inductance 1.3 mH to 6 mH
Construction
■
■
■
■
■
■
B82747F

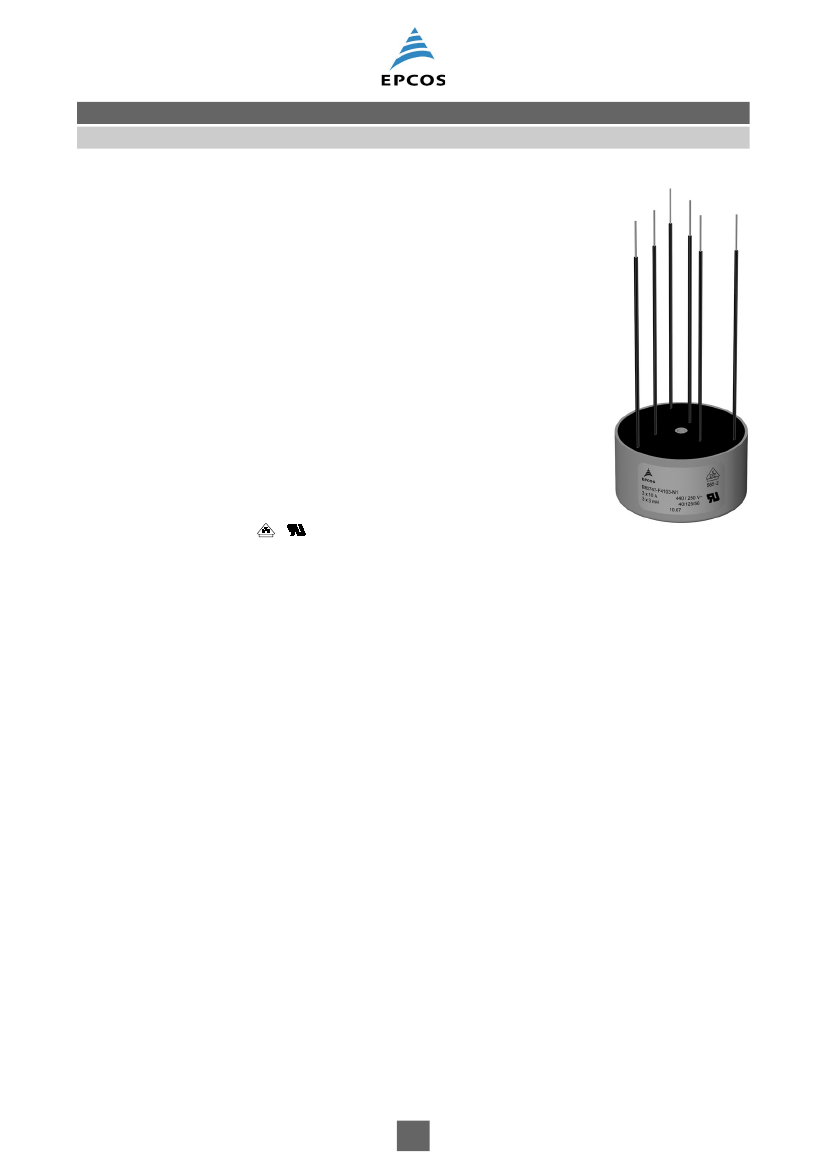

Current-compensated ring core triple choke
Ferrite core
Polycarbonate case (UL 94 V-0)
Polyurethane potting (UL 94 V-0)
For through-hole fixing
Sector winding
Features
■
> 1% stray inductance for symmetrical
■
■
■
■
interference suppression
High currents
Design complies with EN 60938-2 (VDE 0565-2)
VDE and UL approval
RoHS-compatible
Applications
■
Suppression of common-mode interferences
■
Switch-mode power supplies for converters, USV
■
Power supplies
Terminals
Hot-dip tinned
Marking
Manufacturer, ordering code, rated current, rated inductance,
rated voltage, climatic category, date of manufacture (MM.YY)
Delivery mode
Blister tray in cardboard box
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
10/08
Power line chokes
Current-compensated ring core triple chokes
Dimensional drawing and circuit diagram
5.1±0.1
B82747F
2
3’
1’
3
4
_
0.2
39+1
110±5
ø73±1
2’
1
Hex 7+0.2
1
2
3
1’
2’
3’
20±5
IND0273-6-E
Dimensions in mm
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
Inductance tolerance
Inductance decrease
ΔL/L
0
DC resistance R
typ
Climatic category
Storage conditions (packaged)
Weight
Approvals
440/250 V AC (50/60 Hz)
2500 V AC, 2 s (line/line)
60
°C
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 10 kHz, 0.1 mA, 20 °C
Inductance is specified per winding.
±30%
at 20 °C
< 20% at DC magnetic bias with I
R
, 20 °C
Measured at 20 °C, typical values, specified per winding
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
≤
75% RH
Approx. 350 g
EN 60938-2, UL 1283
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
10/08
Power line chokes
Current-compensated ring core triple chokes
Characteristics and ordering codes
I
R
A
6
10
16
25
L
R
mH
6.0
3.0
2.0
1.3
R
typ
mΩ
50
20
12
7.5
B82747F4602N001
B82747F4103N001
B82747F4163N001
B82747F4253N020
Ordering code
B82747F
Approvals
×
×
×
–
×
×
×
–
×
= approval granted
Impedance |Z| versus frequency f
measured with windings in parallel at 20 °C,
typical values
10
6
Ω
B82747
|Z |
10
5
IND0274-8
Current derating I
op
/I
R
versus ambient temperature T
A
1.4
I
op
I
R
1.2
1.0
IND0372-K-E
10
4
T
R
= 60
˚
C
0.8
0.6
F4602N001
F4103N001
F4163N001
F4253N020
10
3
0.4
0.2
0
10
2
10
1 4
10
10
5
10
6
Hz 10
f
7
0
20
40
60
80
100
˚
C 140
T
A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
10/08
Cautions and warnings
■
Please note the recommendations in our Inductors data book (latest edition) and in the data
sheets.
– Particular attention should be paid to the derating curves given there.
– The soldering conditions should also be observed. Temperatures quoted in relation to wave
soldering refer to the pin, not the housing.
■
If the components are to be washed varnished it is necessary to check whether the washing
varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,
or on glued joints. In particular, it is possible for washing varnish agent residues to have a
negative effect in the long-term on wire insulation.
■
The following points must be observed if the components are potted in customer applications:
– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic
housing or core. This pressure can have a deleterious effect on electrical properties, and in
extreme cases can damage the core or plastic housing mechanically.
– It is necessary to check whether the potting material used attacks or destroys the wire
insulation, plastics or glue.
– The effect of the potting material can change the high-frequency behaviour of the components.
■
Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to
breakage of the core.
■
Even for customer-specific products, conclusive validation of the component in the circuit can
only be carried out by the customer.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
10/08
