3 Way Power Divider
ABPDC-3-S-698-2700MHz
MSL level: Not Applicable
FEATURES:
• 698-2700MHz Multi - Band Frequency Range
• 5 & 10 W Power Rating
• Low RF Insertion Loss
• Impedance: 50Ω
• Connectors: SMA(f)
• Housing : Aluminum
RoHS/ RoHS II compliant
112.6 x 69.0 x 16.2mm
TYPICAL APPLICATIONS:
• Provides a signal sample for measurement or monitoring
• Combines feeds to and from antenna
• Antenna beam forming
• Multiband antennas and leaky cable systems such as
UMTS or DAS connection
STANDARD SPECIFICATIONS:
Parameters
Min.
Typ.
Max.
Units
Note
Receiving Frequency Range
Input VSWR
Output VSWR
Insertion Loss
Output Isolation
Power Rating
Operating Temperature
698
1.4
1.3
17
13
-40
20
17
5
2700
1.5
1.45
2.0
MHz

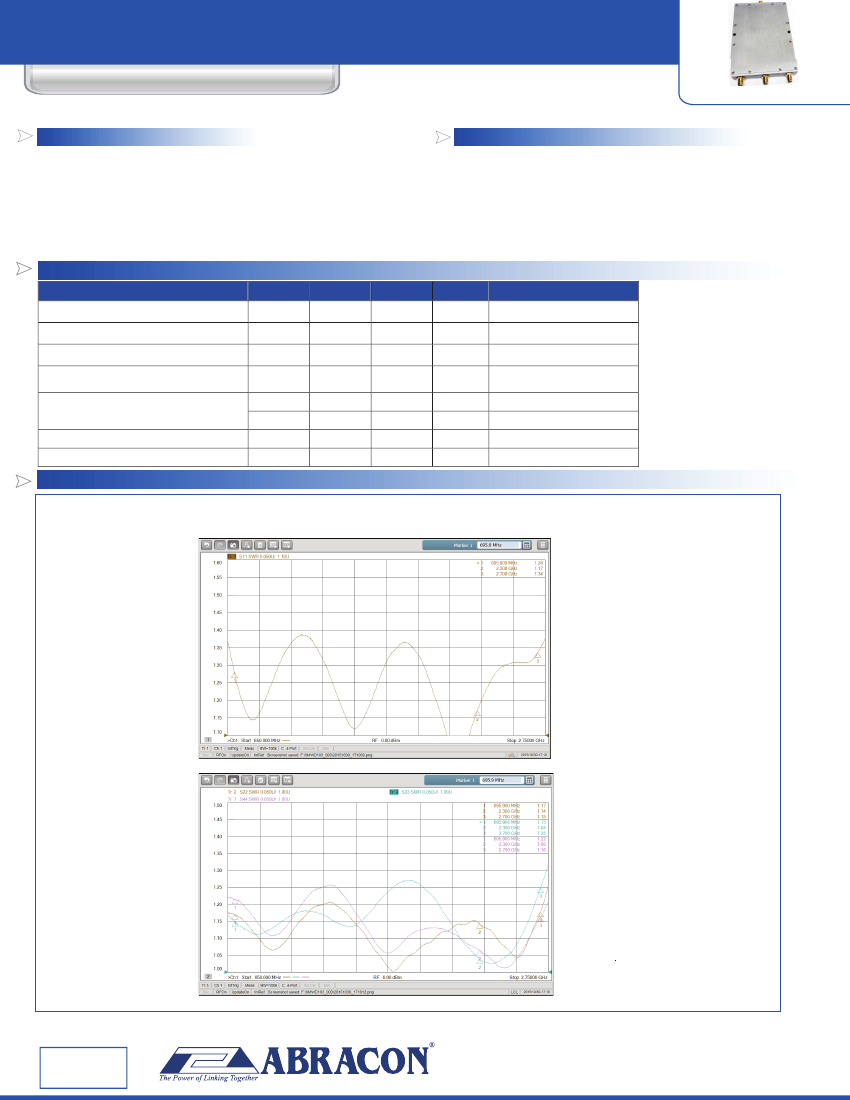

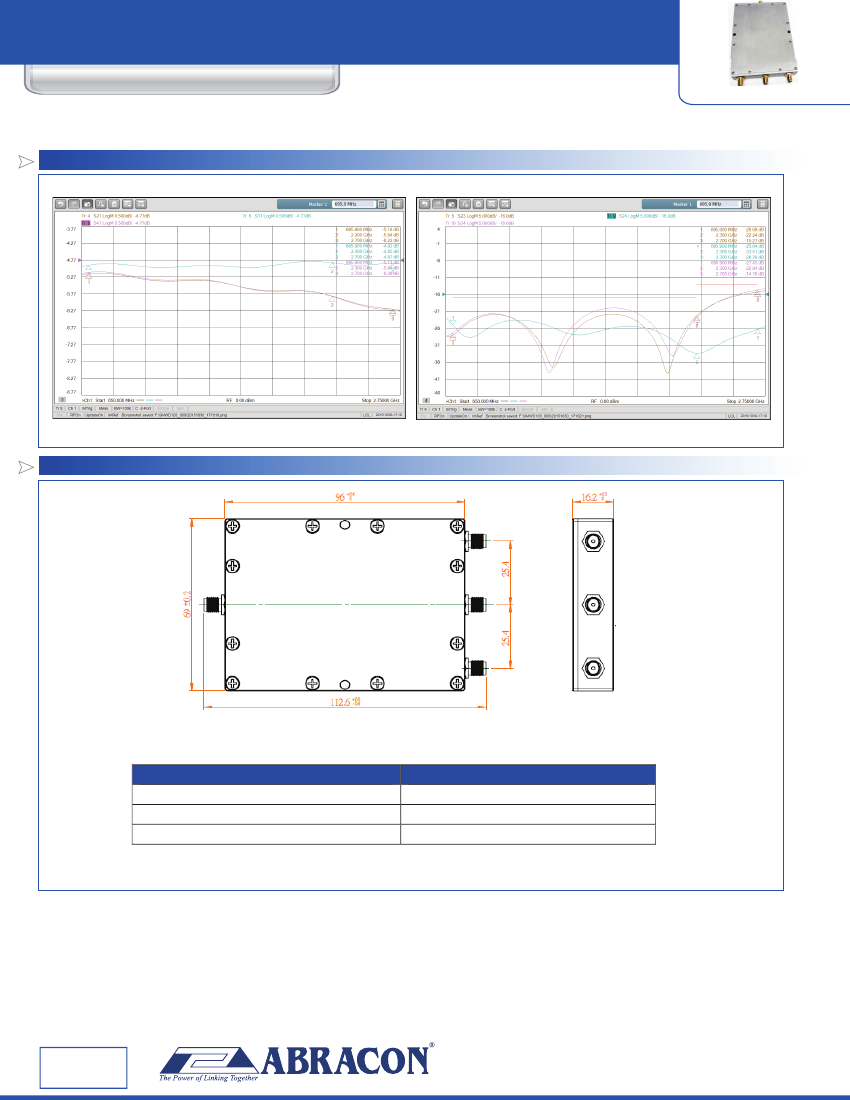

SAMPLE TEST PLOTS:
+85
dB
dB
dB
W
˚C
(In addition to 4.77dB
theoretical 3-way split loss.)
(698MHz≤ freq<2300MHz)
(2300MHz≤ freq≤ 2700MHz)
Port 1: IN, Port 2: OUT1, Port 3: OUT2, Port 4: OUT3
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 11.13.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
3 Way Power Divider
ABPDC-3-S-698-2700MHz
MSL level: Not Applicable
RoHS/ RoHS II compliant
112.6 x 69.0 x 16.2mm

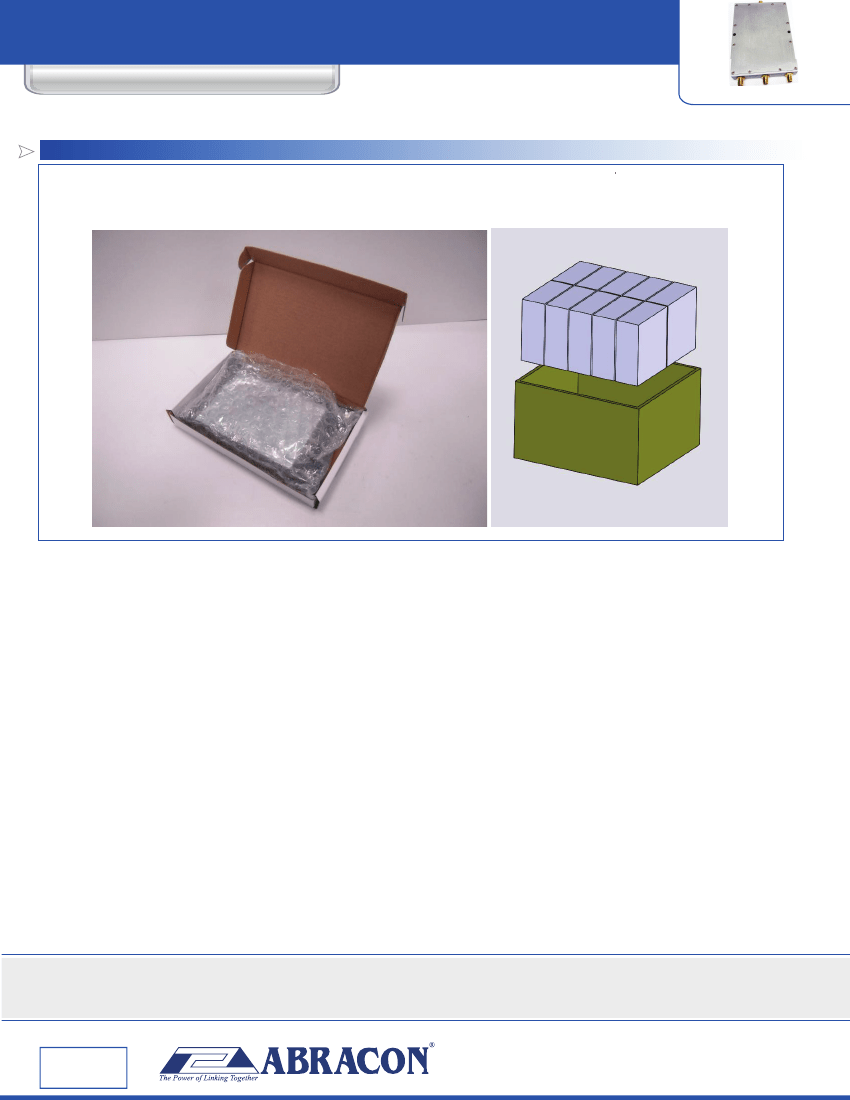

PACKAGING:
Each part is individually wrapped in a 141 x 93 x 20mm flip-top box. Each 200 x 120 x 161mm outer box
contains 10 flip-top boxes.
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
