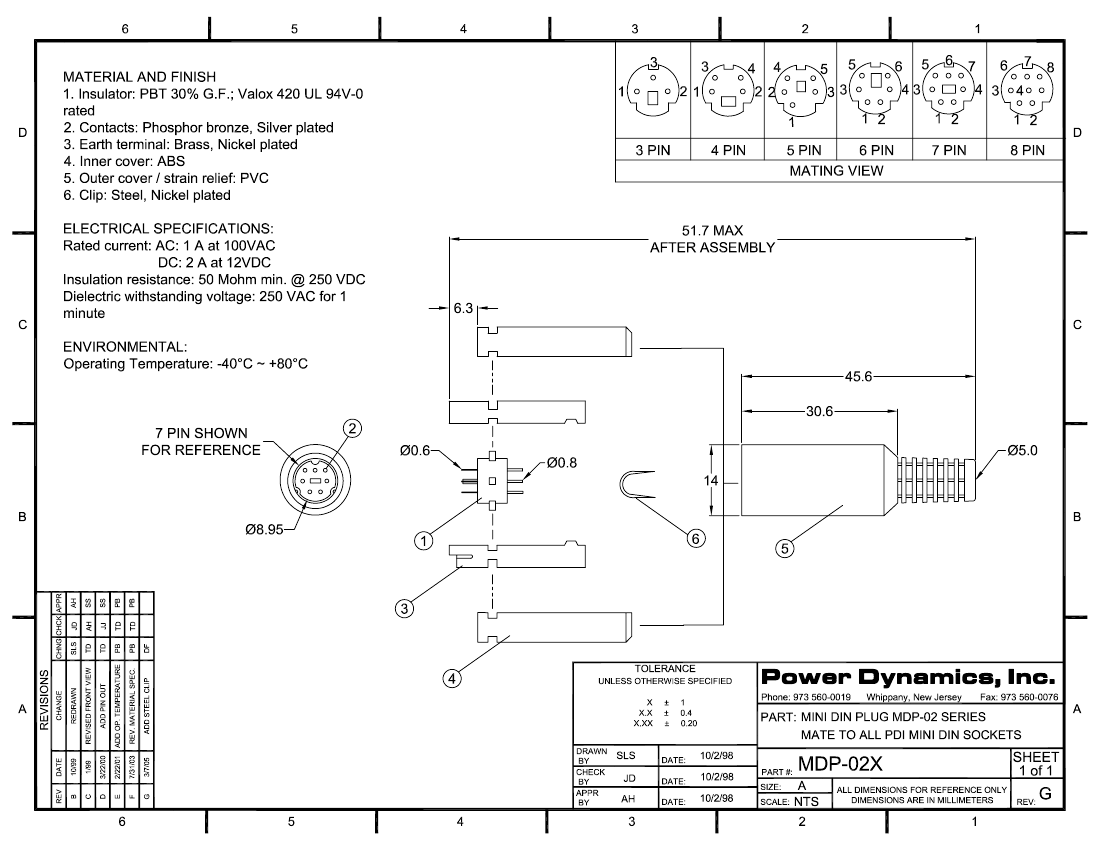

MDP-024 Overview

Circular DIN Connector, 4 Contact(s), Male, Plug

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	YES
Electromagnetic interference shielding	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MDP-02
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Total number of contacts	4

	MDP-024	MDP-027	MDP-025	MDP-023	MDP-026	MDP-028
Description	Circular DIN Connector, 4 Contact(s), Male, Plug	Circular DIN Connector, 7 Contact(s), Male, Plug	Circular DIN Connector, 5 Contact(s), Male, Plug	Circular DIN Connector, 3 Contact(s), Male, Plug	Circular DIN Connector, 6 Contact(s), Male, Plug	Circular DIN Connector, 8 Contact(s), Male, Plug
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact completed and terminated	SILVER	Silver (Ag)	Silver (Ag)	Silver (Ag)	SILVER	SILVER
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	YES	YES	YES	YES	YES	YES
Electromagnetic interference shielding	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	4	7	5	3	6	8
Maker	Power Dynamics, Inc.	-	-	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.
