R162162000: DescriptionRF N Connector, Male, Cable Mount, Clamp Terminal, Plug; CategoryThe connector The connector; File Size76KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

R162162000 Overview

RF N Connector, Male, Cable Mount, Clamp Terminal, Plug

R162162000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	unknown
Other features	CAPTIVE CENTER CONTACT
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	N
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	1.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP
voltage standing wave ratio	1.06

Preview

Download Datasheet

View All

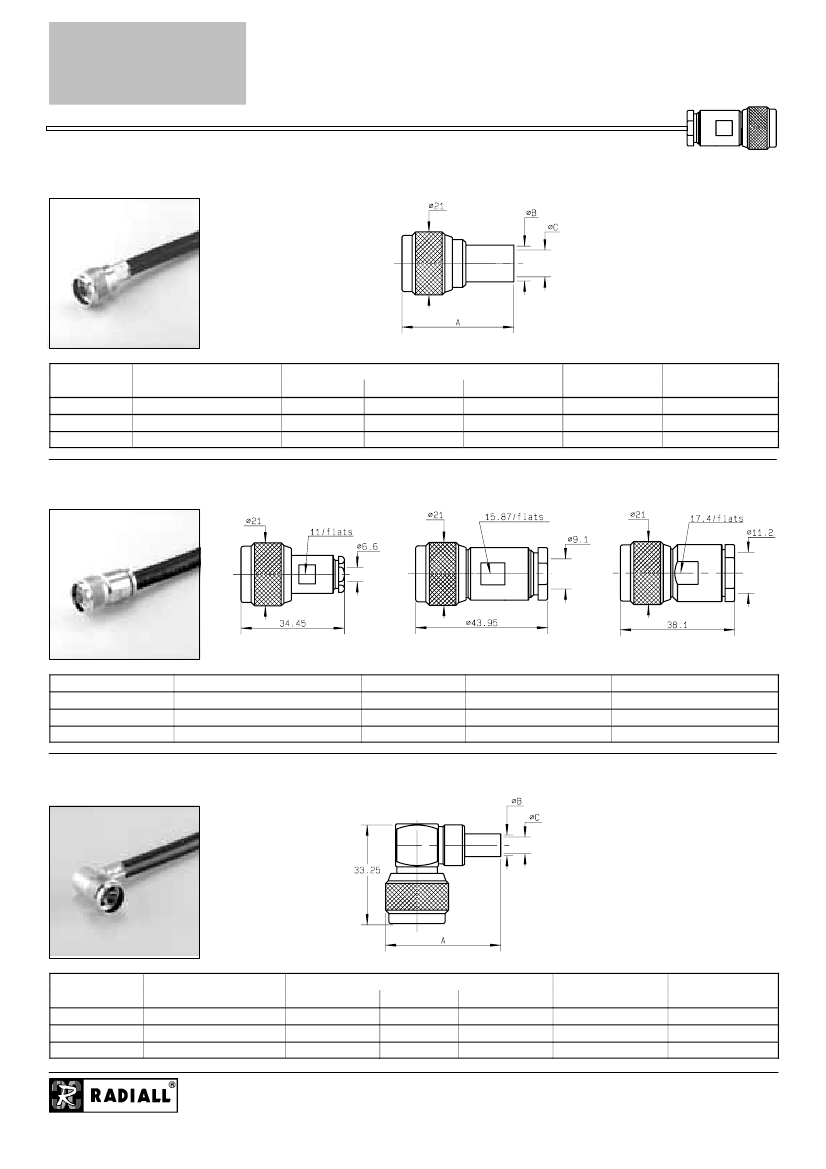

N 75

PLUGS

STRAIGHT PLUGS, CRIMP TYPE, FOR FLEXIBLE CABLES

cable

6 / 75 / S

10 / 75 / S

11 / 75 / D

part number

R162 084 000

R162 075 000

R162 088 000

dimensions

A

33.9

37.25

B

6.6

11.05

11.4

C

4

7.46

captured center

contact

YES

mounting

M33

STRAIGHT PLUGS, CLAMP TYPE, FOR FLEXIBLE CABLES

Fig. 1

cable

6 / 75 + 93

8 / 75 / D

10 + 11 / 75

part number

R162 012 000

R162 013 000

R162 017 000

Fig. 2

fig.

1

2

3

NO

Fig. 3

captured center contact

mounting

M02

M16

M04

RIGHT ANGLE PLUGS, CRIMP TYPE, FOR FLEXIBLE CABLES

cable

6 / 75 / S

10 / 75 / S

11 / 75 / D

part number

R162 184 000

R162 185 000

R162 187 000

dimensions

A

38.25

42.25

B

6.6

11.05

C

4

7.46

captured center

contact

YES

mounting

M33

11.4

7.46

YES

M33

Note : standard packaging = 50 pieces. For unit packaging, add ”W” after the P/N.
