Thermal Shock ..................................................... +85 °C to -40 °C, 20 times .................................... ±10 % typical resistance change
Solvent Resistance ............................................... MIL-STD-202, Method 215 ................................... No change
Vibration ............................................................... MIL-STD-883C, Method 2007.1,........................... No change
Condition A
Test Procedures And Requirements For Model MF-MSMF Series
Test
Test Conditions
Accept/Reject Criteria
Visual/Mech. ......................................................... Verify dimensions and materials ........................... Per MF physical description
Resistance ............................................................ In still air @ 23 °C ................................................. Rmin
≤
R
≤
R1max
Time to Trip ........................................................... At specified current, Vmax, 23 °C ......................... T
≤
max. time to trip (seconds)
Hold Current ......................................................... 30 min. at Ihold ..................................................... No trip
Trip Cycle Life ....................................................... Vmax, Imax, 100 cycles ........................................ No arcing or burning
Trip Endurance ..................................................... Vmax, 48 hours..................................................... No arcing or burning
Solderability .......................................................... ANSI/J-STD-002 ................................................... 95 % min. coverage
UL File Number .................................................... E174545
http://www.ul.com/ Follow link to Certifications, then UL File No., enter E174545
CSA File Number .................................................. CA110338
http://directories.csa-international.org/ Under “Certification Record” and “File Number”
enter 110338-0-000
TÜV Certificate Number ....................................... R 02057213
http://www.tuvdotcom.com/ Follow link to “other certificates”, enter File No. 2057213
*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.
**Bourns is using the definition that appears to be the prevalent definition used as the industry standard at this time. The Bourns definition of “halogen-free” is:
Bromine (Br) content:
≤
900 ppm; Chlorine (Cl) content:
≤
900 ppm; Total Br + Cl content:
≤1500
ppm.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Applications
■
Overcurrent and overtemperature
■
Point-of-sale (POS) equipment
■
PCMCIA cards
■
USB port protection - USB 2.0, 3.0 & OTG
■
HDMI 1.4 Source protection
protection of automotive electronics
■
Hard disk drives
■
PC motherboards
■
PC peripherals
MF-MSMF Series - PTC Resettable Fuses
Product Dimensions (see next page for outline drawings)
Model
MF-MSMF010
MF-MSMF014
MF-MSMF020
MF-MSMF020/60
MF-MSMF030
MF-MSMF050
MF-MSMF075
MF-MSMF075/24
MF-MSMF110
MF-MSMF110/16
MF-MSMF110/24X
MF-MSMF125
MF-MSMF150
MF-MSMF150/24X
MF-MSMF160
MF-MSMF200
MF-MSMF250/16X
MF-MSMF260
A
Min.
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
4.37
(0.172)
Max.
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.73
(0.186)
4.83
(0.190)
4.73
(0.186)
4.73
(0.186)
4.83
(0.190)
4.73
(0.186)
4.73
(0.186)
4.83
(0.190)
4.73
(0.186)
Min.
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
3.07
(0.121)
B
Max.
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
3.41
(0.134)
Min.
0.70
(0.028)
0.70
(0.028)
0.70
(0.028)
0.70
(0.028)
0.70
(0.028)
0.55
(0.015)
0.55
(0.015)
0.55
(0.015)
0.45
(0.018)
0.45
(0.018)
0.70
(0.028)
0.55
(0.015)
0.55
(0.015)
0.70
(0.028)
0.55
(0.015)
0.55
(0.015)
0.70
(0.028)
0.48
(0.019)
C
Max.
1.10
(0.043)
1.10
(0.043)
1.10
(0.043)
1.10
(0.043)
1.10
(0.043)
0.85
(0.033)
0.85
(0.033)
0.85
(0.033)
0.85
(0.033)
0.85
(0.033)
1.60
(0.063)
0.85
(0.033)
0.85
(0.033)
1.60
(0.063)
0.85
(0.033)
0.85
(0.033)
1.60
(0.063)
0.85
(0.033)
D
Min.
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
0.30
(0.012)
DIMENSIONS:
Style
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
2
1
MM
(INCHES)
Packaging:
MF-MSMF010 through MF-MSMF030 = 1500 pcs. per reel.
MF-MSMF050 through MF-MSMF200 & MF-MSMF260 = 2000 pcs. per reel.
MF-MSMF110/24X , MF-MSMF150/24X & MF-MSMF250/16X = 1500 pcs. per reel.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
MF-MSMF Series - PTC Resettable Fuses

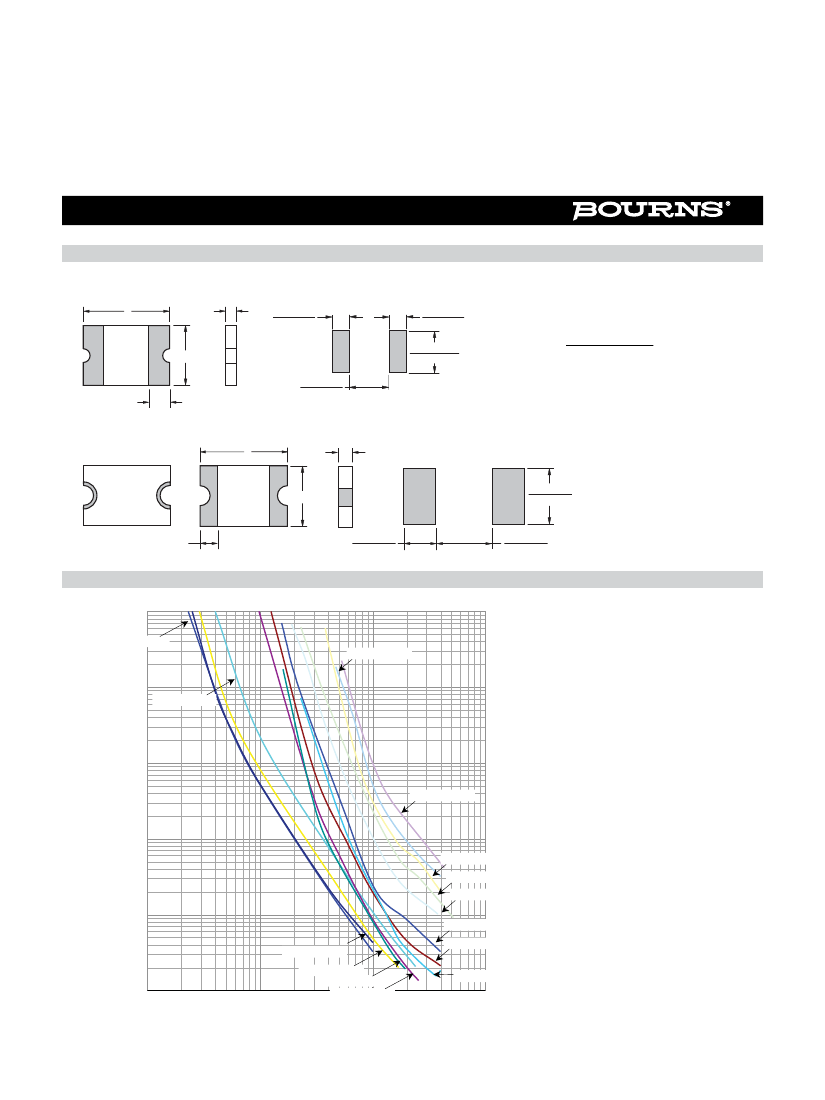

Product Dimensions (see previous page for dimensions)
Style 1
Top and Bottom View
A
Side View
C
Recommended Pad Layout
1.5 ± 0.05
(.059 ± .002)
1.5 ± 0.05
(.059 ± .002)
3.2 ± 0.1
(0.126 ± .004)
2.7 ± 0.1
(.106 ± .004)
D
Terminal material:
Electroless Ni under immersion Au
Termination pad solderability:
Standard Au finish:
Meets ANSI/J-STD-002 Category 2.
Recommended Storage:
40 °C max./70 % RH max.
B
Style 2
Top View
Bottom View
A
Side View
C
Recommended Pad Layout
8
C
D
B
2.95 ± 0.10
(.114 ± .004)
1.68 ± 0.05
(.066 ± .002)
3.1 ± 0.10
(.122 ± .004)
Typical Time to Trip at 23 ˚C
100
MF-MSMF010
MF-MSMF200
10
MF-MSMF030
The Time to Trip curves represent typical
performance of a device in a simulated
application environment. Actual performance
in specific customer applications may differ
from these values due to the influence of
other variables.
Time to Trip (Seconds)
1
MF-MSMF260
0.1
MF-MSMF160
MF-MSMF150
MF-MSMF125
0.01
MF-MSMF110
MF-MSMF075
MF-MSMF014
MF-MSMF020
MF-MSMF075/24
MF-MSMF110/16
0.001
0.1
1
MF-MSMF050
10
100
Fault Current (Amps)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
MF-MSMF Series - PTC Resettable Fuses
Thermal Derating Chart - Ihold (Amps)
Model
MF-MSMF010
MF-MSMF014
MF-MSMF020
MF-MSMF020/60
MF-MSMF030
MF-MSMF050
MF-MSMF075
MF-MSMF075/24
MF-MSMF110
MF-MSMF110/16
MF-MSMF110/24X
MF-MSMF125
MF-MSMF150
MF-MSMF150/24X
MF-MSMF160
MF-MSMF200
MF-MSMF250/16X
MF-MSMF260
-40 ˚C
0.16
0.23
0.29
0.29
0.44
0.77
1.15
1.15
1.59
1.59
2.00
1.80
2.17
2.10
2.30
3.08
3.90
4.00
-20 ˚C
0.14
0.19
0.26
0.26
0.39
0.68
1.01
1.01
1.43
1.43
1.70
1.63
1.95
1.90
2.20
2.71
3.42
3.52
0 ˚C
0.12
0.17
0.23
0.23
0.35
0.59
0.88
0.88
1.26
1.26
1.40
1.43
1.72
1.70
1.90
2.35
2.96
3.06
Ambient Operating Temperature
23 ˚C
40 ˚C
50 ˚C
0.10
0.08
0.07
0.14
0.12
0.10
0.20
0.17
0.15
0.20
0.17
0.15
0.30
0.26
0.23
0.50
0.44
0.40
0.75
0.65
0.60
0.75
0.65
0.60
1.10
0.95
0.87
1.10
0.95
0.87
1.10
0.95
0.88
1.25
1.08
0.99
1.50
1.30
1.18
1.50
1.25
1.13
1.60
1.45
1.30
2.00
1.80
1.60
2.50
2.24
1.98
2.60
2.34
2.08
60 ˚C
0.06
0.09
0.14
0.14
0.21
0.37
0.55
0.55
0.80
0.80
0.80
0.91
1.09
1.00
1.15
1.50
1.85
1.95
70 ˚C
0.05
0.08
0.12
0.12
0.18
0.33
0.49
0.49
0.71
0.71
0.73
0.81
0.97
0.88
1.03
1.40
1.29
1.39
85 ˚C
0.03
0.06
0.10
0.10
0.15
0.29
0.43
0.43
0.60
0.60
0.61
0.68
0.82
0.69
0.91
1.25
0.94
1.04
Solder Reflow Recommendations
300
250
Temperature (°C)
200
150
Preheating
Soldering
Cooling
Notes:
•
•
•
MF-MSMF models cannot be wave soldered. Please contact Bourns for
hand soldering recommendations.
If reflow temperatures exceed the recommended profile, devices may
not meet the performance requirements.
Compatible with Pb and Pb-free solder reflow profiles.
Excess solder may cause a short circuit, especially during hand
soldering. Please refer to the Multifuse
®
Polymer PTC product soldering
recommendation guidelines.
100
50
0
160–220
10–20
Time (seconds)
120
•
How to Order
Typical Part Marking
MF - MSMF 075/24 - 2
Multifuse
®
Product
Designator
Series
MSMF = 4532 mm (1812 mils)
Surface Mount Component
Hold Current, Ihold
010-260 (0.10 Amps - 2.60 Amps)
Higher Voltage Option
__ = Standard Voltage
/16 = 16 Volt Rated
/24 = 24 Volt Rated
/60 = 60 Volt Rated
X=
Multifuse
®
freeXpansion Design
™
MF-MSMF Series
Packaging
Packaged per EIA 481-1
-2 = Tape and Reel
Represents total content. Layout may vary.
BI-WEEKLY DATE CODE:
WEEKS 49-50 = Y
YEAR CODE:
5 = 2005
PART IDENTIFICATION EXAMPLES:
MF-MSMF050 = 50
MF-MSMF075 = 75
MF-MSMF110 = 11
MF-MSMF150 = 15
PART IDENTIFICATION EXAMPLES:
MF-MSMF110/24X = 6
MF-MSMF150/24X = 8
MF-MSMF250/16X = C
BI-WEEKLY DATE CODE:
WEEKS 5-6 = C
115Y
8
C
MF-MSMF SERIES, REV. AD, 02/13
“freeXpansion Design” is a trademark of Bourns, Inc.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual
device performance may vary over time.
MF-MSMF Series Tape and Reel Specifications
MF-MSMF010 -
MF-MSMF030
per EIA-481-1
12.0 ± 0.30
(0.472 ± 0.012)
4.0 ± 0.10
(0.157 ± 0.004)
8.0 ± 0.10
(0.315 ± 0.004)
2.0 ± 0.05
(0.079 ± 0.002)
3.58 ± 0.10
(0.141 ± 0.004)
4.93 ± 0.10
(0.194 ± 0.004)
5.9
(0.232)
1.5 + 0.10/-0.0
(0.059 + 0.004/-0)
5.5 ± 0.05
(0.217 ± 0.002)
1.75 ± 0.10
(0.069 ± 0.004)
10.25
(0.404)
0.6
(0.024)
0.1
(0.004)
1.30 ± 0.10
(0.051 ± 0.004)
390
(15.35)
160
(6.30)
MF-MSMF050 -
MF-MSMF260
per EIA 481-1
12.0 ± 0.30
(0.472 ± 0.012)
4.0 ± 0.10
(0.157 ± 0.004)
8.0 ± 0.10
(0.315 ± 0.004)
2.0 ± 0.05
(0.079 ± 0.002)
3.66 ± 0.15
(0.144 ± 0.006)
4.98 ± 0.10
(0.196 ± 0.004)
5.9
(0.232)
1.5 + 0.10/-0.0
(0.059 + 0.004/-0)
5.5 ± 0.05
(0.217 ± 0.002)
1.75 ± 0.10
(0.069 ± 0.004)
10.25
(0.404)
0.6
(0.024)
0.1
(0.004)
0.95 ± 0.10
(0.037 ± 0.004)
390
(15.35)
160
(6.30)
MF-MSMF-110/24X
MF-MSMF150/24X
MF-MSMF250/16X
per EIA 481-1
12.0 ± 0.30
(0.472 ± 0.012)
4.0 ± 0.10
(0.157 ± 0.004)
8.0 ± 0.10
(0.315 ± 0.004)
2.0 ± 0.05
(0.079 ± 0.002)
3.70 ± 0.10
(0.146 ± 0.004)
5.10 ± 0.10
(0.200 ± 0.004)
5.9
(0.232)
1.5 + 0.10/-0.0
(0.059 + 0.004/-0)
5.5 ± 0.05
(0.217 ± 0.002)
1.75 ± 0.10
(0.069 ± 0.004)
10.25
(0.404)
0.6
(0.024)
0.1
(0.004)
1.50 ± 0.10
(0.059 ± 0.004)
390
(15.35)
160
(6.30)
Tape Dimensions
W
P0
P1
P2
A0
B0
B1 max.
D0
F
E1
E2 min.
T max.
T1 max.
K0
Leader min.
Trailer min.
Reel Dimensions
A max.
N min.
W1
W2 max.
185
(7.28)
50
(1.97)
12.4 + 2.0/-0.0
(0.488 + 0.079/-0.0)
18.4
(0.724)
P0
T
D0
P2
185
(7.28)
50
(1.97)
12.4 + 2.0/-0.0
(0.488 + 0.079/-0.0)
18.4
(0.724)
185
(7.28)
50
(1.97)
12.4 + 2.0/-0.0
(0.488 + 0.079/-0.0)
18.4
(0.724)
DIMENSIONS:
MM
(INCHES)
E1
W2(MEASURED
AT HUB)
COVER
TAPE
F
B1
B0
K0
T1
P1
A0
W1(MEASURED
AT HUB)
E2 W
A
N(HUB DIA.)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
[i=s]This post was last edited by ywlzh on 2016-2-29 22:44[/i] Let's not talk about it first, here are two pictures. I still have some questions later, and I would like to ask for your help. If you wa...
When I connect the emulator for debugging, the message "a fireware is required for the MSP430 Debug Interface (MSP430-FET430UIF), check the update...." appears. Then I click on the upgrade button, but...
On August 23rd, Geely's subsidiary, Jiyao Tongxing, announced it has the industry's largest advanced production capacity for tandao
batteries
, with eight production bases across China. Jiy...[Details]
To enable real-time monitoring of home security and automatically dial a number for voice prompts or send text messages when an alarm occurs, a GPRS-based embedded telephone alarm system was design...[Details]
When you are happily watching NBA or football, your wife asks you to turn off the lights in the bedroom. Would you be depressed? Of course, unless you are not afraid of your wife.
Now you are ...[Details]
Recently, AstroBo Robot, a subsidiary of Chenxing Automation, launched a new mobile collaborative palletizing product. Leveraging an omnidirectional mobile chassis, an intelligent scheduling system...[Details]
In June 2014, the Ministry of Industry and Information Technology issued 4G FD-LTE licenses to China Unicom and China Telecom. Together with the 4G TD-LTE licenses issued to China Mobile, China Uni...[Details]
Learned the following information.
Customer product: industrial computer motherboard
Glue application area: CPU/BGA filling
Glue color requirements: black or t...[Details]
Electric vehicles will revolutionize transportation, changing fuel consumption, carbon emissions, costs, maintenance, and driving habits. Currently, a major selling point for electric vehicles is t...[Details]
On August 21, it was reported that Intel's new generation of AI chip Jaguar Shores was recently exposed for the first time.
According to photos shared by Andreas Schilling, the Jaguar Shores t...[Details]
introduction
With the development of society, people's requirements for the quality of refrigerated and frozen foods are constantly improving. The changes in food appearance and nutritional co...[Details]
Analog Devices held a third-quarter fiscal 2025 earnings conference call. Vincent T. Roche, CEO and Chairman of the Board, and Richard C. Puccio, Executive Vice President and Chief Financial Office...[Details]
introduction
Inverter air conditioners are a trend in the current era and have gradually become commonplace in countless households. Beyond their basic cooling and heating functions, air condi...[Details]
The fracture mechanism is stress concentration, which typically occurs at the capacitor lead pins or pad connection points, as shown in the figure. Under vibration, the capacitor lead pins and pad ...[Details]
Batteries are a core component of new energy vehicles, accounting for over 40% of the total cost. This is also the area where automakers are most willing to tamper with costs. Since 2021, domestic ...[Details]
The evolution of high-speed networks remains guided by the same core objectives: increasing data rates, reducing latency, improving reliability, lowering power consumption, and maintaining or exten...[Details]
I believe everyone has heard of memory. If your computer is slow, your experts may recommend upgrading it to a larger capacity. But what exactly is computer memory used for? Why does memory capacit...[Details]
51mcu
京公网安备 11010802033920号
EEWORLD
