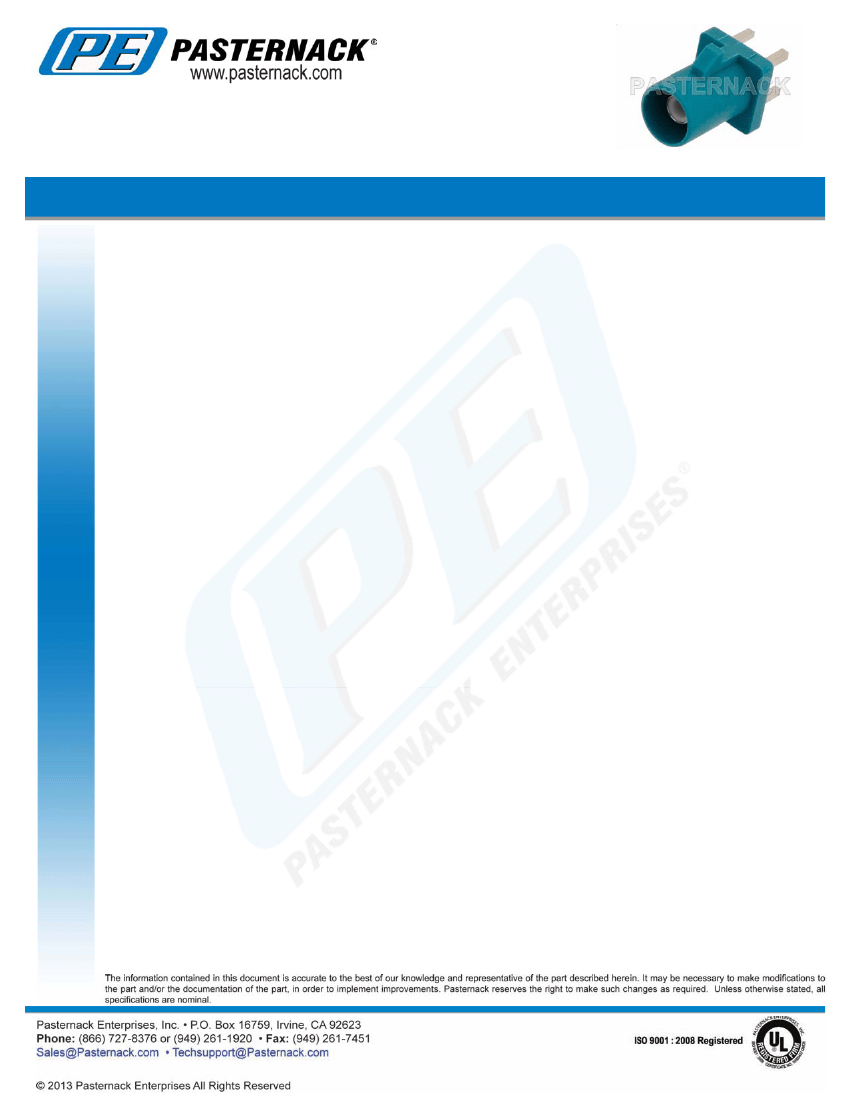

FAKRA Plug Connector Solder Attachment
Thru Hole PCB, Water Blue Color
TECHNICAL DATA SHEET
FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
FAKRA Plug
Thru Hole
Solder
Straight
PE44649Z
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.3:1
800
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-40 to +85
0.878 [22.3]
0.37 [9.40]
0 [0]
Water Blue
Weight, lbs [g]
Color
Connector
Type
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
FAKRA Plug
Phosphor Bronze, Gold
Brass, Nickel
Plastic
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color PE44649Z
PE44649Z REV 01
1
FAKRA Plug Connector Solder Attachment
Thru Hole PCB, Water Blue Color
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44649Z
FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color PE44649Z
URL:
http://www.pasternack.com/fakra-plug-standard-thru-hole-pcb-connector-pe44649z-p.aspx
PE44649Z REV 01
2
PE44649Z

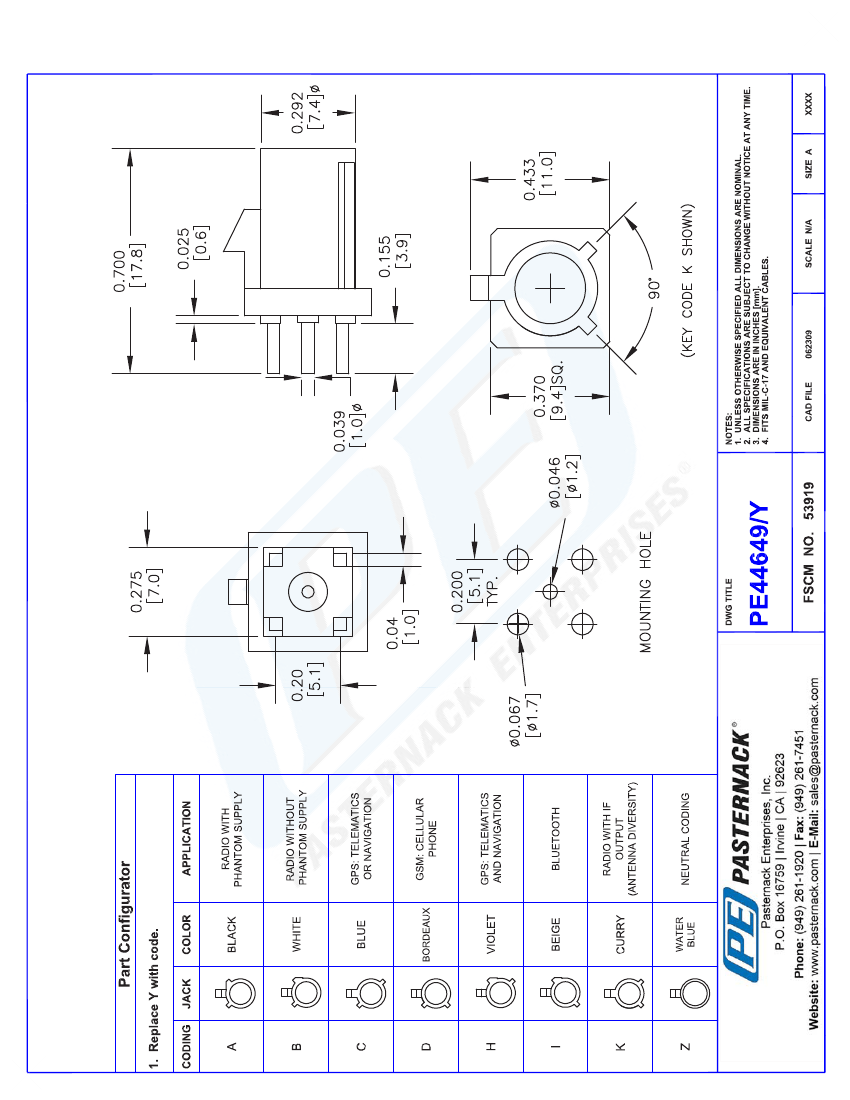

CAD Drawing
FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color
© 2013 Pasternack Enterprises All Rights Reserved
PE44649Z REV 01
3
