Technology
Cinch has teamed our prov-
en twist pin technology with
these custom designed insu-
lators capable of meeting
the extreme mechanical and
electrical needs in the harsh-
est environments of military/
aerospace and industrial
applications such as Down Hole Directional Drilling.
Cinch’s unique plug insulators are designed to provide
increased electrical protection between contact cavities
preventing any potential shorts due to exposed wire or
epoxy voids. Comprised of PEEK material these connectors
offer superior performance and long life in severe environ-
ments.
•
Exposed
Conductor
Recessed
Into Insulator
2-Part
Epoxy
Wire Insulation
Custom
Insulator
Cinch’s Twist Pin Advantage
•
Combine the twist pin performance with increased
temperature range
•
BeCu wire strands provide seven points of electrical
contact
•
Achieve high mating cycles and better resistance to
shock and vibration
•
Approved system applications (Aerospace, Defense
and Geo-thermal)
Qualified and approved to Mil-DTL-83513
Product Offerings
•
Full harnessing capabilities ranging from simple point-
point to complex with many branches
Custom configurations and modifications available to fit
unique packaging and design requirements
Detail of
Dura-Con™ Twist Pin
•
Americas and Asia . 1700 Finley Road . Lombard, IL 60148 USA . Phone: 630.705.6000 . E-mail: Dura-Con@cinch.com
Europe . Shireoaks Road . Worksop S803HA . Nottinghamshire,U.K. . Phone: +44 (0) 1909 474 131 . E-mail: info@cinchuk.com
www.cinch.com
©2010 Cinch Connectors
Dura-Con v1 03 2010

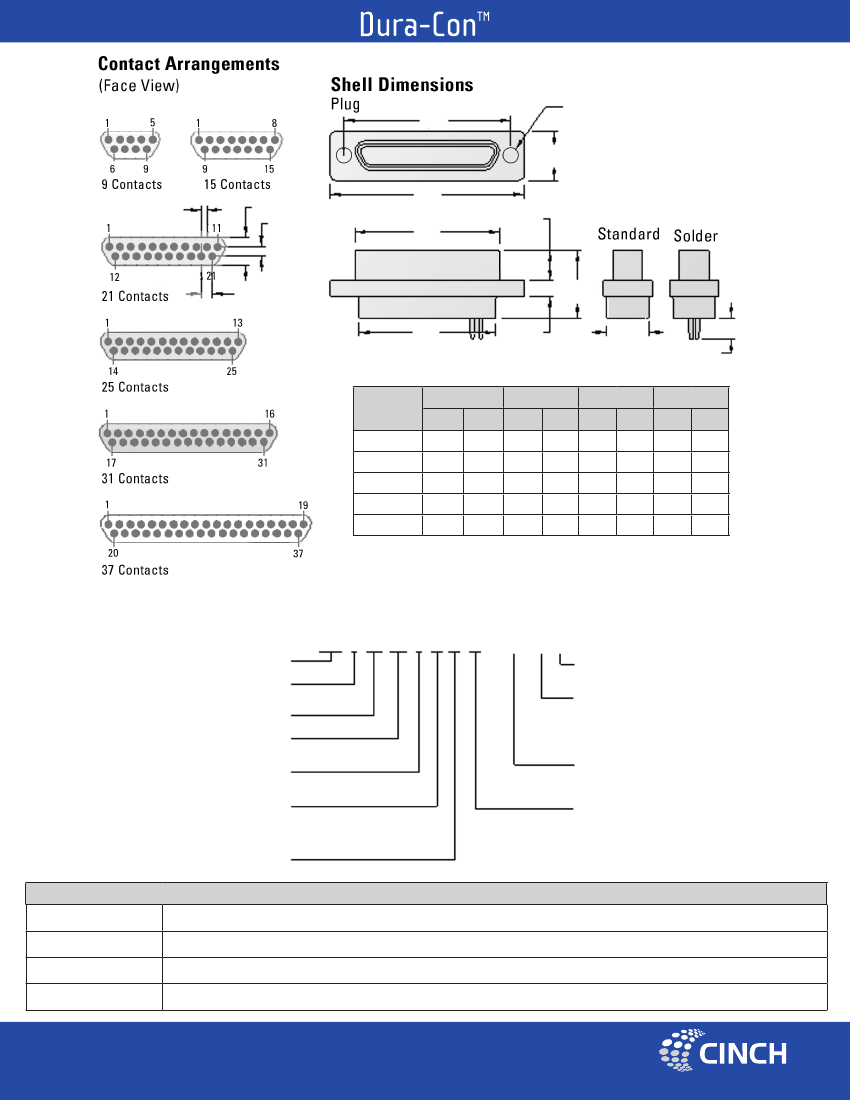

D
Two. Mtg. Holes
.096/ .088 Dia.
(2.44/2.24)
.308 Max.
(7.82)
.0254 Typ.
.130
.043
(1.09)
A
B
.186
(4.72)
Max.
.05 (1.27)
Typ.
.416 Max.
(10.57)
C
.098 Max.
(2.50)
.270
(6.86)
Max.
.100
(2.54)
Max.
No. of
Contacts
9 Plug
15 Plug
21 Plug
25 plug
31 Plug
A Max.
In.
.785
.935
1.085
1.185
1.335
mm.
19.94
23.74
27.56
30.10
33.97
B Max.
in.
.334
.484
.634
.734
.884
mm.
8.48
C Max.
in.
.400
mm.
10.16
13.97
17.78
20.32
24.13
D Nominal
in.
.565
.715
.865
.965
1.115
mm.
14.35
18.16
21.97
24.51
28.32
12.29 .550
16.10 .700
18.64 .800
22.45 .950
DC
Cinch Dura-Con “D”
Insulator Type
P=Peek High Temperature
M=Metal Shell
Contact Positions
xx=9,15, 21, 25, 31, 37
Contact Type
P = Plug (PIN)
Wire Size (in AWG)
4=24, 6=26, 8=28
S=Solder Cup
(Skip to Mounting Hardware)
Insulated Wire Type
N = Mil-W-22759/33
P M XX P 6 N 2 - 18.0 B N
Shell Plating
N = Nickel
Mounting hardware
B = No Hardware
M = Jackscrew Hex Head
Low Profile Per
M83513/05-02
Lead Length
(in Inches)
XX.X
Insulation Color
1 = White
5 = Color Coded Per Mil-Std 681 System 1
6 = Coded Per Mil-Std 681 System 1
First 10 Colors then repeat
Performance Characteristics
Operating Temperature
Shock
Vibration
Sizes
-40°C to 175°C (-40°F to 347°F)
50 G’s per MIL-STD-1344, Method 2004, Condition E (EIA-364-27, Condition E)
20 G’s per MIL-STD-1344, Method 2005, Condition IV (EIA-364-28, Condition IV)
9, 15, 21, 25, available. Please consult factory for larger sizes.
Americas and Asia . 1700 Finley Road . Lombard, IL 60148 USA . Phone: 630.705.6000 . E-mail: Dura-Con@cinch.com
Europe . Shireoaks Road . Worksop S803HA . Nottinghamshire,U.K. . Phone: +44 (0) 1909 474 131 . E-mail: info@cinchuk.com
www.cinch.com
©2010 Cinch Connectors
Dura-Con v1 03 2010
