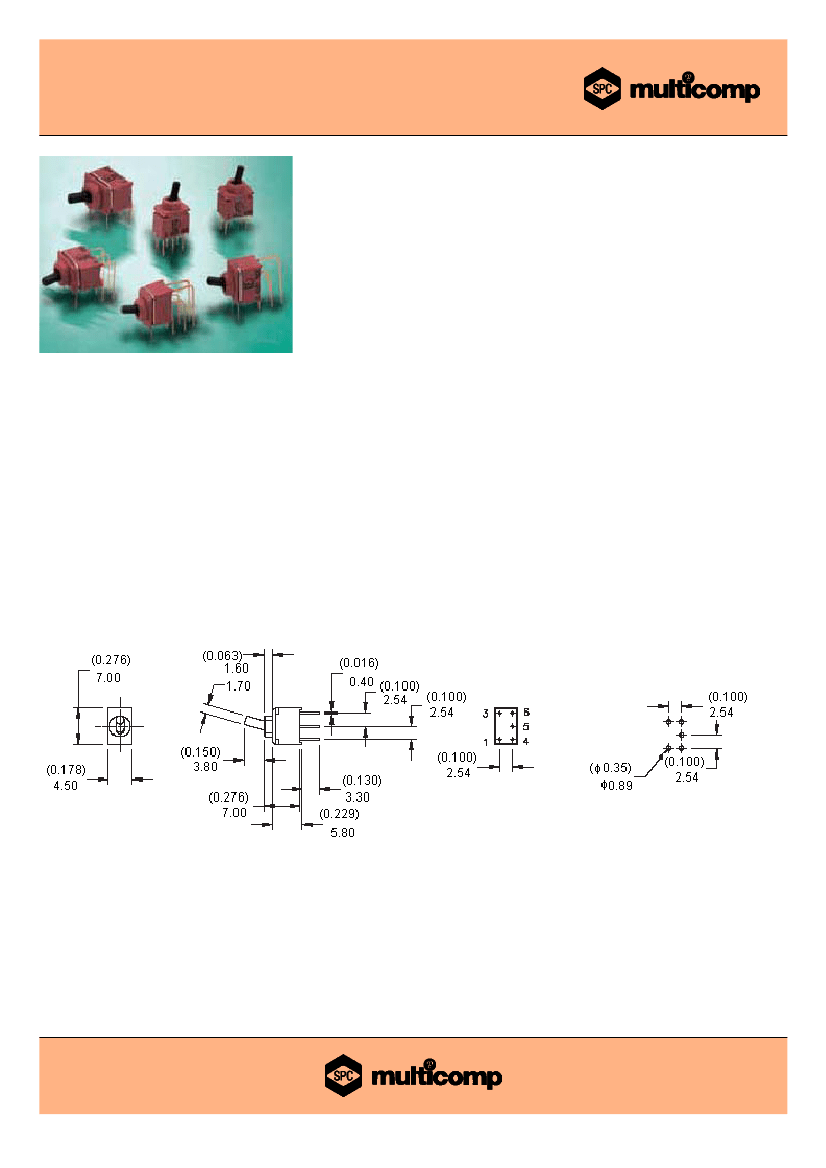

Toggle Switches
Ultra-Minature - Sealed
Specifications:
Contact Rating
Mechanical Life
Contact Resistance
Minimum Insulation Resistance
Dielectric Strength
Operating Temperature
Materials:
Actuator
Housing and base
Switch Support
:
:
:
:
:
:
0.4 volt-amps (VA) maximum at 20V AC or DC maximum.
40,000 make-and-break cycles.
Below 100mΩ typical at 2 to 4V dc, 100mA.
500MΩ.
500VRMS at sea level.
-30°C to 85°C.
: Glass filled nylon 6/6, heat stabilized, with standard internal o-ring seal.
: Glass filled nylon 66 or 4/6, heat stabilized.
: Brass or steel, tin plated.
Pole Option
M2RE
SPDT
PCB Mounting

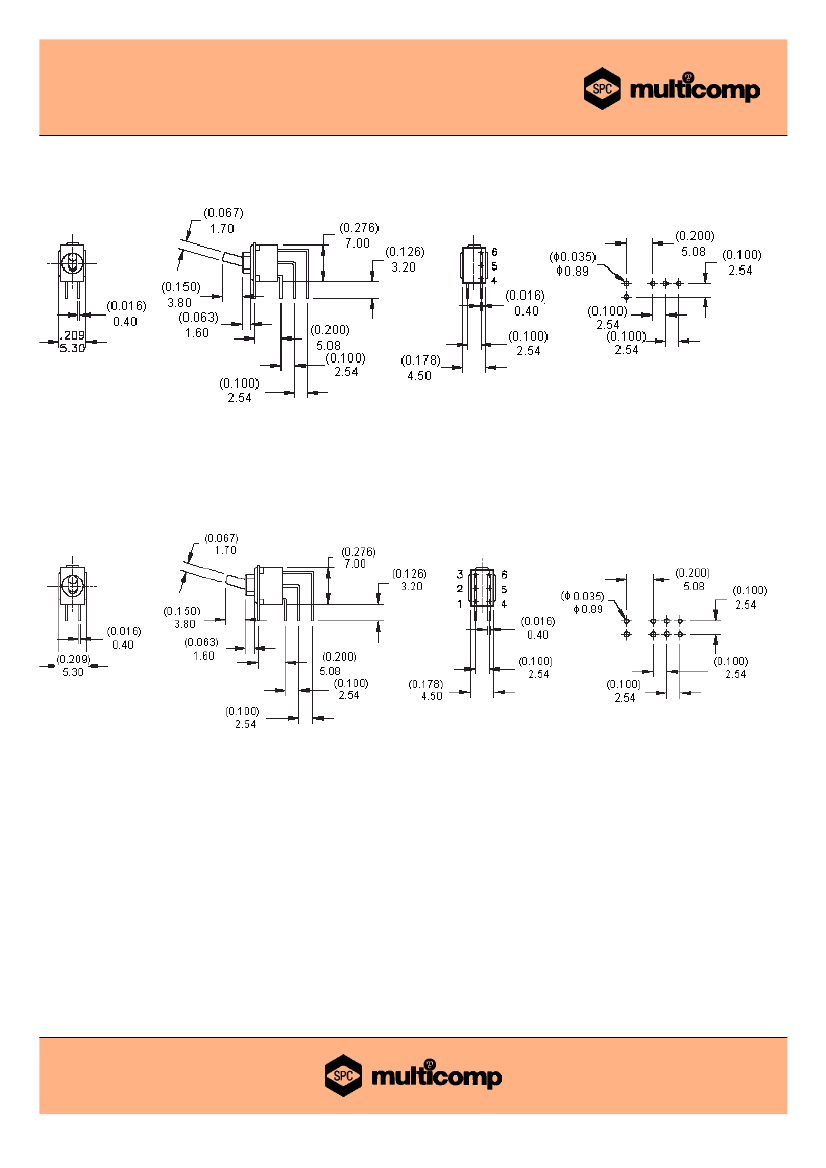

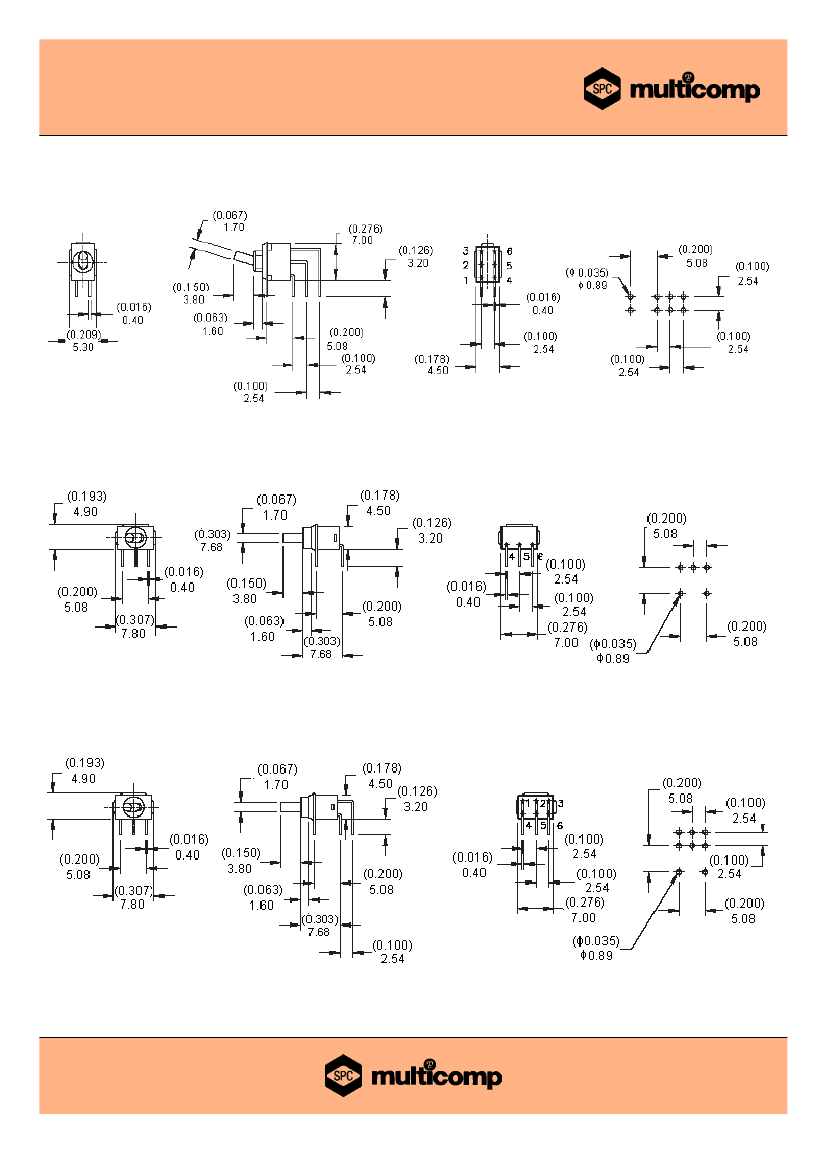

Dimensions : Millimetres (Inches)
Page 1
21/03/08 V1.1
Toggle Switches
Ultra-Minature - Sealed
Specification Table
Description
Switch, Ultraminiature, SPDT, On-Mom
Switch, Ultraminiature, SPDT, On-On
Switch, Ultraminiature, SPDT, On-Off-On
Switch, Ultraminiature, DPDT, On-Mom
Switch, Ultraminiature, DPDT, On-On
Switch, Ultraminiature, DPDT, On-Off-On
Switch, Ultraminiature, Horizontal R/A, SPDT, On-Mom
Switch, Ultraminiature, Horizontal R/A, SPDT, On-On
Switch, Ultraminiature, Horizontal R/A, SPDT, On-Off-On
Switch, Ultraminiature, Horizontal R/A, DPDT, On-Mom
Switch, Ultraminiature, Horizontal R/A, DPDT, On-On
Switch, Ultraminiature, Horizontal R/A, DPDT, On-Off-On
Switch, Ultraminiature, Vertical R/A, SPDT, On-Mom
Switch, Ultraminiature, Vertical R/A, SPDT, On-On
Switch, Ultraminiature, Vertical R/A, SPDT, On-Off-On
Switch, Ultraminiature, Vertical R/A, DPDT, On-Mom
Switch, Ultraminiature, Vertical R/A, DPDT, On-On
Switch, Ultraminiature, Vertical R/A, DPDT, On-Off-On
Part Number
2US2T1A1M2RE
2US1T1A1M2RE
2US3T1A1M2RE
2UD2T1A1M2RE
2UD1T1A1M2RE
2UD3T1A1M2RE
2US2T1A1M6RE
2US1T1A1M6RE
2US3T1A1M6RE
2UD2T1A1M6RE
2UD1T1A1M6RE
2UD3T1A1M6RE
2US2T1A1M7RE
2US1T1A1M7RE
2US3T1A1M7RE
2UD2T1A1M7RE
2UD1T1A1M7RE
2UD3T1A1M7RE
Part Number Explanation:
2MS4
T2
B2
M2
R
E
Model
Number
Model Number
Actuator
Bushing
Terminations
Actuator
Bushing
Terminations
Contact
Material
Seal
RoHS Compliant
Contact Material
Seal
:
2US1 = SP On-None-On, 2US2 = SP On-None-Mom, 2US3 = SP On-Off-On, 2UD1 = DP On-None-On,
2UD2 = DP On-None-Mom and 2UD3 = DP On-Off-On.
:
T1
=
3.80 High (std).
:
A1 = 1.60 High (std).
:
M2 = PVC Through Hole, M6 = Right Angle, PVC Through Hole and M7 = Vertical Right Angle, PVC
Through Hole.
:
R = Gold.
:
E = Epoxy (std).
Page 5
21/03/08 V1.1
