DBMAY-25P-FO: Description25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, CRIMP, PLUG; Categorysemiconductor Other integrated circuit (IC); File Size73KB，3 Pages; ManufacturerETC1

Download Datasheet View All

DBMAY-25P-FO Overview

25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, CRIMP, PLUG

Preview

Download Datasheet

View All

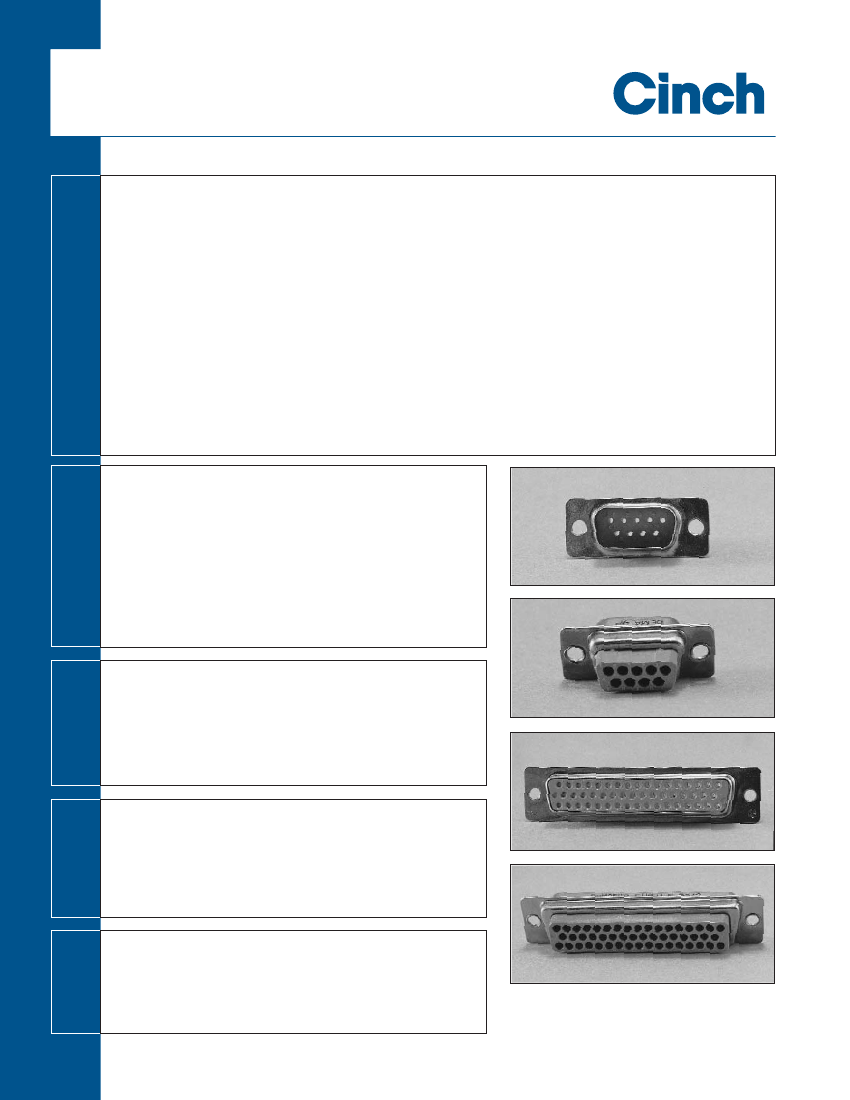

D-subminiature Metal Shell

Crimp and Poke

Series 3 - High Reliability

EATURES

NVIRONMENTAL

ATERIALS

■

High-reliability in a commercial grade connector.

Monoblock diallyl phthalate insulator for improved electrical performance.

Offered in 9, 15, 25, 37, and 50 position plugs and sockets.

Offered with .120 mounting holes, 4-40 clinch nuts, or dual float bushings.

Commercial version of M24308 Military connectors with tin-plated or zinc-plated shell and

30µin. gold contact plating.

■

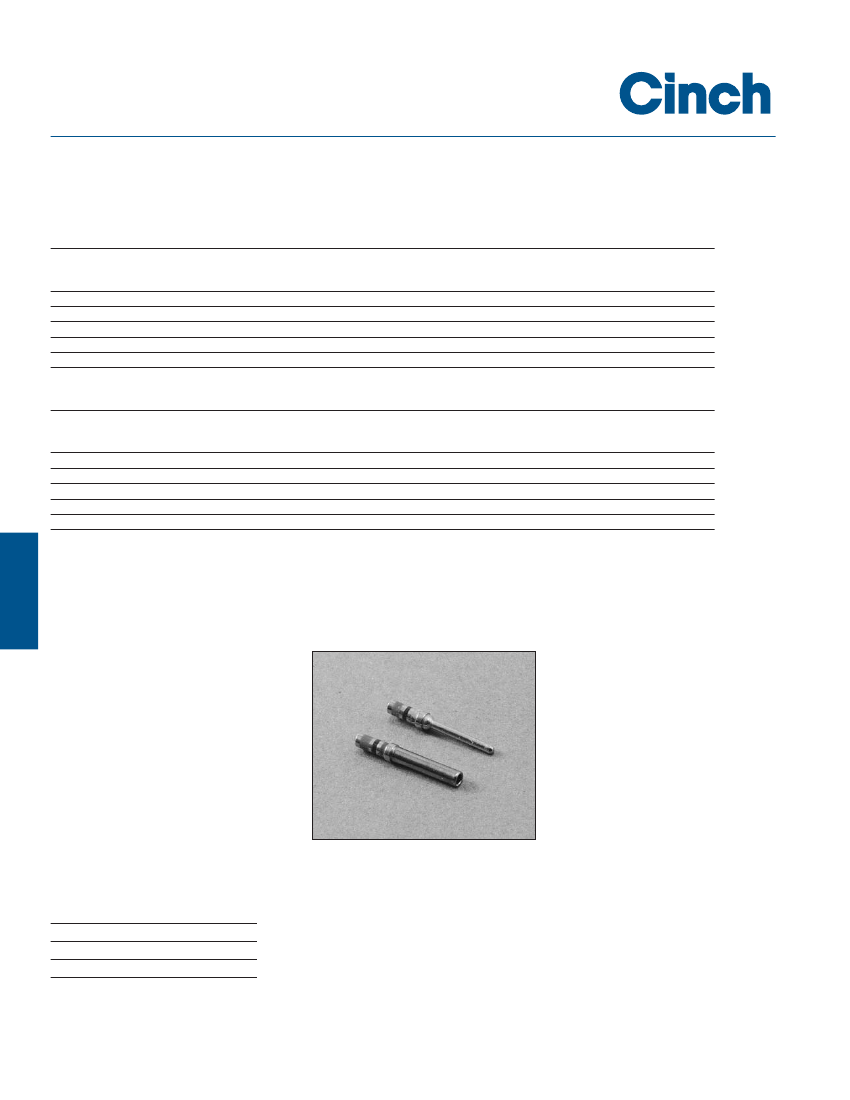

Screw Machine Crimp and Poke contacts available as follows:

• Note that all contacts are packed loose.

• Plating options: 30µin. gold.

• Can be included with the connector or purchased separately (FO part numbers).

■

See pages 4-5 thru 4-10 for standard dimensions, contact arrangements, and panel

mounting specifications.

Insulator Material: Glass fiber-filled diallyl phthalate

(green), UL 94V-0

Connector Shell:

Steel with zinc plating and yellow chromate finish

Contact Material:

Plug - Brass (machined), Socket - Phosphor

bronze (machined)

Contact Plating:

30µin. gold over nickel

4-40 Clinch Nut:

Steel with cadmium plating and yellow

chromate finish

Dual Float Bushing:

Stainless steel, passivated

Operating Temperature:

-65°C to + 125°C

Shock:

50G peak per MIL-STD-202, Method 213,

Condition G

Vibration:

12 cycles in three perpendicular directions @

10-2000Hz, per MIL-STD-202, Method 204, Condition D

Moisture Resistance:

90-95% relative humidity @ 40°C for 96

hours per MIL-STD-202, Method 103

ECHANICAL

LECTRICAL

Withstanding Voltage:

Current Rating:

Contact Resistance:

Insulation Resistance:

Minimum 1250V RMS @ sea level

5 Amps

2.7 milliohms maximum

5000 megohms maximum (initial);

1000 megohms (minimum) after

environmental testing

Individual Contact Insertion and

Separation Force (minimum/maximum):

0.7 oz./12 oz.

Durability:

500 mating cycles

Call Toll Free: 1 (800) 323-9612

4-70
