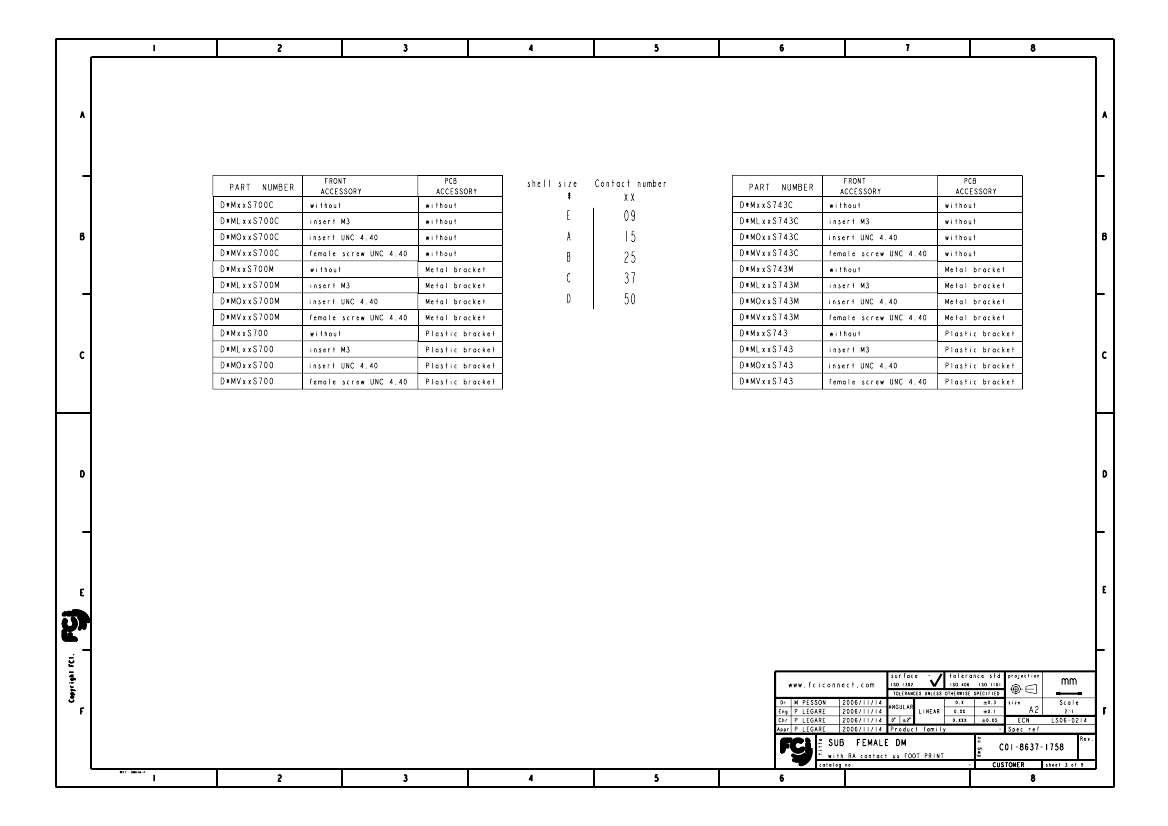

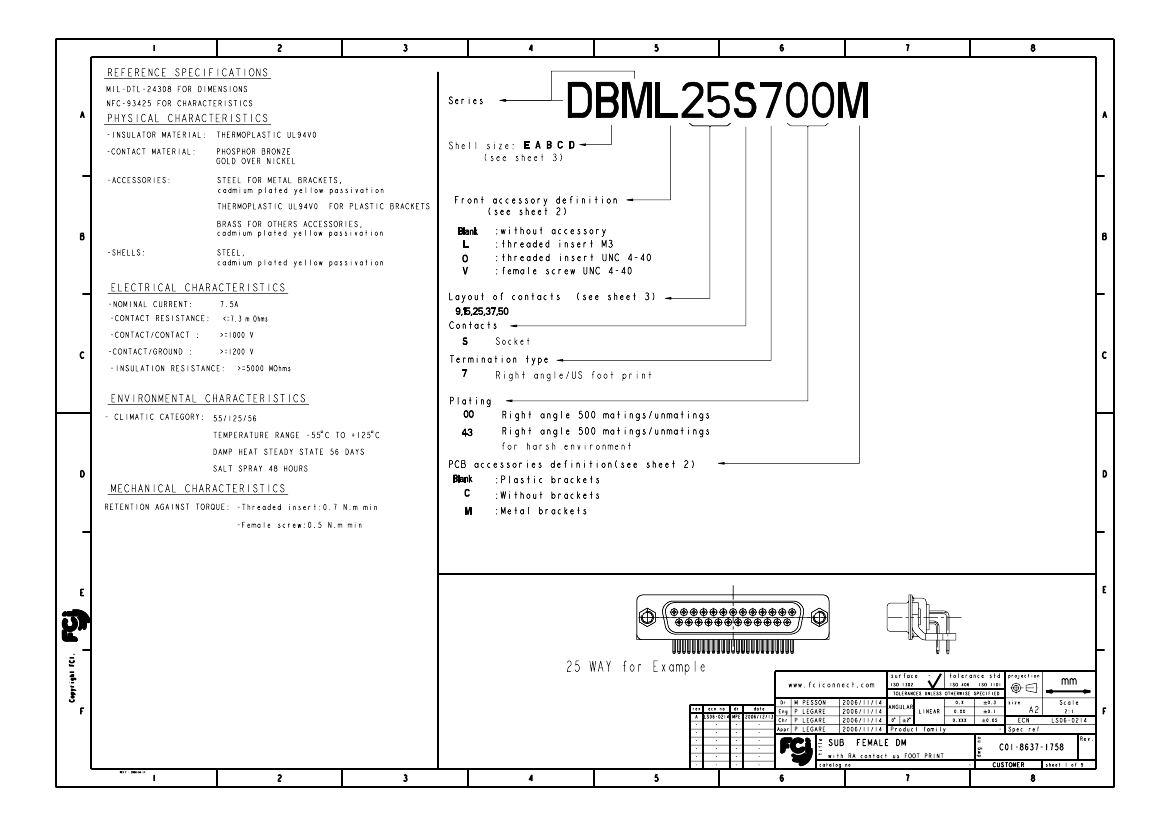

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Receptacle

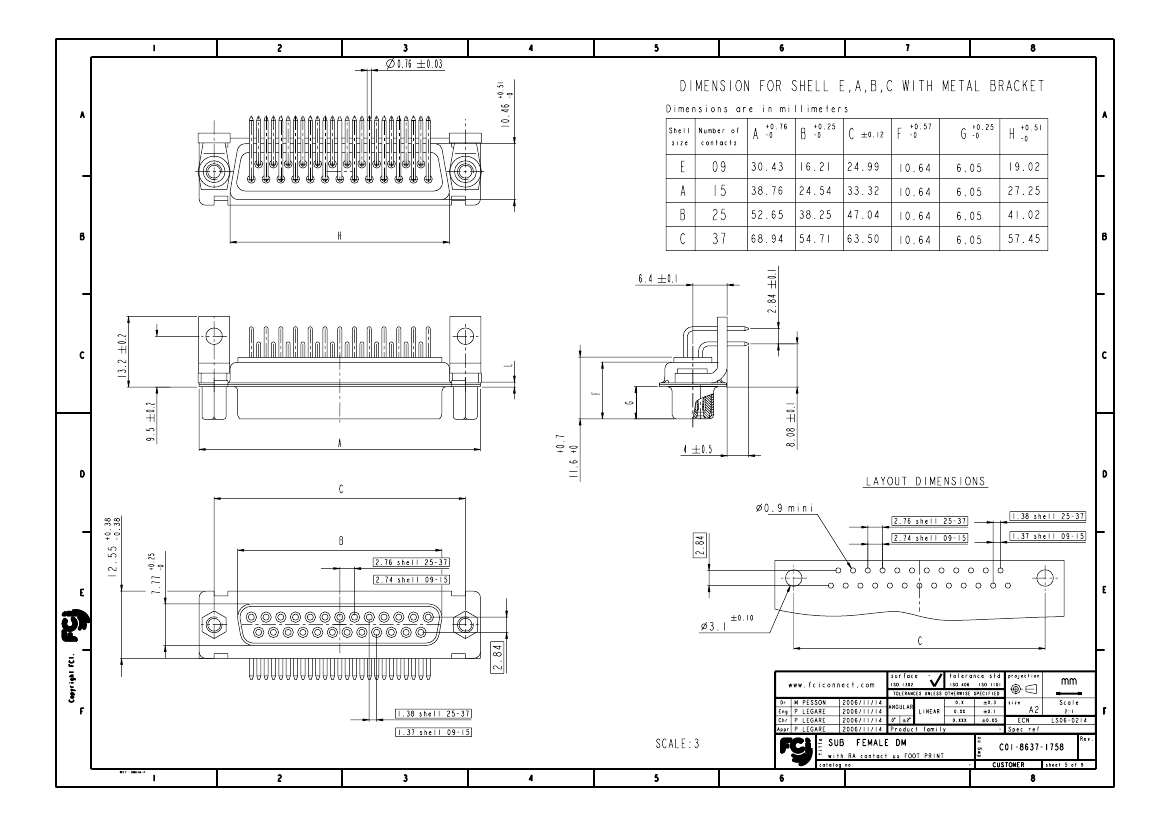

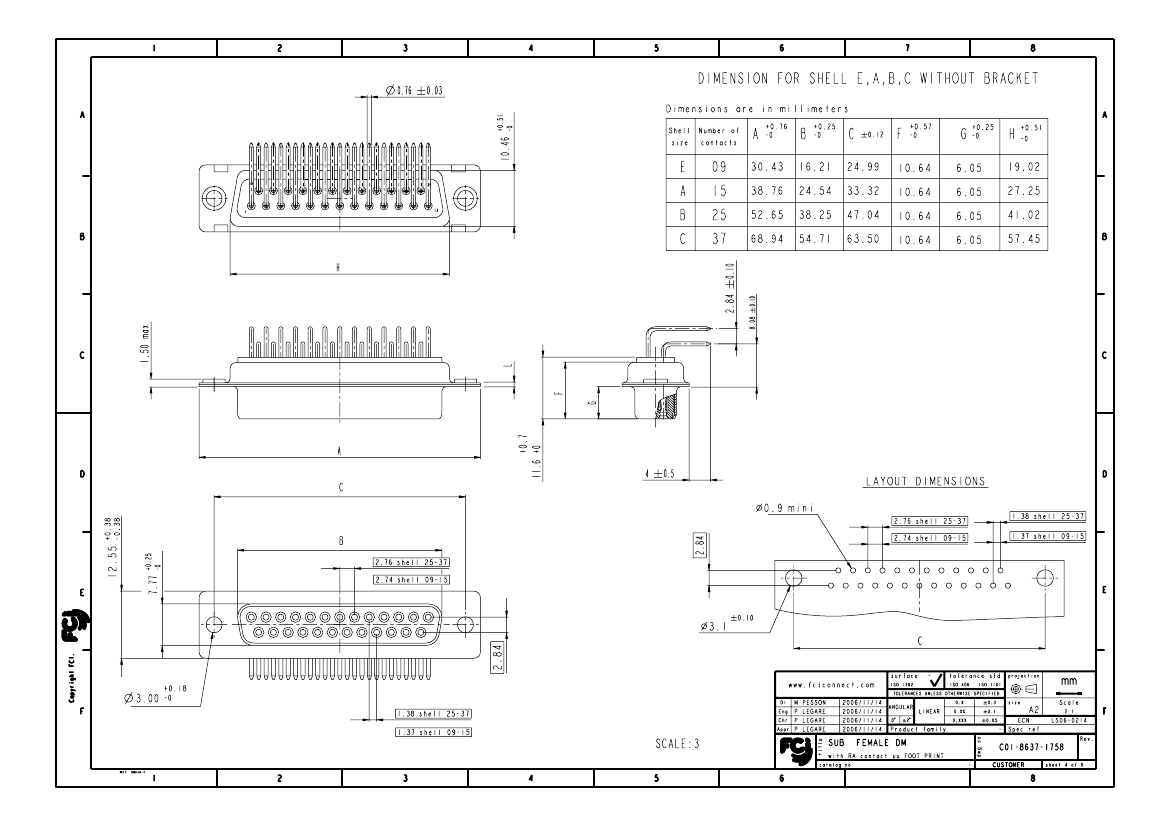

| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| body width | 0.494 inch |
| subject depth | 0.429 inch |
| body length | 2.073 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 7.3 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | DM |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | M3 |
| Installation option 2 | THREADED INSERT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD AND PANEL |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 7.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | CADMIUM |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.157 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
