8386-15-16-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8386-15-16-1

Preview

8386-15-16-1: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8386-15-16-1 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator

8386-15-16-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.165 inch
subject depth	0.189 inch
body length	0.63 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8386
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	16

Preview

Download Datasheet

View All

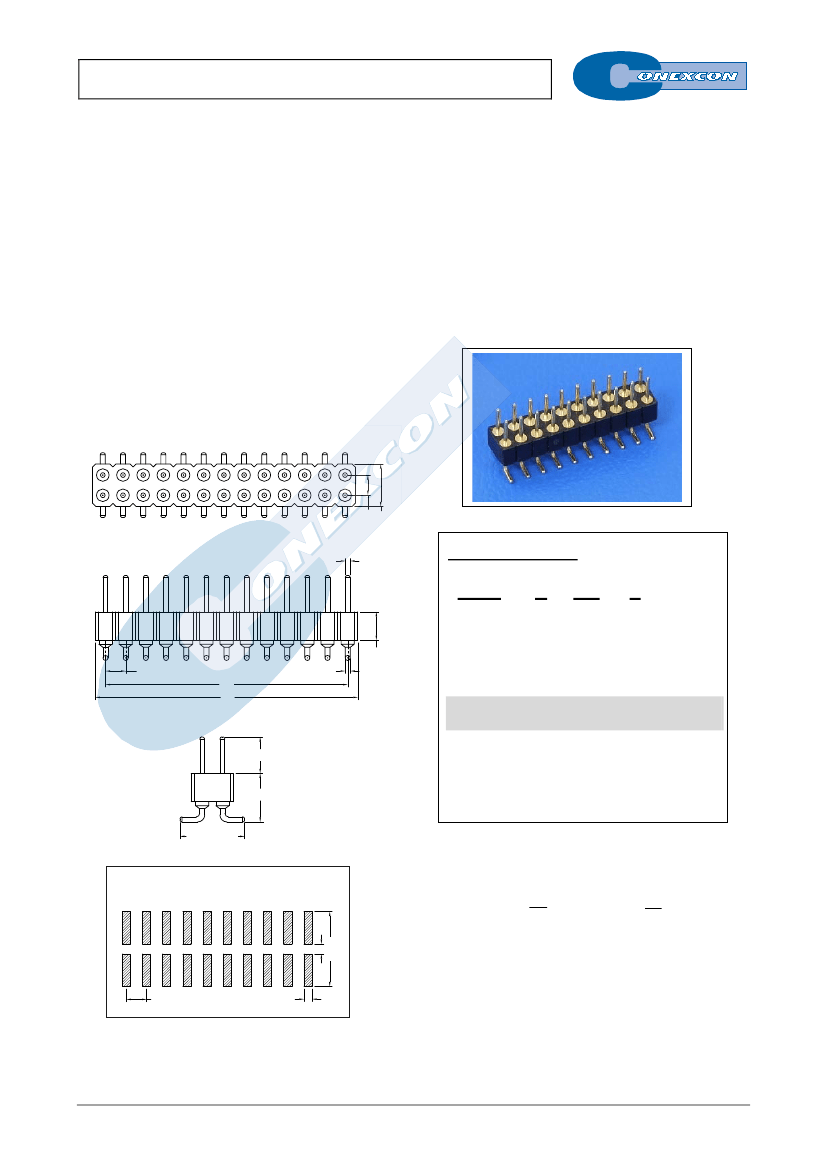

DUAL ROW VERTICAL PIN HEADER

8386 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch. Machined contact.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with sockets 2.00 mm. 8376, 8378, 8380, 8382

and 8384 series



0.47 round pin in contact area with different plating

Materials



Voltage rating: < 250V

Current rating: < 3A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Durability: 500 Cycles

Dimension Information

2

4

1

3

2.00±0.10

4.20±0.15

ø0.47

Ordering Information:

8386 -

1

2.80±0.15

T-

2

XX-

3

1

4

1. Connector Series

2. (T) Contact Plating

2.00±0.10

A

B

ø0.50



T =

3.

gold flash over 30-50µ" Ni overall

Recommended Finish

3.60±0.25



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

4.80±0.25



Available in 4 through 80 circuits

6.40±0.25

DIMENSIONS:

RECOMMENDED PCB LAYOUT

(Tolerance ±0.05)



XX



A

=

2.00



2

−

1







7.40

B

=

2.00





XX







2







XX

= Number of circuits

2.00

0.80

A-XX

1.00
