ARD25124 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> ARD25124

ARD25124: DescriptionRF Coaxial Relay, SPDT, Latched, 24VDC (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), AC/DC Output, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size538KB，8 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ARD25124 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ARD25124	-	-	View	Buy Now

ARD25124 Overview

RF Coaxial Relay, SPDT, Latched, 24VDC (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), AC/DC Output, Panel Mount, ROHS COMPLIANT

ARD25124 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	32 mm
body height	39 mm
Body length or diameter	32 mm
Characteristic impedance	50 Ω
Maximum coil voltage (DC)	24 V
Contact (AC) maximum rated R load	.1A@30VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (AC)	30 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	5000000 Cycle(s)
Maximum input power	120 W
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	ARD
Installation features	PANEL MOUNT
operating hours	20 ms
Maximum operating frequency	18000 MHz
Minimum operating frequency	12400 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	BOX; BULK
physical size	32mm x 32mm x 39mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	WIRE
voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

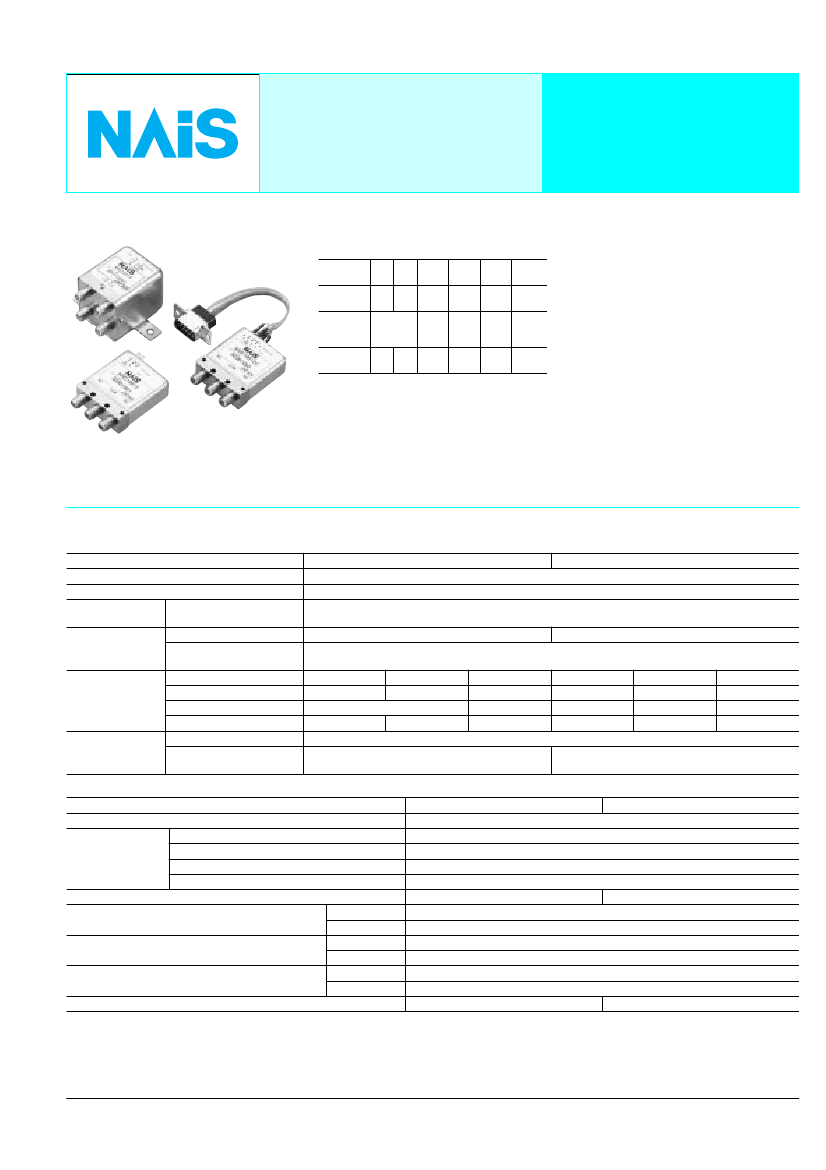

26.5GHz, 18GHz

COAXIAL SWITCH

RD COAXIAL

SWITCHES

TYPICAL APPLICATIONS

–18

1.5

0.5

–26.5*

1.7

0.8

FEATURES

1. High frequency characteristics

(Impedance 50Ω)

∗

Frequency

(GHz)

V.S.W.R.

(max.)

Insertion

loss

(dB. max.)

Isolation

(dB. min.)

–1

–4

–8

–12.4

1.35

0.4

1.1 1.15 1.25

0.2

0.3

Wireless and mobile communication

infrastructure

• Cellular phone base stations

• Ampliﬁer switching

Measurement instruments

• All types of inspection equipment

ATTENTION

Transfer type is coming soon.

*: 18 to 26.5GHz characteristics can be applied

26.5GHz type only

∗

Transfer type is coming soon.

2. SPDT and transfer type available

3. High sensitivity

Nominal operating power:

840 mW (SPDT, Failsafe type)

1540 mW (Transfer, Failsafe type)

4. Long life: 5

(SPDT)

SPECIFICATIONS

Contact

Arrangement

Contact material

Initial contact resistance

Rating

Indicator rating

Contact input power*

Contact rating

Initial contact resistance

(Measured by 5V 100mA)

V.S.W.R. (max.)

Insertion loss (dB, max.)

Isolation (dB, min.)

Mechanical (at 180 cpm)

Electrical (at 20 cpm)

SPDT

Transfer

Gold plating

Max. 100mΩ

120W 3GHz

(V.S.W.R 1.15 or less, no contact switching, ambient temperature 40°C [SPDT], 25°C [Transfer])

Max. 30V 100mA

Max. 5V 100mA

Max. 1Ω

to 1 GHz

1.1

0.2

1 to 4

1.15

4 to 8

1.25

0.3

(5W, to 3GHz, impedance 50Ω,

V.S.W.R.; max. 1.2)

(5W, to 3GHz, impedance 50Ω,

V.S.W.R.; max. 1.2)

8 to12.4

1.35

0.4

12.4 to 18

1.5

0.5

18 to 26.5

1.7

0.8

High frequency

characteristics

(Impedance 50Ω)

Expected life

(min. operation)

Characteristics

SPDT

Initial insulation resistance*

Between open contacts

Between contact and coil

Initial breakdown

voltage*

Between contact and earth terminal

Between coil and earth terminal

(at 20°C)

Operate time*

Functional*

Shock resistance

Destructive*

Functional*

Vibration resistance

Destructive

Ambient temp

Conditions for operation, transport and storage*

(Not freezing and condensing at low temperature) Humidity

Unit weight (Approx.)

Remarks

Transfer

Min. 1,000 MΩ

500 Vrms for 1 min.

Max. 15ms

Max. 20ms

500 m/s

1,000 m/s

10 to 55 Hz at double amplitude of 3mm

10 to 55 Hz at double amplitude of 5mm

–55°C to +85°C

–67°F to +185°F

5 to 85% R.H.

50g

1.76oz

110g

3.88oz

Half-wave pulse of sine wave: 11ms, detection time: 10µs.

Half-wave pulse of sine wave: 11ms

Detection time: 10µs

Refer to 4. Conditions for operation, transport and storage mentioned in NOTES.

Please verify the usability of input power under actual conditions because heat

generated from connectors can inﬂuence connection.

Measurement at same location as “Initial breakdown voltage” section.

Detection current: 10mA

Nominal operating voltage applied to the coil, excluding contact bounce time.
