TC429CPA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TC429CPA

Preview

TC429CPA: DescriptionBuffer/Inverter Based MOSFET Driver, 6A, CMOS, PDIP8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size256KB，7 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric Compare View All

TC429CPA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TC429CPA	-	-	View	Buy Now

TC429CPA Overview

Buffer/Inverter Based MOSFET Driver, 6A, CMOS, PDIP8

TC429CPA Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
high side driver	NO
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PDIP-T8
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	TOTEM-POLE
Nominal output peak current	6 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	12 mA
Maximum supply voltage	18 V
Minimum supply voltage	7 V
Nominal supply voltage	12 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Disconnect time	0.1 µs
connection time	0.12 µs

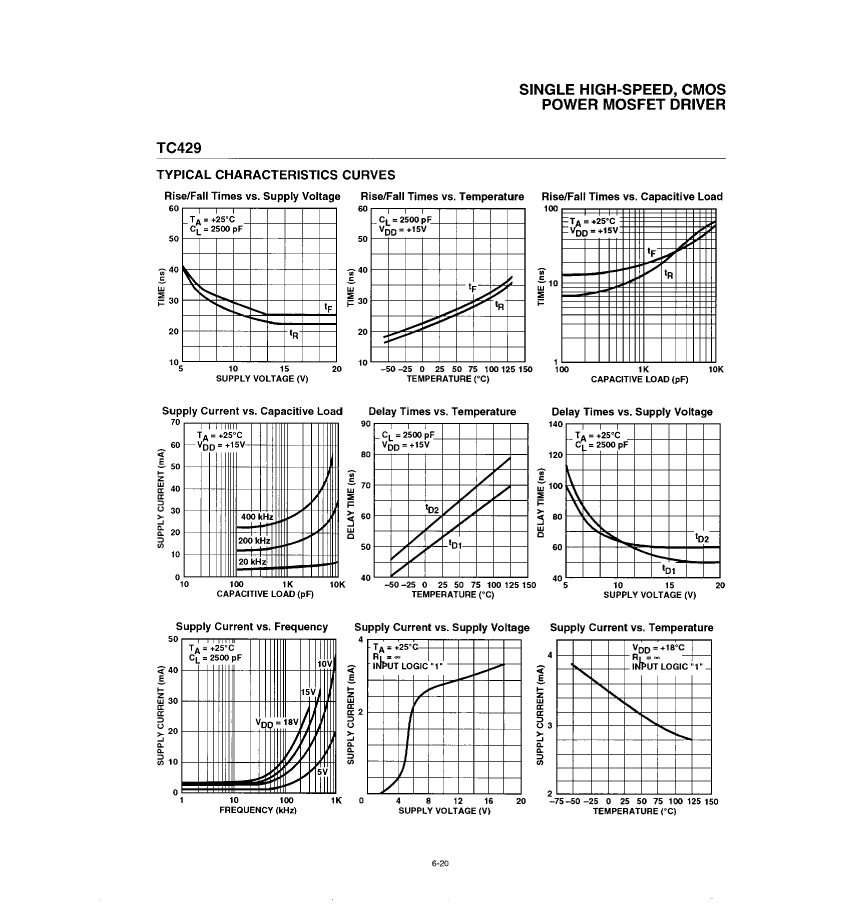

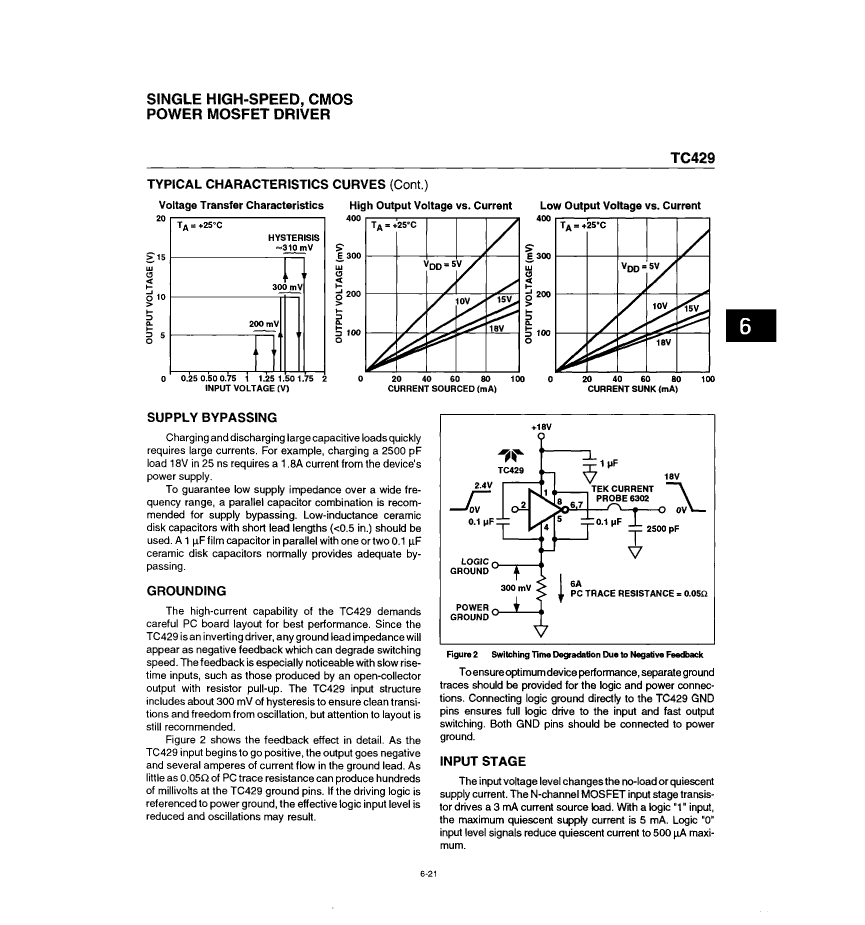

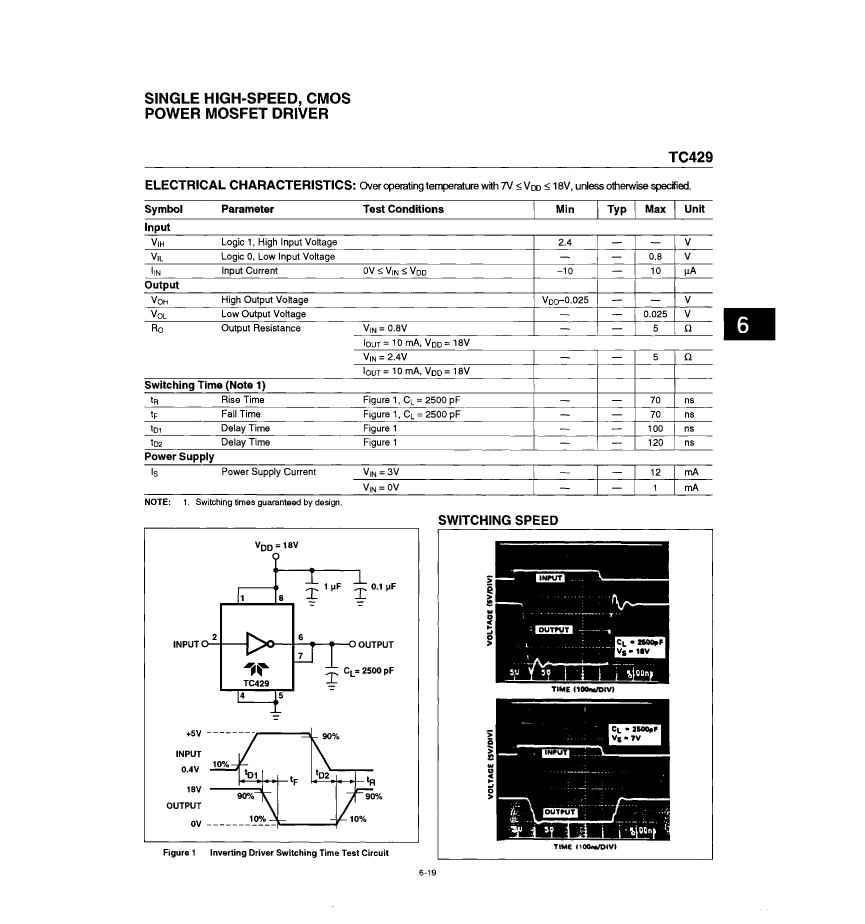

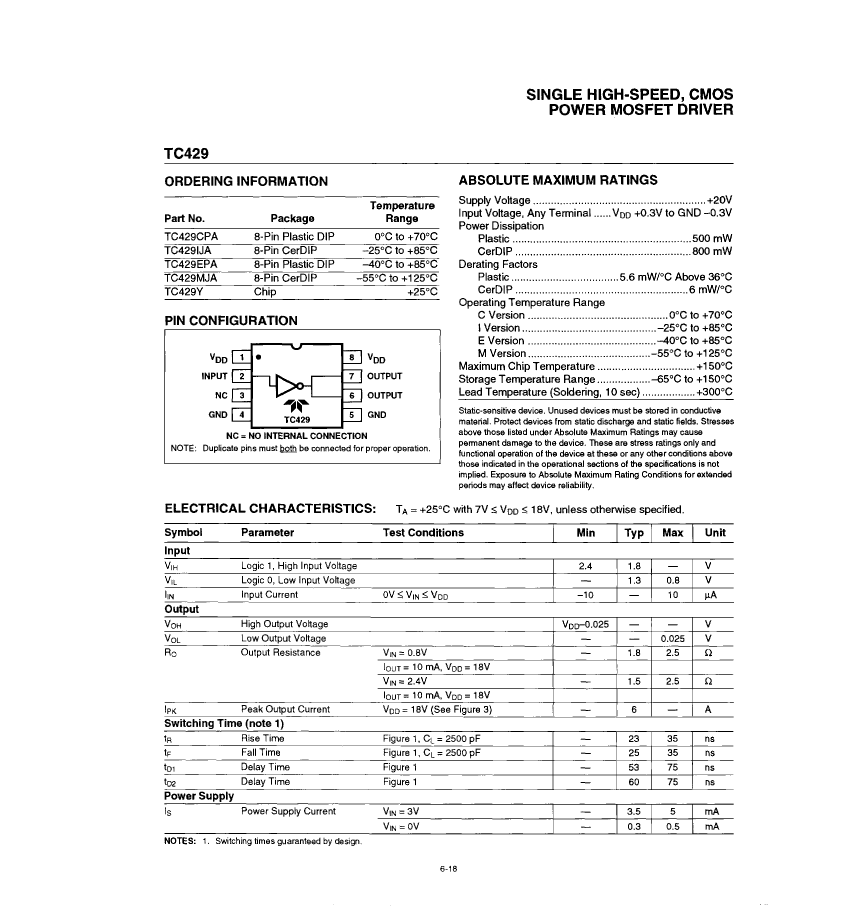

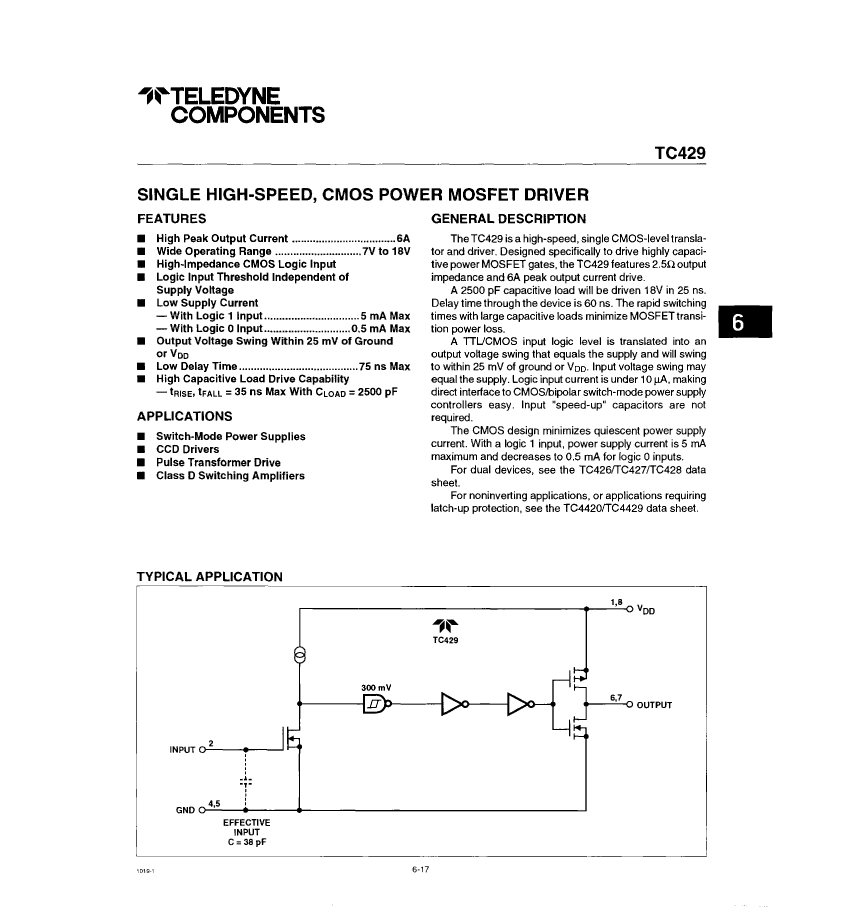

TC429CPA Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC429CPA Related Products

	TC429CPA	TC429IJA	TC429Y	TC429EPA	TC429MJA
Description	Buffer/Inverter Based MOSFET Driver, 6A, CMOS, PDIP8	Buffer/Inverter Based MOSFET Driver, 6A, CMOS, CDIP8	Buffer/Inverter Based MOSFET Driver, 6A, CMOS	Buffer/Inverter Based MOSFET Driver, 6A, CMOS, PDIP8	Buffer/Inverter Based MOSFET Driver, 6A, CMOS, CDIP8
Maker	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
high side driver	NO	NO	NO	NO	NO
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PDIP-T8	R-GDIP-T8	X-XUUC-N7	R-PDIP-T8	R-GDIP-T8
Number of functions	1	1	1	1	1
Number of terminals	8	8	7	8	8
Maximum operating temperature	70 °C	85 °C	25 °C	85 °C	125 °C
Minimum operating temperature	-	-25 °C	25 °C	-40 °C	-55 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Nominal output peak current	6 A	6 A	6 A	6 A	6 A
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	UNSPECIFIED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	UNCASED CHIP	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	12 mA	12 mA	5 mA	12 mA	12 mA
Maximum supply voltage	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage	7 V	7 V	7 V	7 V	7 V
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	OTHER	OTHER	INDUSTRIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	UPPER	DUAL	DUAL
Disconnect time	0.1 µs	0.1 µs	0.075 µs	0.1 µs	0.1 µs
connection time	0.12 µs	0.12 µs	0.075 µs	0.12 µs	0.12 µs
