BZX84C75CC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Zener diode> BZX84C75CC

BZX84C75CC: DescriptionZener diode, 0.35W, 70Min, 75Nom, 79Max, 2.0mA, 0.05uA, 52.5V; CategoryDiscrete semiconductor Zener diode; File Size242KB，4 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

BZX84C75CC Overview

Zener diode, 0.35W, 70Min, 75Nom, 79Max, 2.0mA, 0.05uA, 52.5V

BZX84C75CC Parametric

Parameter Name	Attribute value
Case Style	SOT-23
Pd（W）	0.35
VZ(Min)	70
VZ(Nom)	75
VZ(Max)	79
IZT(mA)	2.0
IR(uA)	0.05
VR(V)	52.5
class	Diodes

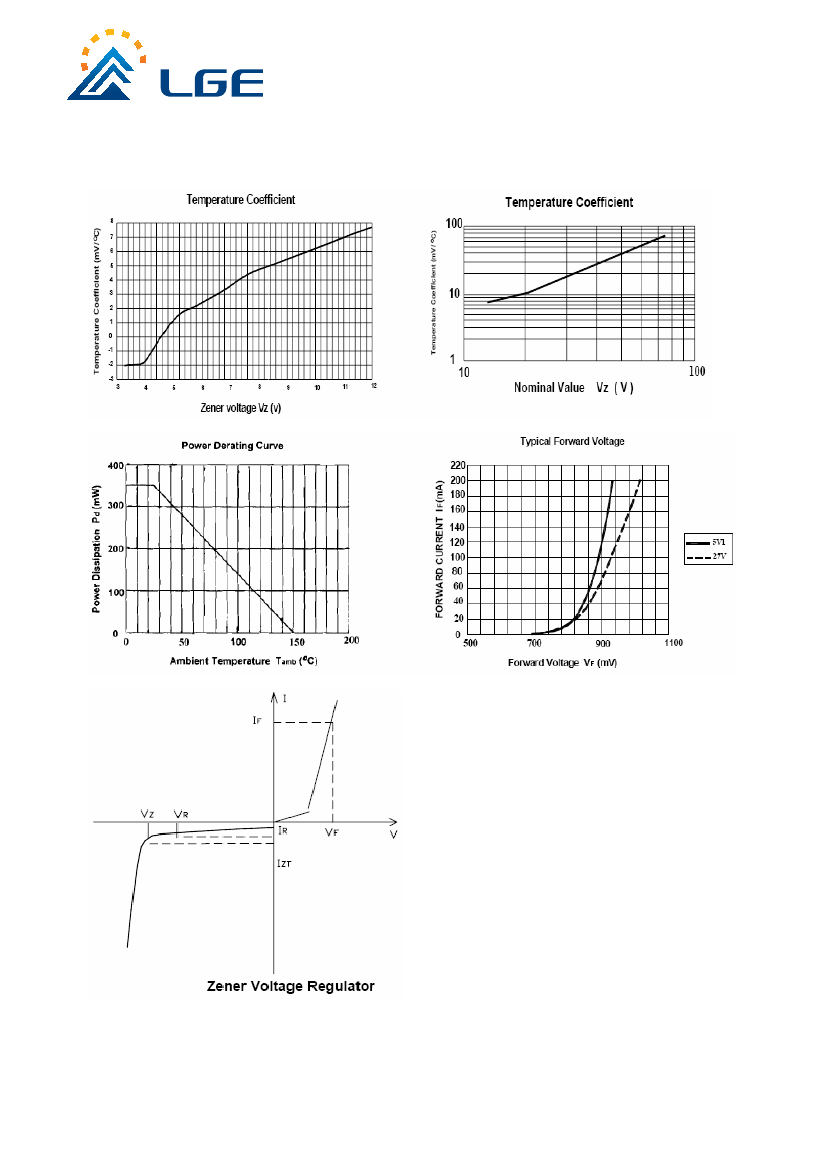

Preview

Download Datasheet

View All

BZX84C2V4CC-BZX84C75CC

Silcon Planar Zener Diodes

SOT-23

Features

Zener breakdown voltage range-2.4V

to 75V.

Package designed for optimal automated

board assembly.

Small package size for high density applications.

Dimensions in inches and (millimeters)

Ordering Information

Type No.

BZX84C2V4CC-BZX84C75CC

Marking

See Table on page2

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Parameter

Symbol

Value

Unit

Power Dissipation

Thermal Resistance, Junction to Ambient

350

θjA

417

℃/W

℃

Operating and Storage Temperature Range

，

stg

-65 to+150

Alumina=0.4*0.3*0.024 in,99.5% alumina

http://www.luguang.cn

mail:lge@luguang.cn
