MSMF12C-P-T7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MSMF12C-P-T7

MSMF12C-P-T7: DescriptionTrans Voltage Suppressor Diode, 100W, 12V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6; CategoryDiscrete semiconductor diode; File Size409KB，6 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MSMF12C-P-T7 Overview

Trans Voltage Suppressor Diode, 100W, 12V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6

MSMF12C-P-T7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ProTek Devices
package instruction	R-PDSO-F6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW LEAKAGE CURRENT
Minimum breakdown voltage	13.3 V
Breakdown voltage nominal value	13.3 V
Maximum clamping voltage	23.8 V
Configuration	COMMON ANODE, 5 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-F6
JESD-609 code	e4
Maximum non-repetitive peak reverse power dissipation	100 W
Number of components	5
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	12 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

05195

Only One Name Means ProTek’Tion™

MSMF05C- MSMF24C

MULTI-LINE TVS ARRAY

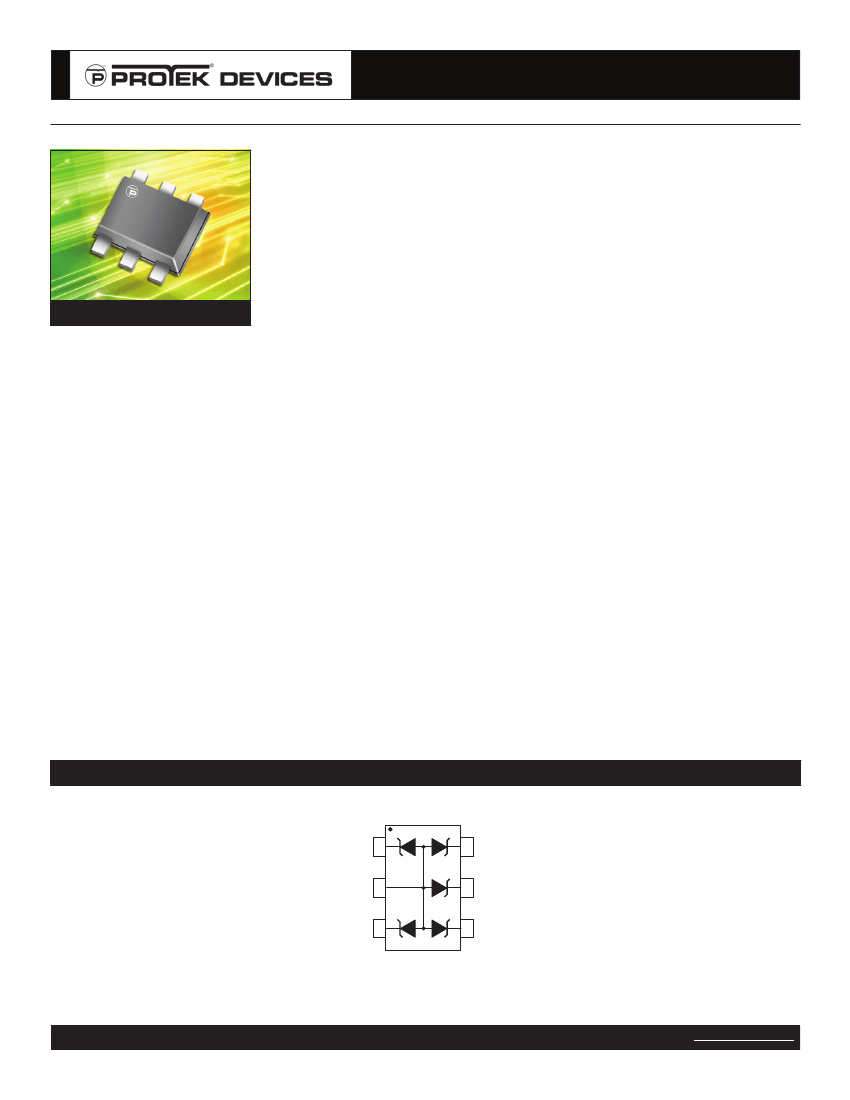

DESCRIPTION

The MSMFxxC series are multi-line TVS arrays designed to protect wireless telecommunications and portable electron-

ic applications from the damaging effects of ESD and EFT. The MSMFxxC is available in a 5 line unidirectional or 4 line

bidirectional configuration and is rated at 100 Watts peak pulse power, which is sufficient protection for tertiary type

lightning threats at key interface locations.

Packaged in a miniature SOT-563, the MSMFxxC series meets IEC 61000-4-2 (ESD) and 61000-4-4 (EFT) immunity

requirements. Each device should be placed near a connector to provide the best protection against transients.

SOT-563 PACKAGE

FEATURES

•

Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV

Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns

100 Watts Peak Pulse Power per Line(tp = 8/20µs)

Monolithic Design

Available in Multiple Voltages

Low Clamping Voltage

ESD Protection > 25 kilovolts

Low Leakage Current

Protects 4 Bidirectional Lines & 5 Unidirectional Lines

RoHS Compliant

REACH Compliant

APPLICATIONS

•

Communication Systems

SMART Phones

Portable Electronics

Video Interfaces

MECHANICAL CHARACTERISTICS

•

Molded JEDEC SOT-563 Package

Approximate Weight: 3 milligrams

Lead-Free Nickel Paladium Gold Plating

Solder Reflow Temperature - 260-270°C

Flammability Rating UL 94V-0

8mm Tape and Reel per EIA Standard 481

PIN CONFIGURATION

05195.R7 10/13

Page 1

www.protekdevices.com

MSMF12C-P-T7 Related Products

	MSMF12C-P-T7	MSMF24C-P-T13	MSMF24C-P-T7	MSMF05C-P-T7	MSMF15C-P-T7	MSMF05C-P-T13	MSMF12C-P-T13	MSMF15C-P-T13
Description	Trans Voltage Suppressor Diode, 100W, 12V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 24V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 24V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 5V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 15V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 5V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 12V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6	Trans Voltage Suppressor Diode, 100W, 15V V(RWM), Unidirectional, 5 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-6
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6
Contacts	6	6	6	6	6	6	6	6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
Minimum breakdown voltage	13.3 V	26.7 V	26.7 V	6 V	16.7 V	6 V	13.3 V	16.7 V
Breakdown voltage nominal value	13.3 V	26.7 V	26.7 V	6 V	16.7 V	6 V	13.3 V	16.7 V
Maximum clamping voltage	23.8 V	55.5 V	55.5 V	12 V	33.3 V	12 V	23.8 V	33.3 V
Configuration	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS	COMMON ANODE, 5 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Maximum non-repetitive peak reverse power dissipation	100 W	100 W	100 W	100 W	100 W	100 W	100 W	100 W
Number of components	5	5	5	5	5	5	5	5
Number of terminals	6	6	6	6	6	6	6	6
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270	270	270	270	270	270	270	270
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	12 V	24 V	24 V	5 V	15 V	5 V	12 V	15 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	ProTek Devices	-	-	-	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices
