75 Ohm BNC Male Right Angle Connector Compression Attachment For Mini 59, PE-B159

Preview

Download Datasheet

View All

75 Ohm BNC Male Right Angle Connector

Compression Attachment For Mini 59, PE-B159

TECHNICAL DATA SHEET

75 Ohm BNC Male Right Angle Connector Compression Attachment For Mini 59, PE-B159

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

BNC Male

Mini 59,PE-B159

Compression

Right Angle

PE44581

Electrical Specifications

Impedance, Ohms

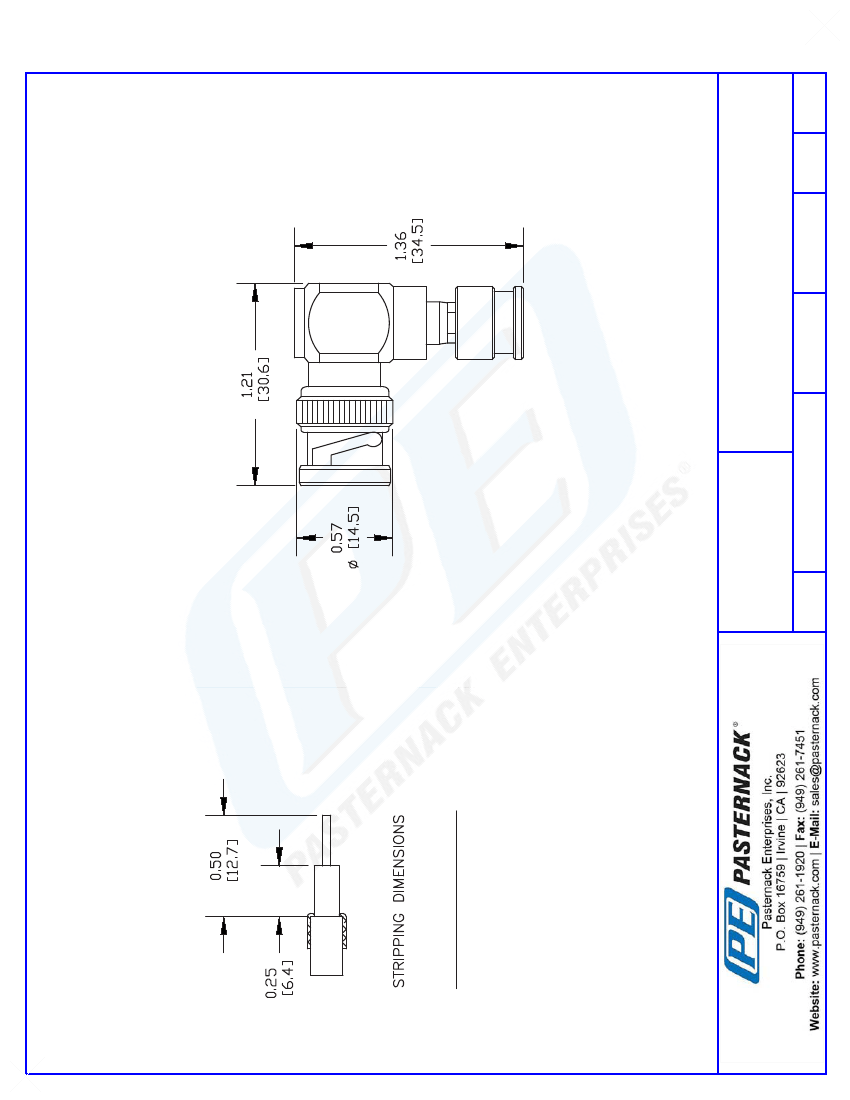

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

1.205 [30.61]

1.36 [34.54]

0.57 [14.48]

0.005 [2.27]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

BNC Male

Brass/Beryllium Copper, Gold

Brass, Nickel

HDPE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

75 Ohm BNC Male Right Angle Connector Compression Attachment For Mini 59, PE-B159 from Pasternack Enterprises

has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%

availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

75 Ohm BNC Male Right Angle Connector Compression Attachment For Mini 59, PE-B159

PE44581

URL:

http://www.pasternack.com/bnc-male-standard-mini-59-connector-pe44581-p.aspx

PE44581 REV 01
