BQ2001S datasheet, PDF - EEWORLD Datasheet

BQ2001S: DescriptionPower Supply Management Circuit, Adjustable, 1 Channel, BICMOS, PDSO24, 0.300 INCH, SOIC-24; CategoryPower/power management The power supply circuit; File Size1MB，28 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

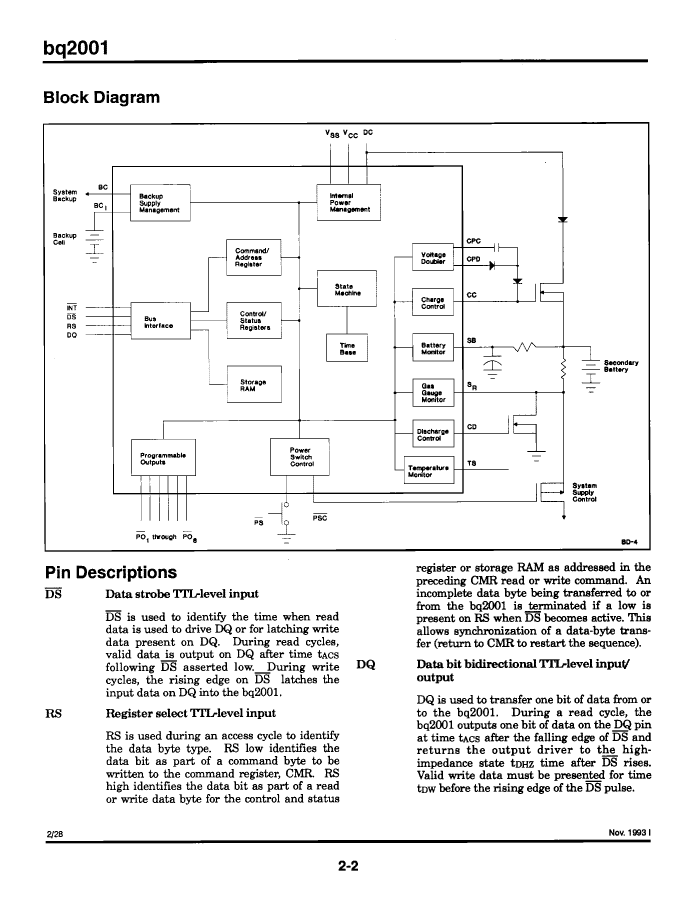

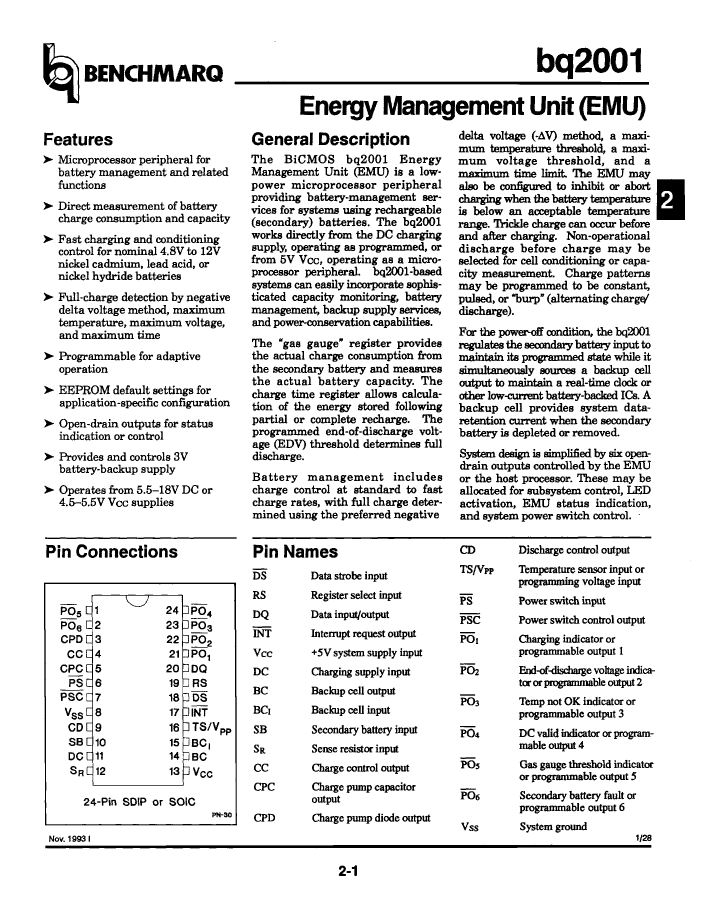

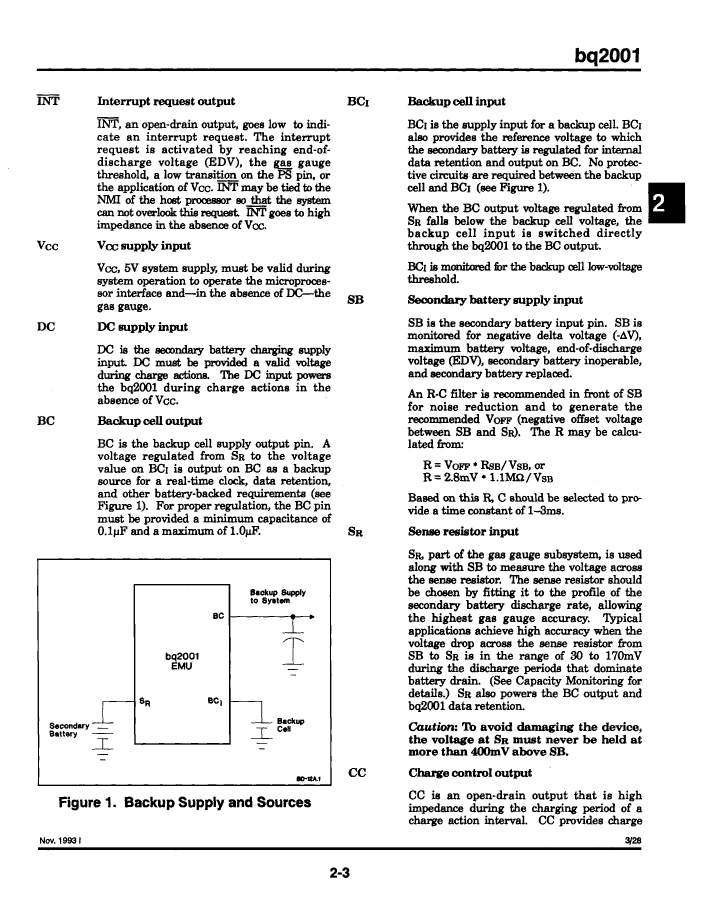

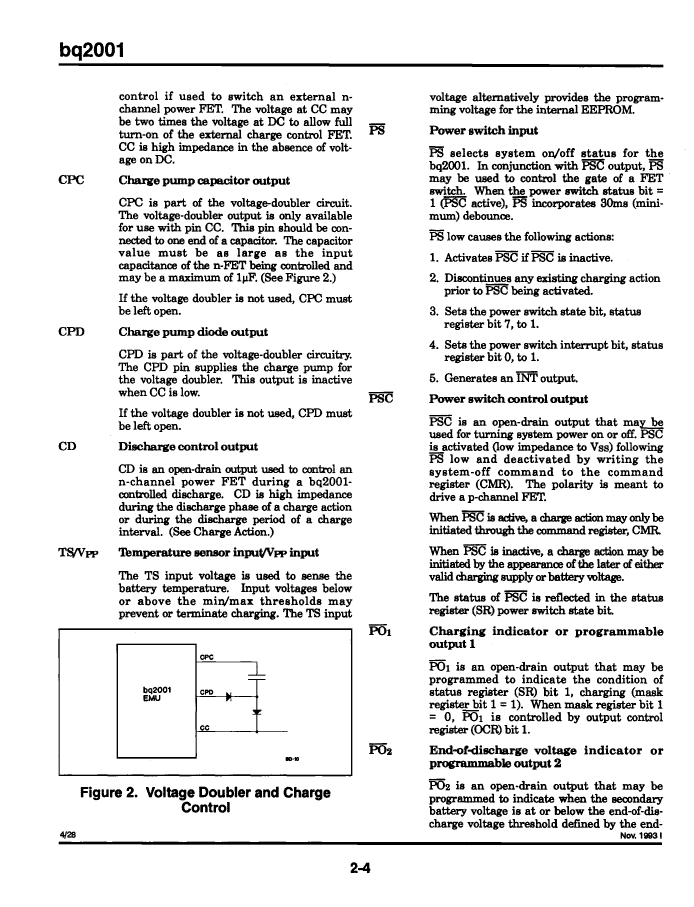

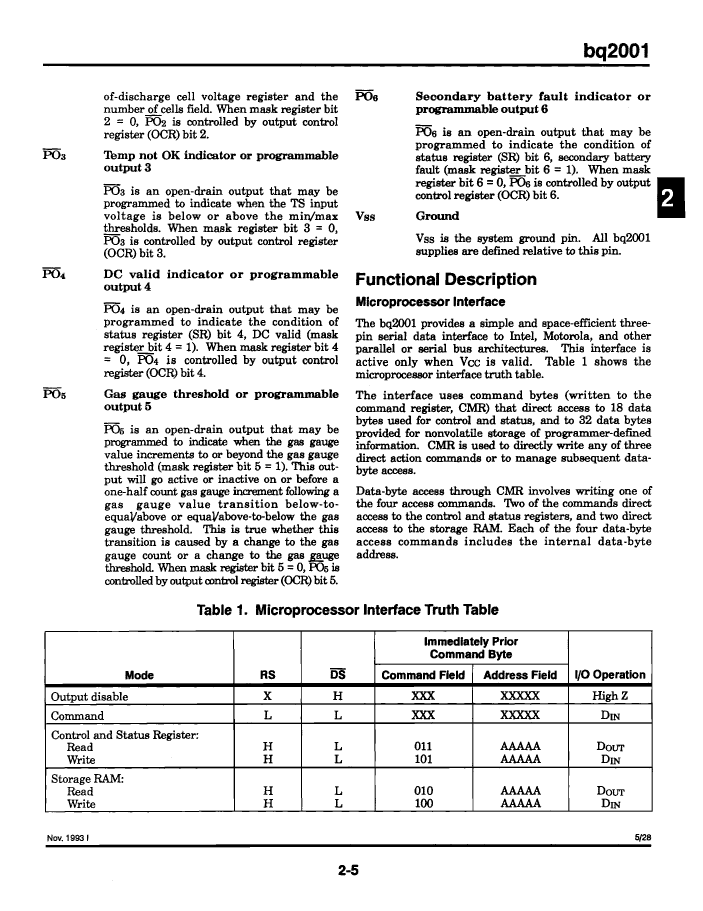

BQ2001S Overview

Power Supply Management Circuit, Adjustable, 1 Channel, BICMOS, PDSO24, 0.300 INCH, SOIC-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
package instruction	0.300 INCH, SOIC-24
Reach Compliance Code	unknown
Adjustable threshold	YES
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.43 mm
Number of channels	1
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.67 mm
Maximum supply current (Isup)	2 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.56 mm

	BQ2001S	BQ2001PN
Description	Power Supply Management Circuit, Adjustable, 1 Channel, BICMOS, PDSO24, 0.300 INCH, SOIC-24	Power Supply Management Circuit, Adjustable, 1 Channel, BICMOS, PDIP24,
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Adjustable threshold	YES	YES
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDSO-G24	R-PDIP-T24
JESD-609 code	e0	e0
Number of channels	1	1
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP24,.4	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	2 mA	2 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
