A1500H-15P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A1500H-15P

A1500H-15P: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric Compare View All

A1500H-15P Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug

A1500H-15P Parametric

Parameter Name	Attribute value
Maker	Joint Tech Electronic Industrial Co., Ltd.
Reach Compliance Code	unknown
body width	0.134 inch
subject depth	0.189 inch
body length	0.945 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	A1500
Plug contact pitch	0.059 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	15

Preview

Download Datasheet

View All

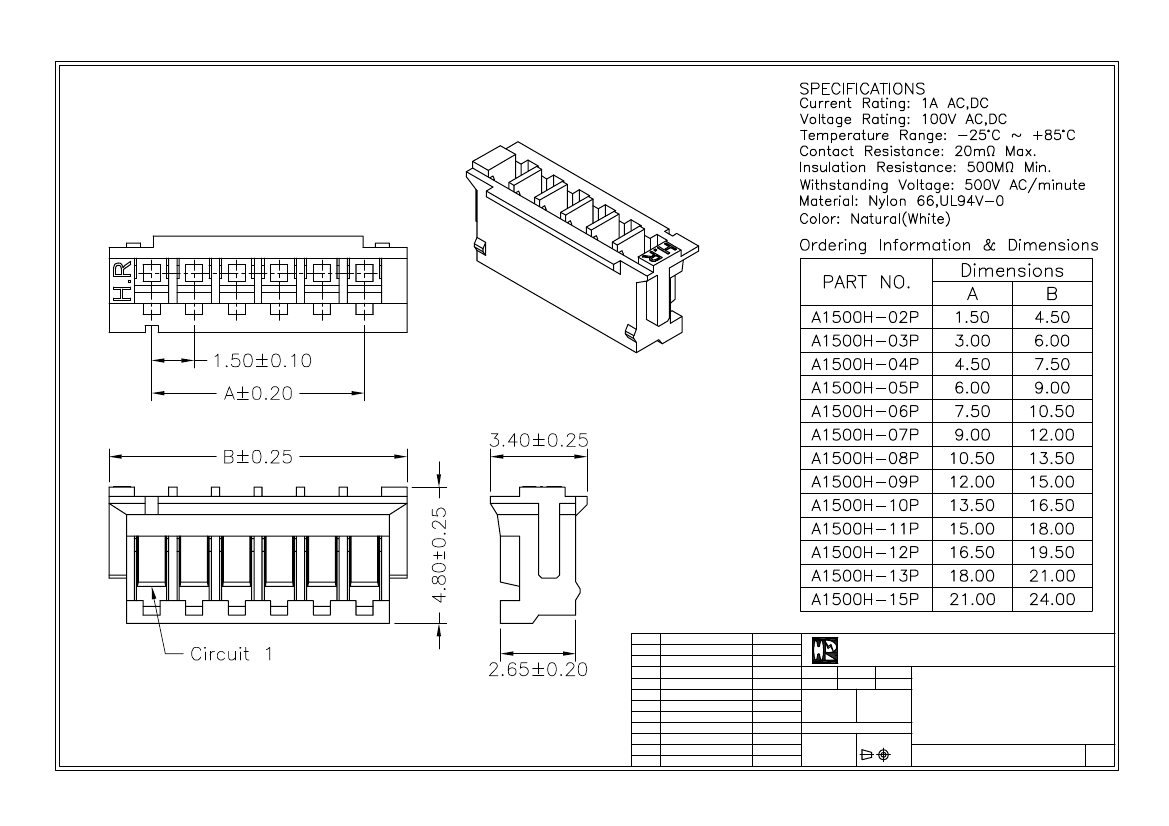

JOINT TECH ELECTRONIC IND. CO., LTD.

JOY DAY INDUSTRIAL CO., LTD.

UNIT

SCALE

SHEET

TITLE:

1 of 1

DRAWN BY

APPROVED BY

董正一

2001.02.01 2001.02.01

GENERAL TOLERANCE

ANGLE±

X.X±0.25

X.XX±0.15

DRAW NO.:

X.XXX±0.05

A1500H-XP

REVISE

NEW RELEASE

2007.10.25

2007.10.16

2006.07.07

1.50mm PITCH

HOUSING

REV.

DESCRIPTION

DATE

A1500H-15P Related Products

	A1500H-15P	A1500H-04P	A1500H-02P	A1500H-05P	A1500H-07P	A1500H-06P
Description	Board Connector, 15 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug
Maker	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
subject depth	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch
body length	0.945 inch	0.295 inch	0.177 inch	0.354 inch	0.472 inch	0.412 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	A1500	A1500	A1500	A1500	A1500	A1500
Plug contact pitch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	15	4	2	5	7	6
