UPD482445LGW-80 datasheet, PDF

Datasheet> All Categories > storage> storage> UPD482445LGW-80

UPD482445LGW-80: DescriptionVideo DRAM, 256KX16, 80ns, CMOS, PDSO64, PLASTIC, SSOP-64; Categorystorage storage; File Size2MB，52 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD482445LGW-80 Overview

Video DRAM, 256KX16, 80ns, CMOS, PDSO64, PLASTIC, SSOP-64

UPD482445LGW-80 Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	PLASTIC, SSOP-64
Reach Compliance Code	unknown
access mode	FAST PAGE WITH EDO
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 16 SAM PORT
JESD-30 code	R-PDSO-G64
memory density	4194304 bit
Memory IC Type	VIDEO DRAM
memory width	16
Number of functions	1
Number of ports	2
Number of terminals	64
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	2.3 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	11.8 mm

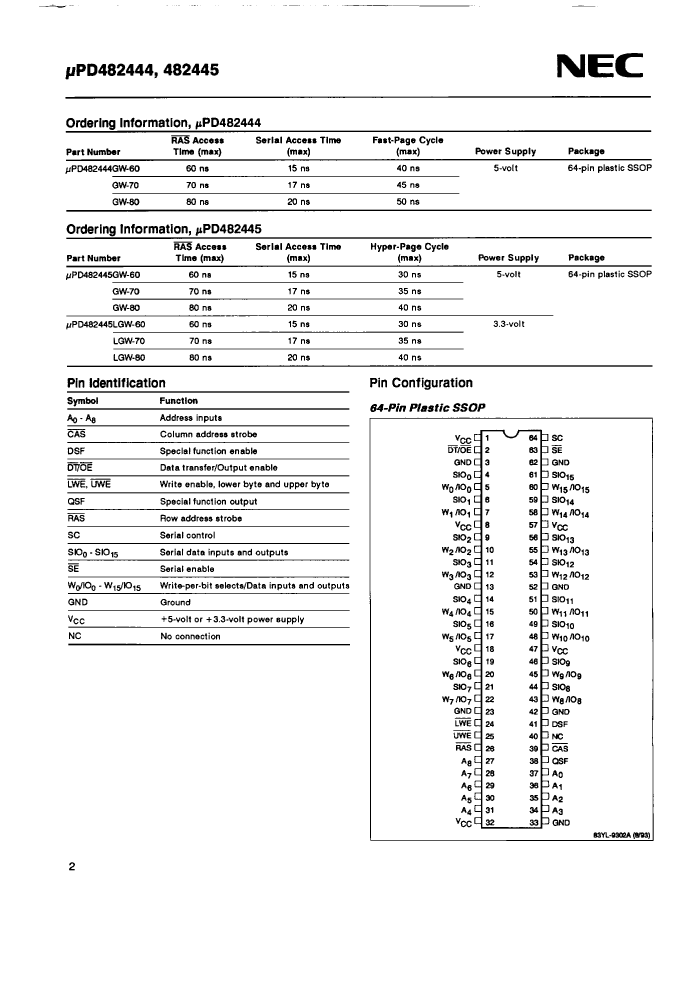

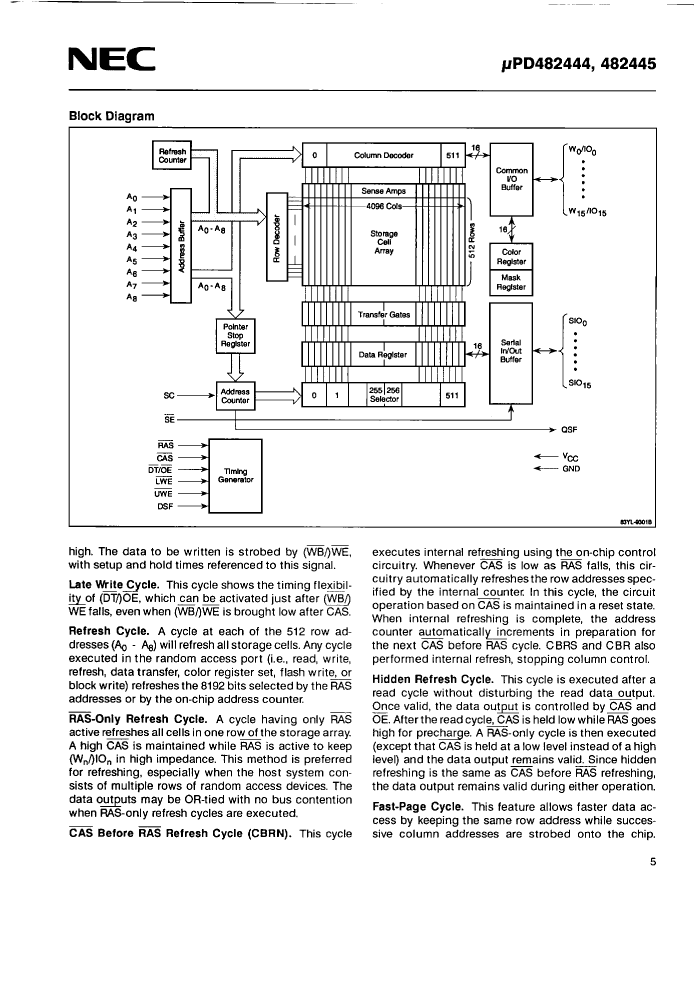

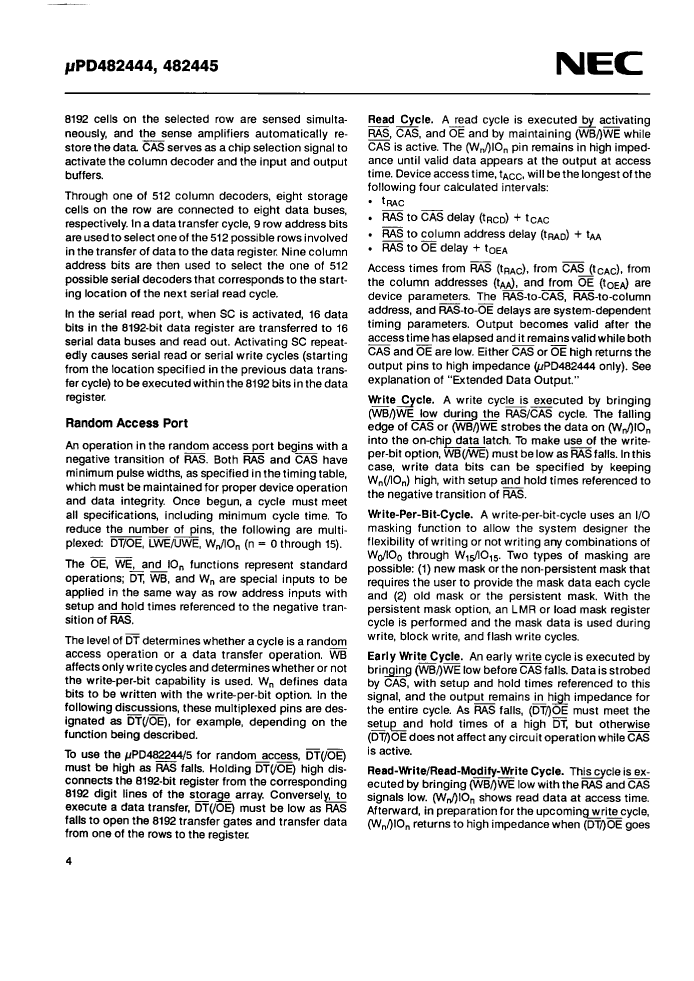

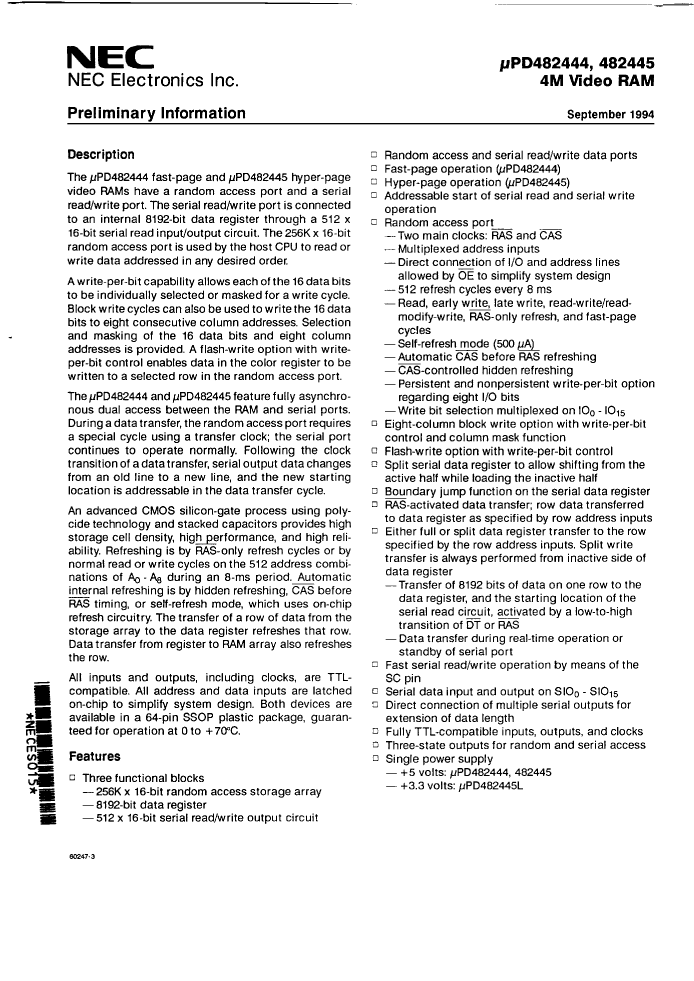

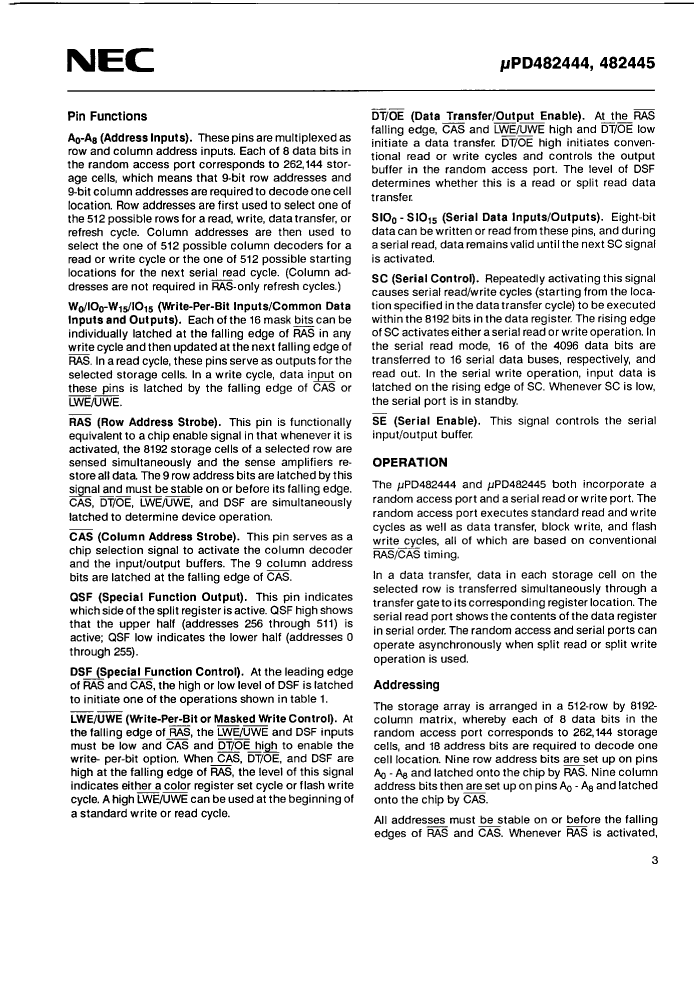

Preview

Download Datasheet

View All

UPD482445LGW-80 Related Products

	UPD482445LGW-80	UPD482444GW-80	UPD482445LGW-70	UPD482445GW-80	UPD482445LGW-60
Description	Video DRAM, 256KX16, 80ns, CMOS, PDSO64, PLASTIC, SSOP-64	Video DRAM, 256KX16, 80ns, CMOS, PDSO64, PLASTIC, SSOP-64	Video DRAM, 256KX16, 70ns, CMOS, PDSO64, PLASTIC, SSOP-64	Video DRAM, 256KX16, 80ns, CMOS, PDSO64, PLASTIC, SSOP-64	Video DRAM, 256KX16, 60ns, CMOS, PDSO64, PLASTIC, SSOP-64
package instruction	PLASTIC, SSOP-64	PLASTIC, SSOP-64	PLASTIC, SSOP-64	PLASTIC, SSOP-64	PLASTIC, SSOP-64
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
access mode	FAST PAGE WITH EDO	FAST PAGE	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	80 ns	80 ns	70 ns	80 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 16 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 16 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 16 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 16 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 16 SAM PORT
JESD-30 code	R-PDSO-G64	R-PDSO-G64	R-PDSO-G64	R-PDSO-G64	R-PDSO-G64
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bi
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	16	16	16	16	16
Number of functions	1	1	1	1	1
Number of ports	2	2	2	2	2
Number of terminals	64	64	64	64	64
word count	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512	512
Maximum seat height	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm
Maximum supply voltage (Vsup)	3.6 V	5.5 V	3.6 V	5.5 V	3.6 V
Minimum supply voltage (Vsup)	3 V	4.5 V	3 V	4.5 V	3 V
Nominal supply voltage (Vsup)	3.3 V	5 V	3.3 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	11.8 mm	11.8 mm	11.8 mm	11.8 mm	11.8 mm
Base Number Matches	-	1	1	1	-
