Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Inductor Type > Chip Ferrite Beads
Data Sheet
1
Chip EMIFILr Inductor Type
BLM15A_SN Series (0402 Size)
I
Dimension
0.25±0.1
I
Equivalent Circuit
0.5±0.05
1.0±0.05
0.5±0.05
(Resistance element becomes dominant
at high frequencies.)
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
10000
50000
1000
I
Rated Value (p: packaging code)
Part Number
BLM15AG100SN1p
BLM15AG700SN1p
BLM15AG121SN1p
BLM15AG221SN1p
BLM15AG601SN1p
BLM15AG102SN1p
Impedance
(at 100MHz/20°C)
10ohm(Typ.)
70ohm(Typ.)
120ohm±25%
220ohm±25%
600ohm±25%
1000ohm±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
Rated Current
1000mA
500mA
500mA
300mA
300mA
200mA
DC Resistance(max.)
0.05ohm
0.15ohm
0.25ohm
0.35ohm
0.6ohm
1.0ohm
Operating
Temperature Range
-55°C to +125°C
-55°C to +125°C
-55°C to +125°C
-55°C to +125°C
-55°C to +125°C
-55°C to +125°C
Number of Circuits
1
1
1
1
1
1
I
Z-f Characteristics(Typ.)
BLM15AG100SN1
20
I
Z-f Characteristics(Typ.)
BLM15AG700SN1
120
100
15
Z
Impedance (Ω)
R
10
Impedance (Ω)
80
Z
R
60
40
5
X
20
X
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
Continued on the following page.
o
This
data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
2005.3.4
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Inductor Type > Chip Ferrite Beads
Data Sheet
Continued from the preceding page.
2
I

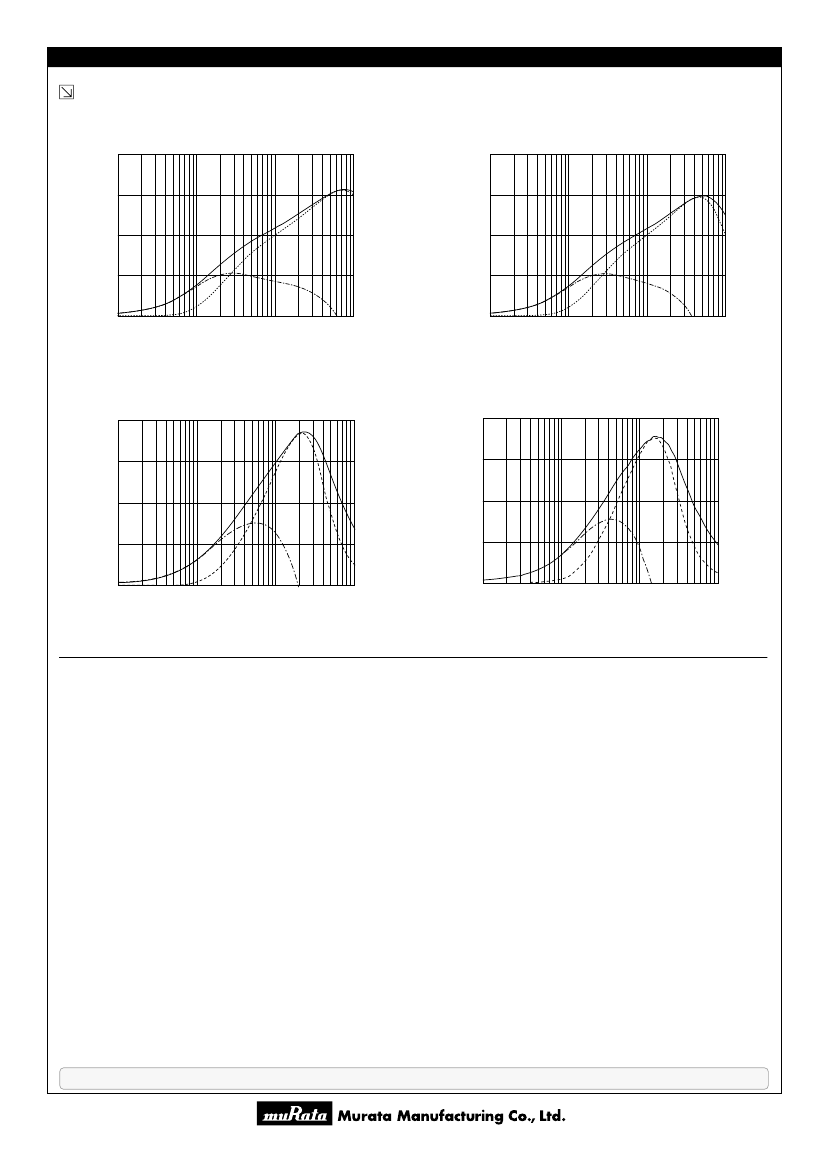

Z-f Characteristics(Typ.)
BLM15AG121SN1
200
I
Z-f Characteristics(Typ.)
BLM15AG221SN1
400
150
Impedance (Ω)
Impedance (Ω)
Z
R
300
Z
R
100
200
50
X
100
X
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
I
Z-f Characteristics (Typ.)
BLM15AG601SN1
800
Z
600
R
I
Z-f Characteristics(Typ.)
BLM15AG102SN1
1200
Z
900
Impedance (Ω)
R
600
Impedance (Ω)
400
X
200
300
X
0
1
10
Frequency (MHz)
100
1000
0
1
10
100
Frequency (MHz)
1000
I
!Caution/Notice
!Caution
(Rating)
Do not use products beyond the rated current and
rated voltage as this may create excessive heat
and deteriorate the insulation resistance .
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
o
This
data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
2005.3.4
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Inductor Type > Chip Ferrite Beads
Data Sheet
3
!
Note:
1. Export Control
For customers outside Japan
Murata products should not be used or sold for use in the development, production, stockpiling or utilization of any conventional weapons or mass-destructive
weapons (nuclear weapons, chemical or biological weapons, or missiles), or any other weapons.
For customers in Japan
For products which are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license specified by the law is required
for export.
2. Please contact our sales representatives or product engineers before using the products in this data sheet for the applications listed below, which require
especially high reliability for the prevention of defects which might directly damage to a third party's life, body or property, or when one of our products is
intended for use in applications other than those specified in this data sheet.
w
Aerospace equipment
q
Aircraft equipment
r
Power plant equipment
e
Undersea equipment
y
Transportation equipment (vehicles, trains, ships, etc.)
t
Medical equipment
i
Disaster prevention / crime prevention equipment
u
Traffic signal equipment
!0
Application of similar complexity and/or reliability requirements to the applications listed in the above
o
Data-processing equipment
3. They are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers
before ordering. If there are any questions, please contact our sales representatives or product engineers.
4. This data sheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or
transact the approval sheet for product specifications before ordering. Especially, please read rating and
!CAUTION
(for storage, operating, rating, soldering,
mounting and handling) in them to prevent smoking and/or burning, etc.
5. You are able to read a detailed specification in the website of Search Engine (http://search.murata.co.jp/) or catalog library (http://www.murata.com/catalog/)
before to require our product specification or to transact the approval sheet for product specification.
6. Please note that unless otherwise specified, we shall assume no responsibility whatsoever for any conflict or dispute that may occur in connection with the effect
of our and/or a third party's intellectual property rights and other related rights in consideration of your use of our products and/or information described or
contained in our data sheets. In this connection, no representation shall be made to the effect that any third parties are authorized to use the right mentioned
above under licenses without our consent.
7. No ozone depleting substances (ODS) under the Montreal Protocol are used in our manufacturing process.
<
<
>
>
o
This
data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
2005.3.4
http://www.murata.com/
