BLM15BD182SN1B Overview

1 FUNCTIONS, 0.3 A, FERRITE CHIP

BLM15BD182SN1B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0402
Reach Compliance Code	compli
ECCN code	EAR99
Other features	BAG
shell code	0402
structure	Chip Bead
Maximum DC resistance	1.4 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.5 mm
JESD-609 code	e3
length	1 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	1800 OHM Ω
method of packing	BULK
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.1 A
Terminal surface	Tin (Sn)
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead

Data Sheet

EMIFIL

(Inductor type)

Chip Ferrite Bead

BLM15B Series (0402 Size)

Dimensions

0.25±0.1

Equivalent Circuit

1.0±0.05

0.5±0.05

(Resistance element becomes dominant

at high frequencies.)

: Electrode

(in mm)

Packaging

Code

Packaging

180mm Paper Tape

330mm Paper Tape

Bulk(Bag)

Minimum Quantity

10000

50000

1000

Rated Value (p: packaging code)

Part Number

BLM15BD750SN1p

BLM15BD121SN1p

BLM15BD221SN1p

BLM15BD471SN1p

BLM15BD601SN1p

BLM15BD102SN1p

BLM15BD182SN1p

BLM15BB050SN1p

BLM15BB100SN1p

BLM15BB220SN1p

BLM15BB470SN1p

BLM15BB750SN1p

BLM15BB121SN1p

BLM15BB221SN1p

BLM15BC121SN1p

BLM15BC241SN1p

BLM15BA050SN1p

BLM15BA100SN1p

BLM15BA220SN1p

BLM15BA330SN1p

BLM15BA470SN1p

Number of Circuits: 1

Continued on the following page.

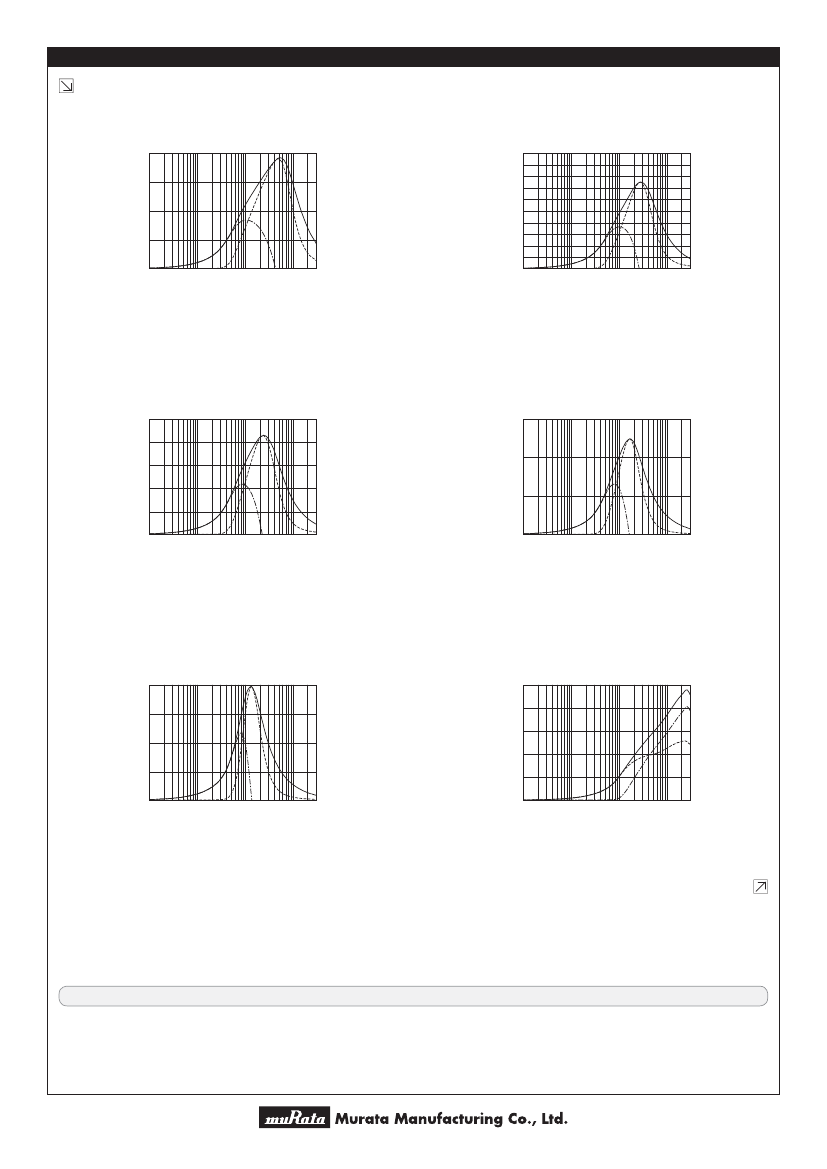

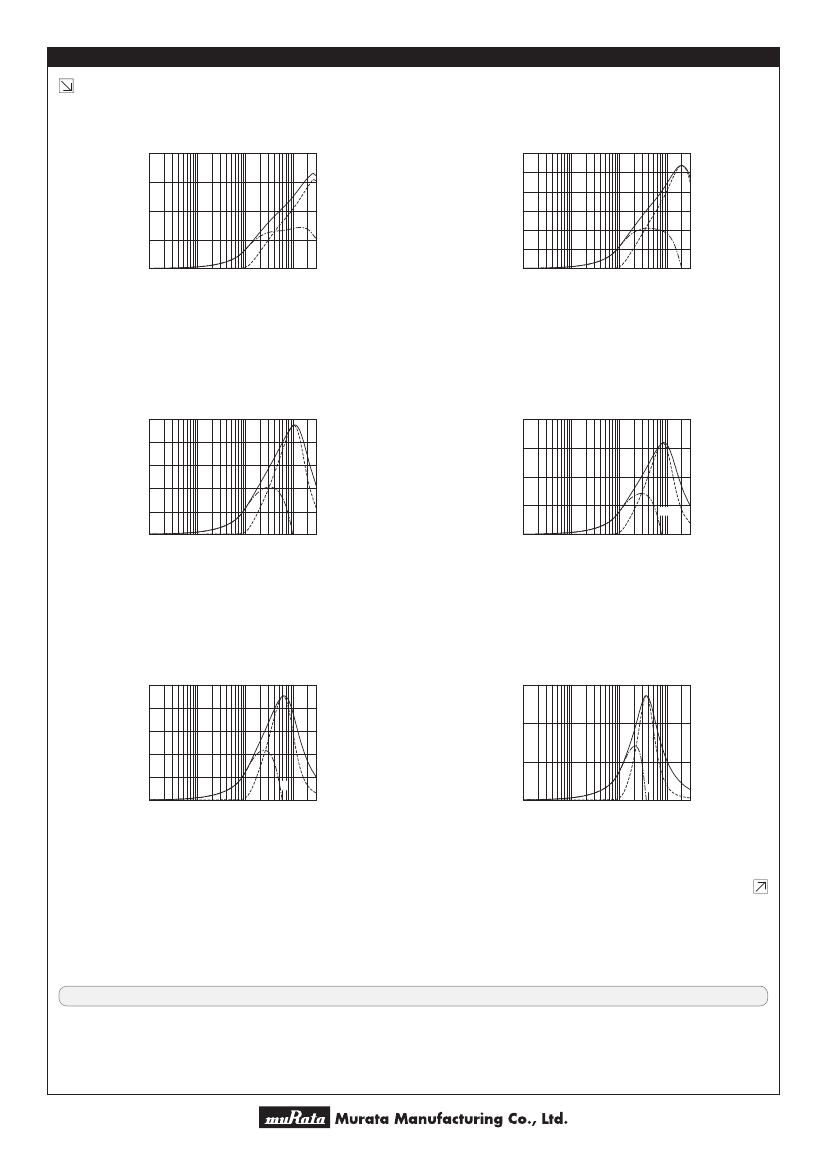

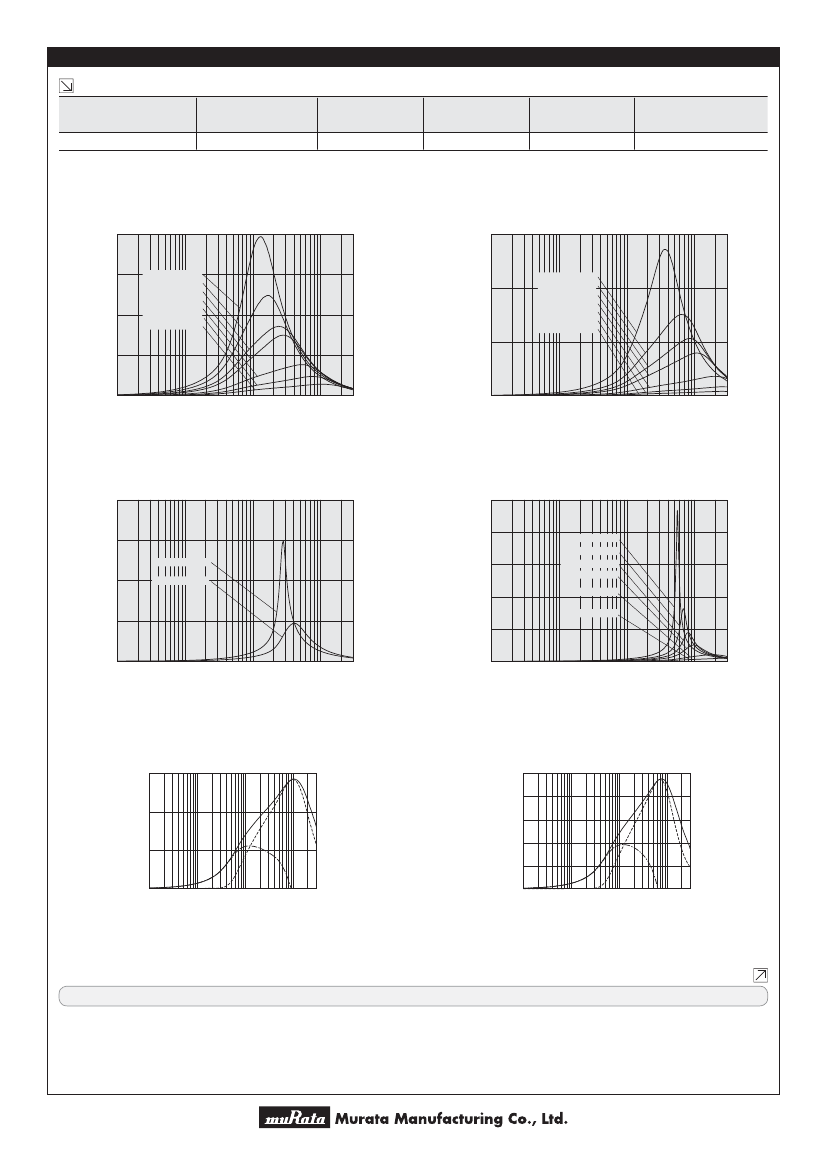

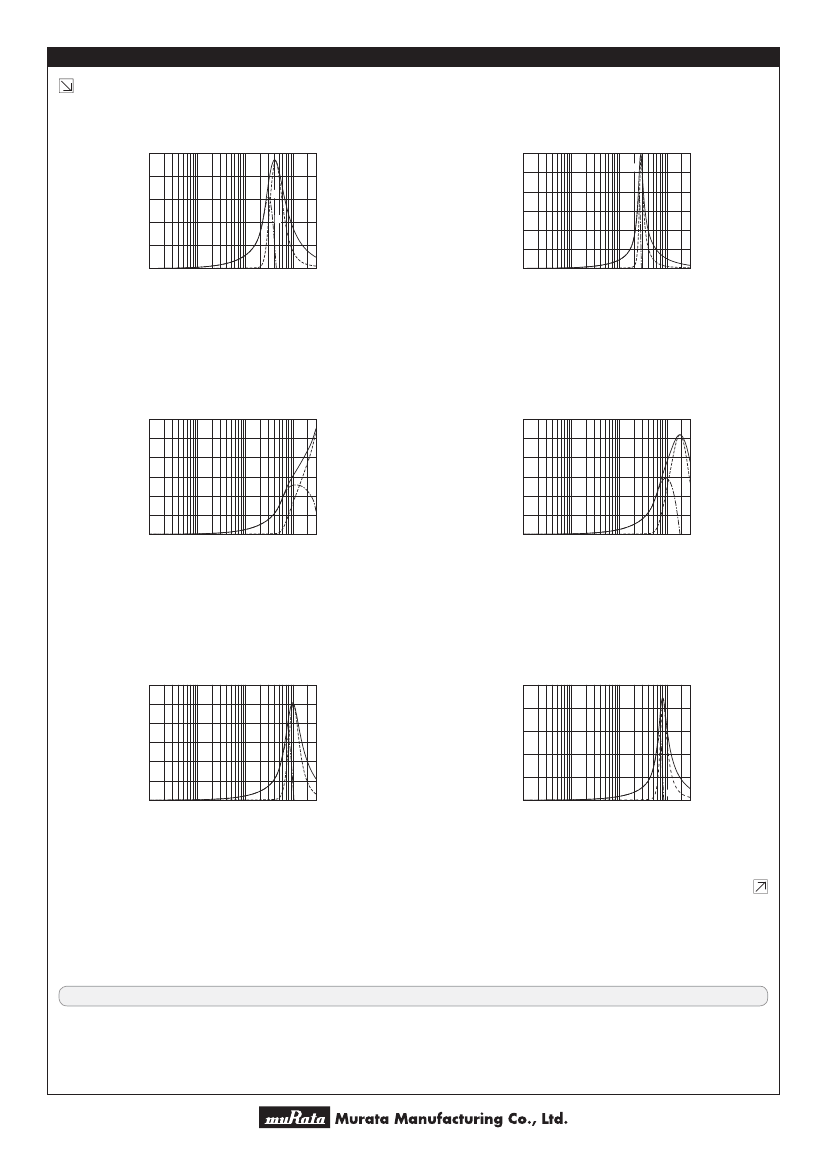

Impedance

(at 100MHz/20°C)

75ohm ±25%

120ohm ±25%

220ohm ±25%

470ohm ±25%

600ohm ±25%

1000ohm ±25%

1800ohm ±25%

5ohm ±25%

10ohm ±25%

22ohm ±25%

47ohm ±25%

75ohm ±25%

120ohm ±25%

220ohm ±25%

120ohm ±25%

240ohm ±25%

5ohm ±25%

10ohm ±25%

22ohm ±25%

33ohm ±25%

47ohm ±25%

Impedance

(at 1GHz/20°C)

Rated Current

300mA

200mA

100mA

500mA

300mA

200mA

350mA

250mA

300mA

200mA

DC Resistance

0.20ohm max.

0.30ohm max.

0.40ohm max.

0.60ohm max.

0.65ohm max.

0.90ohm max.

1.40ohm max.

0.08ohm max.

0.10ohm max.

0.20ohm max.

0.35ohm max.

0.40ohm max.

0.55ohm max.

0.80ohm max.

0.45ohm max.

0.70ohm max.

0.10ohm max.

0.20ohm max.

0.30ohm max.

0.40ohm max.

0.60ohm max.

Operating

Temperature Range

-55 to +125°C

oThis

data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.

!Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s speciﬁcations are subject to change or our products in it

may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical speciﬁcations because there is no space for detailed speciﬁcations. Therefore, please approve our product

speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

2012.7.5

http://www.murata.com/
