BLM41PG600SN1L_12

Description
FERRITE CHIP 1K OHM 1500MA 1806
CategoryThe sensor
File Size153KB,4 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet View All

BLM41PG600SN1L_12 Overview

FERRITE CHIP 1K OHM 1500MA 1806

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
1
EMIFIL
r
(Inductor type)
Chip Ferrite Bead
BLM41P Series (1806 Size)
c
Dimensions
0.7±0.3
c
Equivalent Circuit
4.5±0.2
1.6±0.2
1.6±0.2
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
c
Packaging
Code
L
K
B
Packaging
180mm Embossed Tape
330mm Embossed Tape
Bulk(Bag)
Minimum Quantity
2500
8000
1000
c
Rated Value (p: packaging code)
Part Number
BLM41PG600SN1p
BLM41PG750SN1p
BLM41PG181SN1p
BLM41PG471SN1p
BLM41PG102SN1p
Number of Circuits: 1
Continued on the following page.

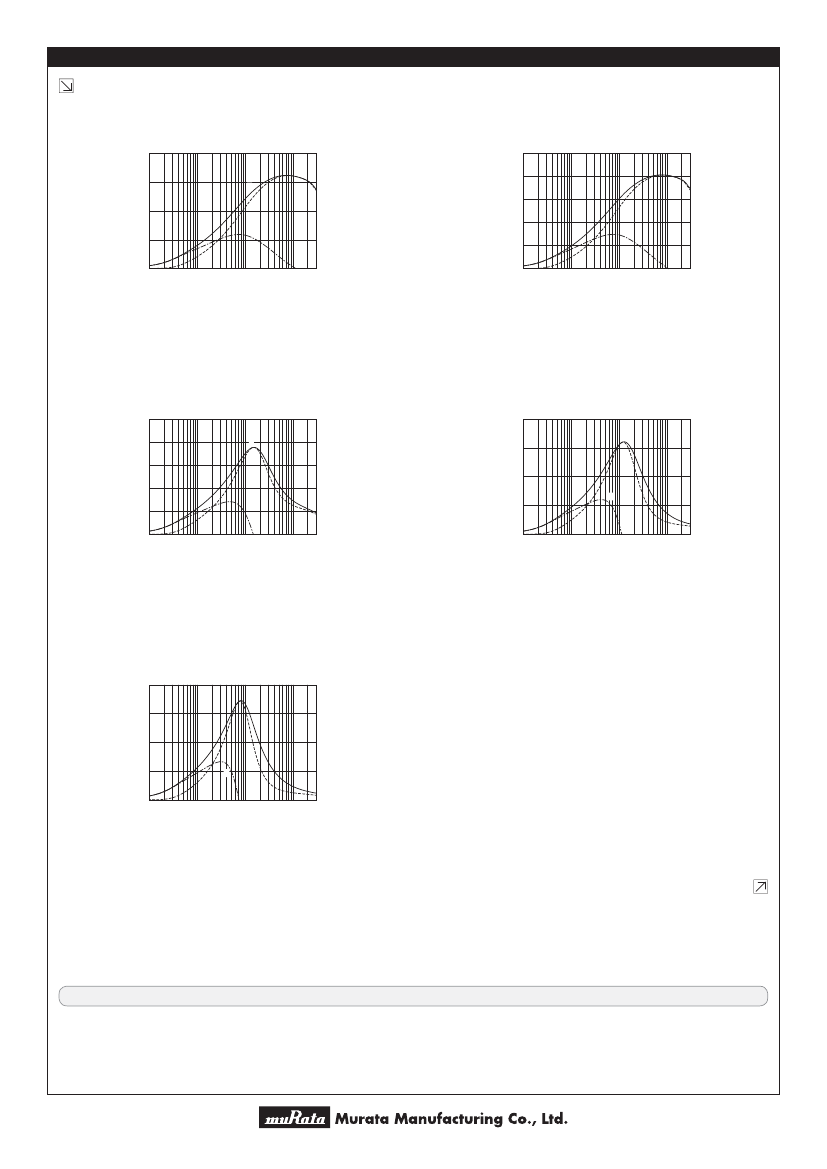

Impedance
(at 100MHz/20°C)
60ohm (Typ.)
75ohm (Typ.)
180ohm ±25%
470ohm ±25%
1000ohm ±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
Rated Current
6000mA
3500mA
3500mA
2000mA
1500mA
DC Resistance
0.009ohm max.
0.015ohm max.
0.02ohm max.
0.05ohm max.
0.09ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
oThis
data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.9.6
http://www.murata.com/
