UT69R00016WPCG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UT69R00016WPCG

UT69R00016WPCG: DescriptionRISC Microcontroller, 32-Bit, 16MHz, CMOS, CQFP132, QFP-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，64 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

UT69R00016WPCG Overview

RISC Microcontroller, 32-Bit, 16MHz, CMOS, CQFP132, QFP-132

UT69R00016WPCG Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	QFP
package instruction	QFF,
Contacts	132
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Has ADC	NO
Address bus width	20
bit size	32
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
JESD-30 code	S-CQFP-F132
length	24.13 mm
Number of terminals	132
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.794 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	QUAD
total dose	500k Rad(Si) V
width	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Standard Products

UT69R000 RadHard MicroController

Data Sheet

October 2005

Harvard architecture

- 64K data space

- 1M instruction space

High throughput engine

- 2 clocks per instruction

- 8 MIPS @ 16 MHz

- Static design

15 levels of interrupts

- 8 external user defined interrupts

- Machine error and power fail

Two on-board 16-bit interval timers

- Timer A, 10

µs/bit

- Timer B, 100

µs/bit

resolution

8-bit software controlled output discrete bus

user-accessible registers

- 16-bit or 32-bit register configurations

Supports direct memory access (DMA) system

configuration

OSCOUT

BRQ

BGNT

BUSY

BGACK

NUI1

NUI2

NUI3

STATE1

DI1

DI2

MEMORY

CONTROL

BUS

ARBITRA-

TION

PROCES-

SOR

STATUS

OSCIN

SYSCLK

Built-in 9600 baud UART

Full military operating temperature range, -55

C to

+125

C, in accordance with MIL-PRF-38535 for Class Q

or V

Typical radiation performance:

- Total dose: 1.0E6 rads(Si)

- SEL Immune >100 MeV-cm

/mg

- LET

(0.25) = 60 MeV-cm

/mg

- Saturated Cross Section (cm

) per bit, 1.2E-7

- 2.3E-11 errors/bit-day, Adams to 90%

geosynchronous heavy ion

Post-radiation AC/DC performance characteristics

guaranteed by MIL-STD-883 Method 1019 testing

at 1.0E6 rads(Si)

Latchup immune 1.5-micron CMOS, epitaxial,

double-level-metal technology

Packaging options:

- 132-lead flatpack

- 144-pin pingrid array (plus one index pin)

TIMCLK

TES

UARTOUT

UARTIN

UART

OSCILLATOR

/CLOCK

SHIFT REG

PROCESSOR

CONTROL

LOGIC

GENERAL

PURPOSE

REGISTERS

TBR

RBR

BIT REG

TEMP DEST

TEMP SRC

I/O

MUX

INSTRUCTION

DATA

IC/ICs

INSTRUCTION

ADDRESS

MCHNE1

BTERR

MCHNE2

MPROT

PFAIL

INT5

INT6

INT0-4

MRST

ADD

MUX

ACC

PIPELINE

BUS

CONTROL

OD(7:0)

OPERAND

DATA

DTACK

M/IO

R/WR

OPERAND

ADDRESS

A MUX

INTER-

RUPTS

B MUX

32-BIT ALU

ADDR

MUX

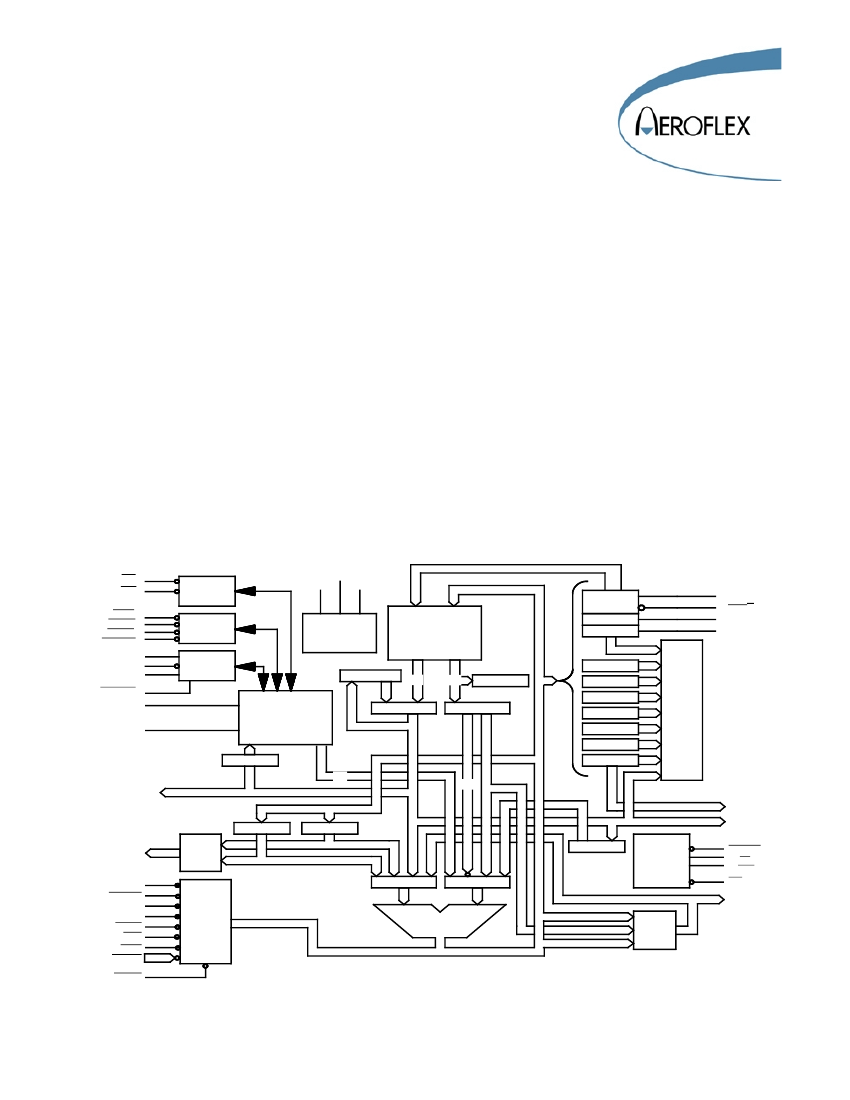

Figure 1. UT69R000 Functional Block Diagram
