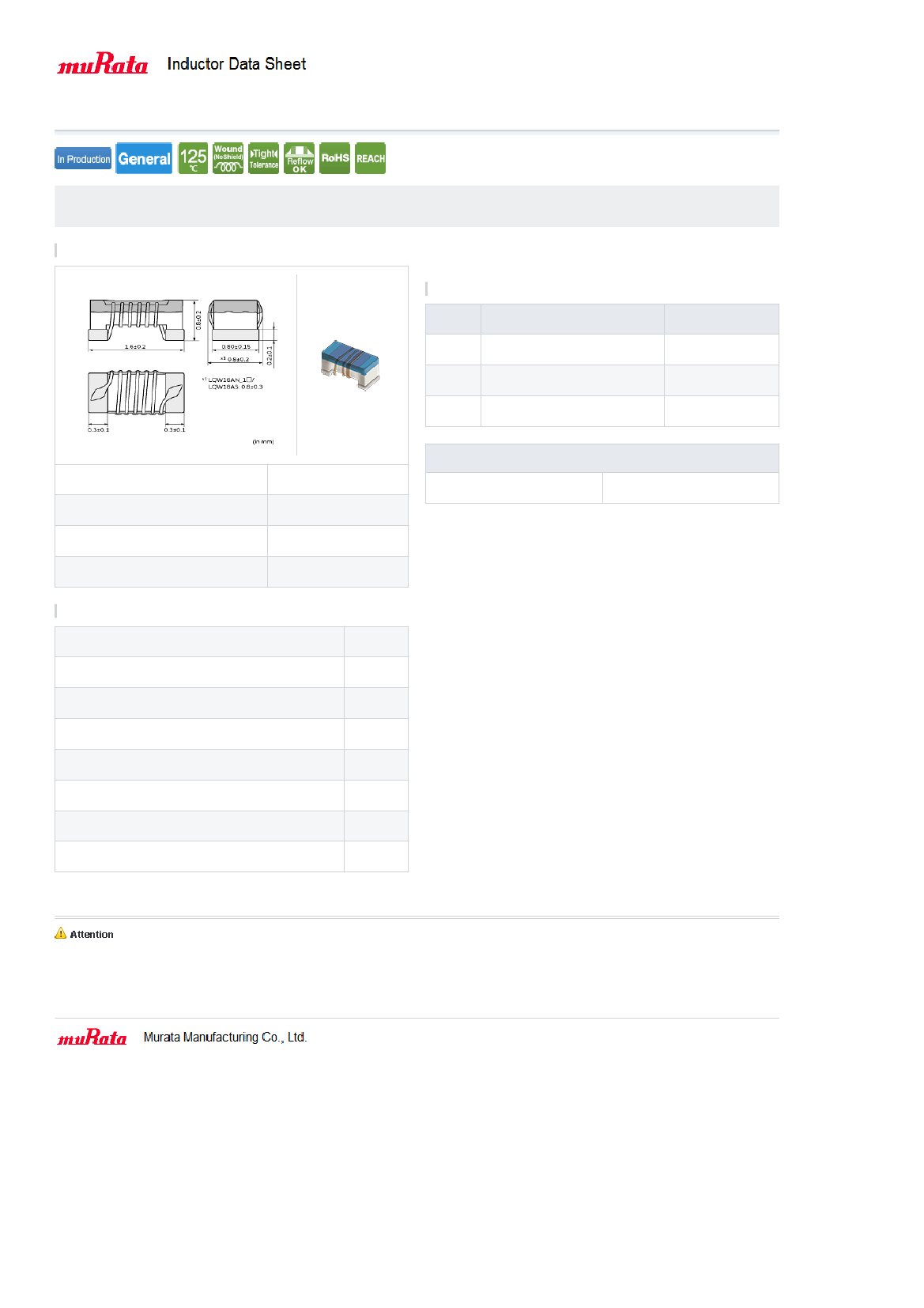

Preview

LQW18AN12NJ00B: Description1 ELEMENT, 0.012 uH, AIR-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size74KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LQW18AN12NJ00B Overview

1 ELEMENT, 0.012 uH, AIR-CORE, GENERAL PURPOSE INDUCTOR, SMD

LQW18AN12NJ00B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 0603
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	LQW18AN_00 Series Inductor 12nH ±5% 0603 (1608)
uppercase and lowercase codes	0603
structure	Wirewound Chi
core material	AIR
DC Resistance	0.13 Ω
Nominal inductance(L)	0.012 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.8 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	Bulk
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.6 A
self resonant frequency	6000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250 MHZ
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	100 MHz
Tolerance	5%

Preview

Download Datasheet

View All

LQW18AN10NG00#

# indicates a package specification code.

< List of part numbers with package codes >

LQW18AN10NG00D , LQW18AN10NG00J , LQW18AN10NG00B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

4000

10000

500

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.6 ±0.2mm

0.8 ±0.2mm

0603 (1608)

1 piece

0.003g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

10nH ±2%

100MHz

650mA

0.11Ω

35

250MHz

6000MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11
