PJ30C45CZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PJ30C45CZ

PJ30C45CZ: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN; CategoryDiscrete semiconductor diode; File Size173KB，2 Pages; ManufacturerPromax-Johnton Electronic Corporation

Download Datasheet Parametric Compare View All

PJ30C45CZ Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN

PJ30C45CZ Parametric

Parameter Name	Attribute value
Maker	Promax-Johnton Electronic Corporation
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW POWER LOSS, FREE WHEELING DIODE
application	EFFICIENCY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	275 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	85 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

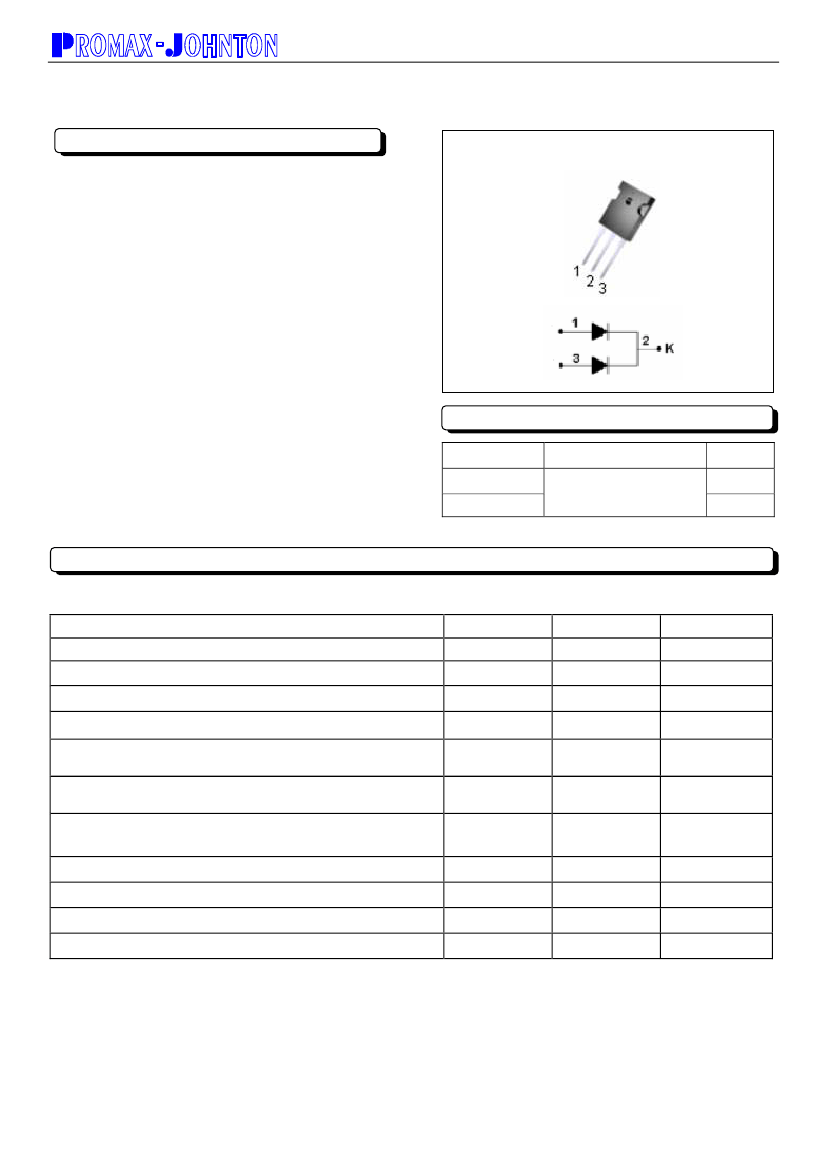

PJ30C40/45

30 AMP SCHOTTKY BARRIER RECTIFIERS

FEATURES

•

Metal of silicon rectifier, majority carrier conduction

Low power loss.high efficiency

High current capability, low V

High surge capacity

Guard ring for transient protection

High temperature soldering guaranteed:250

℃

/10

Seconds/0.375"(9.5mm) lead lengths at 5 lbs(2.3Kg)

tension

•

For use in low voltage , high frequency inverters, free

Device

wheeling, and poparity protection applications.

PJ30C40/45CZ

PJ30C40/45CI

Operating Temperature

-20℃〜+85℃

Package

TO-220

TO-220F

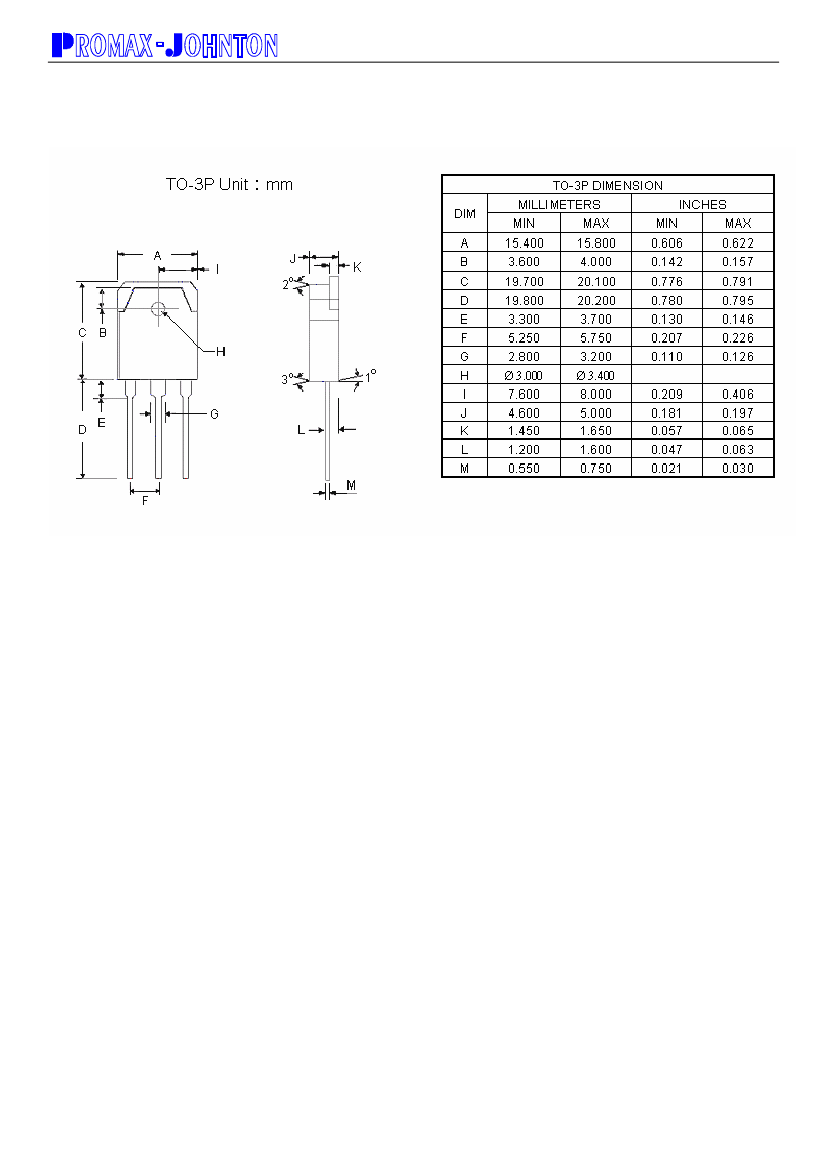

TO-3P

ORDERING INFORMATION

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

℃

ambient temperature unless otherwise specified. Single phase, half wave 60Hz, resistive or inductive load. For

capacitive load, derate current by 20%.

Parameter

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current See Fig.1

Peak Forward Surge Current, 8.3ms single half Sinewave

superimposed on rated load (JEDEC Method)

Maximum Instantanuous Forward Voltage Per Leg I

=5A,Tc=25℃

(Note 3)

Maximum Average Reverse Current at T

=25°

Rated DC Blocking Voltage per Clement T

=100℃

Typical Thermal Resistance.(Note 1)

Typical Junction Capacitance (Note 2)

Operating Temperature Range

Storage Temperature Range

NOTES: 1. Thermal Resistance Junction to CASE.

2. Measured at 1MHz and applied reverse voltage of 4.0 volts.

3. 300

µs

Pulse Width, Duty cycle 2%.

Symbol

RRM

RMS

F(AV)

FSM

STG

PJ30C40/45

40/45

31.5

275

0.55

1.0

1100

-40 to +125

-65 to +150

Units

℃

1-2

2003/05.rev.B-1

PJ30C45CZ Related Products

	PJ30C45CZ	PJ30C45CI	PJ30C40CZ	PJ30C40CI
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-220AB, TO-220F, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-220AB, TO-220F, 3 PIN
Parts packaging code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS, FREE WHEELING DIODE	LOW POWER LOSS, FREE WHEELING DIODE	LOW POWER LOSS, FREE WHEELING DIODE	LOW POWER LOSS, FREE WHEELING DIODE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V	0.55 V	0.55 V	0.55 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	275 A	275 A	275 A	275 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Maximum output current	30 A	30 A	30 A	30 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V	40 V	40 V
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	-	Promax-Johnton Electronic Corporation
