P1ZAADDA00W50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P1ZAADDA00W50

P1ZAADDA00W50: DescriptionRectifier Diode, 1 Phase, 2 Element, 985A, 5000V V(RRM), Silicon, POW-R-BRIK-3; CategoryDiscrete semiconductor diode; File Size296KB，2 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx; Environmental Compliance

Download Datasheet Parametric Compare View All

P1ZAADDA00W50 Overview

Rectifier Diode, 1 Phase, 2 Element, 985A, 5000V V(RRM), Silicon, POW-R-BRIK-3

P1ZAADDA00W50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	POWEREX
package instruction	POW-R-BRIK-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-XUFM-X3
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	985 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	5000 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

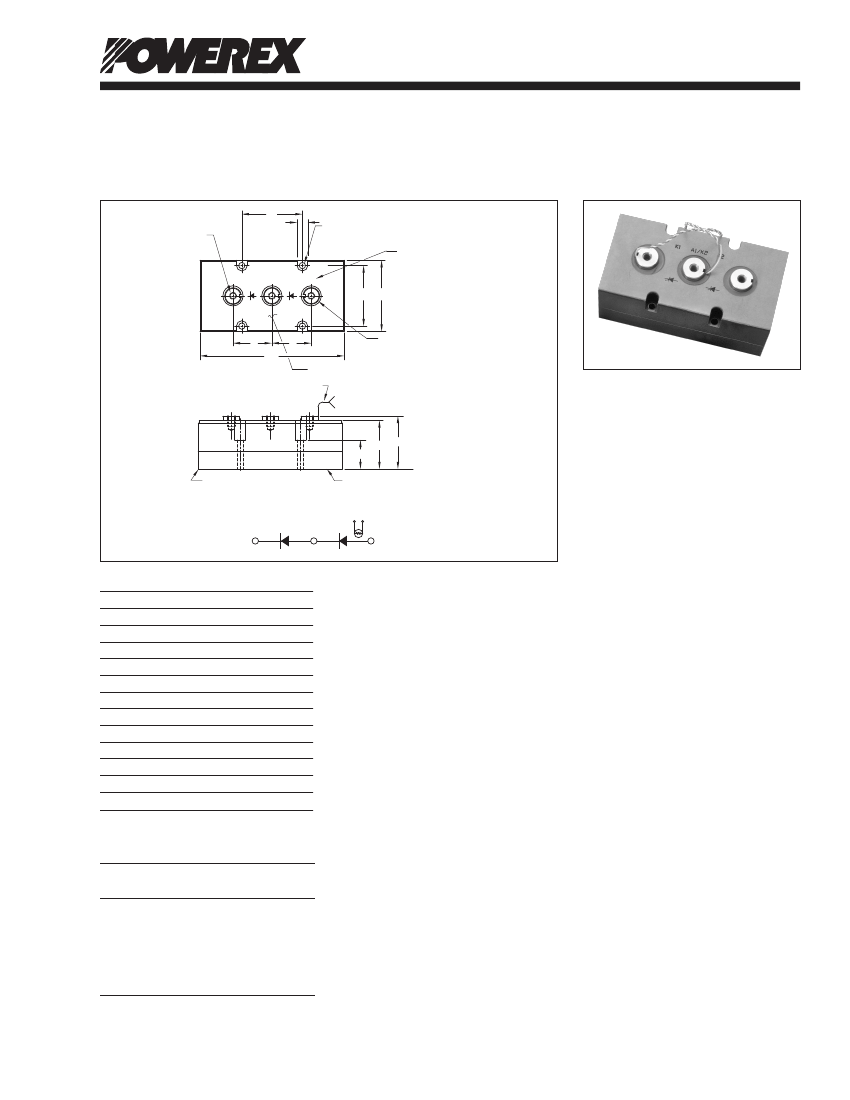

P1ZAA POW-R-BRIK

Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272

www.pwrx.com

Phase Control

Dual Diode Module

985 Amperes/Up to 5000 Volts

G (3 PLACES)

TAPPED HOLE

X .50 DEEP

(4 PLACES)

E - (4 PLACES) (FOR TYP. 1/4-20 SOCKET HD. SCR.

& BELLEVILLE SPRING WASHER)

MARKING: K1 (CATHODE),

A1/K2 (ANODE) / (CATHODE),

& A2 (ANODE) AS SHOWN

A1/K2

M (3 PLACES)

PART NUMBER MARKING LOCATION

SENSOR (WHITE) LEADS 12.5 ±0.5 IN. LONG

WITH 0.375 IN. LONG STRIPPED ENDS

CASE ANODIZED PER

MIL-A-8625, TYPE II

CIRCUIT: P1 - DUAL DIODE

A1/K2

THIS SURFACE MUST BE PROTECTED

& NOT DAMAGED

SENSOR

Outline Drawing and Circuit Diagram

Dimensions

Inches

8.50

4.33

3.15

3.78

0.328 Dia.

Millimeters

215.9

109.98

80.01

96.01

8.33 Dia.

2.34±0.03

59.4±0.8

7/16-14 UNC-2B

2.14

54.36

3.15

80.01

3.38

85.85

0.56

14.22

1.12

28.45

Ordering Information:

Select the complete thirteen digit

module part number from the

Element, Special and Voltage

Tables below.

Example: P1 ZAA DDA 00 W50 is

a Dual Diode POW-R-BRIK™

Module with 67mm elements,

Rated 985 Ampere, Standard

Thermistor and rated at 5000 Volts.

Element Code:

DDA

Description:

Powerex Dual Diode POW-R-

BRIK™ Modules are designed for

medium and high current applica-

tions. POW-R-BRIK™ Modules

feature an electrically isolated

package that simplifies system

packaging, installation and cooling.

POW-R-BRIK™ Modules utilize

Compression Bonded Encapsula-

tion (CBE) mounting and double

side cooling of the semiconductor

elements. The P1ZAA uses 67mm

diodes. Other standard circuit

configurations include SCR/SCR,

SCR/Diode and Diode/SCR.

Additional circuit configurations,

e.g. single element, common

cathode, common anode, and

special element types, e.g. fast

switch SCRs, fast recovery diodes

are available.

Features:

High Inrush Current Capability

Electrically Isolated Packaging

Internal Copper Contacting

Gold Element Contacting

Compression Bonded Elements

Internal Temperature Sensor

Two Sided Cooling

High Thermal Mass for

Increased Surge and

Overload Capability

Applications:

DC Motor Controls

Transportation Systems

Battery Supplies

Bridge Circuits

Resistance Welding Controls

Mining Power Centers

All dimensions are 0.02 unless otherwise specified.

Voltage Code:

Type

P1ZAA

Voltage

Code

W36

W42

W45

W50

Wxx

Voltage

Volts

3600

4200

4500

5000

Special Code:

00 - Standard Thermistor

XT - No Thermistor

AA-ZZ - Special customer unique

specifications.

Note: For detailed application

information on thermistor circuit

refer to Rectifier/Thyristor Module

Data Book, Page 3.

03/10 Rev. 1

P1ZAADDA00W50 Related Products

	P1ZAADDA00W50	P1ZAADDAXTW50	P1ZAADDAXTW42	A4S	P1ZAADDA00W36	P1ZAADDA00W42	P1ZAADDAXTW36	P1ZAADDAXTW45
Description	Rectifier Diode, 1 Phase, 2 Element, 985A, 5000V V(RRM), Silicon, POW-R-BRIK-3	Rectifier Diode, 1 Phase, 2 Element, 985A, 5000V V(RRM), Silicon, POW-R-BRIK-3	Rectifier Diode, 1 Phase, 2 Element, 985A, 4200V V(RRM), Silicon, POW-R-BRIK-3	Surface Mount Glass Passivated Standard Rectifier	Rectifier Diode, 1 Phase, 2 Element, 985A, 3600V V(RRM), Silicon, POW-R-BRIK-3	Rectifier Diode, 1 Phase, 2 Element, 985A, 4200V V(RRM), Silicon, POW-R-BRIK-3	Rectifier Diode, 1 Phase, 2 Element, 985A, 3600V V(RRM), Silicon, POW-R-BRIK-3	Rectifier Diode, 1 Phase, 2 Element, 985A, 4500V V(RRM), Silicon, POW-R-BRIK-3
Maker	POWEREX	-	POWEREX	-	POWEREX	POWEREX	POWEREX	POWEREX
package instruction	POW-R-BRIK-3	POW-R-BRIK-3	R-XUFM-X3	-	POW-R-BRIK-3	POW-R-BRIK-3	R-XUFM-X3	POW-R-BRIK-3
Contacts	3	3	3	-	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	-	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	-	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	-	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Number of components	2	2	2	-	2	2	2	2
Phase	1	1	1	-	1	1	1	1
Number of terminals	3	3	3	-	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	985 A	985 A	985 A	-	985 A	985 A	985 A	985 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	5000 V	5000 V	4200 V	-	3600 V	4200 V	3600 V	4500 V
surface mount	NO	NO	NO	-	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	-	UPPER	UPPER	UPPER	UPPER
