NFM21CC222R1H3B datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> NFM21CC222R1H3B

NFM21CC222R1H3B: DescriptionFILTER HIGH FREQ 100PF 0805; CategoryAnalog mixed-signal IC filter; File Size97KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance; Related ProductsFound2parts with similar functions to NFM21CC222R1H3B

Download Datasheet Parametric Compare View All

NFM21CC222R1H3B Overview

FILTER HIGH FREQ 100PF 0805

NFM21CC222R1H3B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	C-TYPE CIRCUIT
capacitance	2200 µF
filter type	FEED THROUGH CAPACITOR
high	0.85 mm
Minimum insulation resistance	1000 MΩ
JESD-609 code	e3
length	2 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	1 A
Rated voltage	50 V
Terminal surface	Tin (Sn)
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

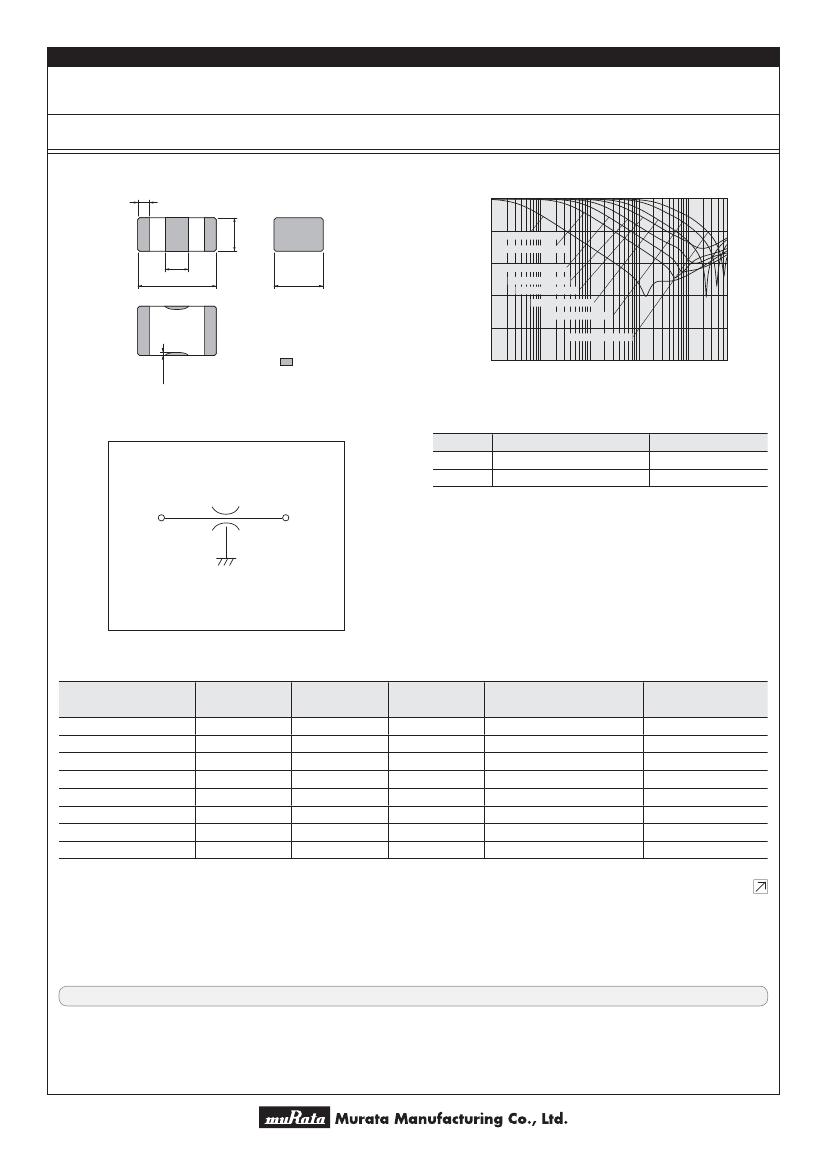

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Capacitor type) > Single Circuit Type for Signal Lines

Data Sheet

EMIFIL

(Capacitor type)

Single Circuit Type for Signal Lines

NFM21C Series (0805 Size)

Dimensions

0.3±0.2

Insertion Loss Characteristics (Main Items)

(50Ω - 50Ω)

0.85±0.1

Insertion Loss (dB)

NFM21CC223R1H3

NFM21CC222R1H3

0.6±0.2

2.0±0.2

(2)

1.25±0.1

NFM21CC102R1H3

NFM21CC471R1H3

NFM21CC221R1H3

NFM21CC101U1H3

NFM21CC470U1H3

(1)

(3)

NFM21CC220U1H3

100

0.1

0.2+0.2

–0.1

(2)

: Electrode

(in mm)

100

Frequency (MHz)

1000

6000

Equivalent Circuit

Packaging

Code

Packaging

180mm Paper Tape

Bulk(Bag)

Minimum Quantity

4000

500

Input (Output)

(1)

Output (Input)

(3)

No polarity.

GND

(2)

Rated Value (p: packaging code)

Part Number

NFM21CC220U1H3p

NFM21CC470U1H3p

NFM21CC101U1H3p

NFM21CC221R1H3p

NFM21CC471R1H3p

NFM21CC102R1H3p

NFM21CC222R1H3p

NFM21CC223R1H3p

Number of Circuit: 1

Continued on the following page.

Capacitance

22pF ±20%

47pF ±20%

100pF ±20%

220pF ±20%

470pF ±20%

1000pF ±20%

2200pF ±20%

22000pF ±20%

Rated Current

700mA

1000mA

2000mA

Rated Voltage

50Vdc

Insulation Resistance (min.)

1000M ohm

Operating

Temperature Range

-55 to +125°C

oThis

data sheet is applied for CHIP EMIFILr used for General Electronics equipment for your design.

!Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s speciﬁcations are subject to change or our products in it

may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical speciﬁcations because there is no space for detailed speciﬁcations. Therefore, please approve our product

speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

2012.7.5

http://www.murata.com/

NFM21CC222R1H3B Related Products

	NFM21CC222R1H3B	NFM21CC101U1H3B	NFM21CC102R1H3B	NFM21CC220U1H3B	NFM21CC221R1H3B	NFM21CC223R1H3B	NFM21CC470U1H3B	NFM21CC471R1H3B
Description	FILTER HIGH FREQ 100PF 0805	FILTER HIGH FREQ 100PF 0805	FILTER HIGH FREQ 100PF 0805	FILTER HIGH FREQ 100PF 0805	FILTER HIGH FREQ 100PF 0805	1 FUNCTIONS, 50 V, 2 A, FEED THROUGH CAPACITOR	FILTER HIGH FREQ 100PF 0805	FILTER HIGH FREQ 100PF 0805
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	C-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT
capacitance	2200 µF	100 µF	1000 µF	22 µF	220 µF	22000 µF	47 µF	470 µF
filter type	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR
high	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm
Minimum insulation resistance	1000 MΩ	1000 MΩ	1000 MΩ	1000 MΩ	1000 MΩ	1000 MΩ	1000 MΩ	1000 MΩ
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	1 A	0.7 A	1 A	0.7 A	0.7 A	2 A	0.7 A	1 A
Rated voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
width	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Maker	-	Murata	-	Murata	Murata	Murata	Murata	Murata

Recommended Resources

Multifunctional high-precision sample and hold circuit diagram

Thyristor cut-off delay circuit 3

One of the lighting delay circuits using single-junction transistors

Power connector suitable for beginners

LA4508 audio IC amplifier circuit diagram

Color TV remote control 16

NFM21CC222R1H3B Similar Products

Part Number	Manufacturer	Description
NFM21CC222R1H3	Murata(村田)	1 FUNCTIONS, 50 V, 2 A, FEED THROUGH CAPACITOR
NFM21CC222R1H3K	Murata(村田)	Feed Through Capacitor, 1 Function(s), 50V, 0.3A
